Tony’s Airflow-First Rule for PTAC System Design
Most homeowners think the PTAC unit does all the work — the shiny white box in the room that blows hot or cold air.
Tony shakes his head every time.
“The sleeve is 50% of the system. If it can’t breathe, the whole PTAC suffocates.” — Tony
Airflow isn’t optional. Static pressure isn’t a suggestion.
And the sleeve — that boring-looking metal box that slides into the wall — is the PTAC’s only airway.
Cheap out on the sleeve, and you choke the unit, burn out the compressor, skyrocket the electric bill, and end up paying way more than the $90 you thought you saved.

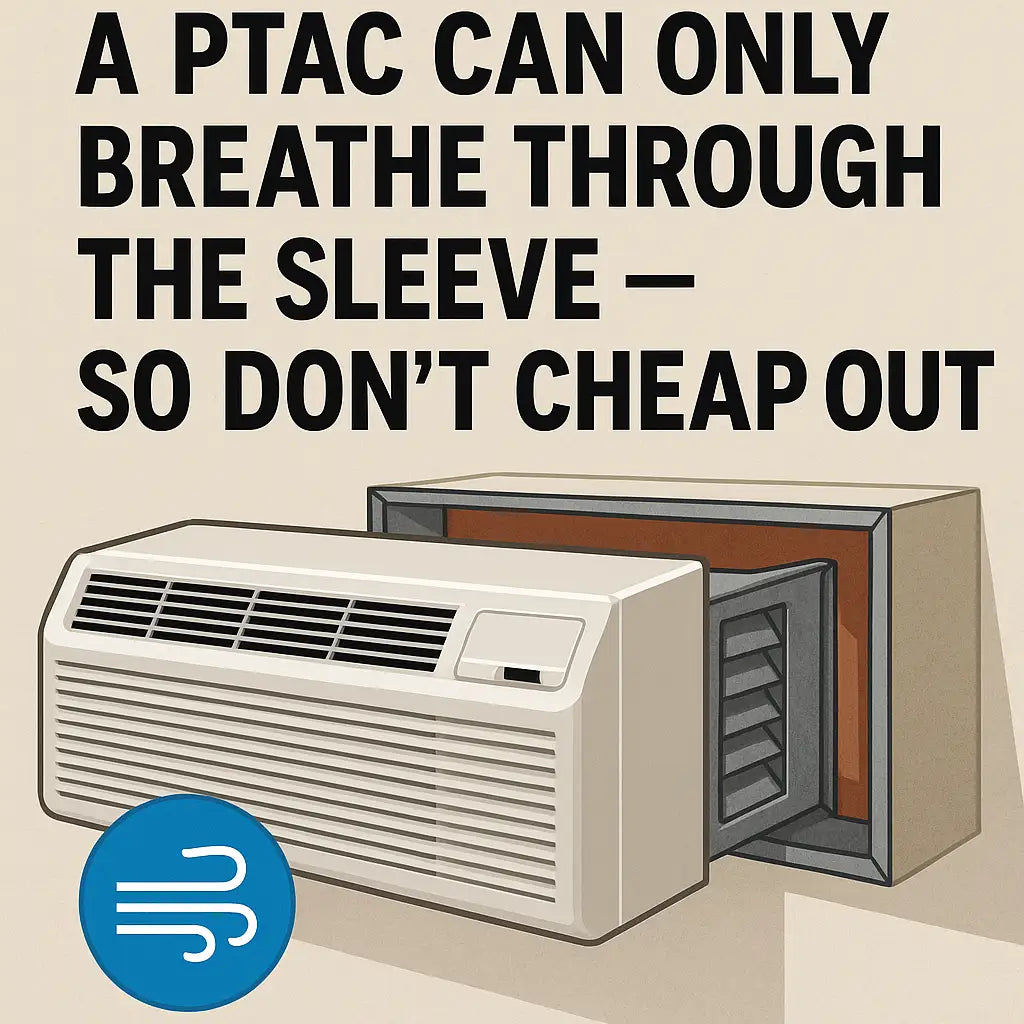

In this guide, Tony breaks down exactly why a PTAC can only breathe through the sleeve, how airflow affects performance, and why homeowners, installers, hotel owners, and property managers should never assume “all sleeves are the same.”
🫁 Why the Sleeve Is the PTAC’s Lungs
PTACs are through-the-wall machines, not indoor units connected to ducts. They don’t pull outdoor air from anywhere else — only through the sleeve opening.
That sleeve:
-
Controls outdoor airflow
-
Channels exhaust heat
-
Protects the condenser coil
-
Maintains static pressure
-
Provides water drainage
-
Blocks wind intrusion
-
Reduces noise
-
Supports insulation
Everything the PTAC does — cooling, heating, dehumidifying, recirculating — starts and ends with the airflow path created by the sleeve.
If that path is blocked, restricted, cheap, thin, or bent?
The PTAC suffocates.
🌬️ What Happens When a Sleeve Restricts Airflow
Tony sees the same problems over and over — and 90% of them come from bad sleeves.
Here’s what restricted airflow causes:
1. Reduced Cooling Capacity
A PTAC needs outdoor airflow to remove heat from the refrigerant. When airflow is blocked:
-
The condenser coil overheats
-
Refrigerant pressure spikes
-
Cooling capacity drops 20–50%
-
Rooms never reach setpoint
This is a performance-killer.
2. Higher Energy Bills
Units run longer, cycles extend, and compressors stay in high-pressure mode.
This can increase energy usage by 30–60%.
3. Compressor Overheating
A strangled condenser coil forces the compressor to work overtime.
That kills the compressor — the most expensive part of the system.
4. Coil Freeze-Ups
Low airflow + high moisture = coil icing. And then water all over your wall.
5. Noise Complaints
Restricted airflow = turbulent airflow.
Turbulence = noise. Lots of it.
6. Heat Kit Overload
If the PTAC can’t exhaust heat correctly, the electric heat kit overheats, trips thermal limits, and eventually fails.
7. Premature Unit Death
Tony estimates that 40–50% of PTAC failures come from bad sleeves alone — not the units.
📦 Not All Sleeves Are Equal — And Tony Hates 3 Types
Tony has installed thousands of PTACs. He can tell a bad sleeve in 10 seconds.
Here are the ones he refuses to use:
🚫 1. Thin-Gauge Sleeves
Cheap sleeves use thin metal or flimsy plastic that bends during installation.
When the sleeve bends, airflow paths shift and choke the condenser pathway.
🚫 2. Poorly Insulated Sleeves
These cause:
-
condensation
-
mold
-
heat gain
-
drafts
-
reduced efficiency
The U.S. Department of Energy warns about the impact of poor insulation on HVAC efficiency:
https://www.energy.gov/energysaver/weatherize/insulation
🚫 3. Sleeves With Bad Louvers
Some sleeves have louvers angled incorrectly, reducing outdoor airflow by up to 40%.
Tony’s rule:
“If the louvers look decorative, they’re useless.”
🔧 What Tony Looks for in a Quality Sleeve
Tony uses a simple 5-point checklist to judge whether a sleeve is worthy of going into a wall.
🧱 1. Thick-Gauge Steel (Not Plastic)
Good metal sleeves:
-
Hold airflow shape
-
Don’t flex
-
Don’t vibrate
-
Support proper pressure
Cheap sleeves fold like a soda can.
🌟 2. Proper Louver Angle & Spacing
Air should flow through the louvers freely, not bounce against them.
Tony wants:
-
Angled downward for rain shedding
-
Angled outward for optimal airflow
-
Wide spacing for exhaust
-
Proper directional airflow
🧊 3. Good Insulation
A sleeve with no insulation allows heat to enter the room — or worse, water to condense.
High-quality sleeves use rigid foam insulation or thermal panels similar to what’s described by ENERGY STAR window guidelines
💧 4. Proper Drainage Channels
Water will enter the sleeve.
Good sleeves drain it outside.
Bad sleeves drain it into your drywall.
Tony checks every drain hole and slope angle before installing.
📏 5. Correct Depth for the PTAC Model
Every PTAC fits a certain depth.
Too shallow? The unit sticks out.
Too deep? The condenser airflow gets trapped.
The sleeve is not universal — no matter what budget installers tell you.
🌪️ Tony’s Rule: “Airflow > Equipment”
Tony always sizes airflow BEFORE selecting the PTAC model.
Here’s why:
A PTAC is designed to produce full tonnage only when the outdoor coil has unrestricted airflow.
For example:
A 15,000 BTU Amana PTAC
(https://thefurnaceoutlet.com/products/amana-j-series-model-15-000-btu-ptac-unit-with-3-5-kw-electric-heat-ptc153j35axx)
can perform like a 9,000 BTU unit if paired with a bad sleeve.
PTACs need:
-
proper intake
-
proper exhaust
-
low external static pressure
-
adequate free air area
You’ll find airflow and static pressure requirements in HVAC engineering references
If the sleeve restricts that airflow?
The PTAC never reaches its rated capacity.
🧰 Why the Sleeve Is Part of the System — Not an Accessory
Tony hates when customers treat the sleeve as “just an add-on.”
The sleeve is:
-
the ductwork
-
the plenum
-
the exterior vent
-
the drain pan
-
the thermal barrier
-
the airflow manager
When hotels or property owners reuse old sleeves from 15 years ago, Tony knows the system will fail. Those old sleeves:
-
rust
-
warp
-
leak
-
choke airflow
-
trap water
-
grow mold
-
no longer meet insulation standards
Sleeves are not lifetime components.
🔥 Real-World Example: Tony Fixes a Hotel’s PTAC Disaster
A hotel swapped out 48 old PTAC units for new Amana J-Series models.
Great units.
Terrible decision:
They kept the original 20-year-old sleeves.
Symptoms Tony saw:
-
Units running hot
-
Breakers tripping
-
Cooling complaints
-
Doors sweating
-
Mold around vents
-
Sleeves full of rust flakes
Tony pulled one sleeve and showed the owner:
-
crushed corners
-
blocked exhaust channels
-
missing insulation
-
bent louvers
-
a mouse nest
He replaced all sleeves with modern insulated versions.
Result?
-
Cooling improved immediately
-
Noise dropped 30%
-
Mold disappeared
-
Runtime decreased
-
Bills dropped
-
Customers stopped complaining
Sleeve replacement saved the hotel over $18,000/year.
🧊 How Cheap Sleeves Cause Coil Freeze-Ups
Restricted airflow → low evaporator temperature → ice buildup → airflow drops even more.
This cycle continues until:
-
The coil becomes a block of ice
-
Water spills inside the room
-
The compressor overheats
-
The unit dies
Tony says:
“Frozen coils don’t just happen.
They are designed that way — by someone cheap.”
💨 Static Pressure — The Silent Killer of PTACs
PTACs are not high-static machines. They cannot force air through a restriction.
Most PTACs operate between:
-
0.1–0.2 inches of water column (in. w.c.) of static pressure
-
Any sleeve that increases restriction beyond that? Dead unit.
ASHRAE covers static pressure fundamentals here:
https://www.ashrae.org/technical-resources/ashrae-handbook
Cheap or old sleeves create:
-
backpressure
-
recirculation
-
warm air ingestion
-
reduced heat rejection
All of these shorten the life of the compressor.
🧱 Poor Sleeve Fit Causes Thermal Recirculation (Tony’s Biggest Pet Peeve)
Thermal recirculation = hot condenser air getting sucked back into the intake.
This happens when:
-
sleeve louvers are too close
-
sleeve is the wrong depth
-
insulation is missing
-
sleeve is bent inward
When hot discharge air gets re-ingested, the PTAC:
-
loses efficiency
-
overheats
-
increases pressure
-
reduces cooling capacity
Tony calls poor sleeve fit:
“The silent 30% loss that no one notices until the energy bill arrives.”
🧰 Tony’s PTAC Sleeve Inspection Checklist (Use This Before Buying Anything)
Before installing a PTAC, Tony inspects:
1. Sleeve depth
Must match manufacturer specs.
2. Louver design
Should promote directional airflow, not block it.
3. Insulation
Rigid, dry, continuous, not peeling.
4. Drainage
Not rusty, blocked, or angled backward.
5. Static pressure
Free airflow — Tony tests with a simple manometer.
6. Structural integrity
No bends, dents, rust, or crushed corners.
7. Seal to wall
Should be airtight, waterproof, and foam-sealed.
8. Weather bar & exterior grill
Must be matched to the PTAC model.
A good sleeve should last 10–15 years.
A bad one shouldn’t have been installed in the first place.
🏗️ Installation Matters Just as Much as Sleeve Quality
Tony has replaced perfect sleeves that were installed terribly:
-
installed without pitch for drainage
-
installed out of square
-
gaps around edges
-
missing insulation
-
flush instead of protruding
-
incorrect caulking
-
upside-down louvers (yes, really)
A premium sleeve installed wrong performs worse than a budget sleeve installed right.
🔥 When Tony ALWAYS Replaces the Sleeve
Tony never reuses a sleeve when:
-
humidity is high
-
insulation is missing
-
a heat kit over 3.5 kW is installed
-
the unit is 15k BTU
-
the sleeve is older than 10 years
-
any rust is visible
-
airflow tests show more than 0.2 in. w.c. resistance
-
static pressure increases when the grill is installed
If you ignore these rules, you’re paying for a great PTAC to operate like a cheap one.
🧩 The PTAC System Triangle — Tony’s Design Philosophy
Tony sees every PTAC setup as a triangle:
Unit ↔ Sleeve ↔ Room
If ANY of these three is wrong, the system fails.
For good airflow:
-
The unit must match the room size
-
The sleeve must match the unit type
-
The grill must match the sleeve
-
The room load must match the BTU capacity
Replace ONE part and ignore the sleeve?
You’ve mismatched the triangle.
🏁 Final Word — Don’t Cheap Out on the Sleeve
Your PTAC breathes through one hole.
One airflow path.
One place to dump heat.
One place to pull outside air.
If you choke that path:
-
The PTAC fails
-
Comfort fails
-
Efficiency fails
-
Heating fails
-
Cooling fails
-
Drainage fails
The sleeve is not optional.
It is part of the system.
Tony’s final say:
“If you wouldn’t run a marathon with a pinched airway,
don’t ask your PTAC to do it either.”
