Window & Wall AC Installation Guide: Interior Prep Steps for a Faster, Safer Setup

Key Takeaways

• Clear Space: 3–4 ft open area to work safely.


• Protect Surfaces: Cover floors and furniture.


• Measure Opening: Match width/height to unit specs.


• Check Outlet: 120V grounded and nearby.


• Seal Gaps: Use continuous foam/weatherstrip.


• Exterior Clearance: 12–20 in. open for airflow.

Why Interior Prep Makes Install Day Easy

Installing a window or through-the-wall (TTW) AC is mostly about planning. The smoother you set up the room, the faster and safer the unit goes in. This guide focuses on interior prep steps—the part homeowners control. You’ll learn how to clear the work zone, protect finishes, measure the opening, check the outlet, and seal the unit so it cools well and runs quietly. Recent trends—like compact R-32 window and TTW units with better efficiency—make proper sealing and airflow even more important for comfort and energy savings. If you’re still choosing equipment, compare Window ACs

The Common Problem: Mess, Misfits, and Tripped Breakers

Most installation headaches aren’t technical—they’re simple prep misses. A cluttered room turns lifting the unit into a balancing act. An unmeasured opening forces last-minute shims, leaving air gaps that leak cool air and pull in humidity. An overloaded circuit trips the breaker right when you start testing. These issues waste time and can shorten the life of the AC. The good news: a short checklist fixes them. Clear a safe path from the door to the opening. Measure the opening before you unbox the unit. Verify the outlet is grounded and close enough for the factory cord. Have foam weatherstrip ready so you’re not scrambling later. If you need a refresher on how different room units compare, see our Room AC collection,

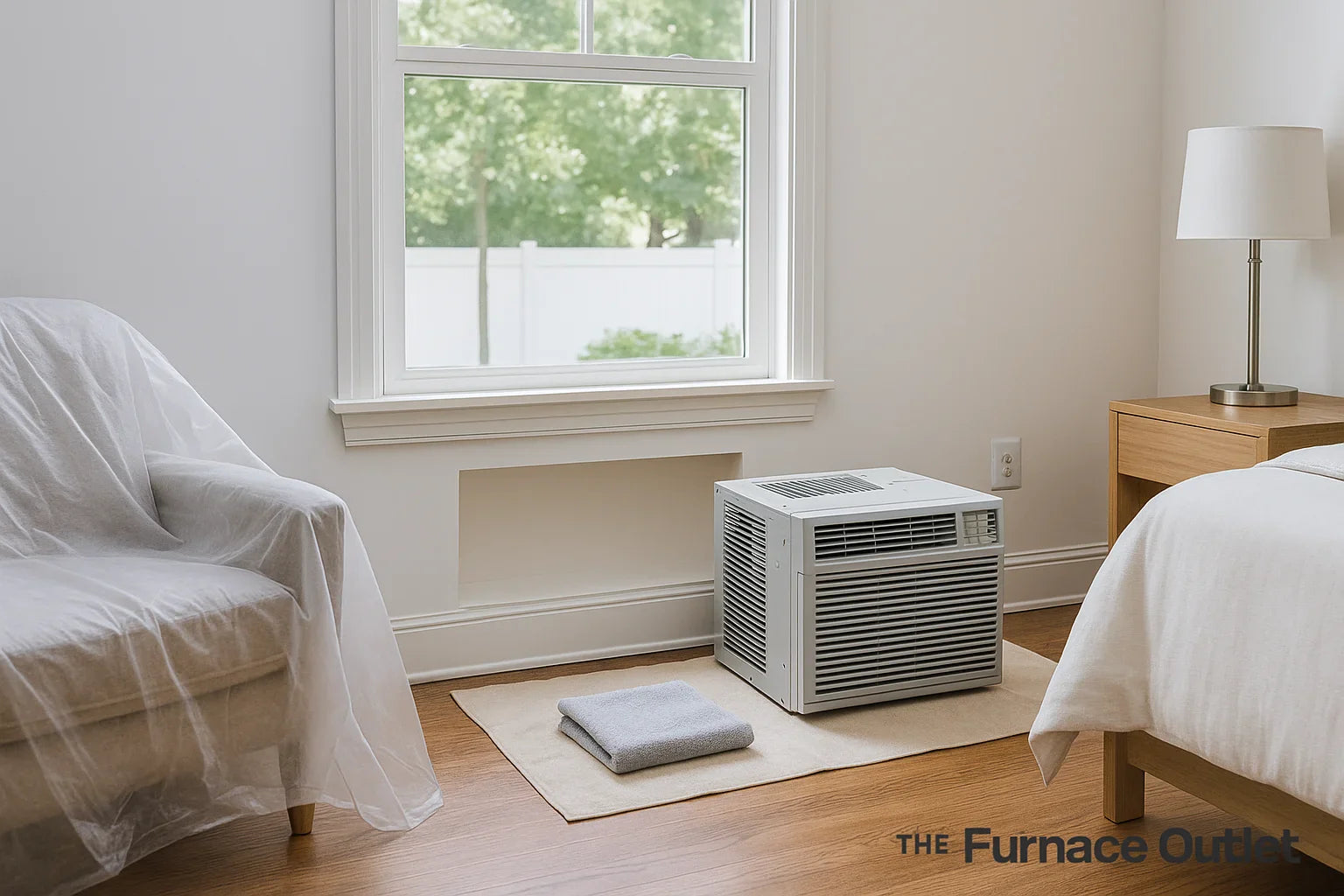

Clear the Work Area Safely

Start by opening up space around the window or wall cutout. Move lamps, side tables, plants, and wall decor. Take down curtains, blinds, and screens. Aim for 3–4 feet of open space so two people can lift and position the unit without twisting. If there’s a storm window, remove it now to get a clean opening and better airflow. Create a level staging spot for the AC near the opening so you don’t carry it far. Keep the floor dry, coil cords out of walkways, and wear gloves for better grip. If you’re installing a TTW model with a sleeve, set the sleeve box within arm’s reach. Unsure which indoor style you want? Compare Through-the-Wall Units (R-32)based on noise, placement, and building rules. When everything is clear and steady, you’re ready to protect finishes.

Protect Furniture, Floors, and Finishes

Lift-in work can scuff floors and kick up dust. Cover nearby furniture with cloth or plastic and tape it so it doesn’t slide. Place a soft pad or folded towel where you’ll set the unit to prevent scratches and absorb vibration. Use a drop cloth under the window to catch debris from drilling or tightening brackets. Move fragile items—picture frames, glass decor, electronics—out of the room. If you’re in a tight space like a bedroom, lean the mattress up against a wall and cover it. Keep a small trash bag handy for packing materials so you don’t step on staples or screws. For mounting aids, gaskets, brackets, or sleeves, check Accessories..

Measure and Prep the Window or Wall Opening

Accuracy here decides fit, seal, and sound. Measure width and height of the usable opening (not just the frame). Compare to the unit’s “min/max” install dimensions in the manual. For window units, check that the sash is sturdy and can clamp to mounting rails without flexing. Reinforce with wood blocks if the sill is soft or out of level. For TTW units, the sleeve must sit square and flush; shim the sleeve so the unit has a slight outward pitch for drainage. Clean the sill or opening to remove dust and chips so weatherstrip sticks well. Dry-fit the unit (or sleeve) before peeling adhesive. If you’re shopping higher-efficiency models, see R-32 Through-the-Wall

Plan Electrical Access and Load Capacity

Most room ACs use 120V and draw enough current that they deserve a dedicated circuit. Check the nameplate for amperage and plug type. Use a grounded, nearby outlet; avoid extension cords unless the manual explicitly allows a specific type and length. If lights dim or a breaker has tripped before, the circuit might already be near its limit. In older homes, consider having an electrician confirm the circuit capacity and outlet condition. Keep the cord routed where it won’t be pinched by furniture or a closing door. If you’re adding more cooling later (or upgrading to heat pump style), compare R-32 Packaged Terminal Heat Pumps.

Seal, Insulate, and Weatherproof the Opening

A tight seal boosts comfort and cuts energy waste. Install foam weatherstripping or the manufacturer’s side panels so there are no daylight gaps. For TTW sleeves, use the supplied gasket and sealant where the sleeve meets the wall. Keep a slight outward tilt so condensate drains outside. Around the interior trim, press in foam backer or low-expansion foam only where the manual allows—too much foam can warp frames. Finish with a neat bead of caulk at the interior trim/sill line. Sealing also lowers noise because less outside air sneaks in. If you’re choosing new equipment, check R-32 Through-the-Wal

Venting, Drainage, and Noise: Final Pre-Install Checklist

Room ACs reject heat outdoors and need space to breathe. Keep 12–20 inches of clear air on the exterior side (check your manual for the exact number). Trim plants and make sure an awning or fence isn’t blocking airflow. Confirm the unit pitches slightly outward so water drains outside, not onto the sill. Inside, level the chassis front-to-back so the fan runs quietly. Before lifting the unit for the final set, run this quick list:

1. Path clear and floor dry

2. Furniture covered; drop cloth down

3. Opening measured and cleaned

4. Sleeve dry-fit (for TTW) and shimmed

5. Weatherstrip cut and ready

6. Outlet verified and cord route safe

7. Exterior space confirmed
   If you realize the room layout makes a window unit impractical, compare Through-the-Wall ACs

Frequently Asked Questions

Do I really need a dedicated circuit? Often yes. Many room ACs draw enough current that sharing with lights or a vacuum can trip a breaker.
How much outward tilt is right? Usually a small tilt (about ¼ inch) is enough. Follow your manual’s spec.
Can I use an extension cord? Only if the manufacturer allows a specific heavy-duty type and length. Otherwise, use a nearby grounded outlet.
What if my window opening is slightly too wide? Use the supplied side panels and proper weatherstrip. For big gaps, a TTW sleeve may be better.
How do I cut noise? Seal gaps, keep exterior clearance open, and make sure the unit is level and not vibrating on a hard edge.
