Key Takeaways
-
Fit Comes First: Match sleeve size (42 × 16 in.) to PTAC model for steady airflow and no leaks.
-
Insulation Pays Back: Foam-lined sleeves reduce drafts, noise, and improve efficiency.
-
Slope & Drainage Stop Mold: Angle sleeve outward and use drain holes to direct rainwater away.
-
Rust-Proof Materials Last: Galvanized or polymer-coated sleeves resist humidity and wear.
-
Seal Every Gap: Caulk and insulate around the sleeve to block pests, moisture, and heat loss.

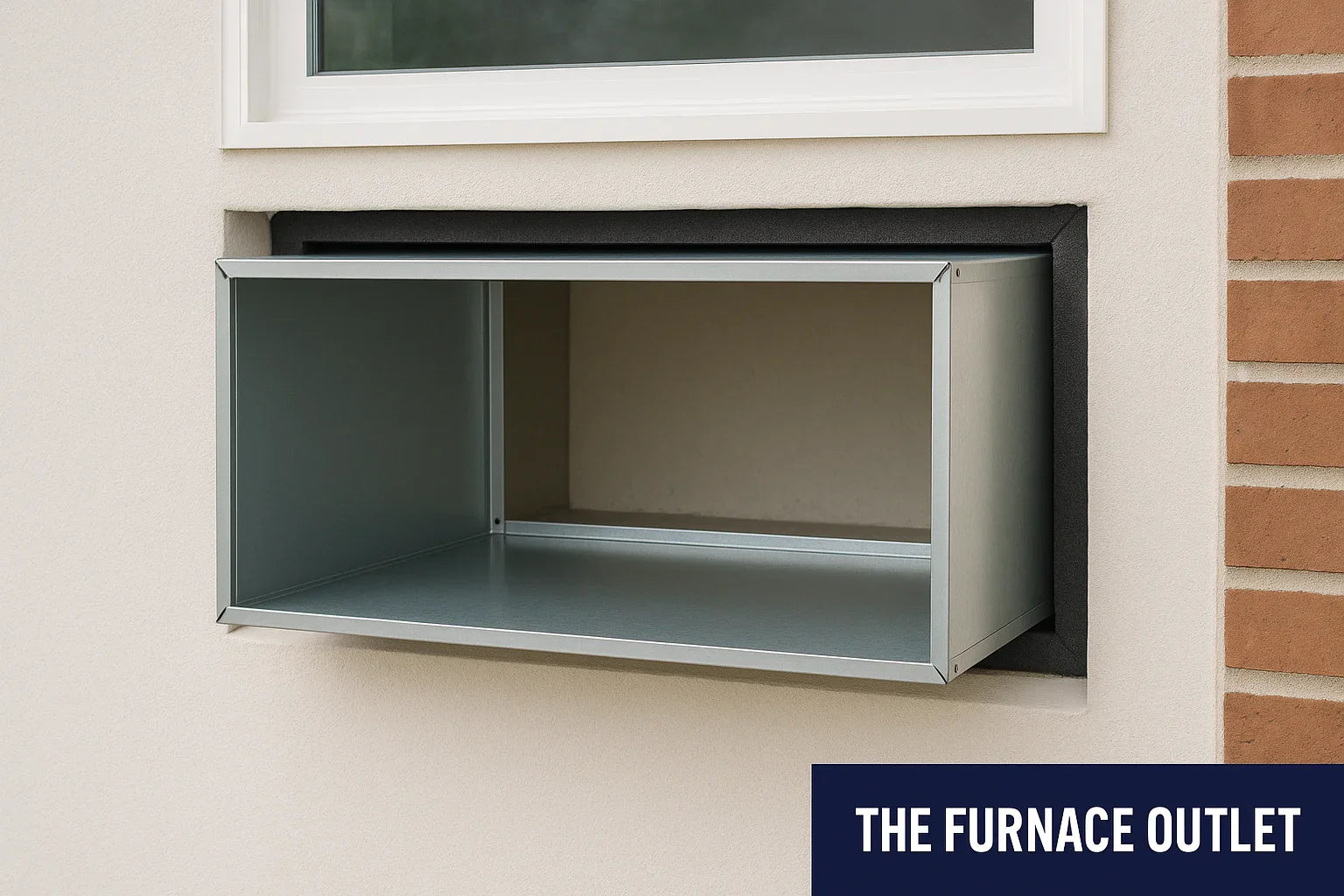

Why the Wall Sleeve Matters More Than You Think
A PTAC is only as good as the box it slides into. A warped, rusty, or draft-prone sleeve can slash efficiency, invite rainwater, and shorten the unit’s life by years. Recent U.S. Department of Energy data shows that air leaks around wall penetrations can waste up to 10 % of a hotel’s HVAC energy—money literally escaping through the wall. In this article you’ll learn how to pick the right sleeve size, material, and drainage features so your PTAC keeps rooms comfortable without surprise maintenance calls. We’ll also point to easy reference tools on The Furnace Outlet website to make selection simple.
Sorting Out Sizes: One Inch Off Can Kill Airflow
Most PTACs sit in a 42-inch-wide by 16-inch-high opening, yet depths range from 13.75 in. to 16 in. A sleeve that’s too shallow leaves the chassis sticking out; too deep and you lose airflow path clearance. Always check the spec sheet for your model before ordering. If you’re swapping an old unit, grab a measuring tape—don’t rely on memory. When the current sleeve is rust-free and meets the depth spec, reuse it; otherwise, select a fresh unit from our hotel-grade PTAC sleeves collection. Correct sizing keeps condenser air moving smoothly and prevents compressor strain.
Choosing the Best Material for Your Climate
Galvanized steel is the industry workhorse because its zinc coating shrugs off rain and UV. Live near saltwater or in a humid southern state? Upgrading to polymer-coated or aluminum sleeves adds another layer of corrosion defense. That matters: coastal studies show untreated metal can lose 25 % thickness in five years. Heavy-gauge options found in our commercial accessories aisle are worth the small premium if your PTACs run 24/7. Whatever you choose, ensure interior surfaces include a thin insulation liner to block sweating on muggy days.
Built-In Insulation: Small Foam, Big Savings
A quarter-inch of closed-cell foam inside the sleeve might seem minor, but it stops thermal bridging—the direct path for outdoor heat to travel indoors through metal. Third-party labs measure 3–5 °F lower wall temperatures behind insulated sleeves, which lets the PTAC cycle off sooner. Quieter rooms are a bonus; foam dampens compressor noise by roughly 2 dB. Look for products labeled “acoustical and thermal liner” or add aftermarket peel-and-stick insulation. For step-by-step photos, visit our blog post PTAC Sizing & Maintenance Guide.
Weather Sealing and Drainage: Your Mold Insurance
Water is the silent killer of wall cavities. Quality sleeves slope ¼-inch downward to the outside and include drain slots or channels. Never reverse the pitch; pooled water breeds mold and rots framing. Apply exterior-grade silicone around the sleeve perimeter, then back-fill gaps indoors with low-expansion foam. These two steps block wind-driven rain, winter drafts, and summer insects.
Need supplies? Our accessories section stocks gaskets and caulks rated for HVAC penetrations.
Hardware That Survives Hotel-Level Abuse
Multifamily and hospitality buildings cycle PTACs far more than single-family homes. Opt for 10-year-coated screws, stainless mounting brackets, and tamper-resistant grilles. Some sleeves feature knockouts for electrical whips and condensate lines—handy for future upgrades like heat-pump models from our R-32 PTAC lineup. Spending a little more upfront avoids drywall repairs when a cheap bracket snaps during a routine service pull.
Installation Best Practices: Level, Seal, Confirm
-
Mark wall centerlines and dry-fit the sleeve.
-
Use a 4-ft level to set the ¼-in. outward pitch.
-
Anchor with corrosion-resistant screws into studs or masonry.
-
Seal flanges with silicone, then insulate interior gaps.
-
Slide the PTAC chassis in, verify it’s level front-to-back, and run a test cycle.
These steps follow International Building Code and keep your warranty intact. A quick reference card ships with every sleeve ordered through The Furnace Outlet.
Maintenance Access: Think Ahead, Not Just Today
Choose a sleeve that lets you remove the PTAC chassis without wrestling wires or refrigerant lines. Service clearances improve uptime because techs can swap units fast, limiting room downtime in hotels or condos. Hinged exterior grilles or clip-in louvers also speed coil cleaning. Planning for maintenance now avoids cutting and re-sealing drywall later—an expensive surprise no property manager loves.
When to Replace vs. Reuse an Existing Sleeve
Reusing is fine if the metal shows no rust-through, insulation is intact, and the frame isn’t warped. Shine a light inside: flaking zinc, weak corners, or clogged drains are red flags—replace before installing a new PTAC or you risk premature failure. Our article How Window Sleeves Affect Efficiency outlines inspection checkpoints and cost comparisons. If replacement wins, bundle the sleeve with a new unit for shipping savings by checking “add sleeve” on the product page.
Frequently Asked Questions
Q: Can any 42 × 16 sleeve fit any brand of PTAC?
Most will, but always confirm depth and grille compatibility in the spec sheet.
Q: Does sleeve insulation meet fire codes?
Yes—quality liners carry UL 94 ratings suitable for residential and hospitality use.
Q: How often should I clean the drain holes?
Check every spring; a pipe cleaner or small brush removes debris in seconds.
Q: Will a new sleeve improve sound levels?
Insulated sleeves typically cut indoor noise 1–3 dB, noticeable in quiet rooms.
Q: Can I install a sleeve myself?
DIY is possible if you follow local electrical and building codes; otherwise, hire a licensed contractor.
