When you’re installing a heat pump or ductless mini-split, running the line sets and drain tubing is one of those steps where performance, reliability, and appearance all intersect. Done well, you’ll have an efficient, leak-free system that looks like it was installed by a pro. Done poorly, you risk refrigerant leaks, water damage, and an eyesore running down the side of your home.
In this guide, I’ll walk you through how to plan, route, protect, and conceal your line sets and drain tubing so they not only work properly but also look great.
For the full installation process from start to finish, see the Complete Guide to DIY Heat Pump Installation.
Why Line Set and Drain Tubing Placement Matters
Performance and Efficiency
Your line set — the insulated copper tubing that carries refrigerant between the indoor and outdoor units — needs to maintain pressure and temperature integrity. Long or poorly routed runs with unnecessary bends can increase resistance, reducing system capacity and efficiency.
📘 The U.S. Department of Energy recommends minimizing line set length and avoiding sharp bends to reduce energy losses.
Longevity and Protection
UV exposure, physical damage, and poorly supported lines can shorten the lifespan of both the tubing and the insulation. Unprotected drain lines can clog, freeze, or crack.
Appearance and Curb Appeal
A neat installation with concealed or color-matched covers blends into your home, while a messy run of exposed tubing sticks out like a sore thumb.
Planning the Route Before You Start
Before cutting any pipe or drilling holes, plan the most efficient and secure route.
-
Measure twice, cut once – Determine the exact distance between the indoor and outdoor units, accounting for vertical and horizontal runs.
-
Choose the shortest path – Every extra foot adds cost and potential efficiency loss.
-
Avoid obstructions – Steer clear of vents, electrical panels, or areas prone to damage.
-
Pick safe penetration points – Wall penetrations should be above grade, away from moisture intrusion risks, and in locations that don’t weaken the building’s structure.
📘 Energy Star’s HVAC Installation Guidance stresses that route planning directly impacts long-term efficiency and serviceability.
Installing and Protecting Line Sets
Use Line Set Covers
PVC or aluminum channels keep the tubing protected from weather, pests, and accidental damage. They also give the installation a finished, professional look.
Provide UV Protection
Even insulated line sets can degrade when exposed to sunlight. Wrap insulation with UV-resistant tape or enclose it in covers.
Secure the Line Set to the Structure
Use straps, clamps, or hangers every 4–6 feet to prevent sagging. Make sure supports allow for slight movement due to thermal expansion and contraction.
Avoid Over-Tightening
Too much pressure from straps or clamps can compress insulation and create wear points on the copper.
📘 HVAC School notes that well-secured and insulated line sets help maintain refrigerant temperatures and prevent capacity loss.
Running and Securing Drain Tubing
The condensate drain is just as important as the refrigerant lines — a poorly routed drain can cause water backups, leaks, and even mold growth.
Maintain a Continuous Downward Slope
Gravity is your friend. The tubing should slope at least 1/4 inch per foot toward the discharge point to keep water moving freely.
Avoid Sagging and Traps
Unsupported tubing can sag, creating low spots where water pools. This can lead to blockages or freezing in cold weather.
Route Away from Walkways
Keep the discharge point clear of high-traffic areas to avoid creating slippery spots or tripping hazards.
Use UV-Resistant Tubing Outdoors
Standard vinyl tubing can become brittle in sunlight; choose UV-rated materials for outdoor sections.
📘 The International Code Council outlines that condensate drains must be routed to prevent water damage and ensure sanitary disposal.
Concealing and Blending with the Home Exterior
If aesthetics matter — and for most homeowners, they do — there are plenty of ways to make your installation blend in.
-

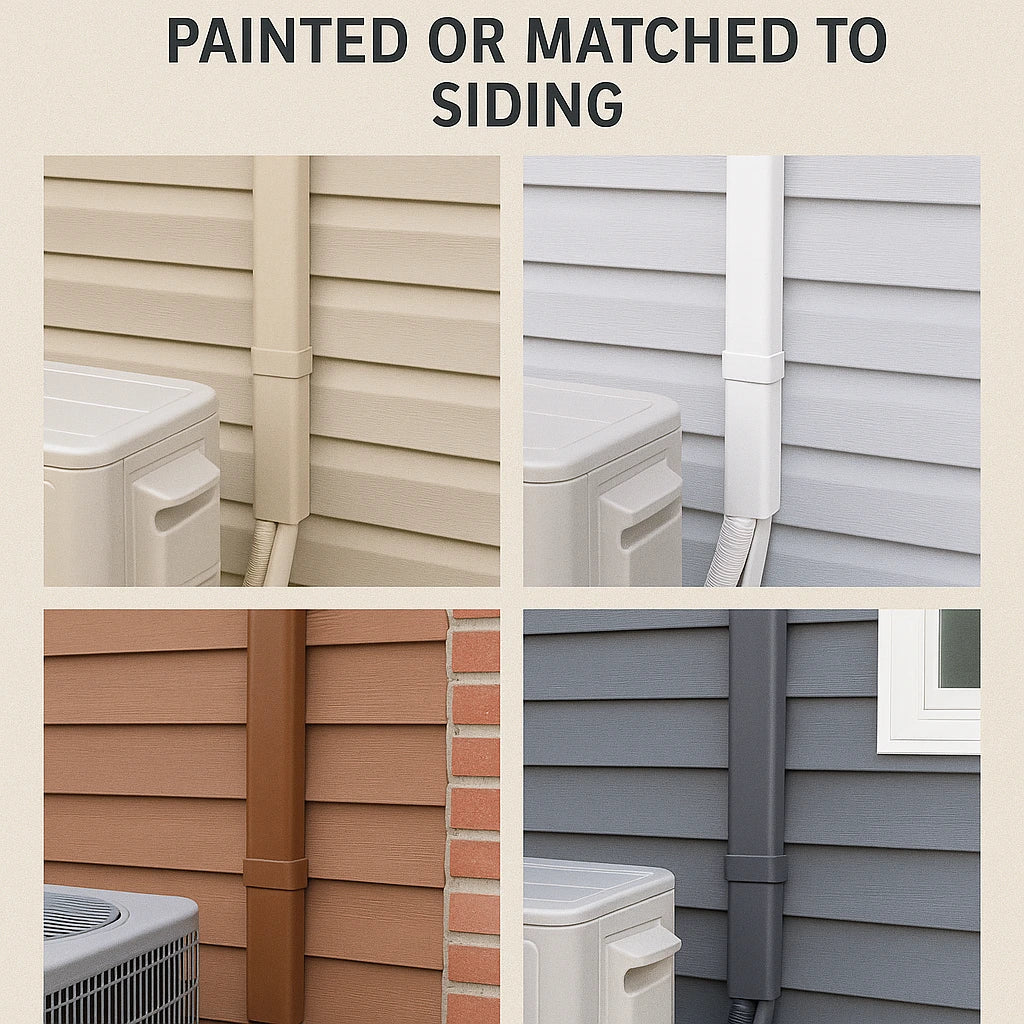

Color-match your line set covers to your siding or trim using manufacturer color options or paint.
-
Use landscaping strategically to hide outdoor runs without blocking airflow.
-
Integrate with existing architectural lines such as trim boards or downspouts for a cleaner look.
📘 Green Building Advisor suggests that smart concealment not only improves curb appeal but also adds a layer of physical protection to HVAC components.
Safety Considerations While Installing
-
Wear gloves when handling copper tubing to avoid cuts.
-
Use a tubing bender instead of forcing tight bends by hand.
-
Seal wall penetrations with expanding foam or caulk to prevent drafts, pests, and moisture intrusion.
-
Keep tubing clear of electrical wiring to avoid interference or hazards.
Final Safety Checks Before System Startup
Once everything is in place:
-
Pressure test the refrigerant lines to confirm no leaks before releasing refrigerant.
-
Pull a vacuum to remove moisture and air from the lines.
-
Check the drain flow by pouring water into the indoor drain pan and verifying it exits properly.
-
Secure all covers and insulation to prevent movement over time.
Why Neat, Protected Lines Are Worth the Effort
Taking the extra time to plan and protect your line set and drain tubing will:
-
Improve your system’s efficiency and performance
-
Extend the life of your components
-
Prevent water damage and refrigerant leaks
-
Keep your home looking well-maintained
Final Thoughts from Alex
In my years of HVAC work, I’ve seen top-tier equipment ruined by poorly routed lines and drains — and I’ve seen budget systems last well beyond expectations thanks to neat, protected installations.
If you want your DIY project to deliver professional-level performance, treat the line set and drain tubing as critical components, not afterthoughts. A little extra effort now will pay off in fewer problems, lower energy bills, and better curb appeal for years to come.
