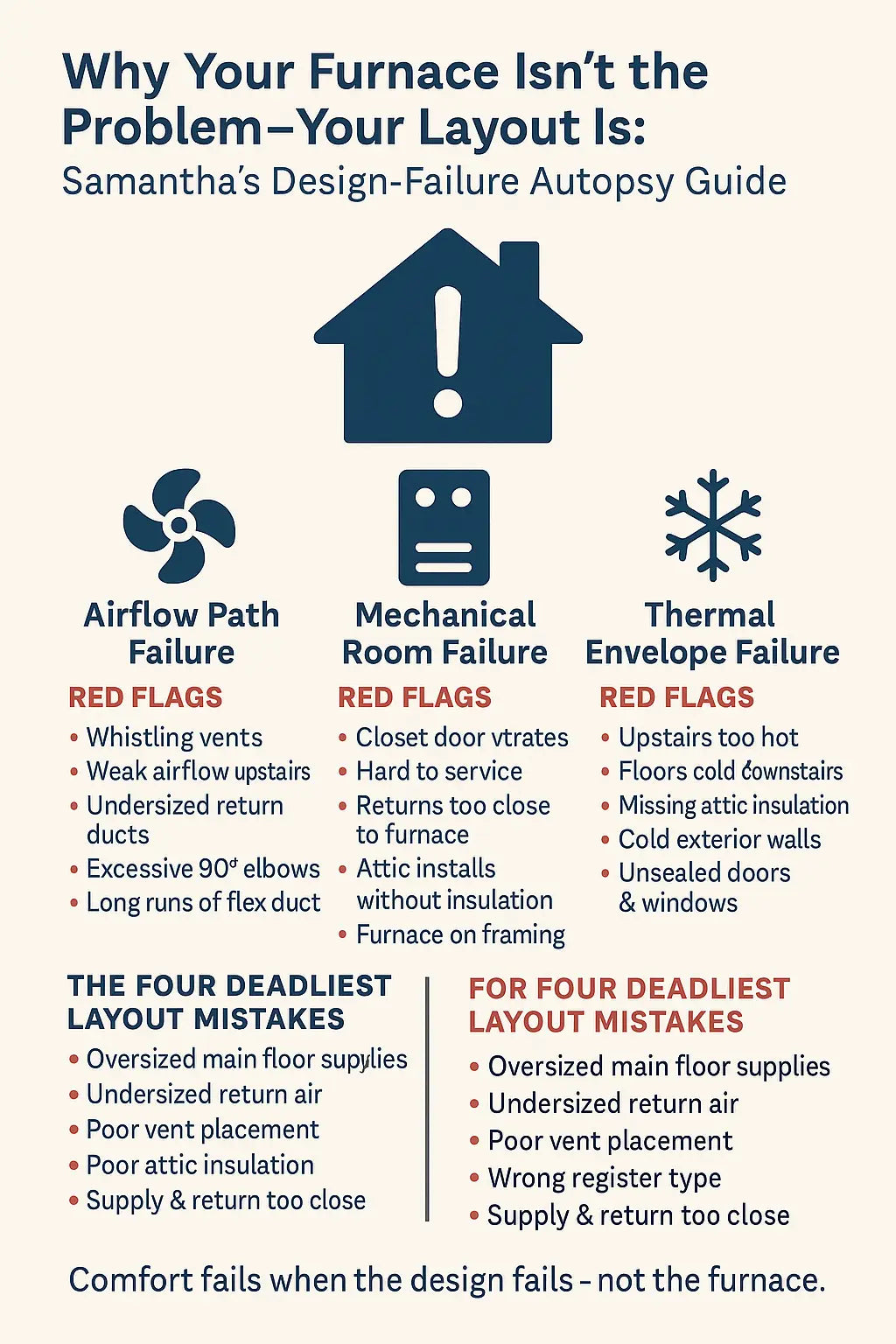

🏚️ **Why Your Furnace Isn’t the Problem — Your Layout Is:

Samantha’s Design-Failure Autopsy Guide**
By Samantha Reyes — Smart Shopper & Practical Home Comfort Guide

🧩 Introduction: “Your Furnace Doesn’t Decide How Your Home Feels — Your Layout Does.”

If Samantha could write one sentence on every furnace box in America, it would be this:

“A furnace can only perform as well as the home layout allows.”

She knows that most homeowners blame their furnace for:

uneven temperatures
noisy airflow
long run times
hot second floors
cold basements
high utility bills
uncomfortable rooms

But 80–90% of the time — the furnace isn’t the issue at all.

The layout is.

Everything from duct placement to return sizing, vent direction, room geometry, floor height, ceiling design, insulation, stairwell interaction, door pressure, and attic conditions decides whether your home ever lets the furnace do its job.

That’s why Samantha teaches her famous “Design-Failure Autopsy Guide” — a walk-through she uses to diagnose homeowner comfort problems before anyone touches the furnace.

80,000 BTU 96% AFUE Upflow/Horizontal Two Stage Goodman Gas Furnace - GR9T960804CN

Today, she walks you through the full autopsy:
how to investigate, identify, and correct the layout issues that make perfectly good furnaces look guilty.

🩻 **1. Samantha’s First Rule of HVAC Forensics:

“The Furnace Is Only a Heat Producer — Not a Heat Manager.”**

Most homeowners assume replacing the furnace will fix:

cold rooms
airflow problems
noisy vents
weak airflow upstairs

But Samantha explains:

“Your furnace makes heat.
Your ductwork moves heat.
Your layout delivers heat.”

If those three layers don’t work together, the furnace becomes the scapegoat.

The Department of Energy confirms this — most comfort and efficiency issues come from building design, not equipment:
🔗 https://www.energy.gov/energysaver/central-heating-systems

This is the foundation of Samantha’s autopsy method.

🧠 2. Autopsy Step One — Follow the Symptoms, Not the Furnace

(“The house always tells the truth. You just have to follow its story.”)

Samantha begins every investigation by asking homeowners one simple question:

“What part of the home bothers you the most?”

The symptoms always point to the design flaw:

Cold upstairs bedrooms? → supply imbalance, attic gain
Hot second floor? → weak return, stairwell chimney effect
Cold floor on main level? → basement heat-flow issue
Musty basement? → lack of return airflow and pressure imbalance
Noisy vents? → extremely high static pressure
Weak airflow? → duct restrictions or layout bottlenecks
High bills? → thermal envelope problem

Not a single one of those issues is caused by the furnace itself.

🏚️ 3. Autopsy Step Two — Identify the Layout Category Causing the Problem

Samantha organizes failures into five design categories:

Category 1 — Airflow Path Failures

Duct sizing, returns, pressure balance.

Category 2 — Mechanical Room Failures

Closets, attic installs, return placement, clearance issues.

Category 3 — Thermal Envelope Failures

Insulation, windows, door seals, attic heat flow.

Category 4 — Multi-Level Flow Zone Failures

Stack effect, stairwell convection, upstairs return starvation.

Category 5 — Distribution Design Failures

Vent placement, supply direction, register type, throw distance.

Each category creates symptoms that mimic furnace failure.

But Samantha teaches that your furnace is just the messenger.

🌬️ **4. Airflow Path Failure:

“The Most Common Design Problem Homeowners Never See.”**

Samantha says:

“Airflow decides everything.
If the duct layout is wrong, comfort collapses.”

This is the most common design failure she diagnoses.

🛑 Red Flags in This Category

whistling vents
weak airflow upstairs
furnace sounds louder after replacement
AC coil freezing
furnace overheating
air feels “thin” or “rushed”
rooms with zero airflow in corners

ENERGY STAR confirms that poor duct design accounts for major efficiency losses:

📉 Autopsy Findings Typically Include

1. Undersized return ducts

The furnace can’t breathe.

2. Oversized main floor supply

Leaves upstairs starved.

3. Excessive 90-degree elbows

Static pressure skyrockets.

4. Long runs of sagging flex duct

Air meets resistance at every bend.

5. Crushed or kinked duct sections

Common in attics and crawlspaces.

Samantha explains:

“Your furnace isn’t underperforming.
Your air simply can’t get where it needs to go.”

🏠 **5. Mechanical Room Failure:

“When the Furnace Lives in the Wrong Place.”**

The furnace location itself impacts:

airflow
pressure
noise
safety
long-term durability

Samantha sees mechanical room failures constantly, especially in:

closets
garages
cramped attics

DOE notes that system performance drops significantly when located in extreme or restricted spaces:
🔗 https://www.energy.gov/energysaver/home-heating-systems/furnaces-and-boilers

🛑 Red Flags

closet door vibrates when furnace runs
furnace hard to service
filter location impossible to reach
returns placed too close to the furnace
no combustion air
furnace installed on a platform with no acoustic padding

📉 Autopsy Findings Include

1. Closet installs with tiny returns

Creates a jet-engine noise effect.

2. Attic furnaces without insulation

Massive heat loss and frozen drains.

3. Garage furnaces without sealed combustion

Safety hazard and performance issue.

4. Furnace platform touching framing

Noise transmits into living space.

None of this is the furnace’s fault.

It’s the layout around it.

❄️ **6. Thermal Envelope Failure:

“When Your House Loses Heat Faster Than the Furnace Makes It.”**

Sometimes the furnace is working perfectly —
but the house is leaking heat everywhere.

Where heat escapes most:

attic bypasses
poorly insulated walls
unsealed windows
rim joists
garage ceilings
rooms above unconditioned spaces

DOE highlights that insulation and air-sealing dramatically improve comfort more than equipment upgrades:
🔗 https://www.energy.gov/energysaver/weatherize/insulation

🛑 Red Flags

upstairs too hot
downstairs floors cold
vents feel strong but rooms stay uncomfortable
drafts around door frames
rooms above the garage always cold

📉 Autopsy Findings

1. Attic insulation missing above key rooms

Major heat invasion.

2. Exterior walls 8–15°F colder in winter

Infrared thermometer reveals insulation gaps.

3. Door and window leakage

Creates drafts and pressure imbalance.

4. Hot ceilings in summer

Attic radiates heat downward.

Samantha often says:

“Your furnace is fighting your house, not failing.”

🧗 **7. Multi-Level Flow Zone Failure:

“When Each Floor Gets the Wrong Amount of Air.”**

Samantha’s Flow Zones Method shows that multi-level homes need different airflow levels per floor.

But most layouts supply:

too much air to the main floor
too little air to upstairs
too little return from bedrooms

This creates:

hot second floors
cold basements
stuffy bedrooms
overworked equipment

ENERGY STAR identifies multi-level airflow imbalance as one of the most common comfort failures:
🔗 https://www.energystar.gov/campaign/heating_cooling

🛑 Red Flags

upstairs 3–8°F hotter
bedrooms uncomfortable with doors closed
air “rushes” downstairs
stairwell acts like a chimney

📉 Autopsy Findings

1. Single return on main floor

Upstairs starved.

2. Oversized downstairs supplies

Takes airflow away from high zone.

3. Closed-door pressure imbalance

Bedrooms depressurize and trap heat.

4. Stairwell heat stack effect

Pulls warm air upward without control.

🌀 **8. Distribution Design Failure:

“When Vents Are in the Wrong Place, Facing the Wrong Direction.”**

Even if airflow is strong, the distribution may be wrong.

Where Samantha sees this most:

vents blowing behind couches
registers aimed at ceilings
supply too close to return
vents placed on interior walls

🛑 Red Flags

strong airflow but uncomfortable room
drafts
poor mixing of warm and cold air
hot or cold streaks across the floor

📉 Autopsy Findings

1. Poor vent placement

Air hits obstacles.

2. Incorrect register type

Wrong throw distance.

3. Supply and return too close

Short-circuits airflow.

4. No directional control

Air doesn’t mix with room.

None of this is caused by the furnace.

It’s all layout.

🛑 9. The Four Deadliest Layout Mistakes (Samantha’s “Big Four”)

These four design mistakes create 90% of comfort issues:

❌ 1. Undersized return air

Chokes airflow → hurts comfort & efficiency.

❌ 2. Oversized main-floor supply ducts

Starves upstairs of airflow.

❌ 3. Vents placed on interior walls

Ruins heat distribution.

❌ 4. Poor attic insulation above key rooms

Allows huge thermal swings.

Samantha tells homeowners:

“Fix these four and your furnace works like magic.”

🧰 10. Samantha’s Step-by-Step Autopsy Walkthrough (Homeowner Version)

This is the exact sequence she teaches homeowners:

🧪 Step 1 — Measure vent temperatures per room

Use a $20 infrared thermometer to see uneven delivery.

🎚 Step 2 — Measure room-to-room temperature differences

More than 2–3°F = layout issue.

📦 Step 3 — Inspect return air pathways

Look for size, placement, and closed-door restrictions.

🌀 Step 4 — Evaluate duct routing

Check for kinks, long flex runs, elbows.

🌡 Step 5 — Scan walls, ceilings, and windows

Identify thermal envelope breaks.

🪟 Step 6 — Check vent direction and placement

Ensure airflow actually mixes with room air.

🪜 Step 7 — Study stairwell airflow

Identify stack effect issues.

📊 Step 8 — Correlate symptoms to layout category

This reveals the root cause.

🛠️ 11. Samantha’s Correction Blueprint — Fixing Layout Without Replacing Equipment

Samantha gives homeowners a tiered plan.

Tier 1 — Fast, Low-Cost Layout Fixes

adjust vent direction
remove blockages
undercut doors
weatherstrip leaky rooms
rebalance dampers
insulate attic hatches

Tier 2 — Medium-Cost Fixes

add returns
enlarge return trunk
replace restrictive filters
mastic-seal duct leakage
improve attic insulation
insulate garage ceilings

Tier 3 — High-Impact Layout Fixes

re-route major duct lines
add dedicated upstairs return
replace flex duct with rigid trunk
reduce over-supplied main-floor ducts
relocate key registers

Tier 4 — Equipment-Adjacency Only After Layout Is Correct

furnace replacement
high-SEER AC
heat pump upgrade
zoning system

Samantha emphasizes:

“Equipment is the last step — never the first.”

⭐ Conclusion: “Comfort Fails When Layout Fails — Not When Furnaces Do.”

Samantha teaches homeowners a powerful truth:

Furnaces don’t create cold rooms.
Air conditioners don’t create hot upstairs.
Equipment doesn’t create drafts.
Thermostats don’t create pressure imbalance.

Layout does.

When the layout is wrong:

air can’t move
heat can’t travel
pressure can’t balance
returns can’t breathe
rooms can’t normalize

And the furnace gets blamed for problems it never caused.

But when the layout supports the system:

comfort becomes even
noise disappears
efficiency improves
the home feels balanced
equipment lasts longer

Because comfort isn’t just a furnace output.

It’s a design outcome.
