Hi again! If you’re comparing furnaces, you’ve probably seen dimensions like "24.5-inch cabinet width" and wondered:
“Why does cabinet size matter? Doesn’t the installer just make it fit?”
That’s a great question—and the short answer is: yes, it matters—a lot. The cabinet width of a furnace impacts installation difficulty, airflow, duct compatibility, and future maintenance. If you ignore it, you might be stuck with a retrofit nightmare, extra ductwork costs, or worse—reduced system performance.
Today, I’ll explain why 24.5 inches is a sweet spot for many residential installs, especially for systems like the Goodman GR9T801205DN. We’ll cover:
-
What cabinet size means
-
When 24.5” works best
-
Installation best practices
-
Ductwork and retrofitting
-
And who should pay extra attention: DIYers or HVAC pros
🧱 What Is Furnace Cabinet Size?
The furnace cabinet is the external steel enclosure that houses the blower motor, gas valve, burners, heat exchanger, and electronics. Cabinet dimensions are usually listed as:
-
Height (e.g., 33”–40”)
-
Depth (e.g., 28”–32”)
-
Width (e.g., 14”, 17.5”, 21”, 24.5”)
The width is the most critical dimension when planning installation because it determines how well the furnace will fit with your existing supply and return ducts.
📐 Why 24.5 Inches Is the “Goldilocks” Size
Furnaces typically come in three width categories:
| Cabinet Width | Typical BTU Range | Best for Home Size |
|---|---|---|
| 14" | ≤ 60,000 BTU | < 1,500 sq. ft. |
| 17.5"–21" | 60,000–100,000 BTU | 1,500–2,500 sq. ft. |
| 24.5" | 100,000–140,000 BTU | 2,500+ sq. ft. |
The Goodman GR9T801205DN, for example, is a 120,000 BTU unit with a 24.5" cabinet, which:
-
Ensures sufficient airflow
-
Aligns with wide plenums and duct trunks
-
Supports multi-speed or ECM blower configurations
External Link: Check out Goodman’s full product specification catalog for model-specific cabinet sizes.
🚧 Why Cabinet Size Impacts Installation
1. Duct Transition Requirements
If the new furnace cabinet width is too narrow or too wide compared to your old unit, your installer will need to fabricate custom duct transitions.
This adds:
-
Labor time (1–2 hours)
-
Material cost ($150–$300)
-
Possible airflow losses from mismatched sizing
2. Static Pressure Problems
Too narrow of a cabinet forces air through tighter openings, raising static pressure—which can:
-
Stress blower motors
-
Decrease efficiency
-
Lead to hot/cold spots
External Link: Energy Vanguard explains how duct design and pressure impact performance.
🏠 When 24.5" Works Best
A 24.5” cabinet is ideal in homes with:
-
Basement installations with wide trunk lines
-
Older ductwork built around legacy high-BTU furnaces
-
High airflow demand (2,000+ CFM)
-
Zoned HVAC systems with large dampers
-
Larger return plenums (20” x 25” or wider)
In short, it’s built for large, high-volume systems—and it pairs well with multi-speed blowers or two-stage heat.
🔧 Retrofit Tip: Measure Before You Buy
Here’s a quick checklist:
✅ Measure the existing furnace cabinet width
✅ Measure the duct trunk width and height (especially at the supply)
✅ Check clearance to walls, plumbing, or gas lines
✅ Note if the system is upflow, downflow, or horizontal
📏 Rule of Thumb: For a 24.5" wide furnace, the supply plenum should be at least 22–26 inches wide for optimal alignment.
🧰 What If My Existing Furnace Was Narrower?
You’ll need a transition box or duct boot, which adds:
-
Height or width to the supply plenum
-
Space adjustments for return drop
-
Repositioning of gas/electrical lines
Example Scenario:
A homeowner replacing a 17.5” wide 80,000 BTU furnace with a 24.5” 120,000 BTU unit will need a duct expansion and may need to move the return air drop and condensate pump.
External Link: Learn about HVAC transitions and retrofits
📦 Compatible Accessories for 24.5” Cabinets
Goodman (and most brands) offer accessories sized to match common cabinet widths. For 24.5” systems, look for:
-
Filter racks: Sized for 20” x 25” or 24” x 25” media filters
-
Return air boxes: 24” x 24” or larger
-
Cased coils: Match the same width for seamless cooling installation
-
Downflow kits: Fit specific cabinet widths
Always check that any add-on (humidifier, UV light, air purifier) is compatible with the cabinet width.
🧯 Safety and Clearance Requirements
Wider cabinets may require additional side clearance to meet:
-
Building code for combustibles
-
Service access space (especially blower doors)
-
Gas shut-off reachability
For the Goodman GR9T801205DN:
-
Minimum side clearance: 1 inch
-
Recommended service space: 24 inches in front
-
Horizontal installs may need extra for drain pans
🧑🔧 Pros and Installers: Don’t Overlook This!
If you’re a contractor, 24.5” cabinets offer:
-
Easier installation in retrofit jobs where duct trunks are wide
-
Less fabrication time if matching plenums exist
-
Room to work inside the blower compartment
But don’t assume wider is always better:
-
In tight closets, oversized cabinets won’t fit
-
In attic installations, vertical clearance may be compromised
External Link: For detailed clearance requirements, see HVAC.com's guide on furnace sizing and spacing.

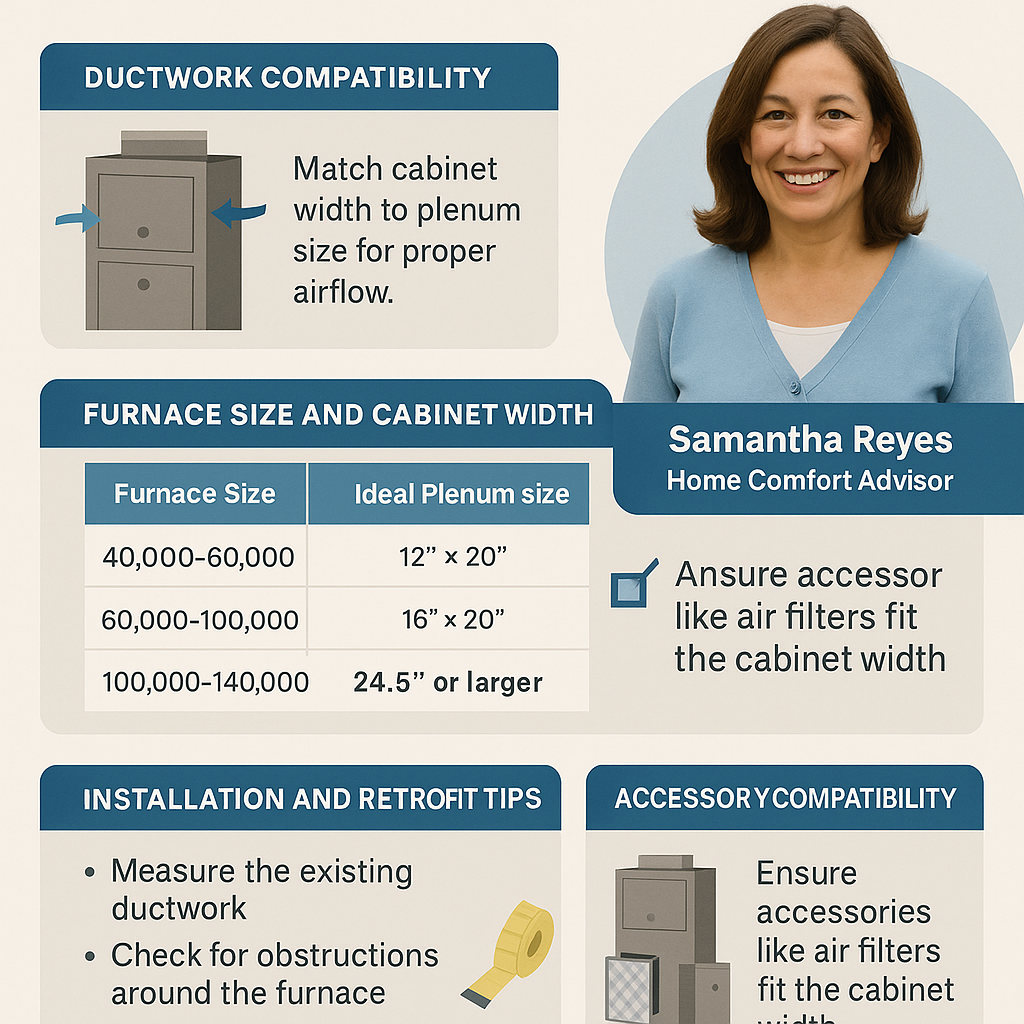

🧭 Samantha’s Quick Cabinet Sizing Chart
| Furnace Size (BTU) | Typical Cabinet Width | Ideal Duct Size |
|---|---|---|
| 40,000–60,000 | 14" | 12" x 20" |
| 60,000–100,000 | 17.5"–21" | 16" x 20" |
| 100,000–140,000 | 24.5" | 20" x 25" or wider |
📝 Final Thoughts from Samantha
A furnace’s cabinet width isn’t just a physical measurement—it’s a window into how well that unit will integrate with your home. With a 24.5” cabinet, like the Goodman GR9T801205DN, you get:
-
Better airflow
-
Simpler duct transitions in larger homes
-
Compatibility with high-BTU systems
-
Easier serviceability for techs down the road
If you’re shopping for a furnace and want something powerful, quiet, and installation-friendly, 24.5 inches may be your perfect match—just make sure your ductwork agrees!
📞 Need Help Sizing Your Furnace?
Drop me a message with your home’s square footage, climate zone, and existing system specs—I’ll help you match the right cabinet size, model, and configuration without the guesswork.
— Samantha Reyes, Home Comfort Advisor
