Hey there! I’m Samantha Reyes, your go-to Home Comfort Advisor, and today I’m diving into one of the most overlooked yet essential topics when it comes to furnace installation:

“Will my smart thermostat work with a two-stage furnace like the Goodman GR9T801205DN? And does my wiring support it?”

If you’re upgrading to a two-stage system, your thermostat—and the wiring behind your wall—has to be compatible. Otherwise, you might spend money on advanced comfort features and never see the benefits.

This guide covers:

  • Furnace control stages and wiring basics

  • What makes a thermostat "smart"

  • Compatibility requirements for two-stage systems

  • Tips for upgrading wiring and thermostats

  • The best smart thermostats for Goodman furnaces


🧠 Understanding Furnace Staging and Wires

First, let’s clarify the key components of furnace control.

🔥 Single-Stage Furnace

  • One wire (W1) controls heating.

  • Furnace is either 100% on or off.

🔥 Two-Stage Furnace (like GR9T801205DN)

  • Uses two wires:

    • W1 = Low-stage heat

    • W2 = High-stage heat

  • Offers variable comfort, quieter operation, and better energy efficiency.

Some newer two-stage furnaces (like Goodman ComfortBridge models) use communicating thermostats, which only require R, C, and Data wires, but that’s a different category. The GR9T801205DN uses conventional low-voltage wiring.


🧵 Standard Wire Terminals on Thermostats

Here’s a quick overview of the wire terminals typically involved:

Terminal Purpose
R 24V power from transformer
C Common wire (completes 24V circuit)
W1 Stage 1 heating
W2 Stage 2 heating
Y Cooling
G Fan control
O/B Heat pump reversing valve (not used with gas-only systems)



If your current thermostat wiring includes W2, you likely already support two-stage heat. If not, you may need to upgrade your wiring or use a thermostat that supports “auto-adapt” or wireless staging.


🧯 Why Compatibility Matters

A smart thermostat that doesn’t support two-stage heating will:

  • Only activate the high stage or low stage, not both

  • Miss out on energy savings

  • Deliver uneven heating

  • Possibly void warranties if it causes system issues

So before buying a thermostat or scheduling an install, confirm:

  • Your furnace has W1 and W2 terminals

  • Your wall wiring supports W2

  • Your thermostat supports multi-stage heat


🔍 Do You Need a C-Wire?

Yes, most modern smart thermostats require a C-wire (common wire) to provide continuous 24V power. Without it, the thermostat may:

  • Lose connection to Wi-Fi

  • Freeze or reboot

  • Struggle to operate relays properly

If you don’t have a C-wire, you can:

  • Run a new wire from the furnace to the thermostat

  • Use a power extender kit (PEK) (e.g., Ecobee’s included kit)

  • Install a 24V transformer adapter

External Link: Learn more about C-wire options from CNET’s C-Wire Compatibility Guide


🤖 What Makes a Thermostat "Smart"?

A smart thermostat connects to Wi-Fi and can:

  • Learn your preferences

  • Adjust based on outside temperatures

  • Optimize staging for energy efficiency

  • Control HVAC remotely via app

  • Integrate with Alexa, Google Home, or Apple HomeKit

But not all smart thermostats support two-stage heat!


✅ Best Smart Thermostats for Two-Stage Furnaces

Here are my top recommendations for two-stage gas systems like the GR9T801205DN:


1. Ecobee Smart Thermostat Premium

  • Supports W1 + W2

  • Works with Alexa, Siri, Google

  • Comes with PEK for homes without C-wire

  • Has advanced temperature and occupancy sensors

External Link: See full specs at Ecobee’s website


2. Google Nest Learning Thermostat (3rd Gen)

  • Supports up to 2-stage heating (W1, W2)

  • Learns your schedule

  • Great for minimalists (no touchscreen clutter)

  • Compatible with most 24V systems

Note: Requires C-wire for full function in some systems.

External Link: Check compatibility at Nest’s official support page


3. Honeywell Home T9 or T10 Pro

  • Full multi-stage support

  • Easy-to-use touchscreen

  • Room sensors for zone-like performance

  • C-wire required

Available in Wi-Fi and RedLINK versions (professional grade).


4. Goodman ComfortBridge Thermostat

  • For ComfortBridge-enabled Goodman models

  • Uses communicating protocol, not W1/W2

  • NOT compatible with GR9T801205DN, but worth noting for newer models


🧰 Upgrading Thermostat Wiring (If Needed)

If you discover you don’t have a W2 wire, here are your options:

🛠️ Option 1: Run a New 18/8 Thermostat Cable

  • Most HVAC pros recommend 18-gauge, 8-wire cable to futureproof

  • Costs $150–$300 for most homes (DIY or pro)

🛠️ Option 2: Use a PEK or Add-a-Wire Adapter

  • Ecobee includes a PEK in the box

  • Adds a W2 function using existing wires

  • Not always compatible with older control boards

🛠️ Option 3: Skip the Smart Thermostat (for now)


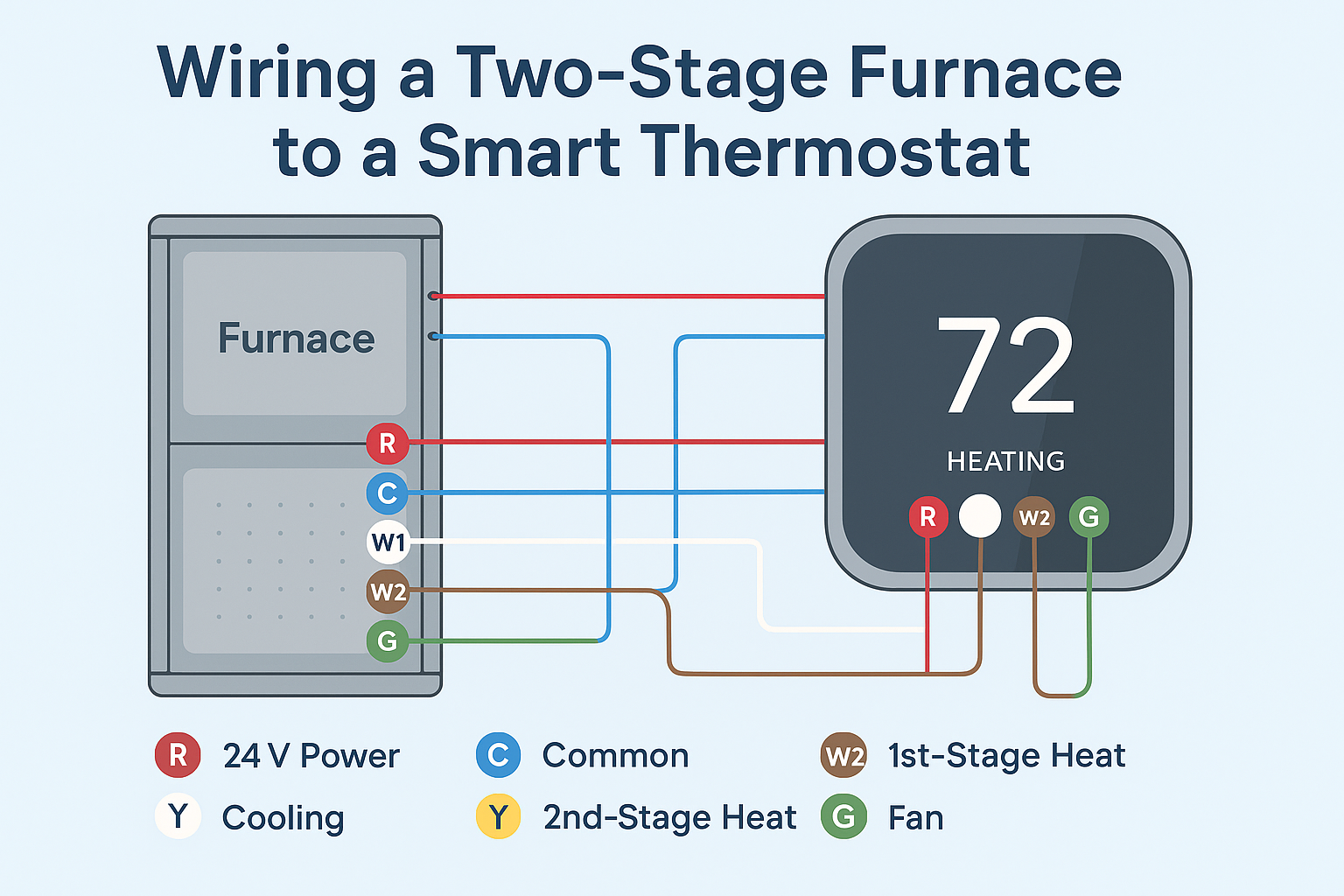

🔌 How to Wire a Two-Stage Furnace to a Smart Thermostat

Basic Diagram:


Furnace → Thermostat ------------------------------ R (24V) → R C (common) → C W1 → W1 W2 → W2 G (fan) → G Y (cooling) → Y

Tips:

  • Always cut power before connecting wires

  • Label wires before removing old thermostat

  • Use the thermostat’s mobile app for guided setup

  • Enable staging in the setup (some units default to single-stage)

External Link: For diagrams and wiring walkthroughs, see DIY Smart Home Guide’s thermostat wiring post


🛑 Common Mistakes to Avoid

  1. Assuming your thermostat auto-detects staging
    – Some need manual staging setup.

  2. Leaving W2 unconnected
    – This disables second-stage heat entirely.

  3. Using incompatible power-sharing adapters
    – Some older PEKs don’t work with dual-stage gas heat.

  4. Skipping control board settings
    – Some Goodman models require dip switch or jumper adjustments for staging to activate.


🧊 Cold Weather Note: Why It Matters in Winter

In freezing conditions, your second stage (W2) is your home’s safety net. Without it:

  • Your furnace may struggle to meet setpoint

  • Comfort will drop

  • Your energy usage may spike from excessive runtime

That’s why two-stage wiring + smart controls = comfort and savings.


📝 Final Checklist: Wiring + Thermostat Compatibility

✅ Furnace model supports two-stage? (Look for W1/W2)
✅ Wall wires include W2 and C?
✅ Thermostat supports 2H/1C system?
✅ Staging enabled during thermostat setup?
✅ Filter reminder and vacation mode enabled?


📞 Need Help?

Still unsure if your home’s wiring or thermostat supports your furnace? Send me a photo of your thermostat wires, furnace terminals, or model numbers—I’ll help you choose the perfect setup.

Whether you’re a DIYer or just trying to ask the right questions before calling an HVAC tech, understanding staging and wiring puts you ahead of the game.

Samantha Reyes, Home Comfort Advisor
