Wall Sleeve 101: Why You Need One (and How to Choose the Right Fit)

---

1. Tony’s Rule #1: “Your AC’s only as good as what holds it up.”

A through-the-wall air conditioner isn’t just a box you slide into drywall — it’s a precision system that needs structure, sealing, and support.
That’s what the wall sleeve does.

If you skip it, your cooling system leaks air, vibrates like a lawnmower, and burns power like a space heater.
In Tony’s words:

“The sleeve is the backbone of your wall unit. Skip it, and you’re basically mounting comfort on hope.”

(Energy Star — Room AC Installation Best Practices)

---

2. What Exactly Is a Wall Sleeve?

A wall sleeve is a durable metal or polymer housing installed through your exterior wall.
It holds the air conditioner in place, protects it from the weather, and seals the gap between inside and out.

Think of it like a permanent docking station — you install it once, and every future AC slides right in.

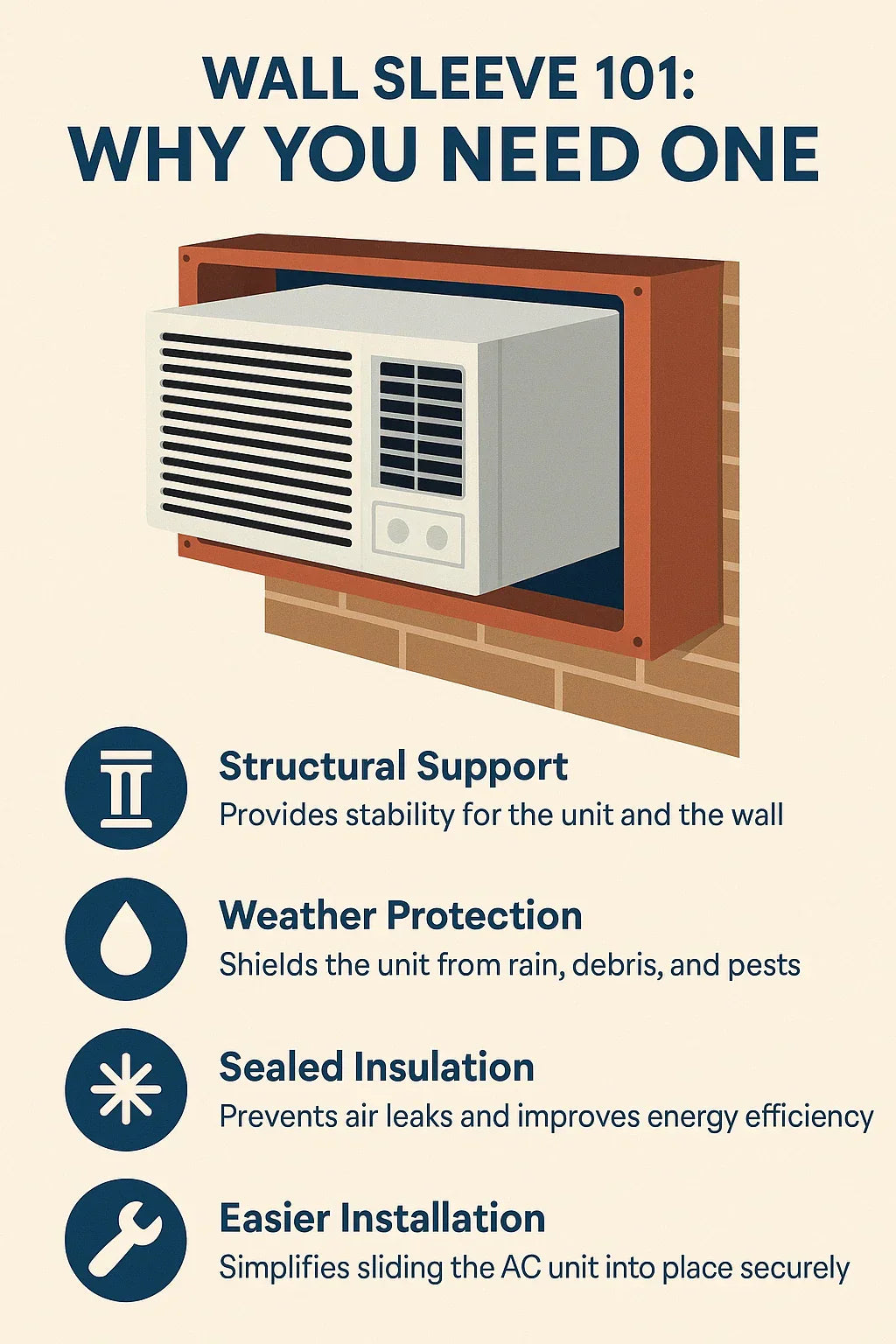

Its Core Jobs

• Structural support: Handles the unit’s 70-100-lb weight.

• Insulation: Prevents outside air from sneaking in.

• Weather protection: Shields the unit’s coils and interior wall from moisture.

• Service access: Lets you remove or replace the unit without ripping up drywall.

---

3. Why You Can’t Skip the Sleeve

Tony’s seen this too many times — a homeowner tries to save $100 and jams a wall AC straight into drywall. Two summers later, they’ve got mold, leaks, and a draft that feels like a hair dryer in reverse.

Here’s what happens when you skip the sleeve:

• The wall can’t support the weight; the screws loosen, drywall cracks.

• Rain and condensation rot the framing.

• Gaps around the chassis leak cool air and sound.

• Without alignment, the drain pan tilts, leading to overflow.

Tony’s verdict:

“A wall sleeve isn’t optional — it’s the difference between professional cooling and amateur hour.”

(DOE Safe Installation Standards)

---

4. Materials Matter: Metal vs. Polymer Sleeves

1. Galvanized Steel

• Strongest, most rigid option

• Ideal for heavy units (12,000–15,000 BTU)

• Handles moisture and vibration better

• Typically lasts 15 + years

Tony’s take:

“If you want to set it and forget it, go steel.”

2. Polymer / Composite Sleeves

• Lighter and corrosion-proof

• Great for coastal or humid climates

• Slightly more flexible — can absorb vibration.

Used by GE and Friedrich for newer Energy Star models.

(EPA Corrosion Resistance Data)

---

5. Standard Sleeve Sizes

Most through-the-wall ACs use 26-inch width sleeves, but there are exceptions.

Tony’s Sizing Tip

Measure the inside opening, not the outer frame.
You need at least ¼″ clearance on each side for slide-in installation and thermal expansion.

---

6. Universal vs. Brand-Specific Sleeves

Universal Sleeves

• Fit multiple brands (GE, Amana, Hotpoint)

• Perfect for replacements or remodels

• Usually cheaper ($90–$130)

Brand-Specific Sleeves

• Exact alignment with the brand chassis

• Prevent air leakage around controls and vents.

• Often include built-in drain ports and rear grilles

Tony’s call:

“If you’re mixing brands, go universal. If you’re buying new, stay matched — the right sleeve saves you 10 years of headaches.”

---

7. Sleeve Depth & Wall Thickness

A proper fit means the sleeve sits flush or slightly recessed inside the wall — not jutting out like a balcony box.

Rule of Thumb

• Wall 6–8″ thick → Standard 16.75″ sleeve depth

• Wall 9–12″ thick → Extended-depth sleeve

• Brick/masonry walls → Add drip edge for drainage

Tony’s translation:

“Don’t let your sleeve stick out like a bad haircut. It should blend with your siding, not fight it.”

---

8. How the Sleeve Controls Drainage

Most modern sleeves include rear-drain channels or weep holes to direct condensation outside.

If the sleeve isn’t level (¼″ tilt outward recommended), water will backflow and soak your insulation.

Check these before sliding in the AC:
✅ Rear drain holes clear
✅ Sleeve tilted slightly outward
✅ Foam gasket tight against the interior wall

(Energy Star — Moisture Management Tips)

---

9. Noise Reduction & Vibration Control

Your sleeve acts as a shock absorber between the compressor and your drywall.

Steel models transmit less vibration when properly insulated.
Polymer sleeves absorb sound naturally.

For ultra-quiet installs, add:

• Rubber vibration pads under the bottom corners

• Weatherstripping foam between the sleeve and framing

Tony’s trick:

“If you can hear the compressor hum through the wall, you forgot your insulation strip.”

---

10. Insulation & Air Sealing

Even the best AC fails if air leaks around the sleeve.
Here’s Tony’s go-to method:

1. Wrap the sleeve perimeter in closed-cell foam tape (¾″).

2. Seal edges with low-expansion spray foam (don’t overfill).

3. Add an interior trim kit to hide the joint.

4. Check for drafts with a candle — flame should stay steady.

Every leak is lost money; even a ⅛″ open gap can waste 15 % efficiency.

---

11. Retrofitting Old Sleeves

If you’re replacing an older unit, inspect the sleeve first.

Keep the sleeve if:

• It’s solid, rust-free, and fits new unit specs.

• Rear grille matches vent alignment.

Replace it if:

• Metal is corroded

• It’s too shallow or too deep.

• Mounting flanges are bent.

Most new sleeves ship with adapter plates for retrofit compatibility.

Tony’s advice:

“If it smells like rust, replace it. Don’t trap a new $900 AC in a $40 mistake.”

---

12. Wall Sleeve Grilles Explained

The back of your sleeve isn’t just open air — it’s protected by a grille that shields the coils from debris, birds, and rain.

Grille types:

• Aluminum louvered: Best airflow, standard on Amana

• Polymer grid: Quieter, corrosion-proof

• Universal mesh guard: Budget retrofit option

Always ensure the airflow direction matches your AC’s vent pattern (horizontal or vertical discharge).

---

13. The Cost of Getting It Wrong

No sleeve — or a bad one — can lead to:

• $100 + per year in energy loss

• Condensation damage to insulation

• Mold inside the wall cavity

• Shorter AC lifespan

If your wall feels warm around the unit, or you hear whistling in strong wind, your seal is failing.

Tony’s line:

“Bad sleeve = bad insulation. It’s like running your fridge with the door open.”

---

14. Tony’s Step-by-Step Install Playbook

1. Find the Right Spot
   Avoid studs, outlets, and plumbing. Pick an exterior wall with outdoor clearance.

2. Cut the Opening
   Use a reciprocating saw or oscillating tool. Frame with 2 × 4s.

3. Insert Sleeve
   Center it between studs. Make sure it slopes ¼″ outward.

4. Seal the Gaps
   Foam the perimeter, inside and out.

5. Install the Grille
   Attach using stainless screws — avoid stripping.

6. Slide in the Unit
   Align rails, connect the drain, plug in, and test.

7. Trim & Finish
   Use vinyl trim or paint-matched caulk for a clean look.

Total time: 2–3 hours for first-timers, 90 minutes for pros.

---

15. Matching Sleeves to Your Brand

Tony’s recommendation:

“Buy the OEM sleeve if you can. Universal’s fine, but factory sleeves seal like a glove.”

---

16. Cost & Longevity

For a $1,000 AC, skimping on a $100 sleeve makes zero sense.

Tony’s perspective:

“That’s like buying a Harley and saving money on the kickstand.”

---

17. How to Know You Picked the Right One

✅ Unit slides in without force
✅ Gasket seals tightly all around
✅ Sleeve flush to interior wall
✅ Rear grille vents match
✅ No airflow blockage or vibration noise

If it passes all five, you’re golden.

---

18. Common DIY Mistakes

Tony’s golden rule:

“You can’t out-cool a bad install.”

---

19. Maintenance: Set It and Forget It (Almost)

Wall sleeves are nearly maintenance-free, but do this once a year:

• Vacuum inside to remove dust

• Check the rear grille for clogs.

• Inspect sealant for cracks.

• Flush drain holes with warm water

That 10-minute check prevents 10 years of problems.

---

20. Tony’s Final Word

A through-the-wall AC without a sleeve is like a house without a foundation — it’ll work, but not for long.

The wall sleeve is the unsung hero that makes your investment efficient, quiet, and weatherproof.

Tony’s closer:

“Spend a hundred bucks now, save a thousand later. The right sleeve makes your AC part of the house — not a hole in it.”

The installation guide will be provided by Tony in the next blog.
