Upflow vs. Horizontal Furnace Installation: What Every Homeowner Should Know - By Samantha Reyes, Home Comfort Advisor

👋 Hey, I’m Samantha Reyes

If you’re planning to install a new furnace—or replace an old one—you’ve likely come across terms like “upflow,” “horizontal,” and “downflow.” These refer to the installation orientation of the furnace. And let me tell you, choosing the wrong configuration can lead to major headaches—like poor airflow, higher energy costs, and expensive retrofits.

Today, I’ll break down the differences between upflow and horizontal furnaces, explain how to determine which is right for your home, and show why flexible units like the Goodman GR9T801205DN are so popular with installers and homeowners alike.

---

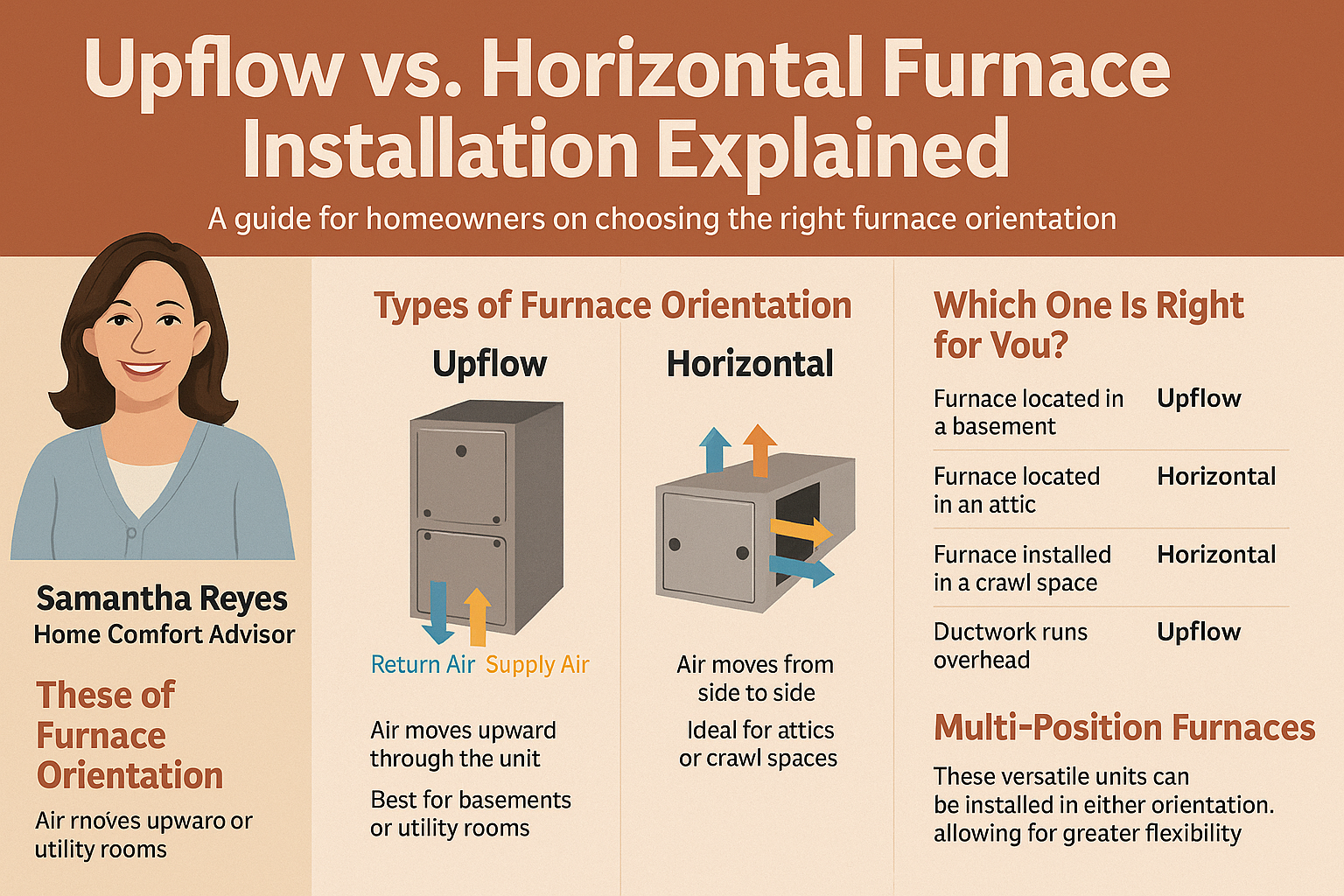

🧭 What Is Furnace Orientation?

Furnace orientation refers to the direction in which air flows through the unit and into your ductwork. The three most common types are:

• Upflow

• Horizontal

• Downflow

Each configuration is designed to fit specific space layouts and ducting styles in your home.

Let’s explore what each one means.

---

🔼 What Is an Upflow Furnace?

In an upflow furnace, air enters through the bottom of the unit, passes over the heat exchanger, and then exits through the top into the supply ducts. This is the most common configuration in residential homes.

✔️ Best Suited For:

• Basements

• Utility rooms with vertical ducting

• Installations where the ductwork is above the furnace

✔️ Benefits:

• Easy to service and access components

• Efficient heat distribution in multi-level homes

• Works well with gravity-fed airflow

🔧 Space Requirements:

Upflow furnaces are generally taller than horizontal units. You’ll need floor space but less wall clearance.

---

↔️ What Is a Horizontal Furnace?

A horizontal furnace lies on its side, pulling air in from one end and pushing it out the other—like a tunnel. These are often used when vertical space is limited.

✔️ Best Suited For:

• Attics

• Crawl spaces

• Closets or low-ceiling areas

• Homes with ductwork running horizontally

✔️ Benefits:

• Compact and space-saving

• Easy to suspend from joists or beams

• Works in tight, low-clearance areas

🔧 Space Requirements:

Designed to fit in tight, horizontal spaces. However, you need clear access on either end for duct connections.

---

⬇️ What About Downflow Furnaces?

Though not our focus today, a downflow furnace (or highboy) blows heated air downward into ductwork located below the unit—perfect for homes with furnaces on upper floors or in closets.

---

📦 Flexible Installation: Why It Matters

If you’re tight on space or unsure about duct layout, a multi-position furnace (like the GR9T801205DN) gives you flexibility. These units can be installed in either upflow or horizontal configuration with minor adjustments.

💡 Smart tip: Multi-position units are perfect for future-proofing—if you ever remodel, your furnace won’t hold you back.

---

🧰 Installation Scenarios: Real-Life Examples

Let’s take a look at two example homes:

---

🏠 Case 1: Suburban Basement

Home Layout: 2-story, ductwork in ceiling
Furnace Location: Basement utility room
Best Fit: Upflow

Why? The ducts are above, and there’s plenty of room for vertical installation. Gravity assists the warm air's upward movement to the main and upper floors.

---

🏡 Case 2: Ranch-Style Home with Crawlspace

Home Layout: 1-story ranch with ducts under the floor
Furnace Location: Crawl space
Best Fit: Horizontal

Why? Horizontal units are compact enough to fit under the floor and deliver heat directly to ducts running through the crawlspace.

---

💸 Cost Comparison: Upflow vs. Horizontal

🔧 Labor costs are higher when the furnace is in a tight or difficult space, especially in attics or crawlspaces that aren’t climate controlled.

---

🌬️ Airflow and Comfort Considerations

Proper orientation ensures that airflow is balanced, heat is distributed evenly, and your system runs efficiently.

Poorly matched orientation can cause:

• Inconsistent heating or hot/cold spots

• High static pressure in ducts

• Overworking of the blower motor

• Shortened system lifespan

External Link: Learn more from ACHR News: How Airflow Impacts Comfort.

---

🔥 Why the Goodman GR9T801205DN Excels

The Goodman GR9T801205DN is a flexible, multi-position furnace that supports both upflow and horizontal installations. It comes with:

• Two-stage heating for better comfort

• 9-speed ECM motor for energy efficiency

• 80% AFUE, perfect for budget-conscious heating

• 24.5” cabinet width, ideal for tight fits

🧰 Installer tip: The cabinet is already configured with reversible panels for easy conversion between upflow and horizontal.

---

🧯 Venting Requirements by Orientation

Each configuration has different venting needs:

• Upflow: Vents typically run vertically into a chimney or flue

• Horizontal: Requires side venting or extended PVC exhaust lines

• Condensate Drainage: Units in horizontal orientation may need a condensate pump

External Link: Check Venting Guide for diagrams and safety codes.

---

🛠️ Installation Tips for Homeowners

If you're hiring a contractor, here are key things to ask:

1. What configuration does my duct system require?

2. Is there enough clearance for servicing in this position?

3. Will the blower motor need to be repositioned?

4. Will this setup affect static pressure or airflow?

5. Can I future-proof with a multi-position unit?

---

🧑🔧 What HVAC Pros Consider Before Installing

Pros assess many variables, including:

• Duct location (above or below)

• Furnace access clearance

• Local code compliance

• Condensate management

• Noise and vibration considerations

👷 Fun fact: Some cities restrict attic installations due to fire risk. Always check your local code!

---

🧊 Horizontal Furnaces in Attics: Know the Risks

Installing a horizontal furnace in an attic has pros and cons:

Pros:

• Frees up interior space

• Easier to zone ducts

Cons:

• Exposed to extreme heat/cold

• Risk of frozen condensate lines

• Harder to access for service

External Link: Bob Vila’s Guide to Attic Furnace Installations

---

🧪 Samantha’s Orientation Quiz

Take this 60-second quiz to see what orientation fits your home best:

Q1: Where will your furnace be located?

• Basement → Upflow

• Attic → Horizontal

• Crawl space → Horizontal

• Closet on upper floor → Downflow

Q2: Where do your supply ducts start?

• Ceiling → Upflow

• Floor or slab → Downflow or Horizontal

Q3: Do you need future flexibility?

• Yes → Get a multi-position furnace like the GR9T801205DN

---

🔄 Switching Orientations: Is It Possible?

Yes—but it can be costly. Converting from an upflow to a horizontal setup may require:

• Ductwork reconstruction

• Condensate line rerouting

• Electrical and gas line repositioning

• New support structure or platform

💡 Unless you’re remodeling, stick with your home’s original layout to keep costs low.

---

✅ Summary Table: Choosing Your Furnace Orientation

---

🗣️ Final Thoughts from Samantha

Whether you're building new, remodeling, or simply replacing your aging system, installation orientation matters as much as furnace efficiency.

Choosing between upflow and horizontal can mean the difference between years of cozy comfort—or costly airflow problems. I always recommend a multi-position unit if you're unsure—like the Goodman GR9T801205DN—because it keeps your options open and installation smoother.

---

📞 Need Help?

Still not sure which orientation is right for your home? Snap a photo of your current setup and send it my way—I’ll help you make the best choice for your space, budget, and future plans.

Here’s to a furnace that fits your home as perfectly as your favorite pair of jeans.

— Samantha Reyes, Home Comfort Advisor
