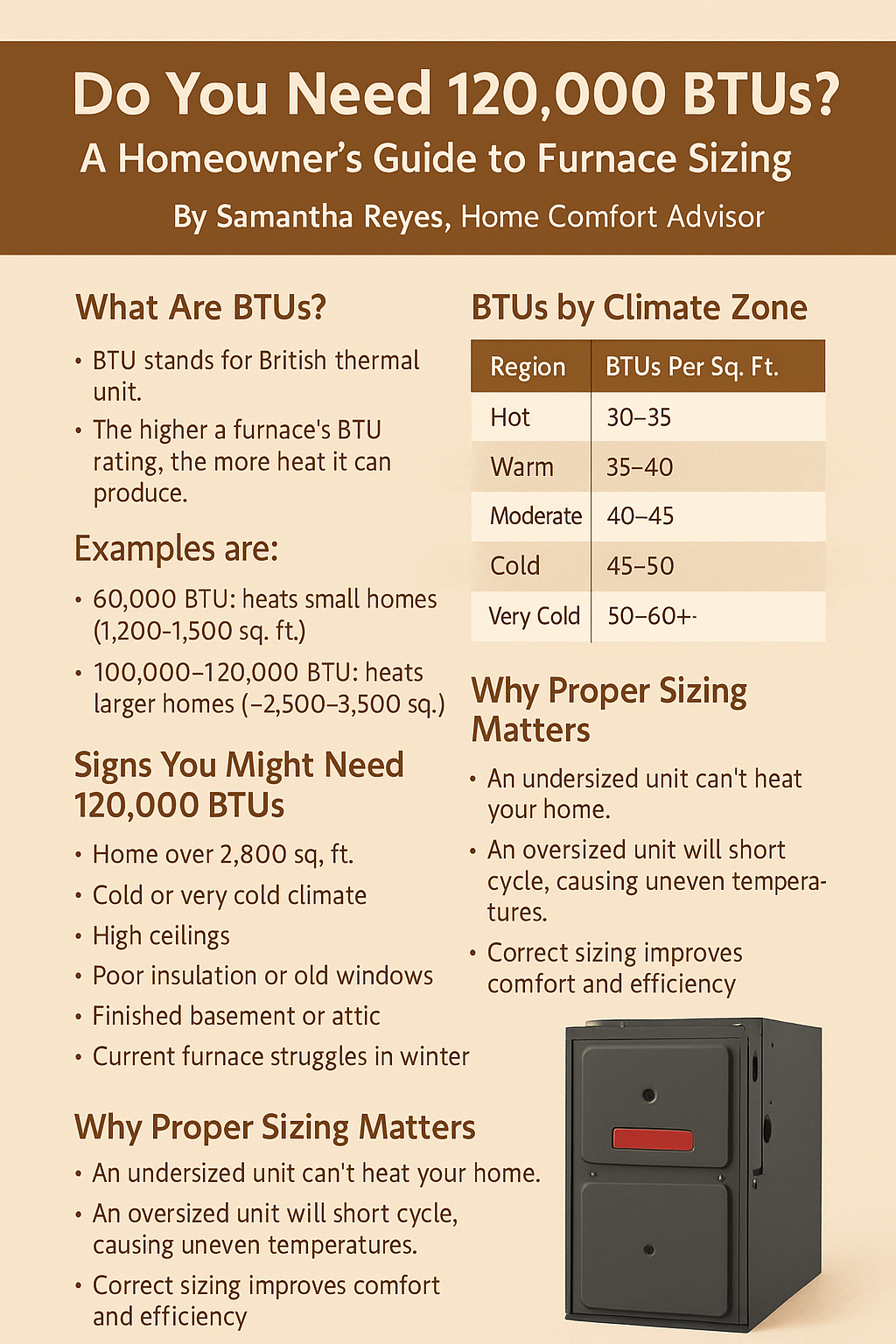

Do You Need 120,000 BTUs? A Homeowner's Guide to Furnace Sizing - By Samantha Reyes, Home Comfort Advisor

👋 Hi, I’m Samantha Reyes

Hey there! I’m Samantha Reyes, your resident home comfort expert at The Furnace Outlet. Today we’re tackling a big question that often confuses homeowners shopping for a new heating system:

“Is 120,000 BTUs too much? Or just right for my home?”

That’s not a question to guess your way through. Installing a furnace that’s too big (or too small) can seriously mess with your comfort, air quality, and energy bills. So let’s dive deep into what BTUs really mean, how to calculate your home’s heating needs, and whether a 120,000 BTU furnace like the Goodman GR9T801205DN is the right choice for you.

---

🔥 What Are BTUs?

BTU stands for British Thermal Unit. It’s the amount of energy needed to raise the temperature of one pound of water by one degree Fahrenheit. In HVAC terms, it’s a measure of heat output.

The higher the BTU rating of your furnace, the more heat it can generate in an hour.

For example:

• A 60,000 BTU furnace heats a small 1,200–1,500 sq. ft. home.

• A 100,000–120,000 BTU furnace is typically used in larger homes around 2,500–3,500 sq. ft. depending on insulation, location, and ceiling height.

But don’t go buying based on square footage alone. That’s just the start.

---

🧮 How to Properly Size a Furnace: The Manual J Load Calc

Professional HVAC contractors use a method called Manual J Load Calculation, developed by the Air Conditioning Contractors of America (ACCA). It’s the gold standard for figuring out exactly how much heating (and cooling) a home requires.

Manual J takes into account:

• Climate zone

• Square footage

• Ceiling height

• Insulation levels

• Number of windows & doors

• Orientation (e.g. north- or south-facing)

• Home construction materials

• Ductwork efficiency

• Number of occupants

External Link: Want to geek out with the details? Check out ACCA’s official guide to Manual J.

---

🗺️ Climate Zones and BTU Estimates

Your geographic location matters a lot when determining the right furnace size. Let’s break it down:

❄️ If you live in Minneapolis with a 2,400 sq. ft. home, your heating needs might reach 120,000–140,000 BTUs.

☀️ But if you’re in Atlanta with that same size home, you might only need 85,000–95,000 BTUs.

---

💡 Signs You Might Need a 120,000 BTU Furnace

You may be a good candidate for a high-capacity unit if:

• Your home is over 2,800 sq. ft.

• You live in a cold or very cold climate

• Your ceilings are vaulted or above 9 feet

• Your insulation or windows are outdated

• You have finished basement or attic spaces

• Your current system struggles to keep up in winter

---

🛑 Why Bigger Isn’t Always Better

Here’s a critical truth:

An oversized furnace is just as problematic as an undersized one.

You might think “more heat = more comfort,” but that’s not how it works. An oversized furnace will:

• Short cycle (turn on and off frequently)

• Wear out faster

• Leave rooms feeling too hot or too cold

• Cause temperature swings

• Fail to properly filter or humidify air

• Burn more fuel than necessary

Over time, it will cost you more in repairs, comfort, and energy.

External Link: Energy.gov explains more about HVAC right-sizing.

---

💰 Cost Comparison: Size and Efficiency

Let’s compare a few furnace sizes and expected annual costs (based on national average gas prices):

Note: Higher AFUE means lower operating cost, even at higher BTU.

External Link: Use PickHVAC’s BTU calculator to get a quick estimate for your own home.

---

📦 Product Spotlight: Goodman GR9T801205DN

The Goodman GR9T801205DN is a two-stage, 80% AFUE, 120,000 BTU furnace built for high-performance heating in large or cold-climate homes.

Key Specs:

• BTU: 120,000 (input), 96,000 (output)

• Staging: Two-stage heating

• Airflow: Multi-speed ECM motor

• Configuration: Upflow or horizontal

• Cabinet: 24.5” width (fits most installations)

Ideal For:

• 2,800–3,400 sq. ft. homes in cold climates

• Homes with heat loss (older windows, minimal insulation)

• Zoned heating systems with large common spaces

🛠️ Just make sure it’s paired with a properly sized duct system. Oversized units without matching ducts can cause static pressure issues.

---

🌬️ Don’t Forget the Ductwork

Even the best furnace in the world won’t perform right if your ductwork is too small, leaky, or poorly designed.

For a 120,000 BTU furnace:

• Main trunk lines should support at least 2,000–2,200 CFM airflow

• Return air should be equally sized to avoid pressure buildup

• Duct insulation and sealing matter as much as size

---

📋 What to Ask Your Installer

When you’re shopping or quoting installation, here are must-ask questions:

1. Have you performed a Manual J load calc?

2. How will you verify ductwork sizing?

3. What’s the estimated annual operating cost?

4. Is this furnace compatible with smart thermostats?

5. Are there any rebates for high-efficiency upgrades?

6. What’s the warranty (parts + heat exchanger)?

7. Can this system handle zoning or future AC upgrades?

---

🧯 What Happens If You Undersize?

While oversizing is common, undersizing is also risky:

• Furnace runs nonstop and still doesn’t meet the thermostat

• Cold spots in larger rooms or upper floors

• System stress leads to short equipment life

• Poor humidity control and comfort in extreme cold

Always let science (and a certified installer) dictate furnace size—not guesswork.

---

🔍 Bonus: Efficiency vs. Output

Sometimes homeowners confuse BTU output with efficiency (AFUE). Here’s the difference:

• BTU input = How much gas the furnace uses

• AFUE rating = What % of gas is converted to heat

• BTU output = Input × AFUE

So a 120,000 BTU furnace with 80% AFUE produces 96,000 BTUs of actual heat. But a 100,000 BTU furnace with 96% AFUE produces the same 96,000 BTUs!

Efficiency + correct sizing = optimal performance.

---

🧭 Samantha’s Takeaway

If your home is large, drafty, or located in a cold zone, a 120,000 BTU furnace might be exactly what you need. But don’t let BTU numbers scare you—what matters most is whether it fits your home's heat loss profile.

Always demand a Manual J calculation, and make sure your installer checks the whole system—not just the furnace box.

---

📞 Need Help?

If you're still unsure whether 120,000 BTUs is too much or just right, I’m here to help! Reach out with your square footage, climate, and current setup—I’d be happy to point you in the right direction.

Here’s to a cozy, efficient winter—without the guesswork.

— Samantha Reyes, Home Comfort Advisor
