Understanding Line Sets and Extensions for Multi-Zone MRCOOL Installs

🧰 Why Line Sets Matter More Than You Think

You might think of line sets as simple copper tubing. But in a DIY system like the MRCOOL 5th Gen 48k Multi-Zone, they’re the lifeline of the refrigerant system.

Get them wrong, and you risk:

• Refrigerant loss or poor performance

• Warranty voids

• Indoor unit malfunctions

• Costly reinstall or pro service

This guide breaks down:

• 📏 Line set sizing and limits

• 🔗 Extension use (and risks)

• 🧰 Best routing strategies

• 📉 Elevation gain/loss issues

• ✅ What Mark did in his own 4-zone install

---

🔄 What Is a Line Set?

A line set connects your indoor air handler to the outdoor condenser using two key pipes:

Each MRCOOL indoor unit comes with:

• 16 ft. pre-charged Quick Connect™ line set

• Insulated copper pipes

• Color-coded ends

• UV and mechanical insulation wrap

📘 Learn more: MRCOOL Quick Connect Line Set Overview

---

🔗 Total Line Set Length Limits

For MRCOOL’s 5th Gen 48k Multi-Zone systems:

• Max length per zone: 75 ft

• Min length per zone: 10 ft

• Max vertical rise/drop: 33 ft per zone

• Max combined system length: ~210–230 ft total (depending on zoning)

📎 Source: MRCOOL DIY Multi-Zone Manual

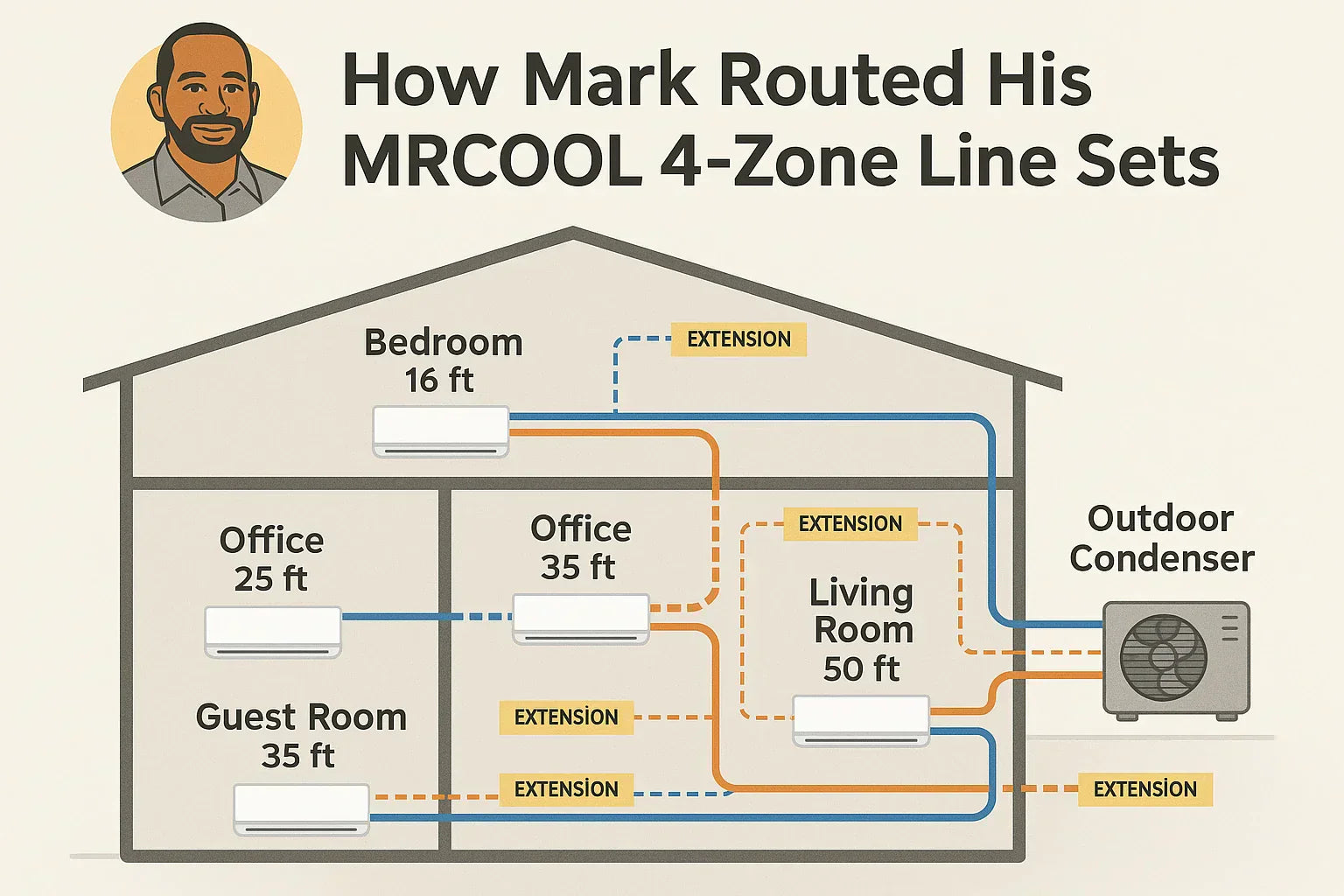

📊 Mark’s Layout Example

---

🧩 When to Use Line Set Extensions

MRCOOL makes pre-charged extension kits in:

• 16 ft

• 25 ft

• 50 ft

They come with:

• Insulated refrigerant tubing

• Coupler kits (with pre-charged refrigerant)

• Protective sleeve wrap

• Torque specs & instructions

🔧 Buy from MRCOOL direct: MRCOOL DIY Line Set Extension Kit

✅ Good Times to Use Extensions:

• Condenser is across the house

• Running through an attic or crawlspace

• Avoiding obstacles like chimneys or decks

• Keeping head units on interior walls

⚠️ When to Avoid:

• You need more than 2 couplers per line

• You're exceeding 75 ft per zone

• Elevation exceeds 33 ft (up or down)

• Too many bends cause refrigerant flow issues

📗 For safety and pressure integrity, MRCOOL does not recommend exceeding 2 couplers per line.

---

🧱 Planning Your Line Set Routing

Mark planned each route by sketching out his home’s wall structure and attic access. Here's what he learned:

🔄 Routing Options:

---

📐 Elevation Rules and Gravity

MRCOOL systems are pressurized and pre-charged for elevation changes, but there are limits.

• Max rise (condenser below head): 33 ft

• Max drop (condenser above head): 33 ft

• Don’t exceed one floor level without checking pressure balance

🧪 How Mark Managed This:

• Installed condenser on raised pad, even with first-floor zones

• Routed all line sets downward to prevent oil/refrigerant pooling

• Used loop bends to allow thermal expansion

---

🧼 Protecting the Line Sets

✅ Best Practices:

• Avoid tight 90° bends — keep curves smooth

• Insulate all exposed copper

• Use line set covers to protect from:

  • Sunlight

  • Moisture

  • Physical damage

🧱 Indoor Runs:

• Use wall grommets or PVC sleeves

• Seal all wall penetrations with exterior caulk or foam

---

🧯 Safety & Leak Prevention

Tools for Leak Testing:

• MRCOOL leak test spray

• Soapy water (watch for bubbles)

• Torque wrench for correct coupler tightening (see manual specs)

🛠️ NEVER use an open flame or vacuum pump — the system is factory sealed.

If a coupler leaks:

• Disconnect system and call MRCOOL support

• Do not open valve until line is fully sealed and tested

• Never reuse a compromised coupler

---

🧮 Advanced Planning: Total BTU and Piping Layout

Some users forget: longer line sets = higher resistance = slightly reduced efficiency.

• A 9k zone with a 60 ft run may perform closer to 8,000 BTUs

• The 24k zone with a 75 ft run may dip to 21,000–22,000 BTUs on peak days

If that loss matters to you:

• Keep primary zones closer to the condenser

• Use shortest line set possible for key rooms (like master bedrooms)

📈 HVAC Load Loss from Line Length

---

📱 Smart Control: Line Set Length Doesn’t Affect App Features

Even if your line set is 16 ft or 75 ft, the SmartHVAC app still gives:

• Remote zone temperature control

• Scheduling

• Filter maintenance alerts

• Error code notifications

---

✅ Final Takeaways for DIYers Like Mark

“I spent more time planning the line set routing than I did mounting the units — and I’m glad I did. Smooth install, no leaks, no regrets.”

Mark’s Checklist:

• ✅ Never exceed 75 ft per line

• ✅ Limit to 2 couplers per zone

• ✅ Keep elevation changes under 33 ft

• ✅ Use covers and insulate carefully

• ✅ Follow torque specs exactly

With careful routing and the right accessories, your MRCOOL 48k system can be installed safely, efficiently, and without pro tools.

In the next topic we will read more about: DIY Installation of the MRCOOL 4-Zone Mini Split: What to Expect
