There’s a moment every start-up space reaches where planning turns into action. Your PTAC unit has arrived, the box is sitting on the floor, and suddenly it feels real. This is where excitement and anxiety often meet.
The good news? PTAC setup is far more straightforward than most people expect—as long as you follow the steps in the right order.
Amana J-Series PTAC Model 17,000 BTU PTAC Unit with 5 kW Electric Heat

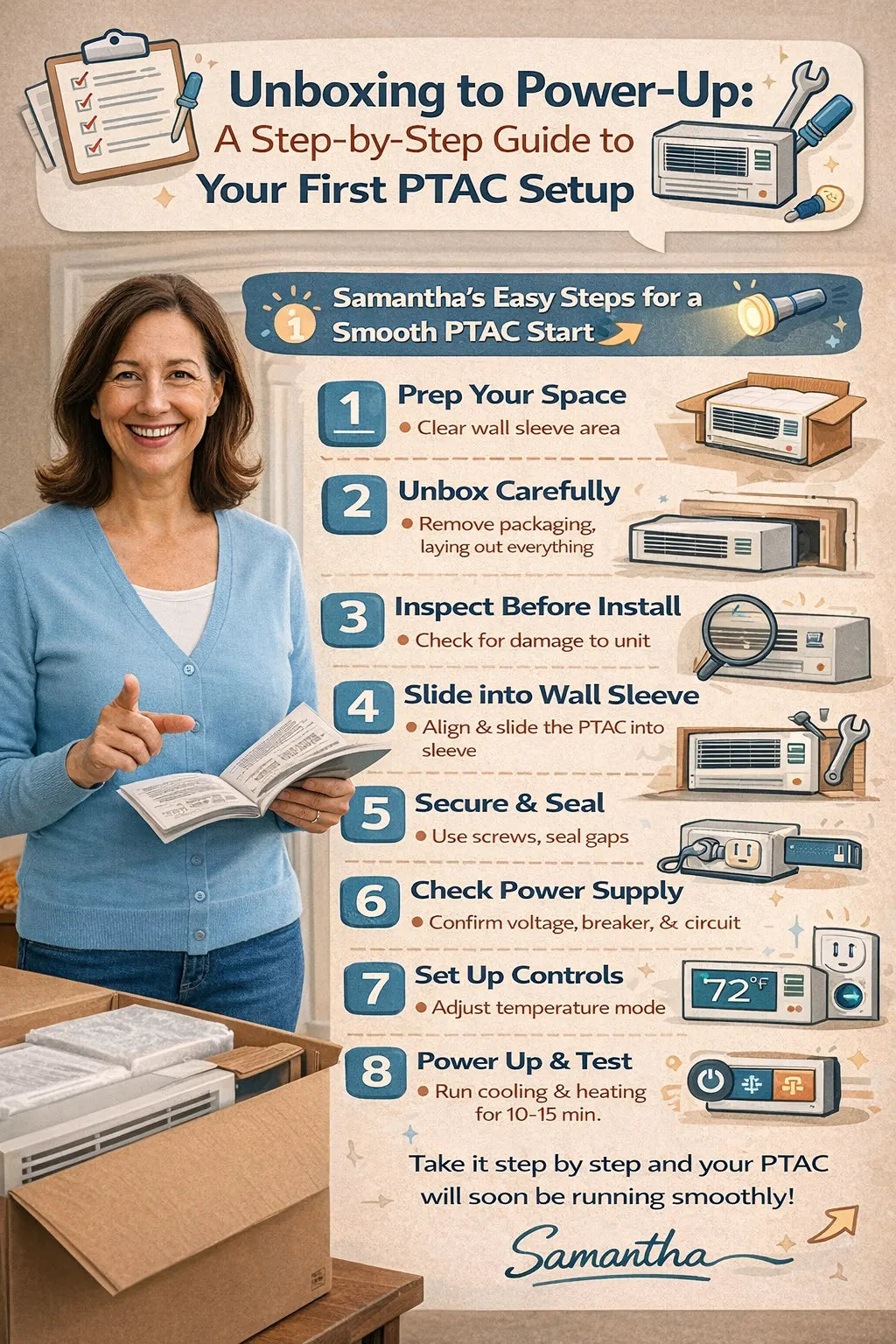

In this guide, I’ll walk you from unboxing to first power-up, explaining what to check, what to avoid, and how to set yourself up for smooth, reliable operation from day one. Whether you’re installing an Amana J-Series or a similar commercial-grade PTAC, this process stays largely the same.
🧰 Step 0: Prep Your Space Before the Box Is Opened
Before cutting tape or pulling cardboard, make sure the installation area is ready. This avoids rushing later.
✅ Confirm These Basics First
-
Wall sleeve is installed and level
-
Electrical outlet and circuit are complete
-
Outdoor grille is secured
-
Floor area is clear for lifting and sliding the unit
PTACs are heavy, and most damage happens before they’re ever turned on—usually from rushed handling.
👉 Helpful prep reference:
Energy.gov – HVAC Installation Basics
📦 Step 1: Unboxing the PTAC Safely
PTACs are packed tightly for a reason. Take your time here.
🔍 What You’ll Typically Find Inside
-
PTAC chassis (main unit)
-
Installation manual
-
Power cord (often pre-attached)
-
Filters (usually installed already)
-
Mounting or alignment hardware (model-specific)
⚠️ Samantha’s Tip
Keep the box and foam until after first power-up. If something arrives damaged, packaging makes returns far easier.
🧍 Step 2: Inspect Before Installation
This step gets skipped too often—and regretted later.
👀 What to Check
-
No bent fins on coils
-
No loose panels
-
Power cord undamaged
-
Filters seated correctly
If anything looks off, stop here. Don’t install a compromised unit hoping it’ll “work itself out.”
🧱 Step 3: Slide the PTAC into the Wall Sleeve
This is where having a second set of hands helps.
🛠 How to Do It Right
-
Lift from the bottom—not the front panel
-
Align the chassis rails with the sleeve
-
Slide slowly and evenly
-
Ensure the unit sits flush with the interior wall
The PTAC should feel stable, not forced. If it binds, pull it back and realign—never hammer or shove.
🔩 Step 4: Secure the Unit and Seal the Gaps
Once seated, most PTACs require securing screws or brackets to lock them into place.
✔️ Why This Matters
-
Prevents vibration noise
-
Keeps the unit level
-
Improves air sealing
-
Reduces long-term wear
Use manufacturer-recommended fasteners only. Over-tightening can warp the chassis.
🔌 Step 5: Electrical Connection & Power Readiness
Before plugging anything in, double-check electrical requirements.
🔍 Confirm:
-
Correct voltage (commonly 208/230V)
-
Dedicated circuit
-
Proper amperage rating
-
No extension cords or adapters
PTACs draw significant power during compressor startup. Shortcuts here lead to nuisance trips—or worse.
👉 Electrical safety reference:
U.S. Consumer Product Safety Commission – Electrical Safety
🎛 Step 6: Thermostat & Control Setup
Depending on your model, controls may be:
-
Built-in
-
Wall-mounted
-
External thermostat compatible
🧠 Initial Settings to Check
-
Fan mode (auto vs continuous)
-
Temperature setpoint
-
Heat vs cool selection
-
Occupancy or energy-saving modes
For start-ups, simpler is better. Get stable operation first—fine-tuning comes later.
🌬 Step 7: First Power-Up — What to Expect
This is the moment everyone waits for.
🔊 Normal First-Start Behaviors
-
Brief fan operation before compressor starts
-
Delay before cooling engages
-
Slight factory odors (burn off quickly)
🚫 What’s NOT Normal
-
Grinding or scraping sounds
-
Tripped breakers immediately
-
No airflow
If something seems wrong, shut the unit off and recheck installation steps.
👉 Startup behavior explained:
This Old House – How Air Conditioners Work
🌡 Step 8: Test Cooling & Heating Cycles
Run each mode separately for at least 10–15 minutes.
✔️ Cooling Test
-
Air should steadily cool
-
Compressor should cycle normally
-
No excessive vibration
✔️ Heating Test (Electric Heat)
-
Warm air within minutes
-
No burning smell beyond initial start
-
Stable temperature rise
Electric heat is immediate and consistent—one reason it’s popular in start-up spaces.
🧼 Step 9: Final Checks Before Daily Use
Before calling the setup complete, do a quick walk-through.
📝 Samantha’s Final Checklist
-
Filters seated and accessible
-
Unit flush with wall
-
No air leaks
-
Controls responding correctly
-
Noise levels acceptable
Take photos of the installation for your records—it helps with warranty claims and future maintenance.
👉 Maintenance basics:
Bob Vila – Air Conditioner Maintenance Tips
🚀 Why a Proper First Setup Makes All the Difference
PTACs are designed for reliability—but only if they’re set up correctly. Rushing unboxing or skipping checks leads to:
-
Shortened lifespan
-
Higher energy bills
-
Comfort complaints
-
Early service calls
When installed properly, a PTAC like the Amana J-Series can deliver years of dependable heating and cooling with minimal upkeep.
🧠 Final Thoughts from Samantha
Your first PTAC setup isn’t just a technical task—it’s the foundation for daily comfort in your space.
Take it step by step. Respect the process. And don’t rush the power-up.
When done right, your PTAC should feel like it simply belongs there—quietly doing its job so you can focus on building what really matters.
