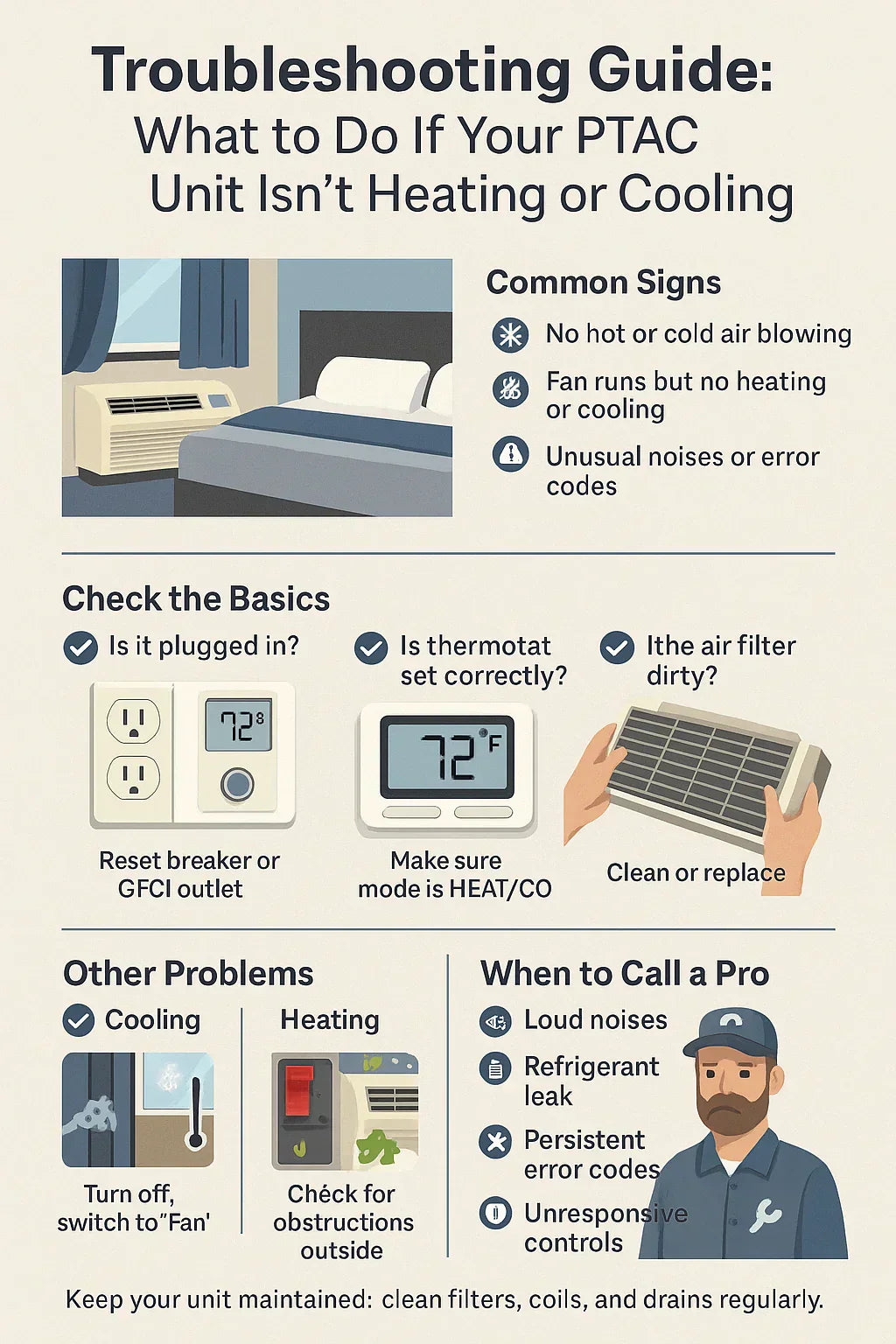

🔧 Troubleshooting Guide: What to Do If Your PTAC Unit Isn’t Heating or Cooling
Packaged Terminal Air Conditioners (PTACs) are widely used in hotels, apartments, offices, and guest spaces for their efficient, localized heating and cooling capabilities. But like all HVAC systems, they can occasionally malfunction.
If your PTAC unit isn’t heating or cooling properly, don’t panic. This in-depth guide will walk you through:
-
Common causes
-
Step-by-step diagnostics
-
DIY fixes
-
When to call a professional
We’ll also cover preventive care and energy-saving tips to keep your PTAC running like new.
⚠️ Common Signs Your PTAC Is Malfunctioning
Before we dive into troubleshooting, here’s what might alert you to a problem:
-
The unit runs but doesn't produce cold or hot air.
-
Fan runs, but no heating or cooling occurs.
-
The unit turns on and off rapidly (short-cycling).
-
Unusual noises (clicks, hissing, banging).
-
Error codes on the LED display.
-
Ice buildup on the coils.
🔌 Step 1: Check the Basics First
Start with the most straightforward potential issues:
✅ Is the Unit Plugged In?
Some PTAC units use a standard 220-volt plug, while others are hardwired. Confirm the unit has power. Reset the GFCI outlet or breaker if necessary.
✅ Is the Thermostat Set Correctly?
Make sure:
-
The mode is set to “Cool” or “Heat” (not just “Fan”).
-
The temperature setpoint is below room temp for cooling, above for heating.
✅ Is the Remote Control Working?
Change the batteries in the remote and confirm the signal is reaching the unit.
🌬️ Step 2: Airflow Problems
PTACs rely on unobstructed airflow to function. Blockages can lead to overheating or freezing.
✅ Check the Air Filter
Dirty filters restrict airflow, causing both heating and cooling failure. Most PTACs have reusable mesh filters behind the front grille.
-
Remove and wash the filter with warm, soapy water.
-
Let it dry completely before reinserting.
👉 Clean every 30 days in high-use periods.
✅ Examine the Front Grille
Dust, lint, or debris buildup can choke airflow. Vacuum it gently or wipe with a damp cloth.
❄️ Step 3: Cooling Issues Only
If your PTAC cools poorly (or not at all):
🧊 Check for Ice Formation
Iced-up coils mean:
-
Dirty air filters
-
Low refrigerant
-
Running in too low ambient temperatures
What to do:
-
Turn the unit off.
-
Switch to “Fan” mode for 30–60 minutes to defrost.
-
Clean filters.
-
If ice returns quickly, call a technician — it could be a refrigerant leak.
🌡️ Check the Outdoor Temperature
Some units won't cool properly when outdoor temps are too low (typically below 60°F). This is a design limitation, not a fault.
🔥 Step 4: Heating Issues Only
If your PTAC isn’t heating:
⚡ Electric Heat Kits
Check for tripped circuit breakers or burned-out heating elements. Wall-mounted PTACs often include supplemental electric heat kits, which can fail independently.
🔁 Heat Pump Reversing Valve Failure
If you have a heat pump-style PTAC, it may not be switching modes correctly. This usually requires professional service.
❌ Blocked Outdoor Grille
Snow, leaves, or obstructions outside the building can block heat transfer. Ensure the outdoor side is clear.
🧠 Step 5: Advanced Diagnostics (Error Codes)
Many modern PTAC units display error codes to help with troubleshooting. Here are examples from common brands:
| Brand | Common Codes | Meaning |
|---|---|---|
| GE Zoneline | F1, F2 | Faults in sensors or fan motors |
| Amana | LC, FP | Low current or Freeze Protection |
| Hotpoint | CH, PF | Compressor Halt, Power Failure |
Check your user manual or brand website for your model’s specific codes:
🧰 DIY Fixes You Can Try
If the above checks didn’t help, try the following:
🔄 Reset the Unit
-
Unplug for 5 minutes.
-
Plug back in and restart.
-
For hardwired models, flip the breaker off and on.
💧 Clean the Drain
If your PTAC is leaking water or not draining:
-
Check the internal drain pan.
-
Clean any algae or gunk from the drainage channel with a pipe cleaner or vacuum.
-
Check for a clogged external drain tube.
🛠️ Tighten Loose Components
Screws, fan blades, or motor mounts can vibrate loose, causing odd noises or inefficiencies. Open the front panel carefully and secure as needed.
👨🔧 When to Call a Professional
Contact an HVAC technician if:
-
You hear loud clicking, buzzing, or sparking.
-
The unit emits a burnt smell.
-
Coils freeze up repeatedly.
-
There's no response to controls.
-
Error codes persist.
-
The compressor doesn’t turn on.
🧼 Preventive Maintenance Tips
Keeping your PTAC healthy avoids downtime and extends its life:
| Task | Frequency |
|---|---|
| Clean filter | Monthly |
| Vacuum front grille | Monthly |
| Flush drain line | Every 3 months |
| Clean coils (inside/out) | Every 6 months |
| Test thermostat | Seasonally |
| Professional tune-up | Yearly |
Recommended reading:
💡 Bonus: Energy-Saving Upgrades to Consider
If your PTAC is aging or unreliable, it might be worth upgrading to:
-
Energy-efficient models with higher EER/CEER ratings
-
PTACs with occupancy sensors that adjust temperature when rooms are vacant
-
Wi-Fi-enabled PTACs for remote monitoring and maintenance alerts
Some energy-efficient PTAC models may qualify for rebates or tax credits:
🏁 Final Thoughts: Stay Ahead of PTAC Problems
A PTAC that stops heating or cooling can feel like an emergency—but with this guide, you’re equipped to handle most issues quickly. Many problems can be solved with a simple cleaning or reset. And if not, you’ll know when to call in help.
Don’t forget: Preventive maintenance is the key to avoiding future breakdowns and energy waste. Set reminders to clean filters and coils, and consider a spring or fall tune-up to catch issues before peak season.
In the next topic we will know more about: What Is a PTAC Unit? Understanding Hotel-Style Heating & Cooling for Homeowners and Small Businesses
