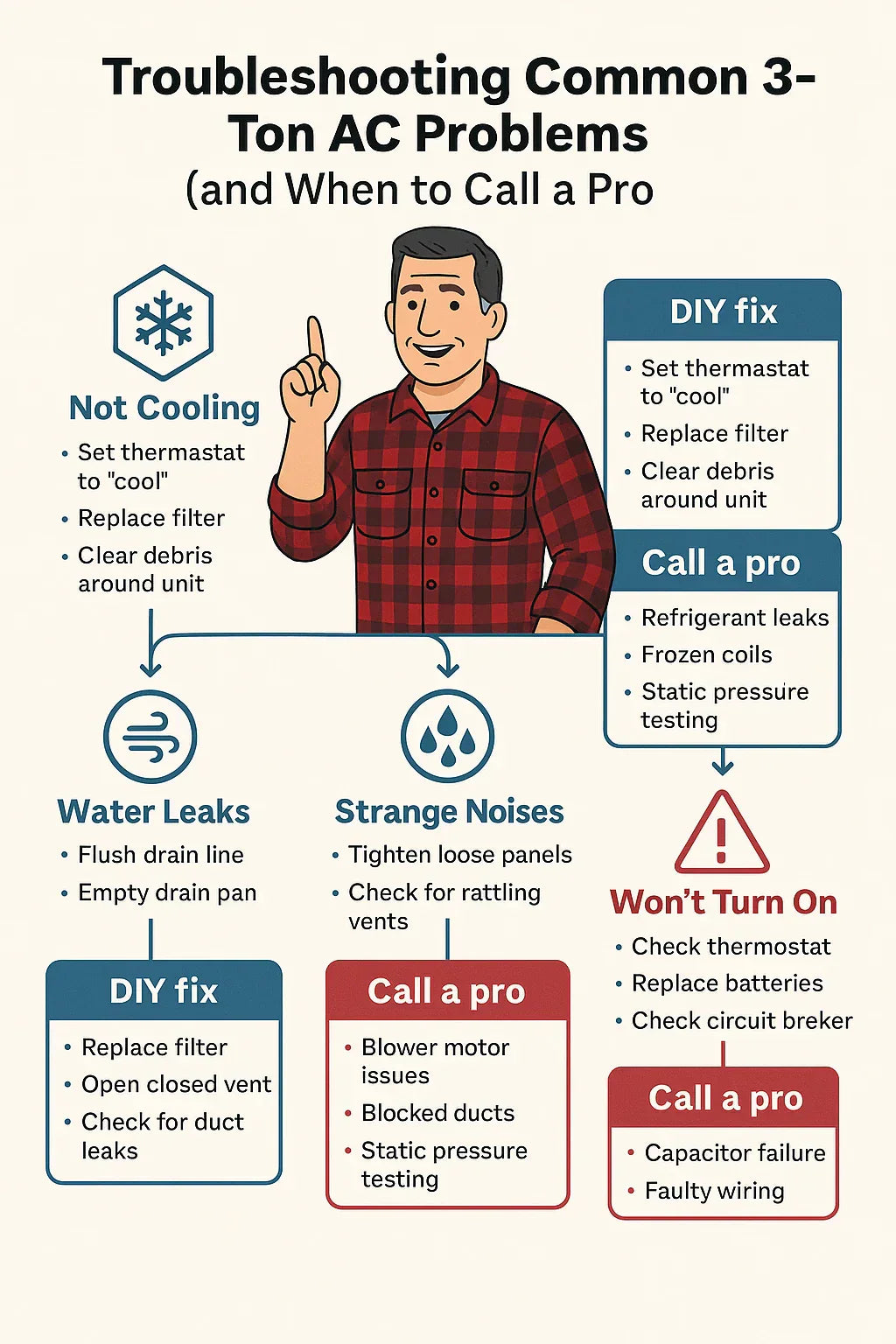

Troubleshooting Common 3-Ton AC Problems (and When to Call a Pro)

📌 Introduction: Why Troubleshooting Matters

Your 3-ton AC system is a workhorse — designed to deliver comfort for 1,500–2,000 square feet of living space. But when something goes wrong, the question becomes:

👉 Is this something I can fix myself, or do I need to call a pro?

Knowing the difference can save you hundreds in unnecessary service calls, while also keeping you safe and protecting your warranty.

According to Energy.gov, many common AC problems have simple solutions homeowners can try first. But there are also issues that require a certified HVAC technician, especially when refrigerant or electrical systems are involved.

Let’s walk through the most common issues you might face with a 3-ton AC system, including:

• Symptoms you’ll notice

• Quick homeowner troubleshooting steps

• When it’s time to call a pro

• Estimated repair costs

---

❄️ Problem 1: AC Not Cooling Properly

🔍 Symptoms

• Air feels warm instead of cool

• System runs constantly without reaching the set temperature

• Uneven temperatures in different rooms

🔧 Homeowner Checklist

1. Check thermostat settings

   • Make sure it’s set to “cool” and temperature is lower than current room temp.

2. Replace or clean the air filter

   • Clogged filters restrict airflow and reduce cooling efficiency.

3. Inspect the outdoor unit

   • Ensure at least 2 feet of clearance around the condenser.

   • Remove debris, leaves, and obstructions.

4. Check air vents

   • Open supply registers; make sure furniture or rugs aren’t blocking airflow.

📞 When to Call a Pro

• Frozen evaporator coils

• Refrigerant leaks (illegal to handle without certification)

• Faulty compressor or fan motor

🔗 Energy.gov: Common Cooling Issues

---

💨 Problem 2: Weak Airflow

🔍 Symptoms

• Little or no air blowing from vents

• Uneven cooling in different parts of the house

• Whistling noises from ducts

🔧 Homeowner Checklist

1. Replace the filter — the most common culprit.

2. Check all supply and return vents — make sure they’re open.

3. Inspect ductwork — look for loose connections or crushed sections.

4. Feel for leaks — hold your hand near duct joints while the system is running.

📞 When to Call a Pro

• Blower motor or fan problems

• Static pressure testing needed for duct sizing

• Internal duct blockages (often found in older homes)

🔗 ENERGY STAR: Duct Sealing

---

💧 Problem 3: Water Leaks or Drain Pan Overflow

🔍 Symptoms

• Water pooling near the indoor air handler

• Musty smells or signs of water damage

• AC shuts off unexpectedly due to a safety float switch

🔧 Homeowner Checklist

1. Flush the drain line

   • Pour 1 cup of vinegar or warm water down the line every season.

2. Inspect the drain pan

   • Look for cracks or rust holes.

3. Check the condensate pump (if installed)

   • Ensure it’s plugged in and operating.

📞 When to Call a Pro

• Persistent clogs despite cleaning

• Damaged float switch or pump failure

• Mold growth inside the drain system

---

🔊 Problem 4: Strange Noises

🔍 Symptoms

• Rattling, buzzing, grinding, or banging sounds

• Clicking during startup or shutdown

• Squealing from inside the air handler

🔧 Homeowner Checklist

• Rattling: Tighten screws on condenser panels.

• Whistling: Check for filter misalignment or duct leaks.

📞 When to Call a Pro

• Grinding or screeching: Possible blower motor or bearing failure.

• Banging: Loose or broken parts inside the compressor.

• Clicking that persists: Electrical control board or capacitor issues.

🔗 Trane: Noisy AC Units

---

⚡ Problem 5: AC Won’t Turn On

🔍 Symptoms

• Thermostat shows blank screen or no response

• System doesn’t start even though breaker is on

• No sound from indoor or outdoor unit

🔧 Homeowner Checklist

1. Check thermostat batteries — replace if dead.

2. Inspect the circuit breaker — reset if tripped.

3. Verify outdoor unit disconnect switch — ensure it’s in the ON position.

📞 When to Call a Pro

• Faulty capacitor or relay

• Damaged control board

• Electrical wiring or short circuit

---

🌡️ Problem 6: Short Cycling (Turns On and Off Frequently)

🔍 Symptoms

• AC runs for 2–5 minutes, then shuts off

• Temperature never feels stable

• Higher-than-usual energy bills

🔧 Homeowner Checklist

1. Replace filter — restricted airflow can cause freezing and shutdown.

2. Relocate thermostat (if possible) — avoid placing near windows, lamps, or vents.

📞 When to Call a Pro

• Incorrect refrigerant charge

• Oversized system

• Faulty compressor or pressure switch

---

🧰 Mike’s Safety Reminder

• ❌ Never attempt refrigerant repairs yourself. Handling refrigerant without certification is illegal and dangerous.

• ⚠️ If you smell burning or see sparks, turn off the breaker immediately and call a pro.

• 📝 Always keep records of any DIY troubleshooting and professional repairs for warranty purposes.

---

💰 Cost of DIY Fixes vs. Professional Repairs

Here’s a breakdown of common issues and their costs:

🔗 AC Repair Costs

---

🔧 Preventative Maintenance to Avoid Problems

The best troubleshooting plan is prevention.

Homeowner Steps

• Change filters regularly

• Flush drain line seasonally

• Keep outdoor condenser clean and clear

• Inspect ductwork annually

Professional Steps

• Schedule spring and fall tune-ups

• Test refrigerant levels and electrical connections

• Clean blower assembly and condenser coils

• Calibrate thermostat

🔗 HVAC.com: Professional Maintenance Checklist

---

✅ Conclusion: Stay Cool and Know When to Call for Help

Here’s my rule of thumb after years of homeownership:

• DIY fixes: Filters, thermostat checks, drain line flushing, and clearing debris

• Pro fixes: Refrigerant, blower motor, compressor, or electrical issues

• Preventative tune-ups: Twice a year, spring and fall, to catch small issues before they become expensive repairs

By taking care of the easy stuff yourself and knowing when to call in the experts, you’ll save money, extend your system’s lifespan, and keep your home comfortable year-round.

---

In the next topic we will know more about: Tax Credits, Rebates & Incentives: How to Save on Your 3-Ton AC Purchase
