🌱 Introduction: Your HVAC System Isn’t the Main Character — Your House Is
Most homeowners think efficiency is determined by:
-
the SEER2 rating,
-
the refrigerant type,
-
the brand,
-
or the thermostat.
But here’s the truth Savvy needs you to know:
➡️ Your home’s construction — its envelope — determines how well ANY HVAC system performs.
➡️ A poorly sealed house can cripple even the most advanced R-32 system.
➡️ A well-designed envelope can make a 14.5 SEER2 system perform like a high-end eco unit.
The secret isn’t just in the equipment you buy.
It’s in the way your home holds, loses, absorbs, leaks, and moves heat.
Today, we're breaking down how the efficiency envelope — insulation, windows, walls, duct pathways, attic design, orientation, and even local climate — dictates system design success.
This is the blueprint every homeowner should have before selecting or sizing any HVAC system.

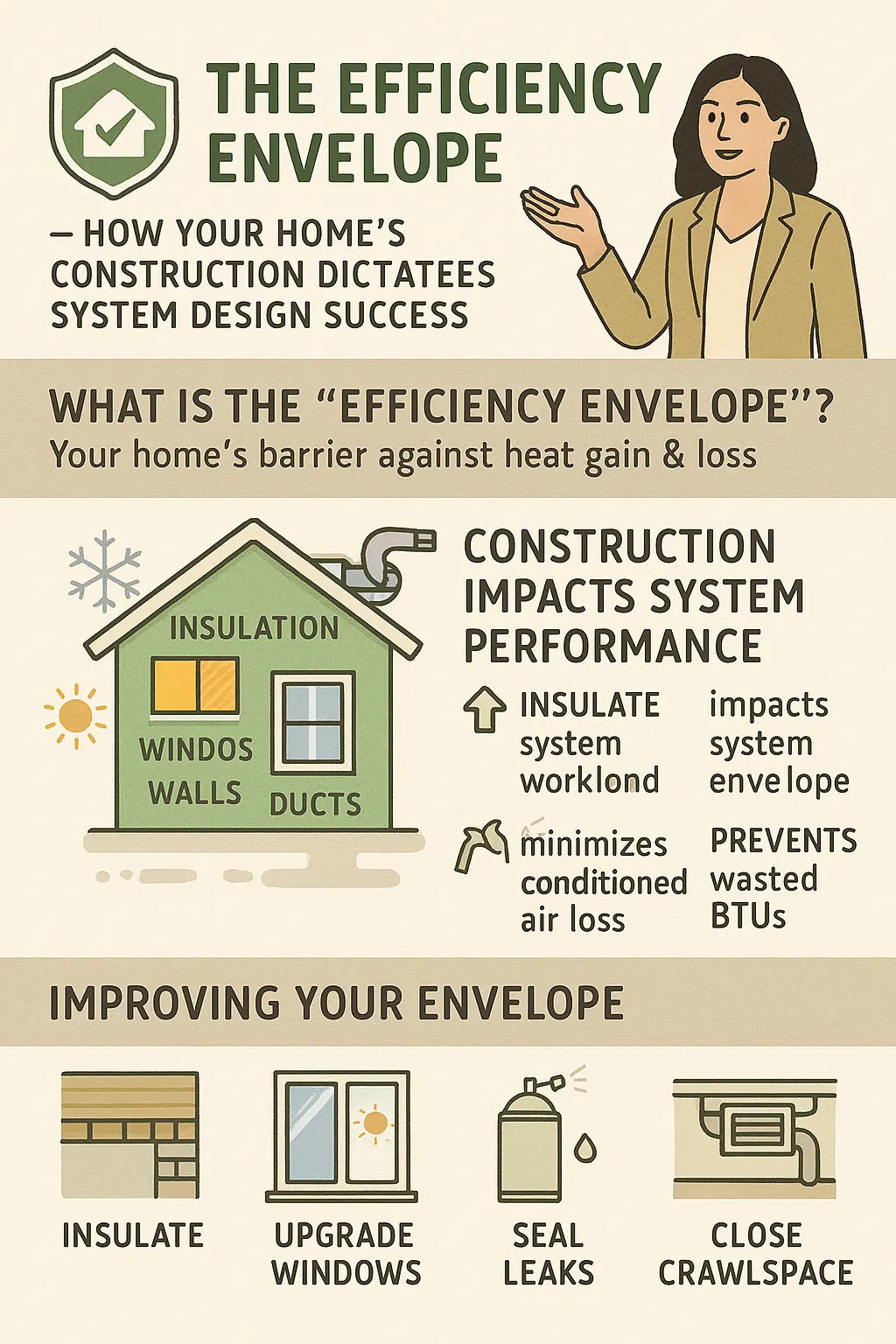

🧩 1. What Exactly Is the “Efficiency Envelope”? (And Why HVAC Depends on It)
Your efficiency envelope is the barrier between indoors and outdoors — every material that resists temperature transfer.
It includes:
-
insulation
-
windows & glazing
-
exterior walls
-
roofing
-
duct placement
-
air sealing
-
slab or crawlspace
-
attic ventilation
-
door seals
-
foundation insulation
Think of it like this:
➡️ Your HVAC system creates comfort.
➡️ Your envelope protects it.
Without a strong envelope, HVAC systems run longer, harder, louder, and less efficiently.
DOE Building Envelope Overview
🧱 2. Insulation — The Backbone of HVAC Efficiency
Insulation slows heat transfer.
And since HVAC systems fight heat transfer, insulation directly determines the workload on your system.
🧊 2.1 Attic Insulation — The #1 Efficiency Multiplier
In most homes, 40–50% of heat gain/loss comes from the attic.
Recommended R-Values (DOE):
-
Hot-dry: R-30 to R-38
-
Mixed climates: R-38 to R-49
-
Cold climates: R-49 to R-60
Why it matters for HVAC:
-
reduces runtime
-
stabilizes indoor temperature
-
helps system reach setpoint faster
-
avoids oversizing
-
improves dehumidification
🧱 2.2 Wall Insulation
Exterior walls exchange heat constantly.
Walls should be upgraded to:
-
R-13 to R-21 (2×4 or 2×6 walls)
-
Use dense-pack or blown-in when possible
Better walls = dramatically lower BTU demand.
🪵 2.3 Foundation & Crawlspace
Crawlspaces leak:
-
moisture
-
heat
-
conditioned air
An encapsulated crawlspace improves:
-
humidity control
-
air quality
-
duct efficiency
EPA crawlspace moisture guidance
🔗 https://www.epa.gov/mold
🪟 3. Windows & Glazing — The Silent Efficiency Killer
Windows are usually the weakest point of the envelope.
🌞 3.1 Solar Heat Gain Coefficient (SHGC)
SHGC determines how much heat from the sun enters your home.
For hot climates:
Low SHGC = must-have
For cold climates:
A higher SHGC helps warm the home.
🧊 3.2 Low-E Coatings
Low-E windows reduce radiant heat transfer.
Benefits for HVAC:
-
reduces afternoon heat spikes
-
stabilizes thermostat demand
-
reduces cooling load 10–20%
🪟 3.3 Double vs. Triple Pane
Triple-pane isn't always necessary — but in cold zones, it drastically cuts heating load.
🏗️ 4. Air Sealing — The Least Sexy but MOST IMPORTANT Part of Efficiency
Air leaks destroy system performance.
Common leak points:
-
attic penetrations
-
can lights
-
chimney chases
-
duct penetrations
-
window frames
-
door thresholds
-
electrical outlets
Air sealing improves efficiency more than many equipment upgrades.
🌬️ 5. Duct Placement — The Unsung Component of the Efficiency Envelope
The duct system IS part of your home’s envelope — because it carries conditioned air.
And ducts in unconditioned spaces lose 20–40% of heating/cooling energy.
(This is not a myth — it’s one of the biggest problems in U.S. homes.)
📦 5.1 Best Duct Placement for Efficiency
✔️ Best: Interior ceiling or conditioned attic
✔️ Good: Encapsulated crawlspace
✔️ Acceptable: Sealed & insulated attic ducts
❌ Worst: Vented attic or garage
🧵 5.2 Duct Insulation
Minimum insulation:
-
R-6 in mild climates
-
R-8 in hot or mixed climates
🔥 6. Roofing & Radiant Barriers — The Thermal Shield Above Your HVAC System
The roof plays a giant role in cooling load.
🌞 6.1 Cool Roofing Materials
Use:
-
high-albedo shingles
-
metal roofing
-
clay tile
-
reflective coatings
These reduce attic temps by 10–20%.
🧽 6.2 Radiant Barriers
Reflect up to 97% of radiant heat.
They drastically reduce AC workload in hot climates like Texas, Florida, and Arizona.
🧭 7. Orientation, Layout & Exposure — The Compass That Dictates HVAC Behavior
Your home’s orientation affects system design more than most people realize.
🧭 7.1 South & West Facing Rooms
These rooms get the most heat gain.
Optimizations:
-
larger supply vents
-
additional return airflow
-
low-E windows
-
shading or overhangs
-
radiant barrier roofline above
🌅 7.2 East-Facing Rooms
Warm quickly in the morning.
HVAC fix:
-
extended blower ramp-up
-
slightly oversized supply branches
🌙 7.3 North-Facing Rooms
Cooler and darker → risk underheating in winter.
HVAC fix:
-
balanced supply airflow
-
minimal damper restriction
-
slight CFM increase
🕋 8. Building Materials — Thermal Mass Matters
Concrete, brick, and stone hold massive amounts of heat.
Wood frames heat up and cool down quickly.
High thermal mass homes:
Need slower, longer cooling cycles.
Low thermal mass homes:
Need tighter duct control & humidity management.
This affects blower tuning, equipment staging, and duct balancing.
🧊 9. How Climate Interacts with the Efficiency Envelope
This is where it all comes together.
🌵 Hot-Dry Climate (Arizona, Nevada)
Design for:
-
radiant barriers
-
larger ducts
-
extended run cycles
-
high insulation R-values
🌴 Hot-Humid Climate (Florida, Gulf States)
Design for:
-
air sealing
-
dehumidification
-
low static duct design
-
returns in every major room
❄️ Cold-Mixed Climate (Ohio, Pennsylvania)
Design for:
-
attic insulation
-
air sealing
-
optimized heat pump staging
-
insulated ductwork
🌧️ Marine Climate (Oregon, Washington)
Design for:
-
moisture control
-
multi-speed systems
-
crawlspace encapsulation
-
ERV ventilation
🌬️ 10. Correct HVAC Sizing Depends on the Envelope — Not Square Footage
Square footage is NOT a valid sizing metric.
Your envelope changes your BTU requirements.
Manual J load calculations account for:
-
insulation levels
-
air sealing
-
window specs
-
orientation
-
duct location
-
ceiling height
-
climate zone
ACCA Manual J Guide
🔗 https://www.acca.org/standards/technical-manuals
A strong envelope = smaller system + quieter + lower bills.
A poor envelope = oversized system + humidity problems + short cycling.
🌿 11. Efficiency Envelope Upgrades That Transform HVAC Performance
These upgrades give the biggest return:
✔️ Attic insulation
✔️ Air sealing
✔️ Upgraded windows
✔️ Sealed ducts
✔️ Crawlspace encapsulation
✔️ Radiant barriers
✔️ Smart ventilation (ERV/HRV)
These improvements make ANY HVAC system perform better — especially eco-friendly R-32 units.
🧡 Conclusion: Your Envelope Determines Your Efficiency Future
Your HVAC equipment can only be as efficient as the home that surrounds it.
A strong efficiency envelope:
-
stabilizes temperatures
-
reduces runtime
-
prevents oversizing
-
improves air quality
-
enhances humidity control
-
extends equipment lifespan
-
lowers your carbon footprint
-
boosts real-world SEER2 performance
If you want a high-end eco HVAC system…
start with the house itself.
That’s the Savvy way. 🌿
