Space & Noise Considerations: Will It Fit Comfortably in Your Utility Area?

🏠 Introduction: Making Comfort Fit Your Space

When I installed my new R-32 air conditioner and air handler system, the first question I had wasn’t about SEER2 ratings or refrigerants — it was “Will it fit in my utility area without making a racket?”

After years of dealing with a noisy old R-410A unit that rumbled through the floor and took up half my storage closet, I knew I wanted something smarter. I wanted a system that didn’t just cool well, but also fit well — quiet, compact, and out of the way.

Best Air conditioner and Air Handler systems

That’s what I love about R-32 systems: they’re efficient not only in how they use energy but also in how they use space.

In this guide, I’ll walk you through how to plan for space, airflow, and noise when upgrading to an R-32 air conditioner or air handler. Whether your system sits in a basement, closet, or attic, you’ll learn exactly how to make sure it fits comfortably — both physically and acoustically.


📏 1. Why Space Planning Matters for R-32 Systems

Most homeowners think of HVAC systems as plug-and-play: pick a model, schedule the install, and let it run. But the truth is, your space layout can make or break efficiency.

🌬️ Airflow and Clearance

Air conditioners and air handlers need room to “breathe.” If there’s not enough clearance around the unit, the air can’t circulate freely. That means your system has to work harder — driving up energy use and shortening its lifespan.

🔧 Service Access

Technicians also need clear access for routine maintenance. If filters, coils, or electrical panels are blocked, service takes longer and costs more.

💨 Heat Dissipation

Even high-efficiency R-32 systems release residual heat through their coils. If airflow is restricted, that heat can build up, reducing cooling performance.

💡 Mike’s Tip: “Think of your HVAC like a car engine — if the air vents are blocked, the system can’t cool itself. Give it breathing space, and it’ll last longer.”

🔗 Reference: EnergyStar – Installation and Space Guidelines for HVAC Systems


🧊 2. Indoor Air Handler Dimensions & Placement Tips

One of the biggest advantages of R-32 systems is their compact design. Because R-32 is more efficient than older refrigerants, it requires smaller coils and less internal volume — meaning the whole unit can be smaller.

📐 Typical Dimensions for 2.5–3 Ton Systems

  • Height: 45–50 inches

  • Width: 18–22 inches

  • Depth: 20–24 inches

That’s roughly 10–15% smaller than comparable R-410A air handlers.

📍 Ideal Placement Areas

  • Utility closets

  • Basements

  • Garages or attics (insulated only)

  • Laundry rooms with ventilation

Each of these locations works as long as you maintain clearances and airflow.

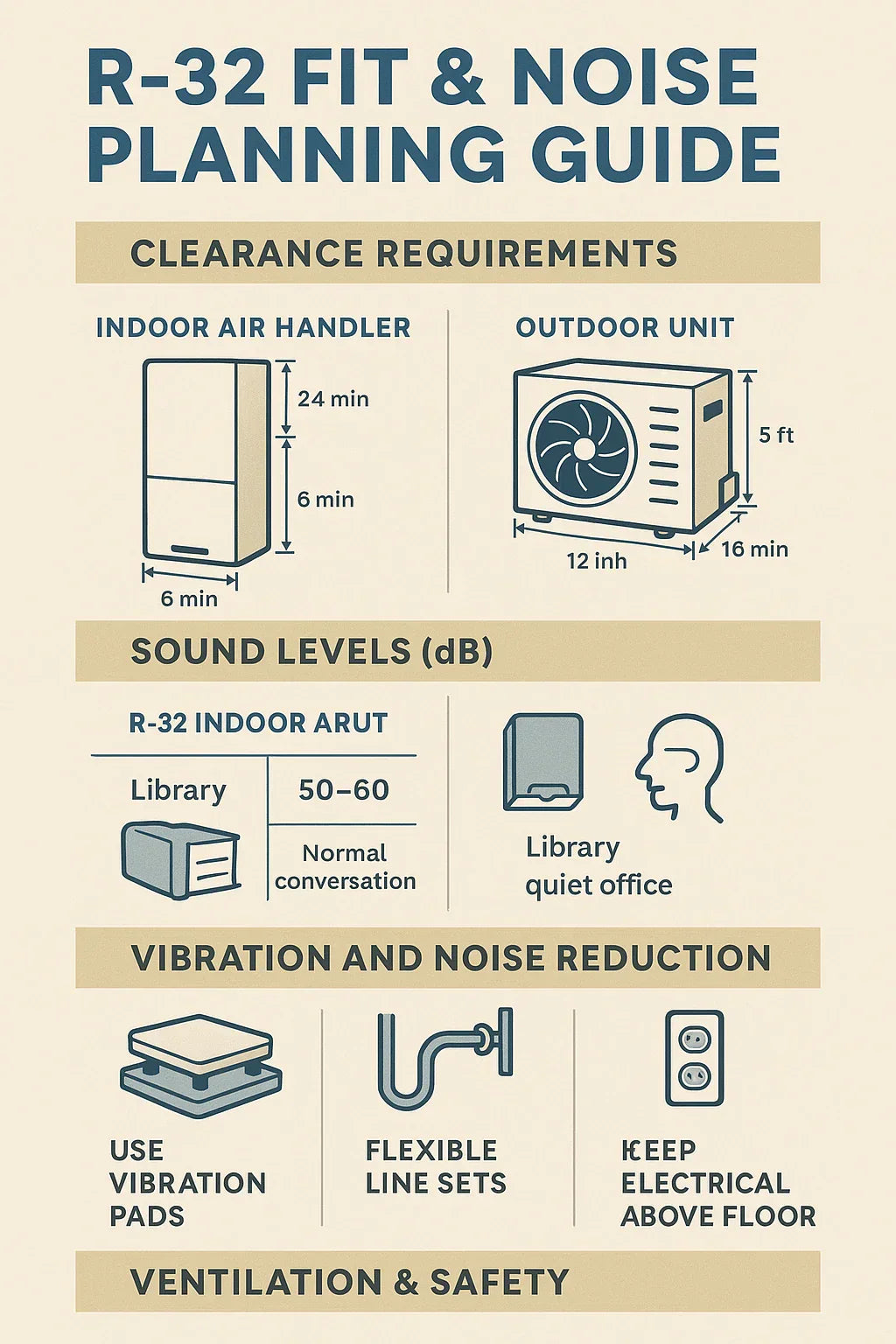

⚙️ Minimum Clearance Requirements

  • Front: 24 inches (for servicing and filter changes)

  • Sides: 6 inches

  • Top: 6–12 inches

  • Bottom: As per drain and duct alignment

💬 Mike’s Tip: “I once had to remove a door to get to my old filter — not fun. Make sure your air handler’s access panel faces an open area.”

🔗 Reference: ASHRAE – Residential HVAC Clearance Recommendations


🌬️ 3. Outdoor Condenser Size & Airflow Clearance

If your outdoor unit looks like it’s suffocating behind a deck or surrounded by bushes, it’s probably not cooling efficiently.

R-32 condensers are slimmer and quieter, but they still need proper spacing.

📏 Recommended Outdoor Clearances

  • Sides: 12–18 inches

  • Rear (coil side): 24 inches

  • Front (service side): 36 inches

  • Top: 5 feet of vertical clearance

Avoid placing the unit under decks, next to solid walls, or too close to fences. If it’s against a structure, use a louvered screen or open fencing for airflow.

🧱 Elevation and Drainage

Mounting your condenser on a slightly elevated concrete pad or stand helps:

  • Prevents flooding during heavy rain.

  • Reduces debris and leaf buildup.

  • Lowers vibration transfer to the house.

🔗 Reference: Energy.gov – Outdoor Unit Clearance and Airflow Best Practices


🔈 4. Understanding Sound Ratings (and What They Actually Mean)

Before my R-32 upgrade, my old system used to roar to life like a jet engine every time it cycled on. It wasn’t broken — just outdated.

Today’s R-32 systems are engineered to run whisper-quiet.

📊 Sound Level Comparison

Component R-32 System (dB) R-410A System (dB) Comparable Sound
Indoor Air Handler 38–45 50–55 Library, quiet office
Outdoor Condenser 50–60 65–70 Normal conversation
Heat Pump (Heating Mode) 55–58 68–72 Dishwasher

That’s a 20–30% noise reduction, thanks to inverter compressors and smoother refrigerant flow.

🔇 Why It’s Quieter

  • Fewer compressor start-stop cycles.

  • Multi-speed fan motors.

  • Sound-dampening insulation inside the cabinet.

  • Anti-vibration fan mounts.

🧠 Mike’s Take: “My condenser sits just ten feet from my patio table, and even on high demand, I can barely hear it. It’s a huge quality-of-life improvement.”

🔗 Reference: AHRI – Sound Rating Standards for Residential Equipment


🧱 5. Wall and Vibration Isolation

Noise doesn’t just come from fans or compressors — it can also travel through your walls and floors as vibration.

Here’s how to minimize it:

⚙️ Installation Tips

  1. Mount on Rubber Isolation Pads: These absorb vibration and reduce structure-borne noise.

  2. Use Flexible Line Sets: Copper refrigerant lines should have gentle curves, not sharp bends, to prevent “pinging.”

  3. Avoid Solid Wall Coupling: Don’t bolt air handlers directly to drywall or framing without dampers.

  4. Balance the Unit: An uneven condenser base can cause hums or rattles over time.

🧱 Bonus: Quiet Mounting Materials

  • Closed-cell rubber feet for air handlers.

  • Anti-vibration spring mounts for attic or wall installations.

  • Acoustic wallboard for closets or indoor enclosures.

🔗 EPA – Noise Control in Home HVAC Systems


💨 6. Ductwork and Airflow Efficiency

Your system’s noise level is only half about the unit itself — the other half is airflow noise.

Common Causes of Noisy Airflow

  • Undersized ducts

  • Sharp turns or tight transitions

  • Dirty or restrictive filters

  • Loose registers or grilles

💡 Fixes for Quieter Operation

  • Use insulated flexible ducting to muffle airflow noise.

  • Keep ducts at least 6 inches in diameter for main trunks.

  • Ensure return air pathways are large enough to prevent “whistling.”

  • Add acoustic lining near bedrooms or living spaces.

🧰 Mike’s Tip: “After insulating my return duct, my air handler dropped from a low hum to almost silence. It’s one of the cheapest noise fixes you can make.”

🔗 Reference: EnergyStar – Duct Design for Quiet Efficiency


🔋 7. Energy Efficiency and Noise Are Connected

It might sound surprising, but the quieter a system runs, the more efficient it tends to be.

When the system doesn’t have to work against resistance (like poor airflow or vibration), it can operate at lower compressor speeds — saving energy.

🔍 Why R-32 Excels Here

  • Smoother refrigerant flow reduces turbulence.

  • Variable-speed operation means less mechanical stress.

  • Lower sound output often correlates with reduced wattage draw.

Translation: A quieter R-32 system isn’t just a luxury — it’s saving you money every day.

🔗 Reference: Energy.gov – Inverter Technology in HVAC Efficiency


🧯 8. Ventilation & Safety for R-32 (A2L) Systems

Because R-32 is classified as A2L (mildly flammable), ventilation is part of the installation checklist. Don’t worry — it’s not dangerous when properly installed, but it does need space to vent naturally.

🧭 Basic Guidelines

  • Avoid sealed mechanical closets.

  • Provide ventilation openings: roughly 0.75 in² per 1,000 BTUs of cooling capacity.

  • Keep nearby electrical switches elevated above floor level.

  • Never store flammable materials (paint, fuel, cleaning solvents) near the system.

🧠 Real Talk

I’ve had homeowners ask if R-32 poses risks. The truth: when installed by a certified tech, it’s as safe as your refrigerator. The mild flammability rating is simply an extra precaution for proper ventilation and electrical separation.

🔗 Reference: EPA – Safety Guidelines for A2L Refrigerants


🧰 9. Retrofitting Older Spaces for Compact Systems

If you’re replacing an older R-410A unit, you’ll probably find that your new R-32 system is smaller, lighter, and more flexible. That opens the door to creative placement.

🪚 Common Retrofit Solutions

  • Rotated Air Handler Installation: Turn the air handler sideways to fit tight closets.

  • Horizontal Mounting: Ideal for crawlspaces or attic installs.

  • Plenum Adapters: Use transition collars for mismatched ducts.

  • Mini Drain Pumps: Solve drainage issues in basements or below-grade closets.

🏠 Real Example

In my own basement, my installer repositioned the new R-32 air handler vertically, freeing up enough space to add shelving for tools — something I never could’ve done with my old bulky system.

🔗 Reference: DOE – Residential HVAC Retrofits


🎧 10. Real-World Noise Management Checklist

If you want your R-32 system to run as quietly as it was designed to, here’s a practical checklist:

✅ Check condenser clearance monthly (no leaves or clutter).
✅ Replace filters every 60–90 days.
✅ Tighten mounting bolts twice per year.
✅ Keep ducts clean and sealed.
✅ Use rubber isolation pads under outdoor units.
✅ Ensure vents are fully open (avoid whistling).
✅ Schedule annual tune-ups for fan calibration.

💬 Mike’s Advice: “A quiet HVAC isn’t luck — it’s planning. A few hours spent on layout and setup can give you years of peaceful comfort.”


🧠 Mike’s Final Thoughts: Comfort Is More Than Temperature

“The day I turned on my R-32 system for the first time, I noticed two things — how cool my living room felt, and how quiet it was. That’s when I realized comfort isn’t just about air temperature; it’s about peace of mind.”

R-32 systems prove you don’t need to sacrifice power for space or quiet for performance. With the right planning — clearances, ventilation, and isolation — your system can fit seamlessly into your home.

Whether it’s humming quietly in your utility closet or working efficiently on the side of your house, it’s built to fit your life, not disrupt it.

In the next topic we will know more about: Longevity Guide: How Long Will a R-32 AC Last?
