🔧 1. Why This Question Matters
If you’ve landed here, you probably know the basics: your evaporator coil sits inside your furnace or air handler, while the condenser sits outside. Together, they make up the backbone of your AC system.
But here’s the catch: not all condensers operate the same way. Some are single-stage (simple, one-speed), while others are two-stage (more flexible, energy-efficient). The coil you choose — especially a 3 Ton TXV-equipped A-Coil — needs to work in sync with your system type.
Choosing the wrong pairing can mean:
-
Higher utility bills.
-
Shorter system lifespan.
-
Sticky, humid air inside your home.
So, let’s walk through both options, and I’ll tell you what worked for me.

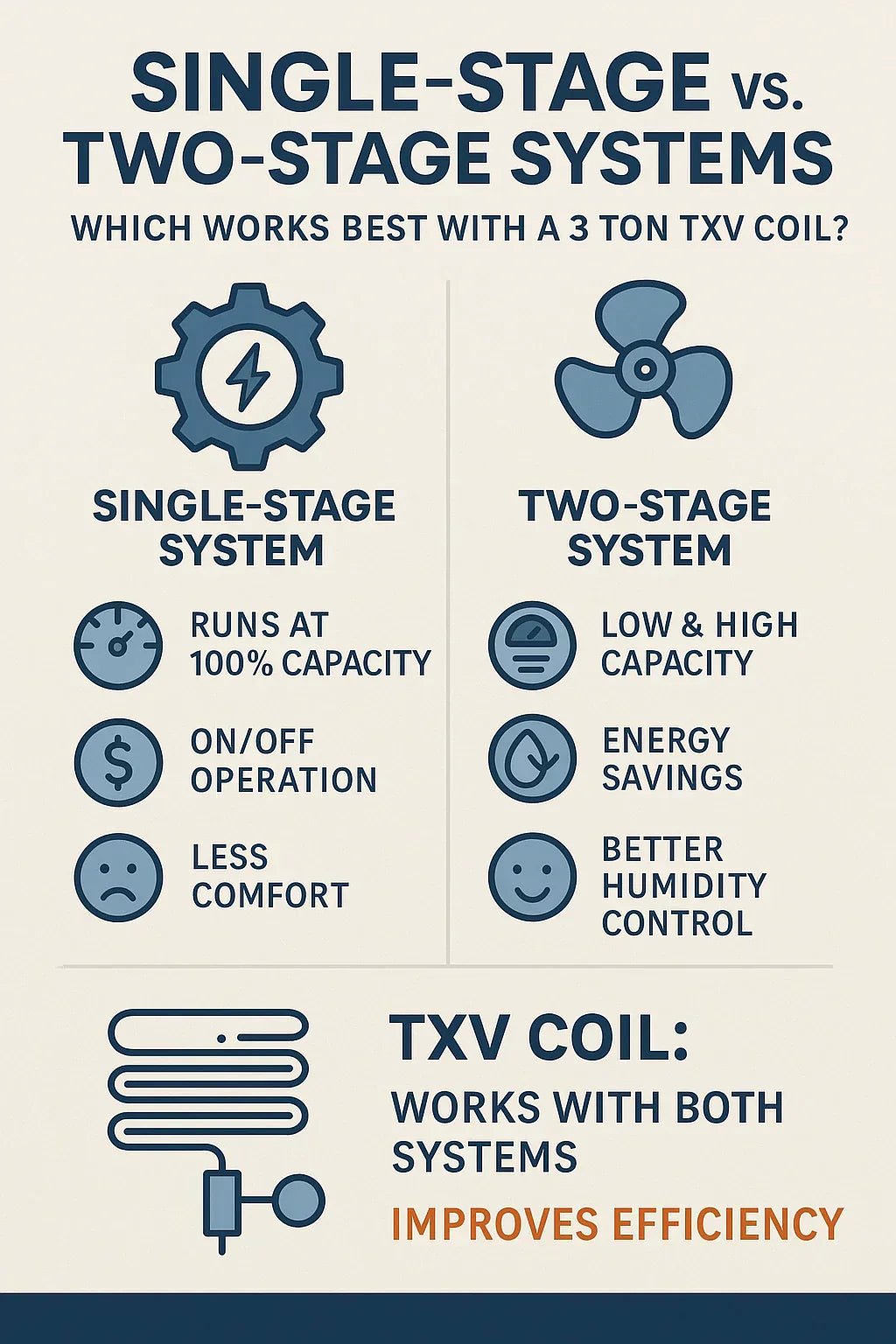

⚙️ 2. What is a Single-Stage System?
Think of a single-stage AC like an old pickup truck: it either runs at full throttle or it’s off.
How It Works
-
Runs at 100% capacity whenever it cycles on.
-
Controlled by a simple thermostat (temperature hits set point → system shuts off, rises again → system kicks on).
Benefits
-
Lower upfront cost (equipment + installation).
-
Simplicity: fewer moving parts mean fewer things can break.
-
Works well in smaller homes or areas with mild climates.
Drawbacks
-
Frequent on/off cycling, which stresses parts.
-
Less precise temperature control — you often feel hot, then cold.
-
Higher humidity indoors (system doesn’t run long enough to dehumidify properly).
-
Less efficient overall, especially in long, humid summers.
📖 For more detail, see Energy Star’s overview of air conditioning basics.
⚡ 3. What is a Two-Stage System?
Now, picture a two-stage AC like a modern hybrid car: it adjusts based on demand.
How It Works
-
Low stage (~65–70% capacity): Runs most of the time for steady comfort.
-
High stage (100% capacity): Kicks in on extremely hot days or when the house needs rapid cooling.
Benefits
-
Longer run times at low stage = better humidity control.
-
More even temperatures (no big swings between cycles).
-
Energy savings: uses less electricity in low stage.
-
Quieter operation: blower and compressor don’t always roar at full blast.
Drawbacks
-
Higher upfront cost for equipment and installation.
-
More complex: additional components can mean higher repair costs down the road.
📖 Carrier explains two-stage AC systems in detail here
🌡️ 4. How a TXV Coil Works in Each Setup
The real magic in your Goodman CHPTA3630B3 3 Ton Horizontal A-Coil is the TXV (Thermostatic Expansion Valve). This small device meters refrigerant flow based on demand.
With a Single-Stage System
-
The coil still benefits from the TXV’s precise metering.
-
Helps maintain efficiency even during short cycles.
-
But it can’t fix the root issue: constant on/off cycling limits dehumidification.
With a Two-Stage System
-
TXV shines here. At low stage, it meters refrigerant smoothly, avoiding “starvation” or “flooding” of the coil.
-
At high stage, it keeps refrigerant flow steady under heavier loads.
-
Improves part-load efficiency — exactly where most homeowners spend 80% of their cooling hours.
📖 The Air Conditioning Contractors of America (ACCA) explains why TXVs matter in system design
💸 5. Cost vs. Comfort
When I first had to decide, my budget was tight. I went with a single-stage condenser. It worked, but summers were sticky. A few years later, I upgraded to a two-stage system, and here’s what I learned:
| Feature | Single-Stage | Two-Stage |
|---|---|---|
| Upfront Cost | Lower | Higher |
| Energy Bills | Higher | Lower |
| Comfort | Temperature swings, humid | Stable temps, better humidity |
| Noise | Louder (always full speed) | Quieter (low stage most of the time) |
| System Lifespan | More wear from cycling | Longer life, gentler operation |
| Best Fit | Smaller homes, dry/mild climates, tight budgets | Larger homes, humid/hot climates, long-term investment |
📖 The Department of Energy breaks down cost vs. efficiency for AC upgrades
🏠 6. Which Home Fits Which System?
Here’s how I’d explain it if we were standing in your garage looking at your furnace:
✅ Single-Stage + TXV Coil Works Best If…
-
Your home is under 1,500 sq. ft.
-
You live in a mild climate (not humid).
-
You’re looking for a budget-friendly option.
-
You’re okay with some comfort trade-offs (temperature swings, less dehumidification).
✅ Two-Stage + TXV Coil Works Best If…
-
Your home is 1,500–2,000+ sq. ft.
-
You live in a hot, humid climate.
-
Comfort and efficiency are more important than lowest upfront cost.
-
You plan to stay in the home long-term and want lower utility bills.
📖 For climate-based sizing advice, see Energy Vanguard’s guide on AC sizing mistakes
🛠️ 7. Mike’s Tips for Choosing
Here’s what I wish someone told me before I started:
-
Always check AHRI matches. Pairing the wrong condenser + coil can void warranties. (AHRI Directory)
-
Don’t size by tonnage alone. Get a Manual J load calculation for accuracy. (HVAC.com Manual J guide)
-
Look at ducts. A 3 Ton system needs ~1,200 CFM airflow. Undersized ducts = no comfort, no efficiency.
-
Think about humidity. If you live in the South, two-stage is almost always worth it.
-
Plan for the long haul. If you’ll be in the house 10+ years, two-stage pays for itself.
✅ 8. Conclusion: The Better Pairing
A single-stage system with a TXV coil is perfectly functional. It’s reliable, cheaper, and simple. But for most homeowners — especially in humid or hot climates — the real winner is two-stage paired with a TXV coil.
“When I finally upgraded to two-stage, the biggest difference wasn’t just the lower bill — it was walking into my living room on a muggy July afternoon and actually feeling comfortable. My Goodman 3 Ton TXV coil handled it like a champ.” – Mike
In the next topic we will know more about: Maintenance Checklist: Keeping Your Goodman A-Coil Running Smooth
