By Samantha Reyes — The Smart Shopper Who Learned That Comfort Isn’t About Bigger Systems… It’s About Better Airflow.

Most homeowners believe uneven temperatures—cold bedrooms, muggy hallways, stuffy corners—are caused by an undersized or failing HVAC system.

I used to believe that too.

But after years of digging into airflow science, redesigning my own duct system, and helping dozens of neighbors track down the real reason their comfort was falling apart, I discovered something surprisingly simple:

Uneven temperatures have less to do with your equipment, and everything to do with the 4-direction airflow balance inside your home.

That’s why I call this framework The Airflow Compass—a directional guide that shows you where air needs to go, where it shouldn’t go, and how to balance the four invisible forces running your HVAC system.

If even one “direction” is wrong, your 3.5-ton system (or any size system) can feel like a 2-ton or a 1-ton.

Goodman 3.5 Ton 15.2 SEER2 System

If all four are aligned, your home will feel consistently comfortable from floor to ceiling, room to room, season to season.

Let’s dive into the compass that changed how I think about system design forever.

📍 1. North: Supply Direction — The Push of Conditioned Air

Your supply vents are the “North” of your airflow compass—the direction where heated or cooled air is pushed into your rooms.

But supply air isn’t just about volume. It’s about:

throw distance,
velocity,
direction,
diffuser style,
and CFM targeting per room.

🎯 A supply vent must:

Throw air across the room, not just drop it at the wall
Blend conditioned air with room air
Aim air toward heat loads (windows, sun-exposed walls)
Deliver adequate CFM based on room size and usage
Avoid being blocked by furniture, curtains, or bulkheads

If a supply vent pushes air in the wrong direction—or barely pushes it at all—the room becomes its own microclimate.

📊 The science behind supply placement

ASHRAE recommends that for proper mixing, supply air should travel to the opposite side of the room before circulating back (ASHRAE Air Distribution Basics):
https://www.ashrae.org/technical-resources

That means supply registers should ideally be placed:

under windows,
near exterior walls,
or positioned to aim directly toward the largest heat source.

🧠 Samantha’s rule of thumb:

If supply air can’t reach the far wall, your room will never feel evenly heated or cooled.

Fixing supply direction alone can flatten temperature differences by 2–4°F.

📍 2. South: Return Direction — The Pull That Makes Everything Work

If supply air is the exhale, return air is the inhale—and your system cannot breathe without it.

Returns form the “South” direction in the Airflow Compass, representing the path air takes back to the HVAC system.

And here’s the surprising truth:

A home with perfect supplies but weak returns will still feel uncomfortable.

Because without balanced return air:

supply air can’t enter rooms
pressure builds unevenly
temperature stratifies
rooms become stuffy or drafty
the system strains and ramps up RPM

🎯 A proper return system must:

Pull evenly from every major zone
Maintain neutral pressure (no room should be pressurized)
Use large, low-resistance return grilles
Be supported by correctly sized ducts
Avoid leakage from attics, crawlspaces, or garages

ENERGY STAR warns that inadequate return pathways are one of the top causes of poor HVAC performance:
https://www.energystar.gov/products/central_air_conditioners

🧠 Samantha’s rule of thumb:

Every room with a supply vent must have a return path—or the air will not move properly.

Return paths don’t have to be return vents. They can be:

undercut doors
jump ducts
transfer grilles
hallway returns

But something must allow air to move.

Once I fixed my home’s return imbalance, the second floor dropped from a 6°F difference to a 1°F difference. It was like living in a different house.

📍 3. East: Pressure Relief Direction — The Invisible Airflow That Balances Your Home

Most homeowners never think about pressure relief.
Most installers don’t mention it.
And most new systems are installed in homes that have none at all.

Pressure relief is the “East” direction of the Airflow Compass—the sideways airflow movement that prevents room pressurization.

Here’s what happens in a typical home:

You close a bedroom door.
The supply vent continues pushing air into the room.
The room becomes pressurized.
Return air can’t pull air out fast enough.
Airflow stops or reverses direction.
The temperature spikes.

Pressure imbalance is the root cause of:

hot second-floor rooms
cold basements
stagnant corners
musty smells
drafts
humidity imbalance

According to the U.S. EPA, pressure imbalance also increases infiltration—drawing in dirty, unconditioned outdoor air:
https://www.epa.gov/indoor-air-quality-iaq

🎯 The goal of pressure relief:

Prevent airtight rooms from trapping conditioned air
Maintain cross-room movement
Keep return airflow stable
Support even temperature distribution

Tools for pressure relief:

Door undercuts (¾")
Wall transfer grilles
Ceiling jump ducts
Corridor returns
Open-floor airflow strategies

🧠 Samantha’s rule of thumb:

When doors close, comfort shouldn’t. Pressure relief makes sure it doesn’t.

📍 4. West: Circulation Direction — The Path Air Takes Through the Home

Circulation is the “West” direction of the Airflow Compass—representing the continuous loop air takes as it moves from room to room, level to level, and back to your system.

Even with good supply and return design, circulation can still fail if the layout does not support continuous airflow.

Circulation failures happen when:

rooms act as dead ends,
hallways block airflow,
stairwells trap heat,
no returns exist upstairs,
open-concept layouts lack directional throw.

The Department of Energy confirms that poor circulation is one of the top causes of energy waste and uneven temperatures:
https://www.energy.gov/energysaver/energy-saver

🎯 What proper circulation looks like:

Air moves in a predictable loop through the home
Supplies and returns are balanced across levels
Openings and vents support flow—not block it
Stairwells are managed with directional airflow
Hot and cold air stratification is minimized

Think of airflow like water:

If there’s no path to flow forward, it pools.
If it pools, it stagnates.
If it stagnates, comfort dies.

🧠 Samantha’s rule of thumb:

Your system should move air in a loop—not in disconnected pockets.

Fix circulation, and your entire home stabilizes.

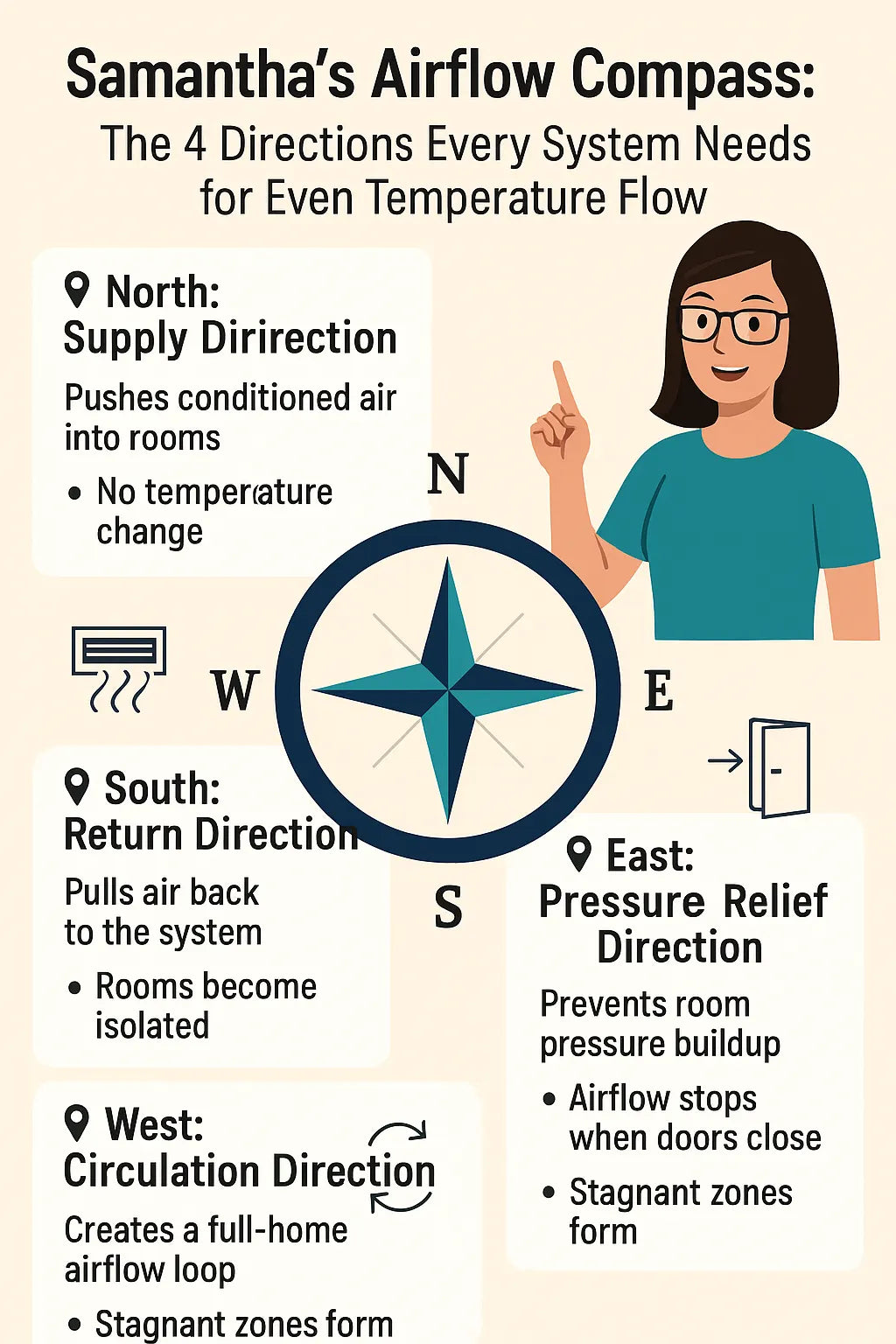

🧭 Bringing It All Together: The Airflow Compass Framework

Here is how all four directions work together:

Direction	Function	Without It…
North — Supply	Pushes conditioned air into rooms	No temperature change
South — Return	Pulls air back to the system	Rooms become isolated
East — Pressure Relief	Prevents room pressure buildup	Airflow stops when doors close
West — Circulation	Creates a full-home airflow loop	Stagnant zones form
