🏠 Why Return Air Duct Size Matters
👨🔧 “Tony here. Most people think HVAC is all about the furnace or AC unit, but I’ll tell you the truth: a $5,000 high-efficiency system can run worse than a 20-year-old unit if the return air ducts are undersized. Your system can’t deliver comfort if it can’t breathe.”
Southwark 811 Return Air Duct for 20x10-25x16 Sizes
Return ducts are the inhalation system of HVAC. They:
-
Pull in stale air from living spaces.
-
Pass air through filters to trap dust, pollen, and contaminants.
-
Provide balanced pressure between supply (blowing out) and return (pulling in).
-
Keep blower motors running within designed airflow range.
Rule of Thumb: HVAC systems need about 400 CFM (cubic feet per minute) per ton of cooling capacity.
-
A 2-ton unit → 800 CFM.
-
A 4-ton unit → 1,600 CFM.
If return ducts can’t handle this volume, your system suffocates.
📎 Energy Star confirms poor duct sizing reduces efficiency and comfort.
🚫 Signs Your Return Ducts Are Undersized or Inefficient
🔊 1. Noisy or Whistling Vents
-
Whistling = undersized grille or duct.
-
Noise happens when too much air is forced through too small an opening.
👨🔧 “I call this the tea kettle effect. If your vent sings every time the AC kicks on, you’ve got an airflow bottleneck.”
💨 2. Weak Airflow at Supply Vents
-
Supply vents feel weak because the system can’t pull enough air back in.
-
Blower motor works harder, risking burnout.
🌡️ 3. Uneven Temperatures (Hot & Cold Spots)
-
Some rooms always too hot or too cold.
-
Often caused by lack of returns on upper floors or large rooms.
📈 4. Higher Energy Bills
-
System cycles longer, straining to reach thermostat setting.
-
Poor return design wastes energy.
📎 Energy.gov notes duct leaks and sizing errors can waste 20–30% of HVAC energy.
🧹 5. Dust Buildup & Poor Indoor Air Quality
-
Dust streaks around vents = clogged filters or leaky returns.
-
Negative pressure can pull in attic or crawlspace air.
⚠️ 6. Short-Cycling or Overheating
-
Furnace shuts down early (overheating limit switch trips).
-
AC freezes up due to low airflow across coils.
💨 The Science of Airflow: Why Size, Shape & Placement Matter
Airflow in HVAC is measured in CFM. Too little return = high static pressure.
-
Undersized ducts → high static pressure, noisy airflow.
-
Oversized ducts → inefficient airflow velocity.
-
Poor placement → returns pulling from wrong areas (bathroom odors, kitchen grease).
-
Leaky ducts → draw unconditioned attic or basement air, increasing humidity and dust.
👨🔧 “Think of ductwork like plumbing. If your pipes are too small, water pressure drops. Same with ducts—airflow suffers if the return is undersized or leaky.”
📎 Energy Vanguard explains return air pathways are essential for balanced airflow.

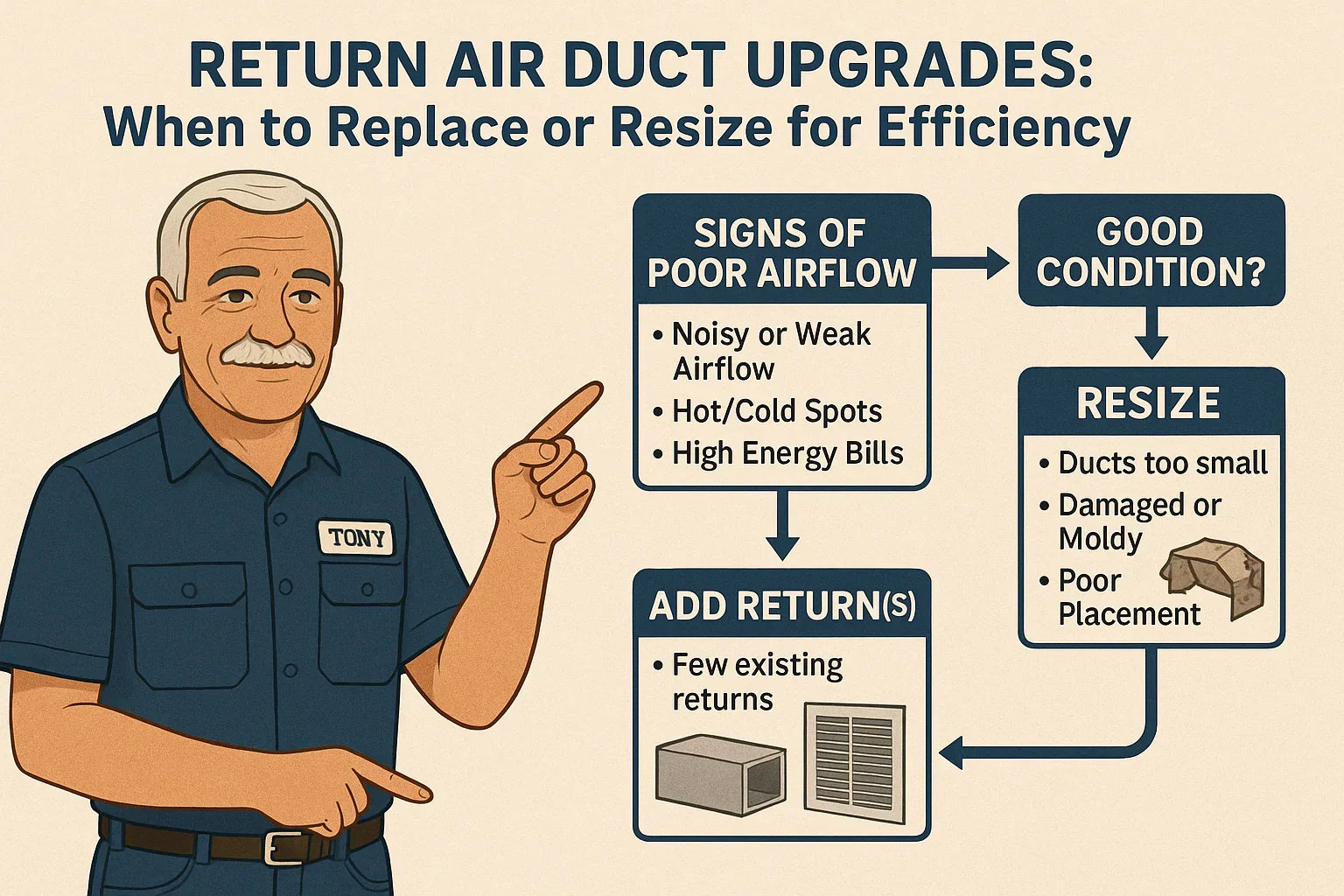

📐 When to Replace vs. When to Resize
Resizing
-
Best if ducts are in good shape but undersized.
-
Involves adding larger grilles, upgrading duct diameter, or adding extra return lines.
Replacing
-
Needed if ducts are:
-
Moldy
-
Crushed or kinked (common with flex ducts)
-
Leaky or poorly sealed
-
Installed in wrong locations (kitchen, bathroom)
-
Adding Returns
-
Ideal for large or multi-level homes.
-
Bedrooms with closed doors often need dedicated returns.
👨🔧 “If you’ve only got one big return in a 2,500 sq. ft. home, it’s time to add more. One lung can’t serve a whole house.”
🛠️ Upgrade Options for Better Airflow
-
Install larger return grilles – Replace 16x20 with 20x25 for better airflow.
-
Add multiple returns – Especially in upstairs halls and large bedrooms.
-
Replace flex with sheet metal – Smooth interior → less resistance.
-
Seal leaks – Use mastic or foil tape (not duct tape).
-
Upgrade filter grilles – Easier access and higher filtration options.
-
Use Manual D design – Pros calculate proper duct size for your system.
📎 ASHRAE duct design standards stress proper sizing for system efficiency.
💵 Cost Breakdown: DIY vs. Hiring a Pro
| Upgrade Type | DIY Cost | Pro Cost | Notes |
|---|---|---|---|
| Larger return grille | $30–$80 | $150–$400 | Easy DIY if grille size matches wall cutout |
| Add new return vent | – | $500–$1,200 | Includes duct run + labor |
| Replace flex with sheet metal | – | $1,000–$3,500 | Pro install only |
| Seal duct leaks | $20–$100 | $1,000–$2,000 | DIY for visible seams, pro for full system |
| Full duct replacement | – | $4,000–$10,000 | Major upgrade, usually with system replacement |
💡 Tony’s Pro Tips for Efficient Return Design
-
One return per 500–600 sq. ft. of living space.
-
Always match return duct size to HVAC capacity (CFM).
-
Never locate returns in bathrooms, kitchens, or laundry rooms.
-
Seal all seams with mastic or foil tape, not duct tape.
-
Upgrade filters to MERV 11–13 for cleaner air.
-
In two-story homes → at least one return per floor.
-
If noise is a problem, increase duct size instead of choking airflow.
👨🔧 “Returns aren’t the place to cut corners. A few hundred bucks upgrading ductwork saves thousands in energy and repair bills later.”
❓ FAQs About Duct Upgrades
Q: Can I just replace my HVAC system and keep old ducts?
Not always. Old undersized returns will choke even a brand-new system.
Q: Do I need a return vent in every bedroom?
Not necessarily, but bedrooms benefit from returns for better airflow when doors are closed.
Q: What’s the cheapest airflow upgrade?
Installing larger grilles—simple, affordable, and often fixes noise issues.
Q: How do I know if my ducts are undersized?
Pro contractors measure static pressure. High pressure = undersized ducts.
📌 Final Word from Tony
👨🔧 “Here’s the bottom line: your HVAC system is only as good as its ductwork. If your returns are undersized, leaky, or in the wrong spot, it doesn’t matter how fancy your furnace or AC is—you’ll never get the comfort you paid for. Upgrade those return ducts, and you’ll breathe easier, save money, and extend your system’s life. That’s a win all around.”
