⚡ Why Return Ducts Impact Energy Efficiency
👨🔧 “Tony here. I’ll give it to you straight: if your HVAC can’t breathe, it can’t save you money. You wouldn’t try to run a marathon breathing through a straw. Well, that’s what your system does when your return ducts are undersized, blocked, or leaky.”
Southwark 811 Return Air Duct for 20x10-25x16 Sizes
Your HVAC is one of the biggest energy users in the house—up to 50% of utility bills. When return ducts are poorly designed:
-
The blower motor strains to pull enough air.
-
The system runs longer, burning more electricity or gas.
-
You pay for wasted energy instead of comfort.
🚫 The Hidden Costs of Poor Return Ducts
A weak return system doesn’t just raise bills—it creates a chain reaction of costs.
💸 Higher Energy Bills
-
Longer run times = more kilowatt-hours used.
-
Thermostat adjustments to “fix” hot/cold spots only make the system work harder.
🛠️ Expensive Repairs
-
Overheated furnaces trip safety switches.
-
AC coils freeze due to low airflow.
-
Blower motors overwork and fail prematurely.
👨🔧 “I’ve replaced blower motors that burned out in just five years because the system was suffocating. Fix the ducts, and that same motor should last 15.”
🌡️ Poor Comfort
-
Hot/cold rooms force you to crank the thermostat.
-
Upstairs often unbearable in summer without proper returns.
🧹 Indoor Air Quality Issues
-
Leaky returns suck in attic insulation, crawlspace dust, or garage fumes.
-
Leads to allergy problems, musty odors, and higher cleaning needs.
💨 The Science of Airflow & Energy Waste
Airflow is measured in CFM (cubic feet per minute). A system needs about 400 CFM per ton of cooling capacity.
-
A 3-ton system → 1,200 CFM.
-
A 5-ton system → 2,000 CFM.
If returns can only handle 70% of required CFM:
-
The blower works overtime.
-
Energy draw spikes.
-
Efficiency plummets.
Static Pressure: The Silent Bill Killer
High static pressure (caused by undersized or blocked returns) = wasted energy.
-
Ideal range: 0.3–0.5 inches WC.
-
Many homes test at 0.8+ inches WC → system strain, higher bills.
👨🔧 “Static pressure is like blood pressure for your HVAC. Too high, and you’ve got a heart problem. Too low, and nothing moves. The sweet spot saves money.”
📎 ASHRAE duct standards emphasize airflow balance for system efficiency.

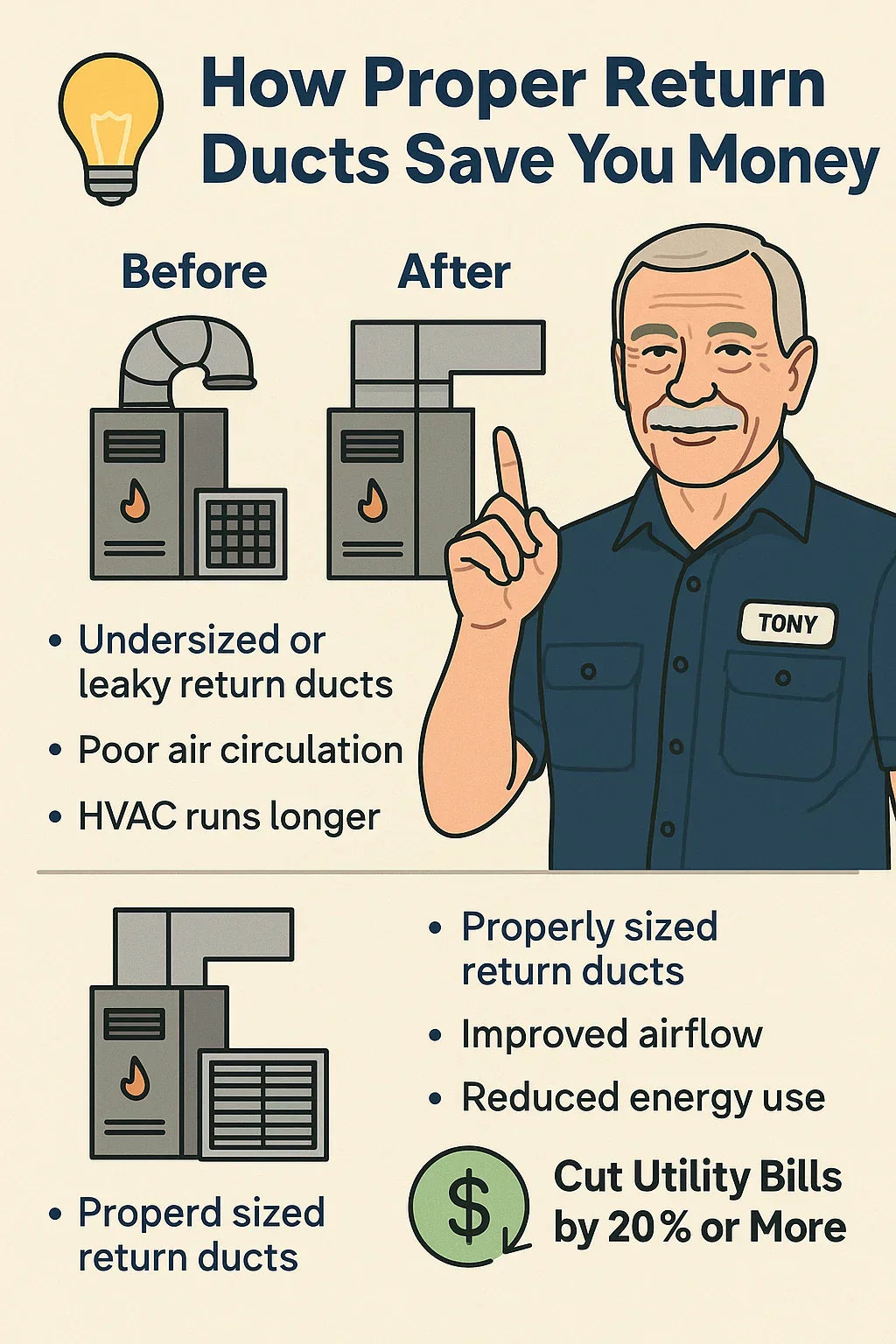

📐 How Properly Sized Returns Lower Bills
✅ Lower Static Pressure
-
Larger returns = smoother airflow.
-
System runs at designed efficiency.
✅ Shorter Run Times
-
Balanced airflow helps system hit thermostat setpoint faster.
-
Less runtime = lower utility bills.
✅ Prevents Equipment Strain
-
Keeps motors, coils, and heat exchangers from overworking.
-
Reduces repair frequency and extends lifespan.
✅ Cleaner Indoor Air
-
Well-placed returns pull stale air evenly from rooms.
-
Filters capture more dust and allergens instead of recirculating them.
📎 ENERGY STAR reports sealing and resizing ducts saves up to 30% on heating and cooling costs.
🛠️ Real-World Case Studies from Tony’s Jobs
Case 1: The $350 Electric Bill
-
Problem: One 16x20 return grille for a 2,400 sq. ft. house. Static pressure at 0.9.
-
Fix: Installed two additional 20x25 returns.
-
Result: Bills dropped from $350 → $250. $100 monthly savings.
Case 2: Frozen AC Coils
-
Problem: Flex duct crushed under attic insulation, return pulling 40% of required airflow.
-
Fix: Replaced flex with sheet metal, resized return.
-
Result: No more freeze-ups, system efficiency improved.
Case 3: Dust & Allergies
-
Problem: Return duct in crawlspace pulling in dust and musty air.
-
Fix: Sealed leaks, rerouted duct, added filter grille.
-
Result: Dust complaints gone, family’s allergy symptoms eased.
👨🔧 “Every single one of these fixes paid for itself in under two years through lower bills and fewer repairs.”
💵 Cost Breakdown: DIY Fixes vs. Pro Upgrades
| Upgrade | DIY Cost | Pro Cost | Energy Savings | Notes |
|---|---|---|---|---|
| Replace return grille | $30–$80 | $150–$400 | 5–10% | Easy DIY if wall cutout fits |
| Add new return vent | – | $500–$1,200 each | 10–20% | Adds airflow balance |
| Seal duct leaks | $20–$100 | $1,000–$2,000 | 20–30% | Mastic/foil tape, not duct tape |
| Replace flex with sheet metal | – | $1,500–$3,500 | 15–25% | Best for attics/crawlspaces |
| Full duct replacement | – | $4,000–$10,000 | 25–30% | Often done with new HVAC system |
🌍 Environmental Benefits of Efficient Returns
-
Lower energy use = lower carbon footprint.
-
Every kWh saved keeps CO₂ out of the atmosphere.
-
Sealing ducts reduces wasted conditioned air → less strain on power grids.
👨🔧 “Saving money’s great, but saving energy means you’re doing your part for the planet too. That’s a win-win.”
💡 Tony’s Tips for Long-Term Energy Savings
-
Change filters every 1–3 months.
-
Use MERV 11–13 filters for better air quality without choking airflow.
-
Keep return grilles clear—no couches, rugs, or curtains blocking them.
-
Seal duct joints with mastic or foil tape.
-
Have a pro measure static pressure every 2–3 years.
-
For 2-story homes, add at least one return upstairs.
-
If your return vent sounds like a whistle, it’s undersized—upgrade it.
👨🔧 “I always tell homeowners: spend $20 on filters or spend $2,000 on repairs. Your choice.”
❓ FAQs About Return Ducts & Efficiency
Q: Will bigger returns always lower my bill?
Yes—if your system is starved for airflow.
Q: Can I DIY duct sealing?
Yes—on visible leaks. Use foil tape or mastic, never duct tape.
Q: How much can I save from duct upgrades?
Anywhere from 10–30% on heating/cooling bills.
Q: Do I need a return in every room?
Not necessarily—but the more balanced, the more efficient.
📌 Final Word from Tony
👨🔧 “I’ve been in this business 30+ years, and I’ll tell you—9 out of 10 high bills I see aren’t caused by the furnace or AC. They’re caused by bad airflow. Fix your returns, seal your ducts, and you’ll cut bills, breathe cleaner air, and extend your system’s life. That’s real efficiency, and it doesn’t take a new $10k system—just smart ductwork.”
