Noise & Space Considerations: Will a 4-Ton AC Fit Comfortably in Your

0 comments

When you’re thinking about installing a 4-ton air conditioner, the first question is usually: “Will it cool my house?” But there’s another one you can’t ignore: “Will it actually fit in my utility space—and will it be too loud once it’s running?”

I’m Mike Sanders, and I’ve seen more than a few homeowners regret not planning for clearances and noise levels. A powerful 4-ton Goodman condenser will absolutely keep you cool, but if you cram it into a tight corner or stick it outside your bedroom window, you might end up trading cool air for daily frustration.

In this guide, I’ll walk you through:

How much space a 4-ton AC really needs
What noise levels to expect (and how to reduce them)
Smart placement strategies to keep your utility area comfortable
My personal checklist for making sure your system fits smoothly

📏 Step 1: How Much Space Does a 4-Ton AC Need?

A 4-ton AC is no small machine. Most outdoor condensers measure around 35–45 inches tall and 30–35 inches wide. But the footprint of the unit isn’t the whole story—you need to factor in clearances so the system can breathe.

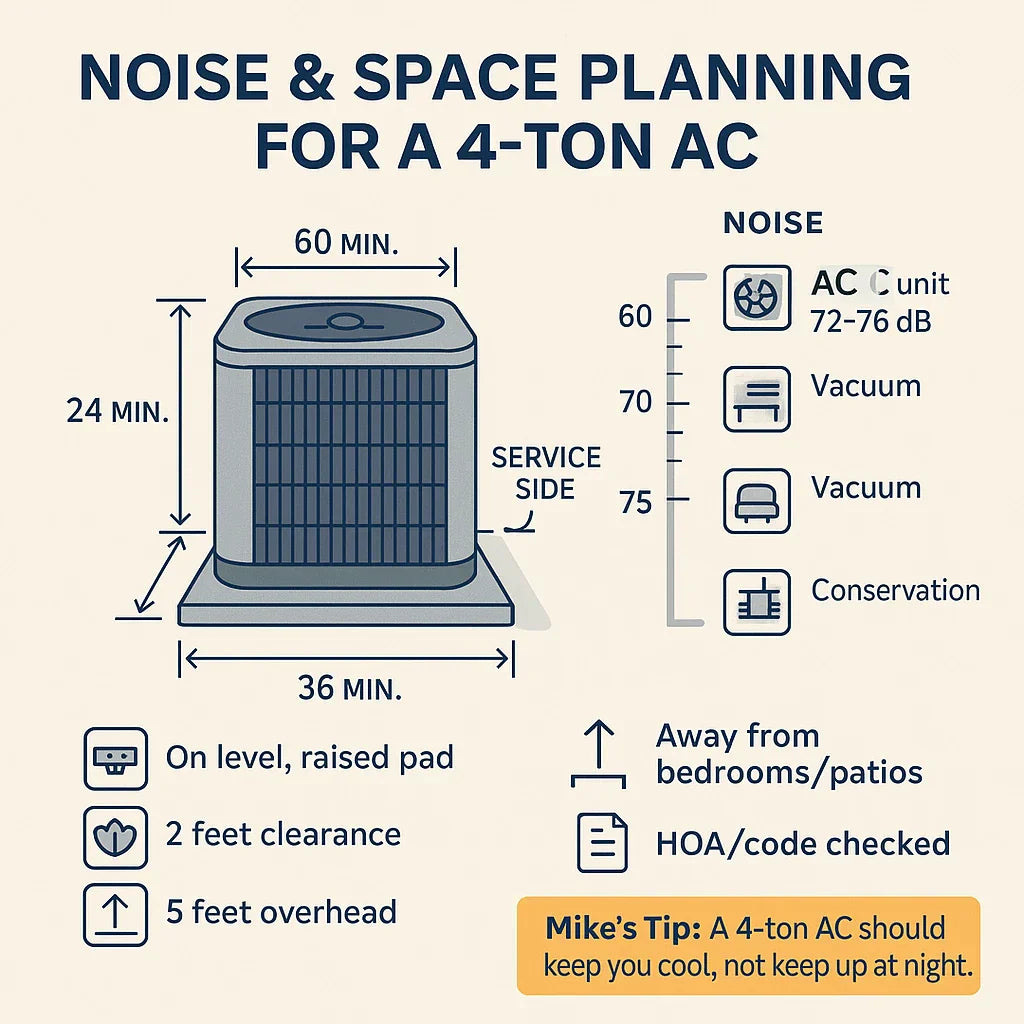

Minimum Clearance Requirements

Sides: At least 24 inches (2 feet) from walls, fences, or shrubs.
Backside (service side): Ideally 36 inches for technician access.
Front (coil side): 24–36 inches for proper airflow.
Top (overhead clearance): Minimum 60 inches (5 feet).

👉 Why it matters: If airflow is blocked, the condenser can’t release heat efficiently. That means higher energy bills and extra strain on the compressor.

📖 Verified source: Energy Star – AC Installation Tips .

🪨 Step 2: Foundation & Pad Considerations

Your AC shouldn’t just sit in the dirt—it needs a stable, level foundation.

Pad Options

Concrete Pad: Heavy and durable, resists shifting.
Composite Pad: Lighter, absorbs vibration better, easier to install.

Height

Raise the unit at least 3–4 inches off the ground to avoid water pooling and snow buildup in colder climates.

👉 Mike’s lesson learned: I once installed a condenser directly on gravel. After one storm, the whole thing sank unevenly and started rattling like crazy. A pad fixed it, but I could have avoided the headache from the start.

📖 Verified source: This Old House – AC Pad Installation .

🔊 Step 3: How Loud Is a 4-Ton AC?

Noise is one of the most overlooked parts of an installation.

Typical Noise Levels

Most modern 4-ton units run between 72–76 decibels (dB).

For perspective:

60 dB → Normal conversation
70 dB → Vacuum cleaner
75 dB → Busy street traffic
80+ dB → Loud and disruptive

👉 Goodman’s 4-ton R-32 condensers fall right in that 72–75 dB range, which is noticeable outdoors but usually not bothersome indoors if placed correctly.

📖 Verified source: Trane – AC Noise Levels Explained .

🛠️ Step 4: Placement Tips for Space & Noise

Even if your condenser technically “fits,” poor placement can make it loud, inefficient, or hard to service. Here’s what I recommend:

Side or backyard placement: Avoid right outside bedrooms or living rooms.
Vibration pads: Use rubber or composite pads to reduce rattling.
Noise barriers: A short fence or shrub line can cut perceived noise by 5–10 dB.
Airflow clearance: Never install under a deck, inside a shed, or in a tight alcove. Heat recirculation will choke performance.
Slope awareness: Place on level ground, not a slope, to avoid water pooling and vibration.

👉 Mike’s story: A neighbor once put his 4-ton condenser next to the patio to keep it out of sight. At the first family BBQ, nobody could hear each other over the hum. He eventually moved it 6 feet further away and added a small privacy fence—it made a huge difference.

📖 Verified source: Best AC Unit Placement Tips .

🌬️ Step 5: Indoor Space for the Air Handler or Furnace

Don’t forget: your 4-ton system also includes an indoor unit—either a furnace coil or an air handler.

Typical Space Needs

Vertical air handler/furnace with coil: 40–60 inches tall, 20–24 inches wide.
Needs 2–3 feet clearance in front for service access.
Shouldn’t be jammed into a closet without ventilation.

If you’re replacing an older system, measure your utility room carefully—modern systems can be taller or wider.

📖 Verified source: HVAC.com – Furnace Room Requirements .

⚡ Step 6: Neighbors, Code & HOA Considerations

Space and noise don’t just affect you—they can affect your neighbors, too.

Property line codes: Some cities require units to be a minimum distance from your neighbor’s property line.
HOA rules: Many neighborhoods restrict visible placement (e.g., front yards).
Noise ordinances: If your condenser is too close to a bedroom window—yours or your neighbor’s—it can cause complaints.

Always check local codes and HOA rules before finalizing placement.

📖 Verified source: International Code Council – Mechanical Code .

📊 Space & Noise Comparison: 4-Ton ACs

Brand	Noise Rating (dB)	Min. Side Clearance	Service Clearance	Overhead
Goodman (R-32, 14.4 SEER2)	72–75 dB	24 in	36 in	60 in
Trane (XL16 series)	70–73 dB	24 in	36 in	60 in
Carrier (Infinity 17)	65–72 dB	24 in	36 in	60 in

👉 Carrier tends to be quieter, but costs more. Goodman balances affordability with acceptable noise levels if placed well.

📝 Mike’s Homeowner Checklist

Before installing a 4-ton AC, ask yourself:

✅ Do I have 2 feet of clearance around the condenser?
✅ Is there 5 feet of space above for hot air exhaust?
✅ Is the unit on a level, raised pad?
✅ Will noise be an issue near bedrooms, patios, or neighbors?
✅ Have I planned for indoor unit clearance in the utility area?
✅ Did I check local codes and HOA rules?

If you can check all these boxes, your 4-ton system should fit comfortably without causing noise headaches.
