Hey folks, Mike here. Let’s talk about something most homeowners don’t think about until it’s too late: the A-Coil (or evaporator coil) inside your HVAC system.
4 Ton Horizontal Goodman Cased Coil with Built-in TXV - CHPTA4830C3
It may not be the flashiest part—it’s tucked away in a metal cabinet, out of sight—but it’s one of the hardest-working pieces of your cooling system. And if it fails, you’ll notice fast: higher bills, weaker cooling, and sometimes a puddle where you don’t want it.
So the big question is: How long will a Goodman painted A-Coil last? Let’s dig in.
🏗 1. What Makes a Goodman Painted A-Coil Durable
Goodman’s painted cased A-Coils, like the CHPTA4830C3, have some built-in advantages that help extend their service life.
-
Painted Cabinet: The exterior steel cabinet is factory-painted, helping protect against rust and corrosion in damp basements, crawlspaces, or humid attics.
-
Factory-Installed TXV: A thermal expansion valve regulates refrigerant flow, reducing stress on the coil and compressor by optimizing performance.
-
R-32 Compatibility: Future-proof design means the coil is ready for the refrigerant transition (R-410A is being phased out). Using the right refrigerant avoids premature strain or incompatibility issues.
📖 Reference: Goodman – CHPTA Series Coils
Mike’s note: “A lot of cheaper coils come in bare sheet metal. I’ve seen them rust through in under 10 years. The painted cabinet alone buys you peace of mind.”

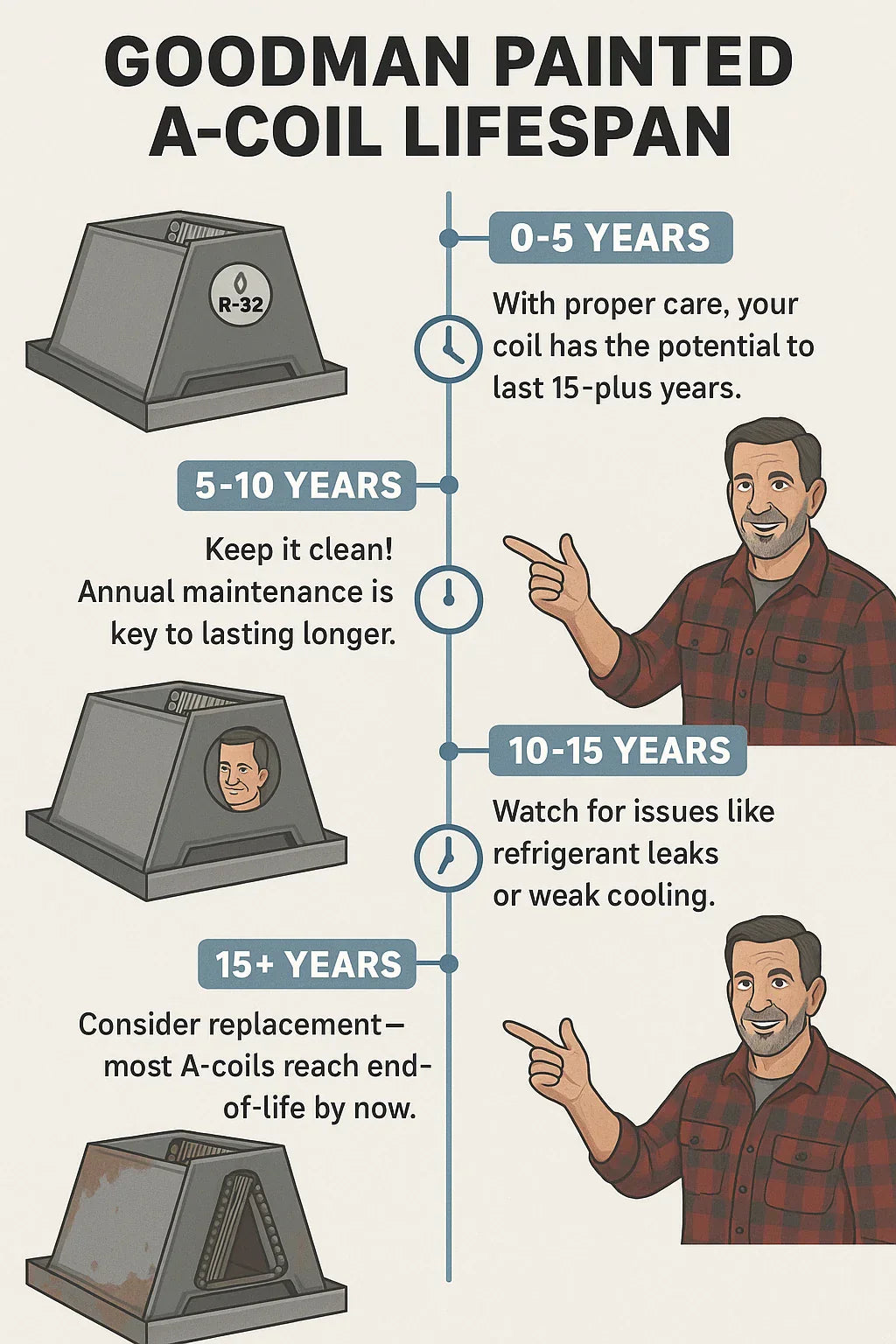

📊 2. Average Lifespan in 2025
So, how long should you expect your Goodman painted coil to last?
-
Average lifespan: 12–15 years
-
Well-maintained coil: 15–20 years
-
Poorly maintained or harsh environment: 8–10 years
That range might sound wide, but it comes down to maintenance and environment.
📖 Reference: Energy.gov – Extending HVAC Lifespan
Mike’s take: “I’ve seen Goodman coils go 18 years in a dry basement with regular care—and I’ve seen them fail in 7 years in a salty coastal crawlspace.”
⚠️ 3. Factors That Shorten Coil Life
Here’s what will kill your coil early:
-
Neglecting Maintenance – Dirty filters restrict airflow, making the coil freeze and stress out. Clogged drain lines cause rust and mold.
-
Corrosive Environments – Salt air (coastal homes), high humidity, or chemical fumes (laundry closets) accelerate corrosion.
-
Refrigerant Leaks – Pinhole leaks in copper tubing, often from formicary corrosion, cause low refrigerant levels and freezing.
-
System Mismatch – Oversized or undersized coils stress the entire system, causing early breakdown.
📖 Reference: ACHR News – Coil Corrosion Issues
✅ 4. Factors That Extend Coil Life
Now for the good news: here’s what helps your coil reach 15–20 years.
-
Filter Changes – Replace air filters every 1–3 months to keep airflow strong.
-
Annual Cleaning – A professional coil cleaning removes dust, pollen, and mold.
-
Drain Line Flushing – Clear the condensate line each spring with vinegar or compressed air.
-
Dry Environment – A dry basement or utility room slows corrosion compared to damp crawlspaces.
-
Proper Refrigerant Levels – Annual professional checks keep the coil from freezing.
📖 Reference: Carrier – Coil Care Tips
Mike’s advice: “I tell homeowners to treat coil cleaning like oil changes. Skip it, and you’ll pay for it later.”
🧹 5. Maintenance Schedule for Maximum Longevity
Here’s the seasonal routine I recommend to keep your coil healthy:
🌸 Spring (Pre-Season)
-
Inspect coil and cabinet for dust or moisture.
-
Clean coil with non-acidic cleaner.
-
Flush condensate drain with vinegar.
-
Check insulation on refrigerant lines.
☀️ Summer (Peak Season)
-
Replace air filter monthly.
-
Monitor for ice buildup.
-
Confirm proper airflow at vents.
-
Check for water around unit.
🍂 Fall (Post-Season)
-
Wipe coil surface and cabinet interior.
-
Straighten bent fins with a fin comb.
-
Replace filter before heating season.
-
Inspect for rust or corrosion.
❄️ Winter (Off-Season)
-
Seal cabinet to keep pests out.
-
Check area for excess moisture.
-
Vacuum space around coil.
-
Quick visual inspection.
📖 Reference: HVAC.com – Coil Maintenance
🔎 6. Signs Your Coil May Be Near End of Life
Even with maintenance, no coil lasts forever. Watch for:
-
Refrigerant Leaks – Needing multiple recharges in a year = coil is compromised.
-
Reduced Cooling – Airflow seems fine but home won’t stay cool.
-
Rust & Corrosion – Visible damage on cabinet or drain pan.
-
High Bills – Energy use creeping higher each year.
-
Age – Over 15 years old? Start budgeting for replacement.
📖 Reference: Coil Replacement Costs
📉 7. Repair vs Replacement: Mike’s Rule of Thumb
When a coil starts giving you trouble, should you fix it or replace it?
-
Under 10 years old → Repair if cost is less than 30% of replacement.
-
10–15 years old → Case by case, depends on severity and repair cost.
-
Over 15 years old → Replace. Even if you repair, another issue is likely coming soon.
Average coil replacement cost: $1,100–$2,400 installed
Mike’s tip: “If your coil is 16 years old and leaking refrigerant, don’t throw good money after bad. Replace it—you’ll save in the long run.”
💡 8. Mike’s Final Take
So, how long will your Goodman painted A-Coil last?
-
Plan for 12–15 years.
-
Aim for 15–20 years with proper maintenance.
-
Expect less than 10 years if neglected or installed in harsh environments.
The good news is, Goodman builds durable coils—and with the painted cabinet and TXV, you’re already ahead of the game.
Mike’s bottom line: “Your coil may be out of sight, but don’t let it be out of mind. A little care goes a long way—and can add years to its life.”
In the next topic we will know more about: What Does an A-Coil Do in Your AC System? Mike Explains
