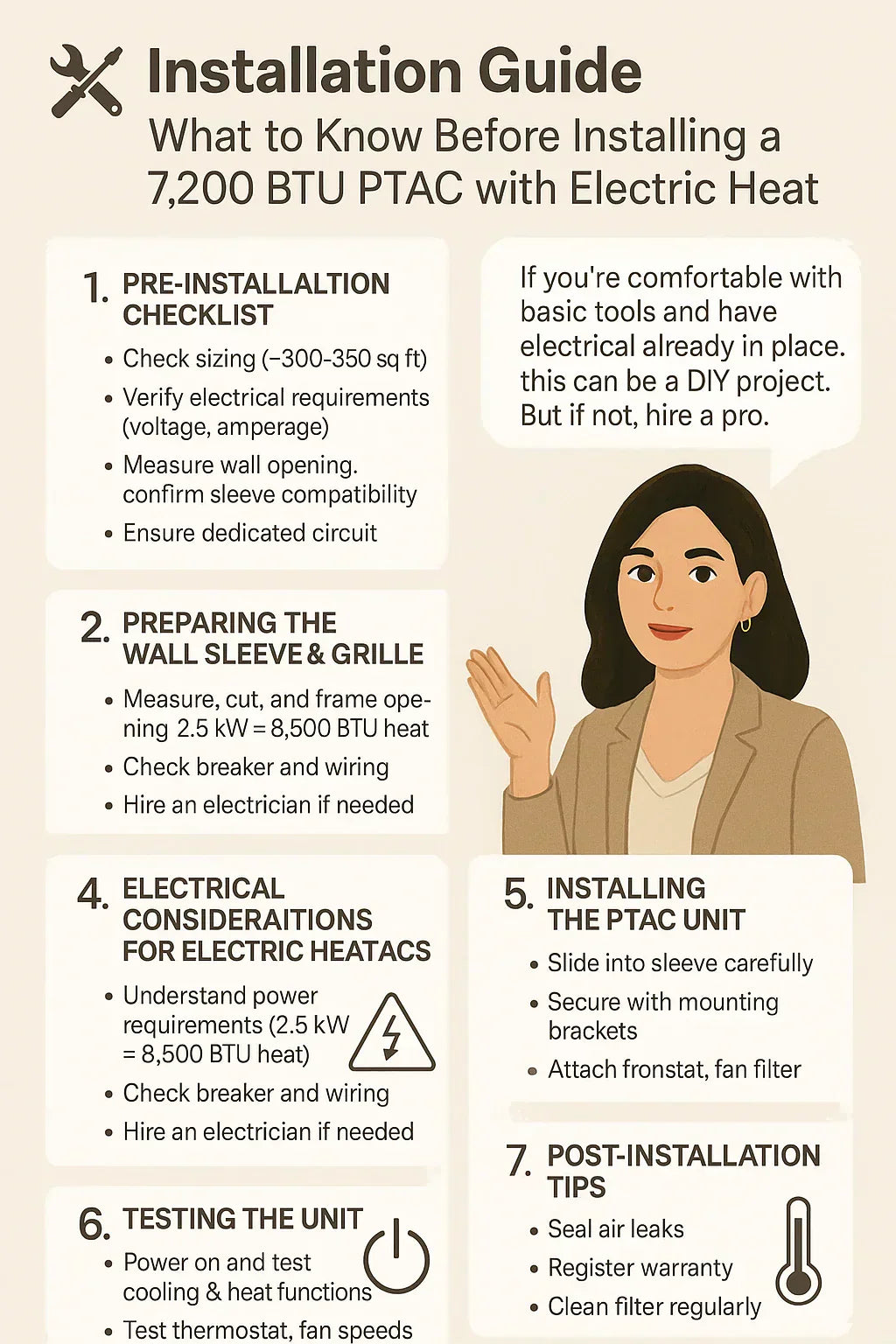

Installing a 7,200 BTU Packaged Terminal Air Conditioner (PTAC) with 2.5 kW electric heat can transform your guest room, studio, or home office into a comfortable year-round space. But before cutting into walls or plugging in the unit, it’s important to know exactly what’s involved.
This guide—written for Savvy buyers like you—covers the planning, tools, steps, and safety considerations you need to decide if this is a DIY project you can handle or one that’s better left to a professional installer.
📋 Step 1: Pre-Installation Checklist
Before touching tools, let’s confirm that the 7,200 BTU PTAC with electric heat is the right unit for your space.
✅ Check Room Size:
-
7,200 BTU covers about 300–350 sq ft in average conditions. (Energy.gov – PTAC Efficiency Guide)
✅ Verify Voltage & Amps:
-
Most PTACs with 2.5 kW electric heat strips require either 208/230V power.
-
Check the circuit breaker rating (commonly 15–20 amps for this size).
✅ Dedicated Circuit:
-
Electric heat strips must be on a dedicated circuit to prevent overloading.
✅ Wall Opening & Sleeve:
-
Standard PTACs require a wall sleeve (usually 42” wide × 16” tall).
-
Confirm the wall thickness and sleeve compatibility.
✅ Outdoor Space:
-
PTACs vent through the wall—ensure there’s unobstructed airflow outdoors.
✅ Local Codes & HOA Rules:
-
Some areas require permits or inspections for adding electric circuits.
-
Condos/apartments may restrict exterior modifications.
🛠️ Step 2: Tools & Materials You’ll Need
Installing a PTAC is straightforward if you have the right gear. Here’s a checklist:
🔧 Tools
-
Cordless drill + bits
-
Level
-
Stud finder
-
Measuring tape
-
Screwdriver set
-
Utility knife or drywall saw
-
Caulking gun
📦 Materials
-
Wall sleeve (required for all PTACs)
-
Exterior grille (protects condenser)
-
Mounting brackets
-
Foam weatherstripping
-
Sealant or caulk (weatherproof)
-
Electrical whip & disconnect box (if not pre-wired)
🦺 Safety Gear
-
Work gloves
-
Safety glasses
-
Dust mask
📚 Reference: Amana PTAC Installation Manual PDF
📐 Step 3: Preparing the Wall Sleeve & Grille
The wall sleeve is the structural support that holds the PTAC in place.
-
Measure the opening: Most PTAC sleeves are 42” wide × 16” tall. Depth may vary (14–16”).
-
Cut the opening (if new install): Use a stud finder to avoid cutting load-bearing studs. Frame the cutout for support.
-
Insert the sleeve: Slide it into the opening and check with a level.
-
Seal the sleeve: Use foam or caulk around edges to prevent air leaks.
-
Install exterior grille: Attach on the outside wall to protect against debris and rain.
⚠️ Tip from Savvy: “Don’t skip sealing! Air leaks mean higher bills and reduced comfort.”
📚 PTAC Central – Sizing & Sleeve Tips
⚡ Step 4: Electrical Considerations for Electric Heat PTACs
This is the most important safety step. Unlike cooling-only PTACs, a unit with a 2.5 kW electric heater requires more electrical planning.
🔌 Power Rating
-
2.5 kW = ~8,500 BTU heating capacity.
-
At 230V, this draws about 10.8 amps.
📏 Dedicated Circuit
-
You’ll need a dedicated breaker (15–20 amps depending on your unit specs).
-
The breaker should only serve the PTAC, not shared outlets.
🧑🔧 When to Call an Electrician
-
If your home isn’t already wired for PTAC power.
-
If you’re unsure about breaker size, wire gauge, or disconnect box.
-
Most local codes require a licensed electrician for new circuits.
📚 Reference: National Electrical Code (NEC) – PTAC Circuit Requirements
📦 Step 5: Installing the PTAC Unit
Once the wall sleeve and wiring are ready, it’s time to install the PTAC.
-
Unbox carefully: Keep the front grille off until later.
-
Slide into sleeve: Push the PTAC into the wall sleeve evenly.
-
Align with brackets: Use mounting brackets to secure the chassis.
-
Seal gaps: Add foam strips or sealant between the sleeve and unit.
-
Attach front grille: Snap the grille into place.
-
Insert filters: Most units ship with washable filters—install them before testing.
⚠️ Safety Tip: These units are heavy (90–120 lbs). Have a second person help with lifting.
📚 Reference: PTAC Install Tips
🧪 Step 6: Testing the Unit
Now for the fun part—powering on.
-
Turn breaker on and plug in the PTAC if required.
-
Test cooling mode: Set to 65°F and listen for compressor startup.
-
Test heating mode: Switch to heat and confirm warm airflow.
-
Test fan speeds: Low/medium/high should all respond.
-
Check thermostat accuracy: Ensure the room reaches set temperature.
⚠️ Watch for issues like:
-
Tripped breaker (electrical issue).
-
No airflow (check filters).
-
Water leaks (drainage not connected).
📚 Reference: The Furnace Outlet – PTAC Troubleshooting
🌡️ Step 7: Post-Installation Tips
Once installed, here are a few final touches to maximize performance:
-
Seal everything: Reseal edges after the first week (settling may cause small gaps).
-
Register warranty: Amana typically requires online registration.
-
Plan maintenance:
-
Clean filter every 30 days.
-
Vacuum coils twice per year.
-
Check drain line for clogs.
-
📚 Reference: Energy Star – Maintenance Tips
🧑 Savvy’s Perspective: DIY or Hire a Pro?
Savvy’s advice is straightforward:
👉 “If your wall sleeve and electrical circuit are already in place, a PTAC installation is totally DIY-friendly. But if you need to cut into walls or add a new circuit for the electric heater, hiring a pro is safer and ensures you stay up to code.”
-
DIY-Friendly: Replacements where sleeve & wiring already exist.
-
Pro Needed: New installs with electrical modifications.
🧮 Cost Considerations
-
DIY Install: ~$0–200 in materials (sealant, brackets, grille).
-
Professional Install: $500–1,200 (including electrician costs).
-
Long-Term: Proper install saves on energy bills and prevents early failure.
📚 Reference: PTAC Installation Costs
✅ Final Checklist
Before calling your install done, run through this checklist:
-
Room size matches BTU capacity (300–350 sq ft).
-
Wall sleeve installed, sealed, and level.
-
Electrical circuit matches specs (voltage, amps, breaker).
-
PTAC chassis secured in place.
-
Filters installed.
-
Cooling and heating modes tested.
-
Warranty registered.
🎯 Key Takeaway
Installing a 7,200 BTU PTAC with 2.5 kW electric heat is a project most Savvy homeowners can handle if the wall sleeve and wiring are already set. The key is making sure power, placement, and sealing are done right. If new electrical work is needed, call a pro—it’ll save you headaches and keep your install safe and efficient.
