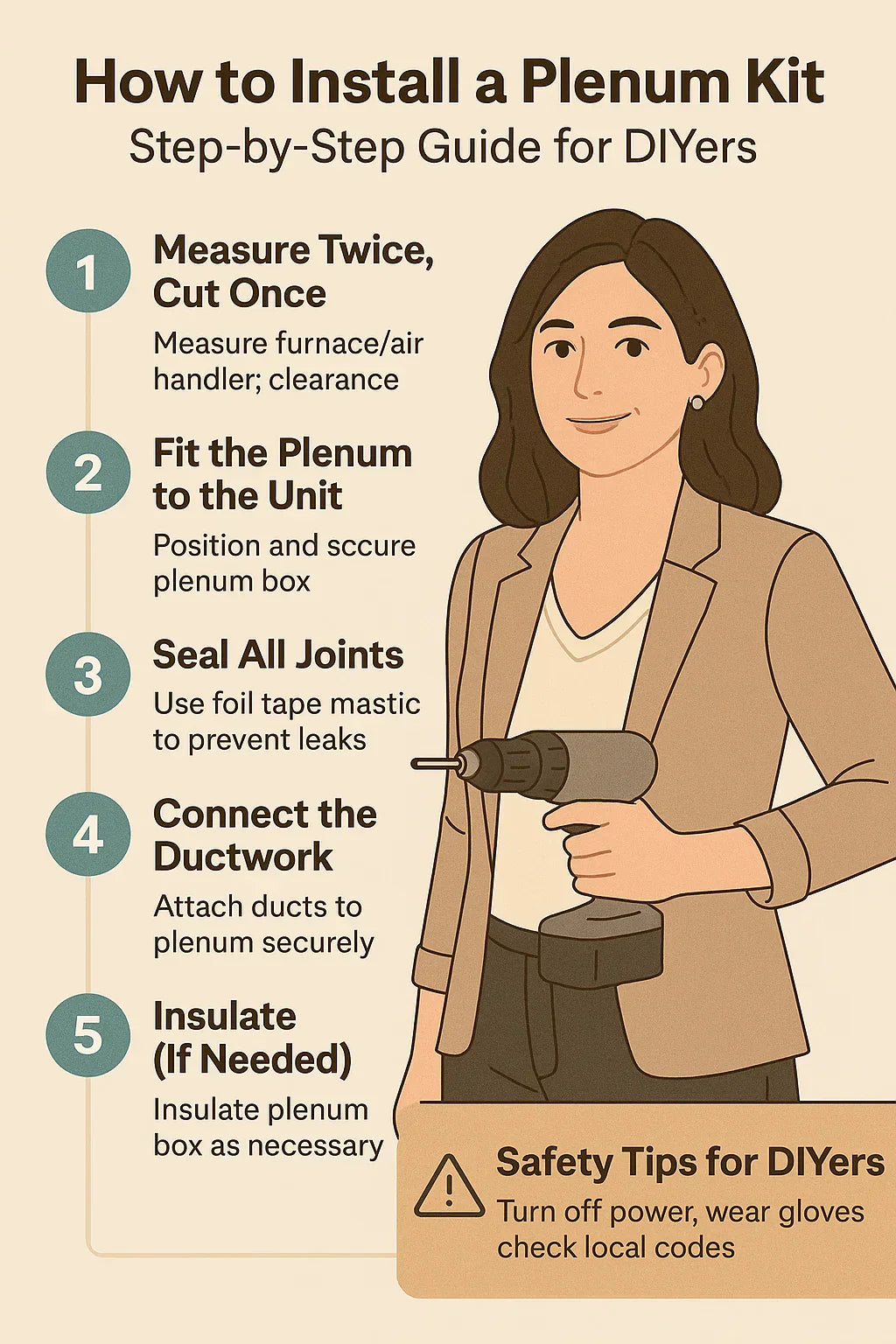

How to Install a Plenum Kit: Step-by-Step Guide for DIYers

0 comments

If you’ve ever looked inside your HVAC system, you’ve probably noticed a large metal box sitting just above or beside your furnace or air handler. That’s the plenum box — and it plays a critical role in distributing conditioned air throughout your home.

Plenum Kit 20" X 20" X 36"

Installing or replacing a plenum might sound like a job reserved for professionals, but for many DIY homeowners, it’s a project that’s both achievable and rewarding. With a plenum kit, you don’t have to build one from scratch. Instead, you get a ready-made, properly sized solution that only requires fitting, sealing, and connecting to your ductwork.

This guide will walk you through everything you need to know to install a plenum kit — from tools and prep to sealing and insulation — so you can boost efficiency, comfort, and airflow in your home.

📦 What Comes in a Plenum Kit?

A plenum kit is essentially a pre-fabricated air distribution box. These kits usually include:

✅ A sheet metal plenum box with knockouts for duct connections
✅ Transition fittings or collars (depending on the brand)
✅ Pre-cut access points for connecting supply ducts
✅ Optional insulation lining (in some models)

Unlike custom sheet metal plenums, which need to be fabricated and measured precisely, a kit gives you a standard size that matches many common HVAC units. This makes installation much faster and easier.

📖 Further Reading: Carrier – Air Distribution Basics

🔍 Step 1: Measure Twice, Cut Once

The golden rule of HVAC installation is: airflow depends on sizing. Before you begin:

Measure the outlet of your furnace or air handler.
- A 20x20x36 plenum will usually fit systems in the 3- to 4-ton range.
- Match the opening size to the plenum’s base.
Check clearance in your utility space.
- Measure ceiling height, wall clearance, and space around the unit.
- Make sure the plenum won’t interfere with doors, wiring, or pipes.
Plan your duct connections.
- Count how many ducts need to connect to the plenum.
- Check the knockout placements — you may need to cut additional holes with tin snips.

Tip from Savvy: It’s better to oversize your measurements and trim later than to find your plenum won’t fit once everything’s sealed.

📖 Further Reading: ASHRAE – Fundamentals of Airflow Design

🧩 Step 2: Fit the Plenum to the Unit

Now that you’ve measured and planned, it’s time to attach the plenum to your furnace or air handler.

Steps to Follow:

Position the plenum.
- Align the base with the unit’s outlet.
- Make sure the edges line up evenly for smooth airflow.
Secure with sheet metal screws.
- Drill holes at regular intervals (every 4–6 inches).
- Tight connections help prevent vibration and leaks.
Check for stability.
- Gently shake the plenum to ensure it’s firmly attached.
- Reinforce with support brackets if needed.

📖 Further Reading: Home Depot – How to Install Ductwork

🛡️ Step 3: Seal All Joints

Even the best-fitting plenum will leak if you don’t seal it properly. Air leaks are one of the biggest sources of energy loss in HVAC systems — sometimes wasting 20–30% of conditioned air.

How to Seal Correctly:

Use foil tape rated for HVAC (never standard duct tape).
Apply mastic sealant over seams and screw holes for added protection.
Seal both the unit-to-plenum joint and plenum-to-duct joints.

Tip from Savvy: Think of sealing your plenum like weatherproofing your windows. Every little gap matters when you’re paying to heat or cool air.

📖 Further Reading: DOE – Duct Sealing & Energy Efficiency

🌬️ Step 4: Connect the Ductwork

With the plenum sealed to the unit, you’re ready to attach your ducts.

Key Steps:

Cut knockouts (if needed).
- Use tin snips or a hole saw to create openings.
Attach duct collars.
- Secure with screws and foil tape.
Connect flexible or rigid ducts.
- Clamp flex ducts tightly around collars.
- Seal rigid duct seams with tape + mastic.

Pro Tip: Try to minimize sharp turns and kinks in flex ducts — they restrict airflow like a kinked garden hose.

📖 Further Reading: EPA – Improving Air Duct Systems

🧊 Step 5: Insulate (If Needed)

Insulation is optional but recommended in certain spaces:

Basements or unconditioned spaces → prevents heat loss.
Attics → prevents heat gain and condensation.
Older systems → helps boost efficiency.

Options for Insulating Plenums:

Foil-faced fiberglass wrap (easy to apply).
Rigid foam board (good for square plenums).
Pre-insulated plenums (sometimes included in kits).

📖 Further Reading: Trane – Airflow & Efficiency

⚡ Safety Tips for DIYers

Working with sheet metal and HVAC systems can be risky if you’re not careful. Always:

Turn off electrical power to the HVAC unit.
Wear cut-resistant gloves when handling metal.
Use safety goggles when cutting ducts.
Follow local building codes (some areas require permits for ductwork modifications).
