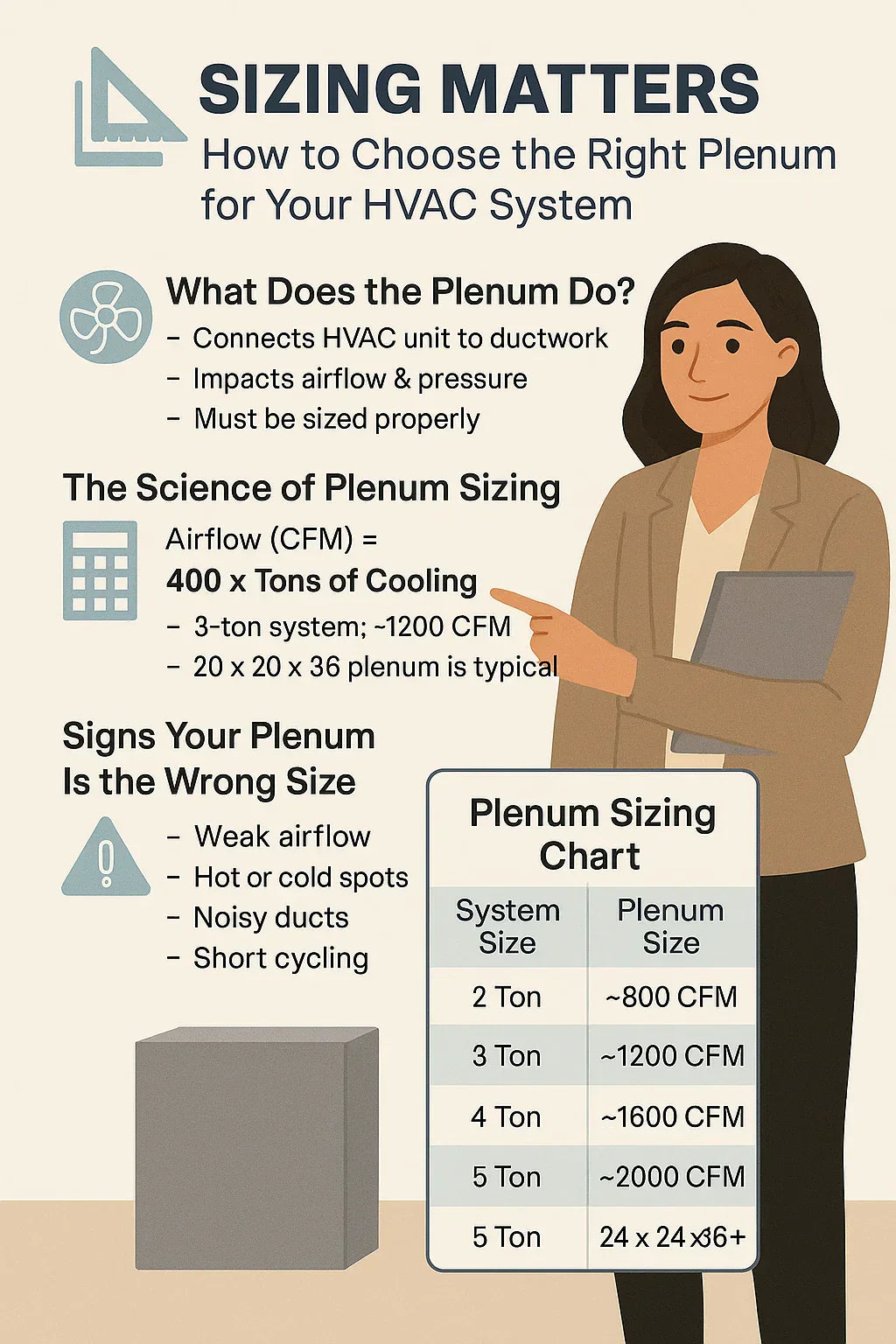

Sizing Matters: How to Choose the Right Plenum for Your HVAC System

When most homeowners think about their HVAC system, they picture the furnace, the AC condenser, or maybe the thermostat on the wall. But hidden inside your system is a crucial piece of sheet metal that can make or break your home’s comfort: the plenum box.

The plenum might not get the spotlight, but it’s the hub where airflow begins. And when it comes to plenums, size matters more than most people realize. An undersized plenum chokes airflow and strains your blower motor, while an oversized one can reduce velocity and create uneven distribution.

Plenum Kit 20" X 20" X 36"

In this Savvy homeowner’s guide, we’ll break down exactly how to choose the right plenum size for your HVAC system — from airflow math to real-world mistakes to avoid.

---

🌬️ What Does the Plenum Do?

Think of your HVAC system as a set of lungs for your home.

• The supply plenum is the “heart chamber” that pushes conditioned air into ducts leading to each room.

• The return plenum is the “receiving chamber” that pulls air back to the system for reconditioning.

Both supply and return plenums need to be correctly sized to:

• Keep airflow balanced.

• Prevent noisy ducts and energy waste.

• Ensure every room gets proper heating and cooling.

📖 Further Reading: Energy.gov – Heating & Cooling Basics

---

📐 The Science of Plenum Sizing

The key metric for plenum design is CFM (cubic feet per minute) — how much air your system moves.

A general rule:
👉 Airflow (CFM) = 400 x Tons of Cooling

• A 2-ton system needs ~800 CFM.

• A 3-ton system needs ~1,200 CFM.

• A 4-ton system needs ~1,600 CFM.

Your plenum needs to be sized so this volume of air can pass through without creating excessive static pressure (resistance).

For example:

• A 20x20x36 plenum kit works well for many 3-ton to 4-ton systems.

• A 16x20x36 might suffice for a smaller 2-ton system.

• A 24x24x36+ is more appropriate for 5-ton setups.

📖 Further Reading: ASHRAE – Fundamentals of Airflow

---

🛠️ Signs Your Plenum Is the Wrong Size

If your plenum is undersized or oversized, your home will let you know. Watch for:

• 🌬️ Weak airflow at supply registers.

• ❄️ Hot/cold spots between rooms.

• 🔊 Whistling or rumbling ducts from high pressure.

• ⚡ Short-cycling (system turns on/off too often).

• 💸 Higher energy bills due to blower strain.

A properly sized plenum avoids these headaches by balancing pressure and airflow.

📖 Further Reading: ACHR News – Airflow & Duct Problems

---

📏 How to Measure for the Right Plenum Size

Sizing a plenum isn’t guesswork — it’s about matching your HVAC unit’s needs. Here’s how:

1. Measure the Outlet

• Use a tape measure to check your furnace/air handler’s supply outlet dimensions.

• The plenum’s base should match this footprint.

2. Know Your Tonnage

• Check your unit’s data plate for tonnage (2-ton, 3-ton, etc.).

• Multiply by 400 to find required CFM.

3. Count Your Ducts

• How many branch ducts connect to the plenum?

• Each branch draws airflow, so the plenum must accommodate them all.

4. Check Clearance

• Utility rooms, closets, and basements often limit plenum size.

• Make sure a tall plenum (like 36") won’t hit ceilings or beams.

5. Factor in Return Air

• Don’t forget the return plenum size — both supply and return must balance.

📖 Further Reading: Home Depot – How to Install Ductwork

---

🔄 Standard Sizes vs. Custom Plenums

Not all plenums are created equal.

✅ Standard Kits (like 20x20x36)

• Easy to install.

• Cost-effective.

• Works for most residential units.

🛠️ Custom-Built Plenums

• Needed for unusual footprints or limited spaces.

• Optimized airflow for complex duct layouts.

• More expensive — requires sheet metal fabrication.

Savvy homeowners often start with a kit, but custom builds are worth it if your system has unique needs.

📖 Further Reading: Carrier – Air Distribution Systems

---

📊 Plenum Sizing Examples by System Size

Here’s a quick-reference chart:

📖 Further Reading: Trane – Airflow and Efficiency

---

🛡️ Efficiency & Energy Impact of Correct Sizing

Getting your plenum sizing right means:

• 💨 Balanced airflow = no hot/cold spots.

• ⚡ Lower energy use = blower motor doesn’t overwork.

• 🔇 Quieter ducts = less turbulence and whistling.

• 💸 Lower bills = no wasted conditioned air.

According to the DOE, duct leaks and sizing issues can waste 20–30% of airflow in many homes【DOE†source】.

📖 Further Reading: DOE – Duct Sealing & Efficiency

---

⚡ Mistakes to Avoid

Even pros sometimes make these sizing mistakes:

• ❌ Choosing by “rule of thumb” instead of airflow math.

• ❌ Oversizing “just in case” → kills air velocity.

• ❌ Undersizing → strains blower and shortens system life.

• ❌ Ignoring number of ducts connected.

• ❌ Forgetting insulation in attics/basements.

---

🏡 When to Call a Pro

While a DIYer can measure and install a plenum kit, you should call a professional if:

• You have multi-zone HVAC systems.

• Your ducts have unusual layouts.

• You’re adding a plenum to a system with static pressure problems.

• Your home requires code-specific plenums (e.g., fire-rated in condos).

---

✅ Conclusion

Your HVAC plenum might not be the star of the show, but its size determines how well your whole system performs.

By understanding airflow requirements, measuring carefully, and matching your plenum size to your system tonnage, you can:

• Improve comfort in every room.

• Reduce noise and energy waste.

• Extend the lifespan of your blower motor.

For most standard residential setups, a 20x20x36 plenum kit hits the sweet spot.

---

In the Next Topic we will know more about: Plenum Kit Materials Compared: Sheet Metal vs. Fiberglass vs. Flexible Options
