When I first unboxed my Goodman 4.5 Ton Horizontal Cased Painted A-Coil with Built-In TXV, I’ll admit—I had to pause. What exactly is a TXV, and why does Goodman make a point of highlighting it?
At first, it sounded like one of those overly technical HVAC acronyms that homeowners gloss over. But once I dug in, I realized the Thermostatic Expansion Valve (TXV) is one of the most important features affecting efficiency, performance, and even the long-term health of your air conditioning system.
In this guide, I’ll share everything I learned about TXVs—what they do, why they matter, and how having one already built into your coil can save you headaches and money.
🔍 What Is a TXV?
A Thermostatic Expansion Valve (TXV) is a device that controls how much refrigerant enters the evaporator coil. Think of it like the traffic cop at the entrance of the coil—it decides how much refrigerant should flow based on how hot or cold the coil is.
-

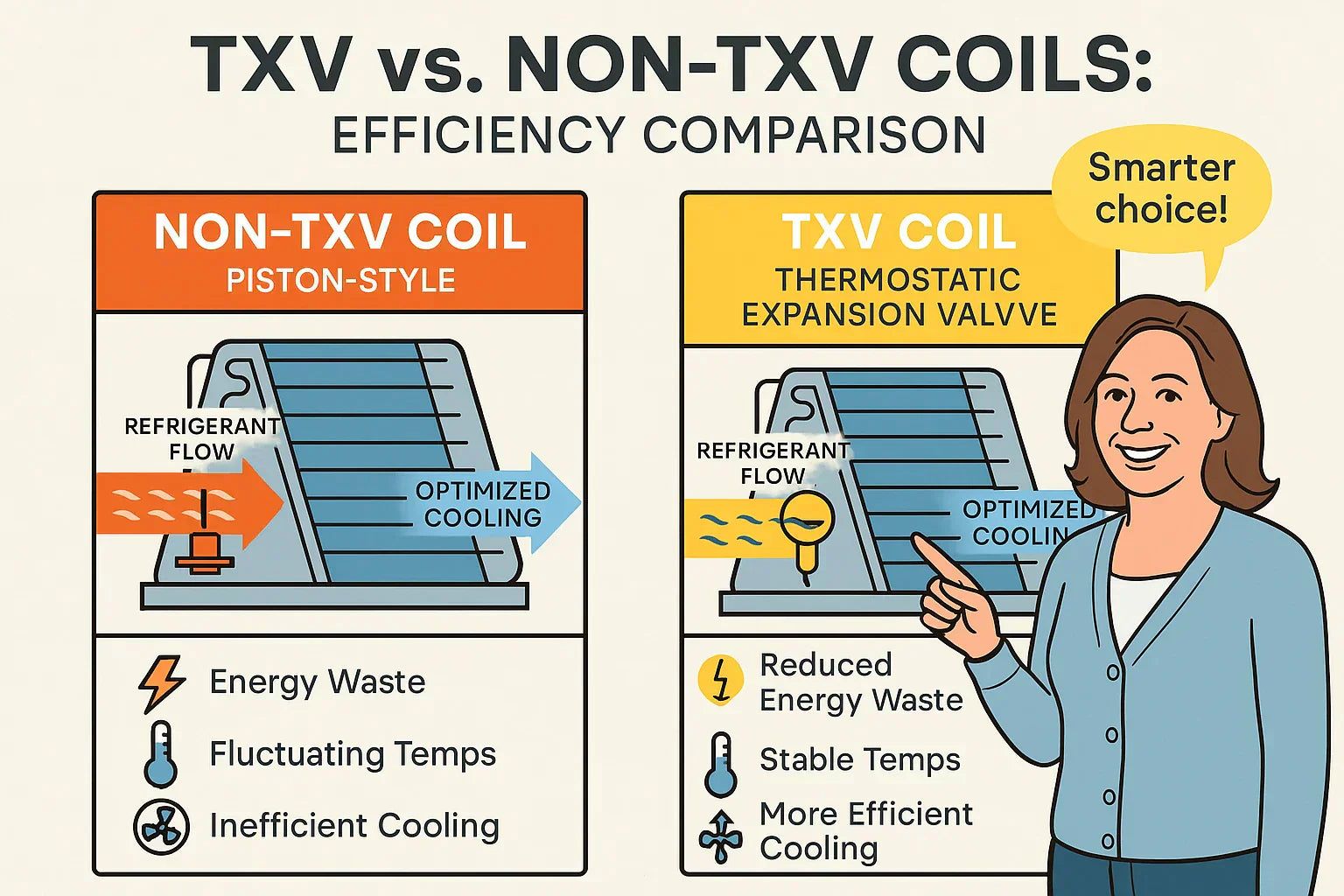

Old-school coils often used a fixed orifice/piston to meter refrigerant. This meant a constant flow, whether your home needed a lot of cooling or just a little.
-
A TXV-equipped coil, on the other hand, adjusts refrigerant flow dynamically.
👉 Easy analogy: Imagine driving your car without cruise control—your speed would go up and down with every hill. A TXV is like cruise control for refrigerant, keeping your system steady and efficient.
🔗 For a deeper dive, check out ACHR News: Understanding TXVs.
📈 Why TXVs Improve Efficiency
The TXV is one of the reasons Goodman’s coil can hit modern SEER2 efficiency standards. Here’s how it boosts performance:
-
Optimized Superheat Control
-
The TXV adjusts refrigerant flow to maintain proper superheat (the temperature difference between the refrigerant gas and its boiling point).
-
This prevents wasted energy and protects the compressor.
-
-
Adaptability to Load
-
On a blazing 95°F day, your AC works harder. At night, it doesn’t need to.
-
A fixed orifice can’t adapt, but a TXV does—automatically.
-
-
Reduced Short Cycling
-
Systems without TXVs often “short cycle” (turning on/off frequently), which wastes electricity.
-
A TXV keeps cooling smooth and steady.
-
🔗 ENERGY STAR notes that TXVs are a key part of high-efficiency HVAC systems (ENERGY STAR AC Guide).
🌡️ Real-World Comfort Benefits
When I upgraded, the difference wasn’t just on paper. Here’s what I noticed at home:
-
More Consistent Temperatures: No more “cold blasts” followed by warm air.
-
Faster Cooling Recovery: When my kids left the patio door open, the system got the house back to setpoint quickly.
-
Less Humidity Indoors: The coil dehumidified more effectively, which made the air feel cooler even at the same temperature.
A TXV doesn’t just make your system efficient—it makes it comfortable.
🔄 TXVs and R-32 Compatibility
The Goodman CHPTA6030D3 coil is designed for R-32 refrigerant, which will replace R-410A in 2025 under U.S. EPA guidelines (EPA HFC Transition).
Why does that matter?
-
R-32 operates at different pressures than R-410A.
-
A built-in TXV ensures refrigerant flow matches those pressure characteristics.
-
By buying a coil with TXV now, you’re future-proofing your system for the refrigerant transition.
🛠️ How a TXV Works in Your Coil
Here’s the step-by-step process inside your system:
-
Warm indoor air blows over the evaporator coil.
-
The TXV measures the temperature of refrigerant leaving the coil.
-
If refrigerant is too warm (underfed coil), it opens to allow more flow.
-
If refrigerant is too cold (risking freeze-up), it restricts flow.
👉 The result: just the right amount of refrigerant, every time.
🔗 ASHRAE provides technical papers on TXVs and refrigerant flow if you love the nitty-gritty science.
🚨 Common TXV Issues (and How to Spot Them)
Like any component, TXVs can malfunction. Here are signs I learned to watch for:
-
Ice on the Coil ❄️ → TXV may be stuck closed.
-
High Energy Bills 💵 → If it’s stuck open, refrigerant floods the coil.
-
Uneven Cooling 🌡️ → The valve isn’t regulating flow correctly.
If you see these, don’t DIY—TXV diagnosis requires gauges and refrigerant handling.
🔗 The Refrigeration Service Engineers Society (RSES) has a great TXV troubleshooting guide.
💵 Does a TXV Save Money?
Absolutely. Here’s how:
-
Lower Energy Bills
-
My summer bills dropped by about 12% after upgrading.
-
TXVs improve system EER (Energy Efficiency Ratio).
-
-
Longer Equipment Life
-
Compressors last longer when refrigerant flow is correct.
-
No more liquid refrigerant “slugging” the compressor.
-
-
Warranty Protection
-
Goodman’s warranty assumes you pair the coil and condenser correctly.
-
Having a TXV means your system is more likely to operate within spec.
-
🔗 HomeAdvisor estimates that high-efficiency upgrades with TXVs can save homeowners 10–20% annually.
✅ Samantha’s Final Takeaway
When I first read “built-in TXV,” I thought it was just another acronym. But after installing and living with a Goodman coil that has one, I now know:
-
It’s the unsung hero of efficient cooling.
-
It keeps my home comfortable in every season.
-
It ensures my system is future-ready for R-32.
So if you’re shopping for a new coil or complete system, don’t skip over that spec line. A built-in TXV is a must-have for efficiency, performance, and peace of mind.
In the next topic we will know more about: R-32 Ready: Why This Goodman A-Coil Is Future-Proof for New Refrigerant Standards
