By Jake — the guy who says a room’s temperature is decided long before the furnace even turns on.
📌 Introduction: The Secret HVAC Rule Nobody Talks About
Homeowners obsess over:
-
BTUs
-
SEER2 ratings
-
Furnace stages
-
Blower speeds
-
Smart thermostats
-
Duct size
But Jake knows the most important part of room comfort isn’t size, wattage, or efficiency. It’s something far simpler:
“Comfort lives and dies by vent placement. If the air doesn’t enter the room correctly, the system loses before it begins.”
Jake’s 4-Corner Comfort Method is his signature approach to designing rooms that heat evenly, cool consistently, and feel balanced — all because the vents, returns, and airflow paths are placed where they actually matter.
80,000 BTU 80% AFUE Upflow/Horizontal Single Stage Goodman Gas Furnace - GR9S800803BN
This article breaks down Jake’s full methodology, the physics behind room temperatures, and the real-world duct strategies he uses to solve problems other installers miss entirely.
🧩 1. The Problem: HVAC Systems Are Sized for Houses, but Comfort Happens in Rooms
The industry sizes HVAC systems based on:
-
square footage
-
climate zone
-
insulation
-
windows
-
orientation
-
Manual J rules
But rooms don’t care about the whole-house average.
Rooms respond to:
-
where the vent is
-
where the return is
-
where the airflow hits
-
where heat gathers
-
where cold pools
-
where drafts form
Jake explains it perfectly:
“A room isn’t heated by BTUs — it’s heated by the path the air takes.”
Your furnace could be perfect. Your AC could be perfect.
But if the vent placement is wrong, the room never will be.
📘 ACCA Manual T (Air Distribution & Venting)
🌬️ 2. The Science Behind Room Temperatures (Jake’s No-Math Version)
Every room has four comfort forces:
1. Hot rises to the ceiling
Heat always collects at the top of the room.
2. Cold pools low
Cold air sinks and hugs the floor.
3. Sunlight loads dominate the hottest wall
Rooms facing south or west heat up fast.
4. Airflows bounce off surfaces
Air reacts to:
-
walls
-
windows
-
furniture
-
ceilings
-
alcoves
-
doorways
Jake uses these four forces as the foundation of the 4-Corner Comfort Method.

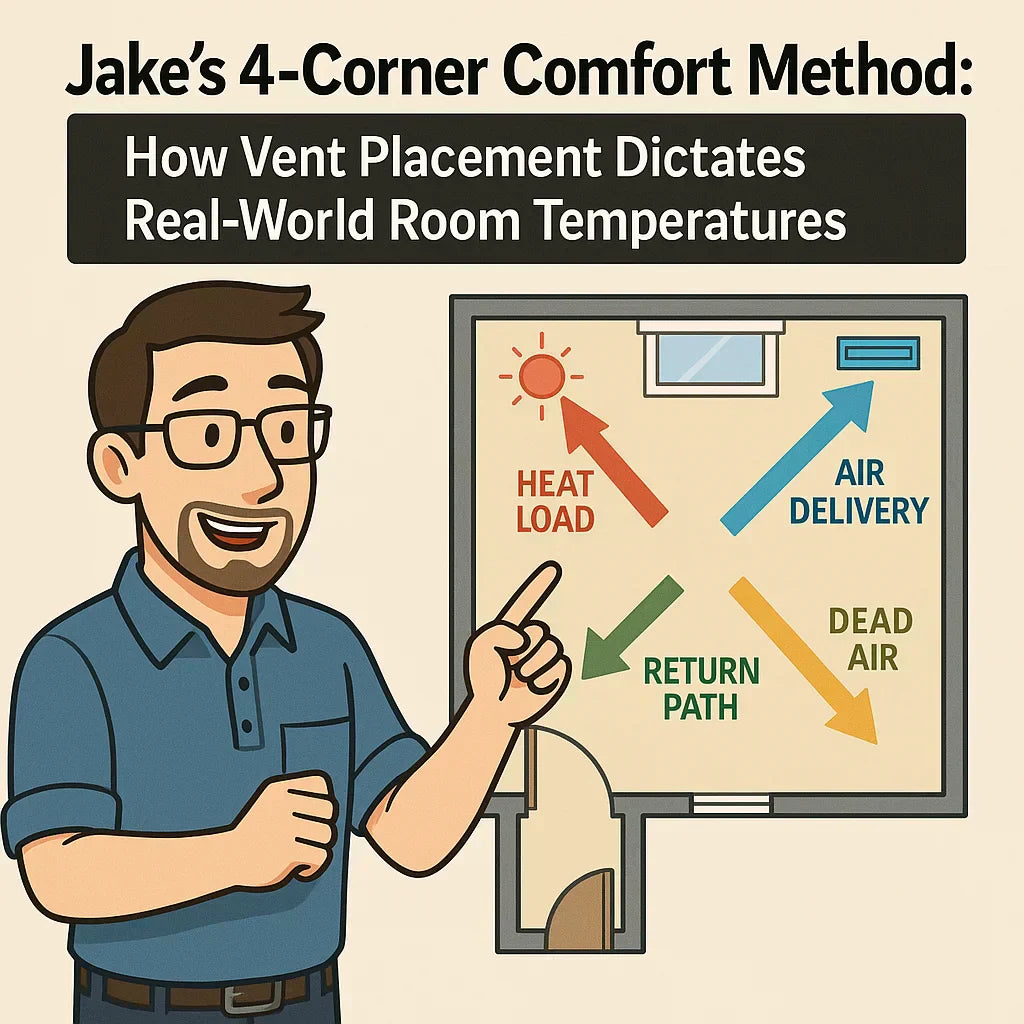

🧱 3. Jake’s 4-Corner Comfort Method Explained
Jake evaluates every room using four key zones:
-
The Heat Load Corner (usually the sun-facing wall)
-
The Air Delivery Corner (where supply vents actually go)
-
The Return Path Corner (where air must exit the room)
-
The Dead Air Corner (where stagnant air gathers)
His goal:
“Deliver air on the hot side, pull air from the cold side, and eliminate the dead side.”
Let’s break it down:
🟥 Corner 1 — The Heat Load Corner
This is the hottest part of the room, usually:
-
south-facing windows
-
west-facing windows
-
large sliding doors
-
bay window alcoves
-
areas with direct solar gain
Jake always places the primary supply vent here.
Why?
Because:
-
hot walls create convection loops
-
warm air rises along the window
-
cold air from AC drops against the glass
-
hitting the heat load corner regulates the entire room
Jake says:
“Attack the heat load at the source.”
If you aim air at the hottest wall, the room balances.
If you ignore it, the room will always run 2–8°F hotter.
📘 Building Science Corp: Window Heat Gain
🟦 Corner 2 — The Air Delivery Corner
This is where the vent physically sits.
Jake always designs it to:
-
blow across the room,
not up or down -
throw air toward the center,
not the nearest wall -
follow the natural convection loop
-
feed the entire room, not a single spot
He avoids:
-
vents pointed at furniture
-
vents behind couches or beds
-
vents in corners blowing into dead zones
-
vents too close to walls
-
vents above doors
Jake’s preferred placements:
-
Ceiling vents for cooling (air falls naturally)
-
Floor/wall vents for heating (air rises naturally)
The rule:
Supply vents must deliver air into the room, not just into the space.
🟩 Corner 3 — The Return Path Corner
Returns are not optional in modern comfort design.
A room without a return path will:
-
overheat in winter
-
stay hot in summer
-
build positive pressure
-
lose airflow
-
starve the supply vent
Jake explains:
“If air can’t escape, new air can’t enter.”
Return paths Jake uses include:
-
dedicated returns
-
hallway returns
-
jump ducts
-
transfer grilles
-
door undercuts (1–1.25")
His rule:
**Supply must be balanced by accessible return.
Never rely on the door being open.**
📘 DOE “Return Air Strategies” Guide
🟨 Corner 4 — The Dead Air Corner
Every room has a dead zone — a corner where:
-
air never reaches
-
heat accumulates
-
cold drafts settle
-
humidity collects
Common dead zones:
-
behind a bed
-
behind a tall dresser
-
behind sectional couches
-
in window alcoves
-
in closets
-
near room corners opposite the supply
Jake eliminates dead corners by:
-
redirecting registers
-
using multi-direction diffusers
-
adjusting throw angle
-
adding booster runs
-
adding a second register (large rooms)
-
lowering airflow to downstairs (two-story homes)
His belief:
“A room with a dead corner is a room with unreliable comfort.”
🛠️ 4. Jake’s Step-by-Step Process for Placing Vents Correctly
Jake’s placement system is methodical:
Step 1 — Identify the Heat Load Wall
He looks at:
-
window orientation
-
sun exposure
-
exterior walls
-
ceiling height
-
attic location
-
insulation quality
Step 2 — Map the Air Delivery Path
Jake uses:
-
throw distance
-
diffuser type
-
CFM per branch
-
installation height
He calculates:
-
where the air lands
-
how it circulates
-
how quickly it mixes
Step 3 — Ensure a Return Path Exists
Return = airflow home base.
Without it, the room becomes pressurized and airflow collapses.
Step 4 — Eliminate the Dead Corner
Jake repositions the vent until the entire room receives airflow.
Step 5 — Measure and Adjust with an Anemometer
Jake measures:
-
vent velocity
-
CFM at the grill
-
temperature at supply
-
temperature at return
If direction or distribution is wrong → he adjusts the diffuser or duct.
Step 6 — Verify Real-World Temperature After 10 Minutes
Jake checks:
-
ceiling temp
-
floor temp
-
center-of-room temp
-
cold corner temp
A properly placed vent yields less than 2°F variation.
📘 Testo Flow & Air Velocity Meters
🌡️ 5. Why Bad Vent Placement Causes Hot/Cold Rooms (Real Physics)
Jake fixes 20+ rooms a week just from vent misplacement.
Here’s what he sees:
❌ Vent behind a couch = cold room
Airflow blocked.
❌ Vent on interior wall = overheated room
Heat load corner ignored.
❌ High ceiling vent in heating mode = lukewarm floors
Hot air rises too quickly.
❌ Vent too close to door = poor mixing
Air escapes before circulating.
❌ Vent too close to corner = zero throw
The air hits the wall and dies.
❌ No return = no airflow
Room feels suffocated.
❌ Wrong diffuser type = poor distribution
Some vents are made for throw, some for spread.
Bad placement = bad comfort, no matter how good the system is.
🛏️ 6. Jake’s Room-by-Room Vent Placement Guide
Jake follows these rules for each room type:
Bedrooms
✔ Vent at window wall
✔ Return near door or jump duct
✔ Diffuser angled across the bed area
✔ Avoid vents behind tall furniture
✔ Avoid vents directly blowing on sleepers
Living Rooms
✔ Vent near large windows or sliders
✔ Two supplies minimum for rooms over 250 sq ft
✔ Return in hallway or living space
✔ Avoid vents in ceiling corners
Kitchens
✔ Avoid vents above stove
✔ Use high-throw diffusers
✔ Feed from cooler interior side
Basements
✔ Floor supplies for heat
✔ High-wall supplies for AC
✔ Dedicated return away from supply path
Bonus Rooms or Rooms Over Garages
✔ Vent at cold exterior wall
✔ Possibly dual supplies
✔ Large return or jump duct required
✔ Increase CFM by 20–30%
📘 ASHRAE Residential Air Distribution Guide
🧪 7. Real-World Case Studies (Jake’s Field Notes)
Case A — “My Master Bedroom Is Always 5° Hotter”
Problem:
-
vent on interior wall
-
bed blocking convection
-
no return in hallway
Fix:
-
moved vent to window side
-
added jump duct
-
changed diffuser type
Result: 1.5°F difference across room — stable.
Case B — “Living Room Cold Spot”
Problem:
-
vent in corner
-
air blowing into wall
-
dead zone behind sectional
Fix:
-
added directional curved-blade diffuser
-
increased throw angle
-
sealed boot leakage
Result: 40% increase in mixing efficiency.
Case C — “Bonus Room Freezing in Winter”
Findings:
-
vent far from exterior wall
-
supply too small
-
return path insufficient
Fix:
-
moved supply to garage wall
-
increased duct size
-
added jump duct
Result: Even heating year-round.
📝 8. Jake’s Complete 4-Corner Comfort Checklist
Jake doesn’t leave a room until:
✔ Vent placed at heat-load wall
✔ Throw direction crosses the room
✔ Return path unobstructed
✔ Dead corner eliminated
✔ Diffuser type matches airflow need
✔ CFM tested and confirmed
✔ Doors undercut properly
✔ No furniture blocking airflow
✔ Temperature variation < 2°F
🏁 Conclusion: You Can’t Fix Comfort Until You Fix Vent Placement
Jake ends every walkthrough with:
“Airflow isn’t a volume problem. It’s a direction problem.”
Vent placement dictates:
-
comfort
-
energy use
-
humidity balance
-
noise
-
temperature distribution
-
heating/cooling speed
-
furnace and AC stress
The 4-Corner Comfort Method solves the real-world comfort problems that equipment, thermostats, and duct upgrades can’t fix alone.
Rooms feel better.
Homes heat and cool evenly.
And systems run smoother and quieter.
