👋 Samantha’s Story: Why Planning Ahead Matters

When Samantha realized her old water heater was on its last legs, she knew it was time to upgrade. But as she compared options, she discovered something surprising: not all gas water heaters vent the same way.

Her home didn’t have a chimney, which meant a traditional standard vent wasn’t possible. That left her with one option: a power vent water heater.

But before she clicked “buy now,” she wanted to make sure her home was ready. Would she need a new outlet? How much would installation cost? Was it something she could DIY, or should she hire a pro?

State Proline XE Power Vent Series 50 Gallon Capacity 50,000 BTU Heating Input Tall Gas Water Heater

This is Samantha’s guide—everything she learned (and wished she’d known sooner) about installing a power vent water heater.

🔥 What Makes Power Vent Installation Different?

Unlike standard vent heaters that rely on a chimney, power vent water heaters use a built-in fan to push exhaust gases out through PVC pipes.

This design offers more flexibility, but it comes with extra considerations:

✅ Requires a 120V electrical outlet near the unit.
✅ Uses PVC vent pipes that can run horizontally or long distances.
✅ Produces blower noise during operation.
✅ Costs more to install compared to standard vent models.

📖 More from Energy.gov on water heating systems .

For Samantha, this meant she had to think beyond just the tank size—she needed to prepare her home for a slightly more complex setup.

📏 Pre-Installation Checklist

Before buying her unit, Samantha walked through a pre-installation checklist to make sure she was ready:

Space & clearance requirements
- Does the tank fit in the utility room?
- Is there room for vent pipes to run safely?
Access to electrical power
- Is there an outlet nearby, or will an electrician need to add one?
Proper drainage
- Some power vent models produce condensation, requiring a floor drain or pump.
Local building codes & permits
- Does the town require inspection for new gas appliance installations?
Airflow needs
- Power vent heaters need adequate air for combustion. A cramped, sealed closet may not work without added ventilation.

👉 Skipping this checklist can lead to costly delays. Samantha learned this the hard way when she realized her utility closet had no outlet, which added an electrician’s fee to her project.

🧰 Tools & Materials Needed

If you’re considering DIY (or just want to know what your installer will use), here’s the list:

Water heater unit (e.g., State ProLine XE Power Vent 50-gallon)
PVC vent pipe & fittings
Termination kit (cap or vent hood for exterior wall)
Pipe cutter & wrenches
Teflon tape & pipe sealant
Flexible water supply lines
Gas flex line (if local code allows)
Electrical outlet or extension wiring
Safety gear (gloves, safety glasses)

📖 Great checklist from Family Handyman’s installation guide .

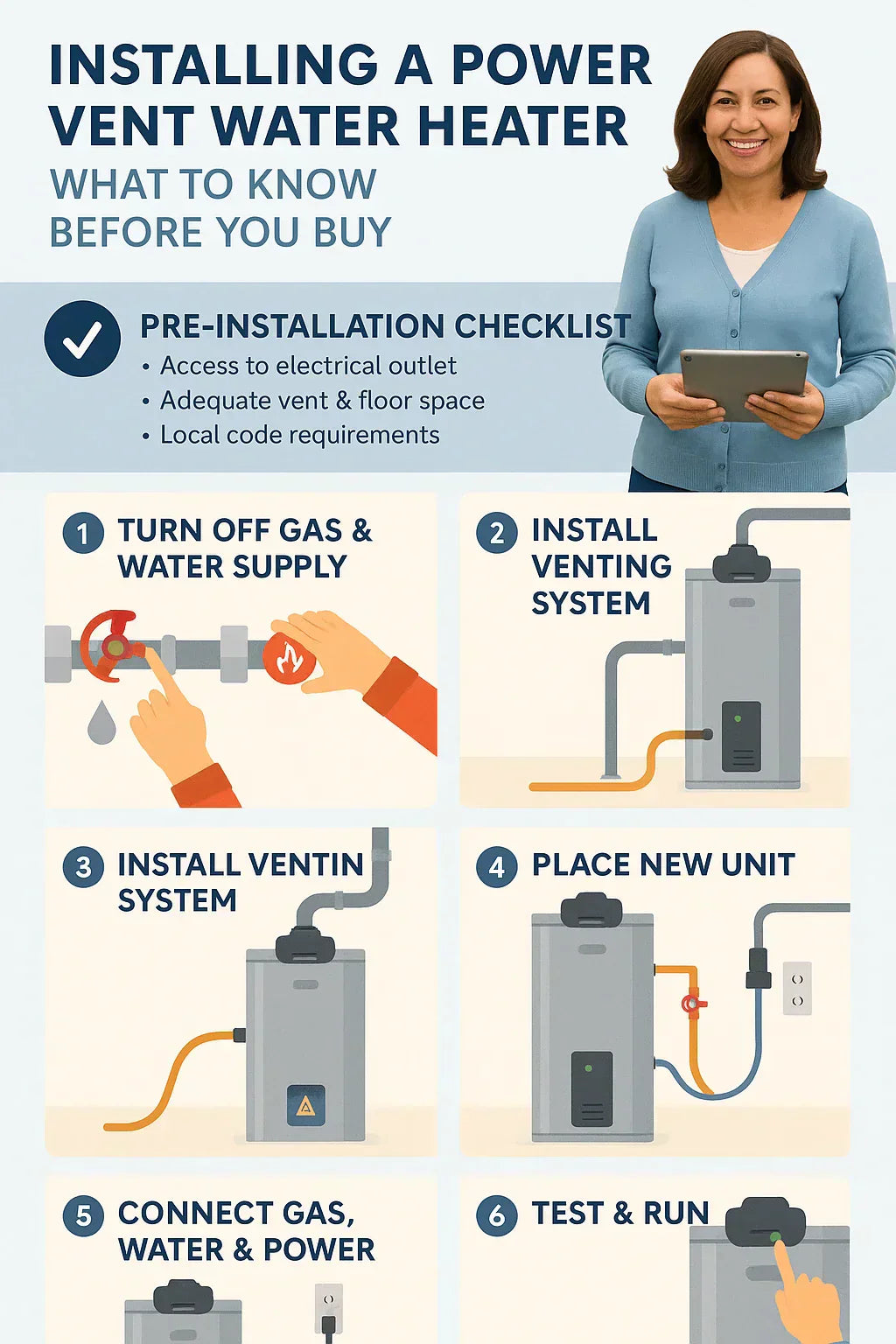

🔌 Step-by-Step Installation Process

Here’s how Samantha’s installer set up her new power vent system:

1. Turn Off Utilities

Shut off gas at the supply line.
Turn off cold water supply.
Cut power if connected to electricity.

2. Drain & Remove Old Heater

Attach a hose to the drain valve.
Open hot water taps to let air in.
Empty tank fully before moving.

3. Prepare Installation Area

Check floor space and clearance.
Install or verify electrical outlet nearby.
Plan vent pipe path to outside wall.

4. Install Vent System

Use PVC pipe per manufacturer’s instructions.
Add elbows if needed (most units allow 40–50 feet equivalent length).
Seal joints securely with PVC cement.

5. Position New Heater

Set unit on a drip pan if local code requires.
Line up water and gas connections.

6. Connect Water Lines

Attach cold inlet and hot outlet.
Use Teflon tape to prevent leaks.
Install shut-off valve on inlet line.

7. Connect Gas Supply

Use approved flex line or black iron pipe.
Check joints with leak detection solution.

8. Wire Blower Fan

Plug blower into outlet.
Secure wiring away from water contact.

9. Fill Tank & Test

Open cold water inlet and let tank fill.
Bleed air by opening hot water taps.
Check all joints for leaks.

10. Fire It Up

Light pilot or ignite electronic control.
Adjust thermostat (120°F recommended by DOE for safety).

📖 Step-by-step safety guidance from This Old House .

💲 Cost Breakdown

Samantha’s total cost came in higher than expected because of the added outlet, but here’s the breakdown most homeowners see:

Cost Item	Average Range
Water heater unit	$1,200–$2,000
Installation labor	$800–$1,500
Electrical outlet (if needed)	$150–$400
Vent kit & materials	$100–$250
Permits/inspection	$50–$200
Total	$1,800–$3,500

⚠️ Common Mistakes to Avoid

Forgetting an outlet: Power vent units won’t run without electricity.
Ignoring blower noise: Placement matters if it’s near a bedroom.
Poor vent sealing: Can cause efficiency losses or backdraft alarms.
Undersized vent runs: Must meet manufacturer’s length & slope specs.

🧑🔧 DIY vs. Professional Installation

Samantha considered doing it herself—she’s pretty handy—but after reading about gas safety risks, she chose a pro.

DIY Considerations

Lower upfront cost.
Doable for experienced DIYers comfortable with gas, plumbing, and electrical work.

Risks

May void warranty if not installed by licensed tech.
Mistakes can cause gas leaks or carbon monoxide issues.
Failure to meet local codes can delay resale.

📖 Gas appliance safety reminders from CPSC .

👉 For most homeowners, professional installation is worth it.

🌎 Code, Rebates & Efficiency Considerations

Codes: Many cities require permits and inspections for gas water heater installs.
Rebates: Some Energy Star models qualify for rebates or tax credits.
Efficiency: A well-installed power vent system can save $25–$40 per year in energy costs compared to standard vent.

📖 Check your state’s programs at DSIRE – Database of State Incentives .
