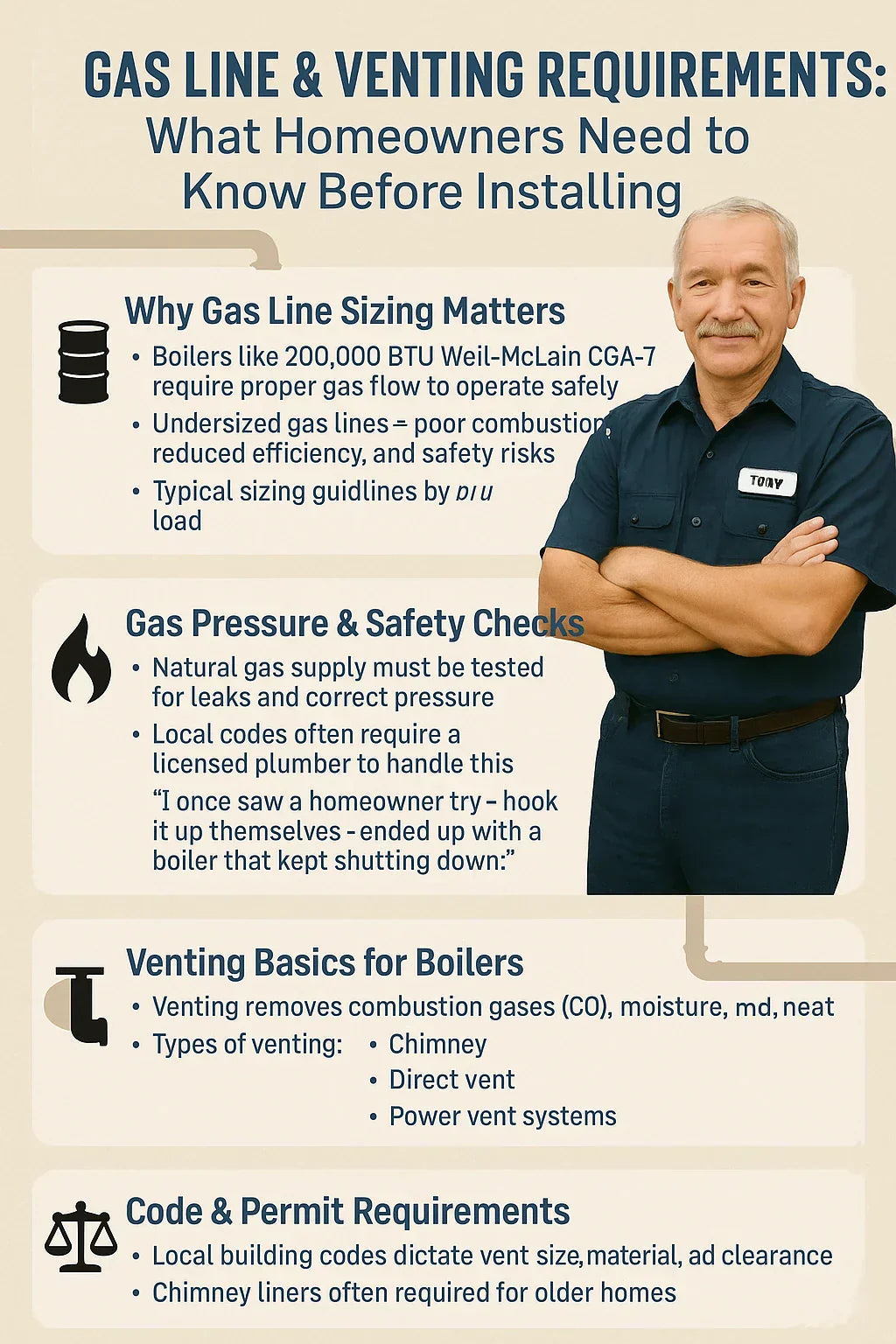

Gas Line & Venting Requirements: What Homeowners Need to Know Before Installing

When most homeowners shop for a new boiler, they focus on the equipment itself—the BTUs, the efficiency rating, maybe even the brand name. But here’s the thing:

👉 Your boiler is only as good as the gas line that feeds it and the venting that exhausts it.

I’m Tony, and I’ve installed and lived with a Weil-McLain cast iron boiler for years. I’ve also seen what happens when people overlook gas line sizing or venting requirements—it’s not pretty. From efficiency loss to dangerous carbon monoxide issues, skipping these details is a recipe for headaches.

This guide breaks down everything you need to know about gas line sizing, venting options, safety codes, and costs before installing a boiler like the Weil-McLain CGA-7.

---

🛢️ Why Gas Line Sizing Matters

A boiler’s performance depends on fuel flow. If the gas line isn’t sized correctly, the boiler won’t get enough natural gas.

• Undersized gas line = poor combustion.

  • Flames burn yellow instead of blue.

  • Heat output drops.

  • Fuel is wasted.

• Correctly sized gas line = clean, efficient burn.

  • Steady blue flame.

  • Maximum efficiency.

  • Safe, reliable operation.

For a 200,000 BTU boiler like the Weil-McLain CGA-7, the gas line must be large enough to handle the load, typically 1-inch pipe for shorter runs, with larger diameters required for longer distances.

📖 Reference: NFPA 54: National Fuel Gas Code

👉 I’ve been called into homes where a new boiler kept shutting down. The problem wasn’t the boiler—it was the undersized ¾” line feeding it. Once we upgraded the piping, the boiler ran like a champ.

---

🔥 Gas Pressure & Safety Checks

Even with the right pipe size, gas pressure must be verified.

• Inlet pressure: Most natural gas boilers require 5–10 inches water column (WC) at the appliance.

• Outlet pressure: Burner must receive correct pressure to ensure clean combustion.

• Testing: Licensed plumbers or HVAC contractors perform pressure drop tests to ensure no leaks.

Failing to test can lead to:

• Inconsistent boiler performance.

• Soot buildup.

• Dangerous gas leaks.

📖 Reference: U.S. Department of Energy – Heating with Gas

👉 I once saw a homeowner attempt a DIY hookup. The boiler kept locking out. Turns out, their gas meter couldn’t supply the pressure needed for both the boiler and a new gas stove. They had to upgrade the meter.

---

🏠 Venting Basics for Boilers

Just as important as gas supply is removing combustion byproducts safely.

Boilers produce:

• Carbon monoxide (CO)

• Nitrogen oxides (NOx)

• Water vapor

• Excess heat

If not vented correctly, these can backdraft into your home.

Common Venting Types:

1. Chimney Venting

   • Traditional for cast iron boilers like the CGA-7.

   • Requires masonry or a lined chimney.

2. Direct Vent

   • Uses PVC or metal pipes directly through an exterior wall.

   • Brings in outside air for combustion and exhausts gases outside.

3. Power Vent

   • Uses a fan to push exhaust gases out through a sidewall.

   • Good for homes without usable chimneys.

📖 Reference: Energy.gov – Boilers and Radiators

👉 My own installation required a chimney liner. Without it, the acidic exhaust gases would’ve eaten away at the masonry.

---

⚖️ Code & Permit Requirements

Every boiler installation must comply with local building codes and permits.

• Permit cost: Typically $150–$500 depending on location.

• Inspections: Required to verify safe gas line sizing, venting, and pressure.

• Chimney liners: Often required when connecting to an older chimney.

• Clearances: Boilers need adequate spacing from combustible materials.

📖 Reference: International Residential Code (IRC) – Fuel Gas

👉 My inspector insisted on seeing a pressure test before sign-off. It added a day to the job, but I sleep better knowing it passed.

---

🚨 Common Mistakes Homeowners Make

Here are the issues I see over and over:

• Reusing an old chimney without relining it.

  • Can cause moisture and acidic gases to eat away at brick.

• Undersizing vent pipes.

  • Leads to backdrafting and dangerous CO buildup.

• DIY gas hookups.

  • Without permits or testing, this is a major safety hazard.

• Ignoring clearance rules.

  • Storing boxes or flammable items too close to the boiler.

📖 Reference: HeatingHelp – Venting Mistakes

👉 One homeowner I know had soot all over their basement walls because the vent pipe was undersized and gases were spilling out.

---

🧯 Safety Concerns

When gas line and venting requirements aren’t followed, risks include:

• Carbon Monoxide Poisoning

  • Odorless, colorless gas that can be deadly.

  • A properly vented boiler virtually eliminates this risk.

• Fire Hazards

  • If vent clearances aren’t respected, nearby materials can ignite.

• Gas Leaks

  • Poorly installed lines can leak—creating explosion hazards.

📖 Reference: EPA – Carbon Monoxide Basics

👉 My non-negotiable advice: always install a CO detector near your boiler and sleeping areas. It’s cheap insurance.

---

💸 Cost Considerations

Gas line and venting upgrades can significantly impact total installation costs.

• Gas line upgrades: $500–$2,000 depending on distance and pipe size.

• Chimney liners: $1,000–$2,500, often required in older homes.

• Direct vent kits: $300–$800.

• Power vent fans: $400–$1,200 installed.

📖 Reference: Fixr – Boiler Installation Costs

👉 When I installed my Weil-McLain CGA-7, I had to add a stainless-steel chimney liner for $1,200. It wasn’t cheap, but it ensured safety and compliance.

---

📊 Gas Line & Venting: The Essentials at a Glance

---

👷 Tony’s Final Word

Here’s the truth: your boiler is only as safe as the gas and venting system behind it.

• Don’t skimp on gas line sizing—it directly affects performance.

• Never reuse an old vent system without inspection.

• Always pull permits and follow codes.

"Your boiler is only as safe as the gas line feeding it and the vent carrying gases out. Don’t cut corners—these are the things that keep your family safe."

---

In the next topic we will know more about: Warranty & Lifespan: What to Expect from the Weil-McLain CGA-7
