Key Takeaways
-
A ½-inch outward tilt sends condensation outside and stops indoor leaks.
-
Never drill extra drain holes—use the factory outlet and keep it clear.
-
A clean drain pan and filter prevent mold and foul odors.
-
Adding a drain hose lets you steer water away from siding and foundations.
-
Quick, seasonal checks cut repair bills and keep your AC running at peak SEER.
Why Window & Wall AC Drainage Deserves Attention
Picture waking up to soggy carpet under your window unit after a humid July night. That water came from normal coil condensation—but it should have flowed harmlessly outdoors. Poor drainage is one of the top reasons homeowners call HVAC pros about stained drywall, swollen wood trim, and moldy smells. The fix is almost always basic : set the correct tilt, mind the drain port, and clear the pan. This guide breaks down each step in plain language, backed by manufacturer specs and field experience from The Furnace Outlet support line. You will learn how a small angle, a clear outlet, and a $5 hose protect both your air conditioner and your home—knowledge that matters even more today as extreme humidity events become common across many U.S. regions.
Understand the Science: How Condensation Forms Inside Your AC
When warm, moist outdoor air hits the ice-cold evaporator coil, water vapor turns into liquid and drips into a drain pan. A 5 000 BTU window unit can shed over two pints per hour during peak summer humidity. If that water backs up, it rusts metal, shorts electronics, and feeds mold spores that settle in curtains and drywall. Modern ENERGY STAR® units purposely leave a thin water layer on the condenser fan to boost efficiency, so steady drainage is built into the design. Knowing this cycle helps you see why forcing a level install or ignoring a clogged outlet quickly leads to leaks. For a deeper dive into matching AC size to humidity loads, check our AC sizing chart guide.
Setting the Perfect Tilt: Get the Angle Right from the Start
Every owner’s manual repeats the rule: tilt the chassis 2–4 degrees (about ½ inch over the unit’s depth) so water runs to the outdoor edge. Use a bubble level on the top case while the window sash is still loose. Shim under the indoor rail until the bubble just kisses the “down” line. Over-tilting is bad, too—it makes the compressor work harder and can splash water onto the condenser fan blades. Tighten the side mounting brackets only after the tilt is verified. If you later remove the unit for winter storage, mark the sill with tape so you can restore the angle next season in seconds.
Locating and Caring for the Factory Drain Outlet
Crawl under the outdoor half of the unit and find the molded drain hole or removable plug positioned at the pan’s lowest point. Resist the urge to drill new holes—refrigerant lines often snake through that same metal. Instead, use a damp cloth or a soft bottle brush to wipe algae and dust each month. A toothpick or thin wire clears stubborn mud. For wall installations, an optional overflow safety switch—available in our HVAC accessories—can cut power if the pan ever overfills, sparing you drywall repairs.

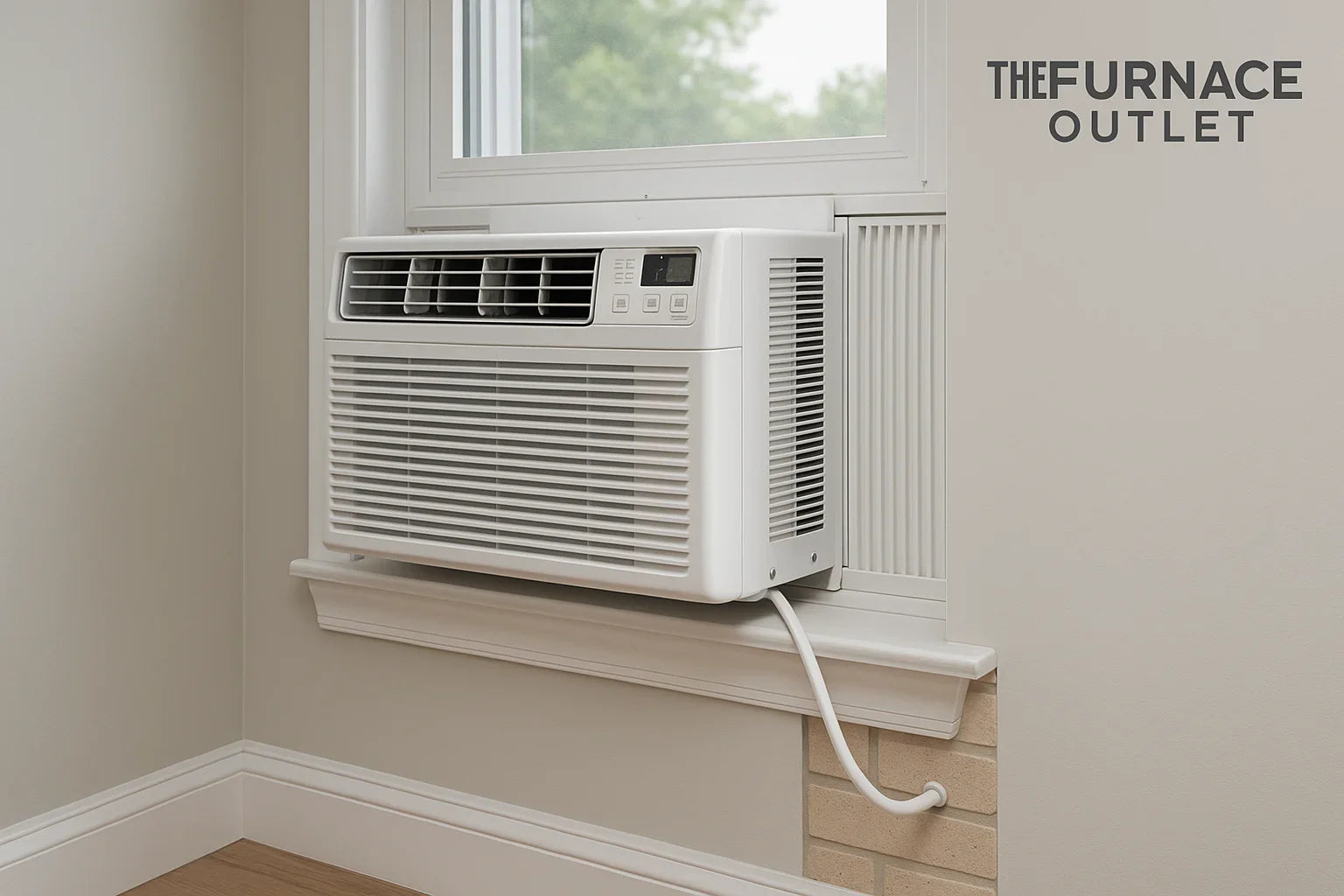

Adding a Drain Hose: Direct Water Where You Want It
Many through-the-wall models and some 5 000 BTU window designs include a threaded drain port. Screw on a ⅜-inch vinyl hose, add a worm-gear clamp, and run the line to a garden bed or gravel splash block at least two feet from the house. Keep the hose tip lower than the pan so gravity works for you. In rental properties, this simple hose stops algae streaks on brick façades and keeps sidewalks dry—the kind of detail inspectors notice. If you own a multi-unit building, routing hoses into a shared condensate line prevents random drips onto balconies below.
Inspecting the Drain Pan and Internal Components
Shut off power, slide the unit partway out, and shine a flashlight into the base pan. Look for rust flakes, cracks, or mineral scale. Replace a damaged pan quickly; patch kits rarely hold up to vibration. Check the air filter next—if it is clogged, the evaporator coil may ice up and flood the pan when it melts. Swap disposable filters or wash reusable ones every thirty days during heavy use. Our HVAC Tips shows a photo step-through on safe filter removal for most brands.
Airflow, Humidity, and Runoff: Keeping Conditions Balanced
Blocked exterior louvers slow airflow, raise coil temperature, and increase condensation rates. Keep shrubs trimmed back 12 inches and clear away leaf litter. Indoors, use a hygrometer; indoor relative humidity above 60 % means the unit works overtime wringing water from the air. A portable dehumidifier downstairs can ease the load. If you have upgraded to inverter window units from our window AC options, you will notice steadier humidity and less runoff thanks to variable-speed compressors that match output to conditions.
Troubleshooting Leaks: Fast Fixes to Protect Your Walls
If water suddenly appears inside, turn the AC off and slide it out just enough to peek at the pan. Common culprits are a clogged drain outlet, a lost tilt (often after someone shuts the window too firmly), or a frozen coil thawing. Clear any blockage, re-set the tilt, and let the unit dry before restarting. Never run the fan to “dry it out” while the electronics are damp—that risks a short circuit. For video demonstrations of leak diagnosis, browse our video tutorials section.
Seasonal Maintenance Checklist to Keep Water Problems Away
-
Spring setup: verify tilt, clean pan, brush drain hole, install hose.
-
Monthly: rinse or replace filter; wipe louvers.
-
Mid-summer: confirm runoff path, check for moldy odor, flush hose with vinegar.
-
Fall shutdown: pull unit, drain residual water, store upright.
Following this rhythm keeps warranty intact and ensures top efficiency. If you plan a full HVAC upgrade, compare through-the-wall air conditioners with ductless mini-splits to see which delivers the control and drainage features you need.
Frequently Asked Questions
Why does my AC gurgle after thunderstorms?
Heavy rain can fill the drain pan faster than normal; a clear outlet fixes it.
Is collecting condensate safe for houseplants?
Yes—AC water is essentially distilled, but avoid drinking it.
Can I use bleach to clean the drain line?
A 1:3 bleach-water mix is fine once a season; rinse thoroughly afterward.
What’s the sign of a frozen coil?
Weak airflow and dripping after shut-off point to ice buildup; check your filter first.
Do smart plugs help?
Smart outlets let you schedule off-cycles that reduce overnight humidity spikes and save energy.
