System Sizing: Finding the Perfect Fit for Your Home

0 comments

Episode 2 | Hot Takes & Cool Air Series
By Melissa Haws | The Furnace Outlet

🏠 Homeowner’s Perspective: Why Size Matters More Than You Think

You’ve probably heard HVAC folks throw around numbers like “three-ton” or “120 000 BTU,” but what does that really mean for your home?

When it comes to heating and cooling, bigger isn’t always better. The right system size keeps your home comfortable, efficient, and balanced — not oversized or overworked.

A properly sized HVAC system:

Runs longer, steadier cycles instead of short bursts, maintaining even temps and humidity.
Saves energy by matching output to your home’s actual load.
Lasts longer because it isn’t constantly starting and stopping.

The “Goldilocks Zone” of HVAC

Too small: It runs constantly and still can’t hit the set temperature on extreme days.
Too large: It short-cycles — blasting air for a minute, then shutting off. That wastes energy, stresses parts, and leaves humidity lingering.
Just right: It keeps temperature and humidity steady without overworking the compressor or furnace.

Where the 3.5-Ton / 120 k BTU System Fits

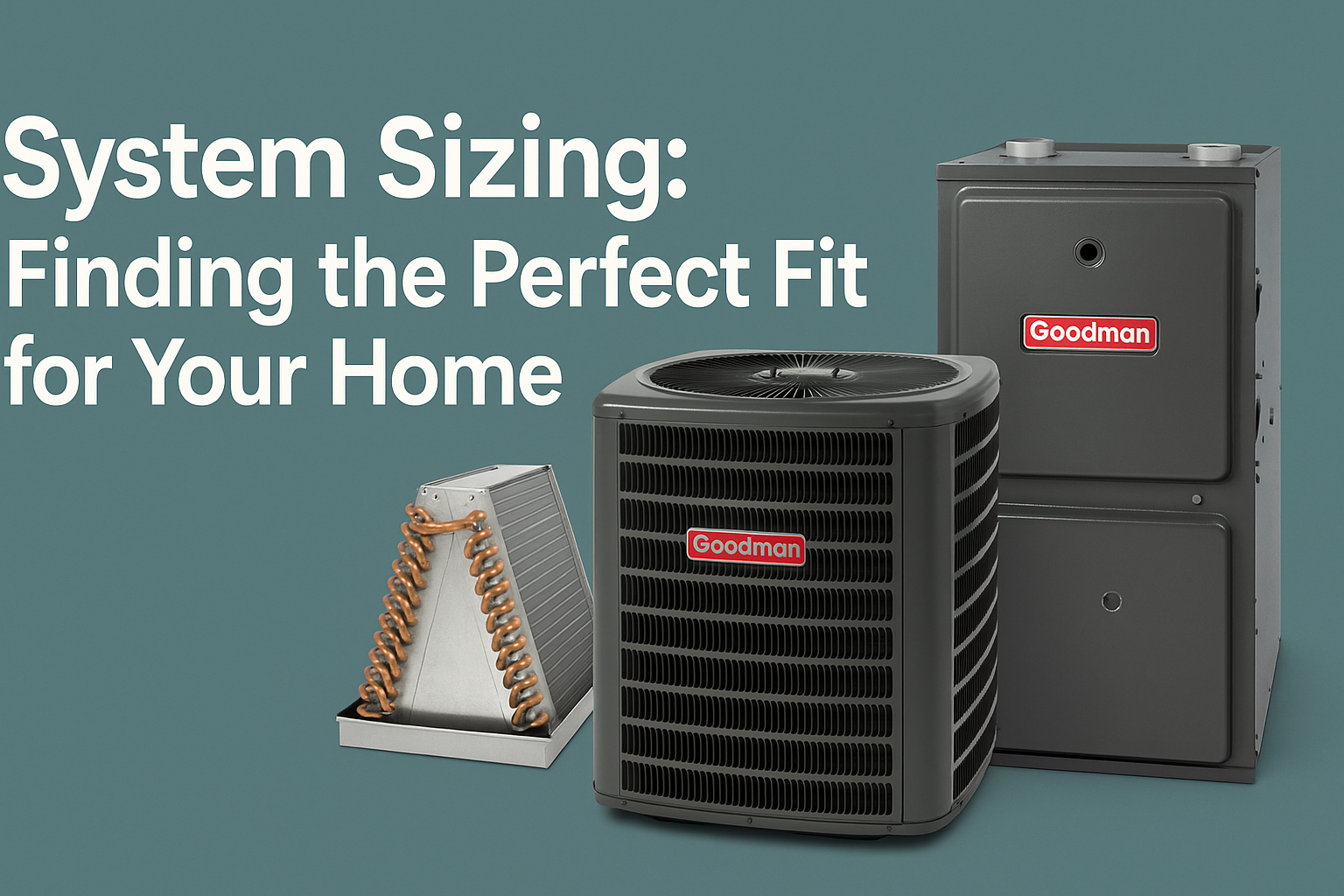

The Goodman R-32 3.5 Ton 15.2 SEER2 System — pairing the GLXS4BA4210A condenser, CAPTA4230D3 coil, and GR9S921205DN furnace — is a “Goldilocks” setup for many mid-size to large single-family homes:

Home Size / Layout	Typical System Range	Where This Bundle Fits
1 000 – 1 400 sq ft	1.5 – 2 tons	Too small
1 400 – 1 800 sq ft	2 – 3 tons	Borderline
1 800 – 2 400 sq ft	3 – 3.5 tons	✅ Ideal match
2 400 – 3 000 sq ft	4 – 5 tons	Oversized

A good HVAC tech will fine-tune that further with a Manual J load calculation, but this system’s capacity sweet spot makes it extremely versatile for homes with moderate insulation and 8- to 9-foot ceilings across most North-American climates.

Real-World Example

A 2 100 sq ft home in Ohio with good insulation, double-pane windows, and two floors typically needs around 34 000 – 38 000 BTU/h of cooling and 100 000 – 110 000 BTU/h of heating.
That’s exactly where this Goodman combination lands — efficient without being excessive, and future-proofed for the new R-32 refrigerant standard outlined in the EPA’s refrigerant transition guidelines.

(See your AHRI-certified performance listing — Certificate # 214859971 — for official 39 500 BTU/h @ 95 °F rating and 15.2 SEER2 efficiency.)

Why Proper Sizing Saves You Money

Lower utility bills year-round – Each extra ton of capacity you don’t need can cost hundreds more per year in electricity and gas.
Fewer repairs – Short-cycling compressors and over-fired burners wear faster.
Better air quality – Longer runtime = more air passes through filters and dehumidifies properly.

So even though a 3.5-ton system might sound “bigger,” it’s actually the balanced choice for many homes.

🧰 Installer Insight: The Professional Math Behind the Match

Homeowners see comfort — installers see numbers. Behind every “perfectly sized” system is math that makes it work.

1️⃣ Cooling Load & Airflow Targets

The GLXS4BA4210A condenser produces 39 500 BTU/h at 95 °F ambient and 400 CFM per ton ≈ 1 400 CFM total.
The CAPTA4230D3 coil handles that load with a wet-coil pressure drop of roughly 0.19 – 0.28 in. w.c. at 1 400 – 1 600 CFM, per Goodman data.

That leaves 0.22 – 0.30 in. for filter and ductwork before you hit the 0.5 in. total ESP sweet spot for quiet operation.

2️⃣ Heating Load & BTU Balance

The GR9S921205DN furnace has 120 000 BTU/h input and 92 % AFUE efficiency, delivering ≈ 110 000 BTU/h output.
That heating capacity lines up with Manual J requirements for 2 000 – 2 500 sq ft homes in cold zones (0 °F design temp) or larger homes in mild zones.

3️⃣ Electrical & Refrigerant Pairing

Condenser MCA ≈ 19 A; Max OCP 30 A (208/230 V 1-phase).
Coil stubs ⅜″ liquid & ⅞″ suction — connect to 1 ⅛″ condenser fitting with adapter for best oil return and charge accuracy.
Charge by subcooling with TXV; target per Goodman spec tables and ambient conditions.

4️⃣ Furnace Control & A2L Mode

Goodman integrates A2L refrigerant safety directly into the GR9S92 control board, with an A2L sensor connector and factory-enabled A2L mode for R-32 systems.
Confirm sensor wiring and status during startup to ensure UL 60335-2-40 compliance and proper fault monitoring.

5️⃣ Installer Checklist for This Bundle

Task	Target / Note
Airflow setup	1 400 – 1 600 CFM @ cooling; verify static < 0.5 in. w.c.
Coil drop verify	0.19 – 0.28 in. w.c. wet; cross-check coil chart
Furnace temp rise	35 – 65 °F range (see spec sheet)
Electrical	30 A breaker, 12 AWG copper min.
Refrigerant charge	Weigh in & fine-tune subcooling
Documentation	Record AHRI # 214859971 on rebate form & invoice

6️⃣ Pro Tips for Longevity

Balance return air. Coil cabinet 24.5″ × 21″; size returns to keep velocity < 700 FPM.
Educate the homeowner. Explain that “slower, longer runs” are a sign of efficiency, not a problem.
Label A2L system clearly. Add a blue R-32 identification sticker near service ports.

💡 Takeaway

Proper system sizing is half science, half craft.
For homeowners, it means comfort that feels consistent through every room.
For installers, it’s about meeting Manual J math with Goodman’s precision engineering and following official efficiency standards outlined by Energy.gov.

The 3.5-Ton GLXS4B + GR9S92 bundle lands in that sweet spot — quiet, balanced, and ready for the R-32 era.
See it yourself on The Furnace Outlet or Amazon.
