Key Takeaways
-
Sizing → BTU = room sq ft × 20; adjust for height, sun, kitchens, people.
-
Clearances → 12" between 2 units; 36" for 3+; keep airflow clear.
-
Power → Needs dedicated 208/230V circuit with correct breaker & grounding.
-
Controls → One thermostat per room; Wi-Fi/smart options for remote checks.
-
Drainage → Tilt unit ~¼" outward so water drains outside.
-
Maintenance → Clean filters monthly; coils seasonally; pro check yearly.
-
More help → See PTAC units + HVAC Tips blog.
PTAC Installation Guide: Installing Multiple Units in Multi-Room Setups
Multi-room buildings—like small hotels, short-term rentals, assisted living, and student housing—often need several PTACs running at once. Done right, each room feels steady and quiet, energy bills stay predictable, and you avoid constant service calls. Done wrong, you get hot/cold spots, breaker trips, and moisture where it shouldn’t be. This guide turns complex choices into a simple plan you can follow. You’ll learn how to size each room, where to place every unit, what clearances and power each one needs, and the maintenance rhythm that keeps everything humming..
The Common Problem: Uneven Rooms, Noise, and High Bills
Most multi-room PTAC issues come from two mistakes: mismatched sizing and poor placement. If one sunny corner suite gets a small unit and a shaded interior room gets a large one, the sunny room never catches up while the oversized room short-cycles (starts and stops too often). Short-cycling wastes energy, increases noise, and wears parts faster. Another common problem is “starving” the unit: furniture or curtains block intake/exhaust, or multiple units sit too close together and recirculate hot discharge air. Finally, electrical planning gets skipped; a few units land on the same circuit and start popping breakers on a hot afternoon. The fix is simple: size each room on its own, follow clearances, give each PTAC its own properly sized circuit, and use smart controls that match run time to occupancy. When you do these basics, comfort evens out and the system lasts longer.
Room-by-Room Sizing: Simple Math + Expert Adjustments
Start with a steady rule of thumb: ~20 BTU per square foot for 8-ft ceilings. Then adjust using factors pros use every day:
-
Ceiling height: add ~12.5% capacity for each foot above 8 ft.
-
Sun exposure: add 10% for rooms with heavy afternoon sun; subtract 10% for well-shaded rooms.
-
Kitchens: add ~4,000 BTU for cooking heat.
-
Occupancy: add ~600 BTU for every person beyond two.
Quick example: 300 sq ft room × 20 = 6,000 BTU. If it’s 9-ft ceilings (+12.5%) and sunny (+10%), target ≈ 6,000 × 1.125 × 1.10 ≈ 7,425 BTU. Round to the nearest available size. For complex layouts or mixed-use spaces, ask for a Manual J calculation. It’s more precise and pays off when installing many units. For deeper background, see our blog post PTAC Sizing Chart and Guide
Professional Installation & Safety Standards (U.S.)

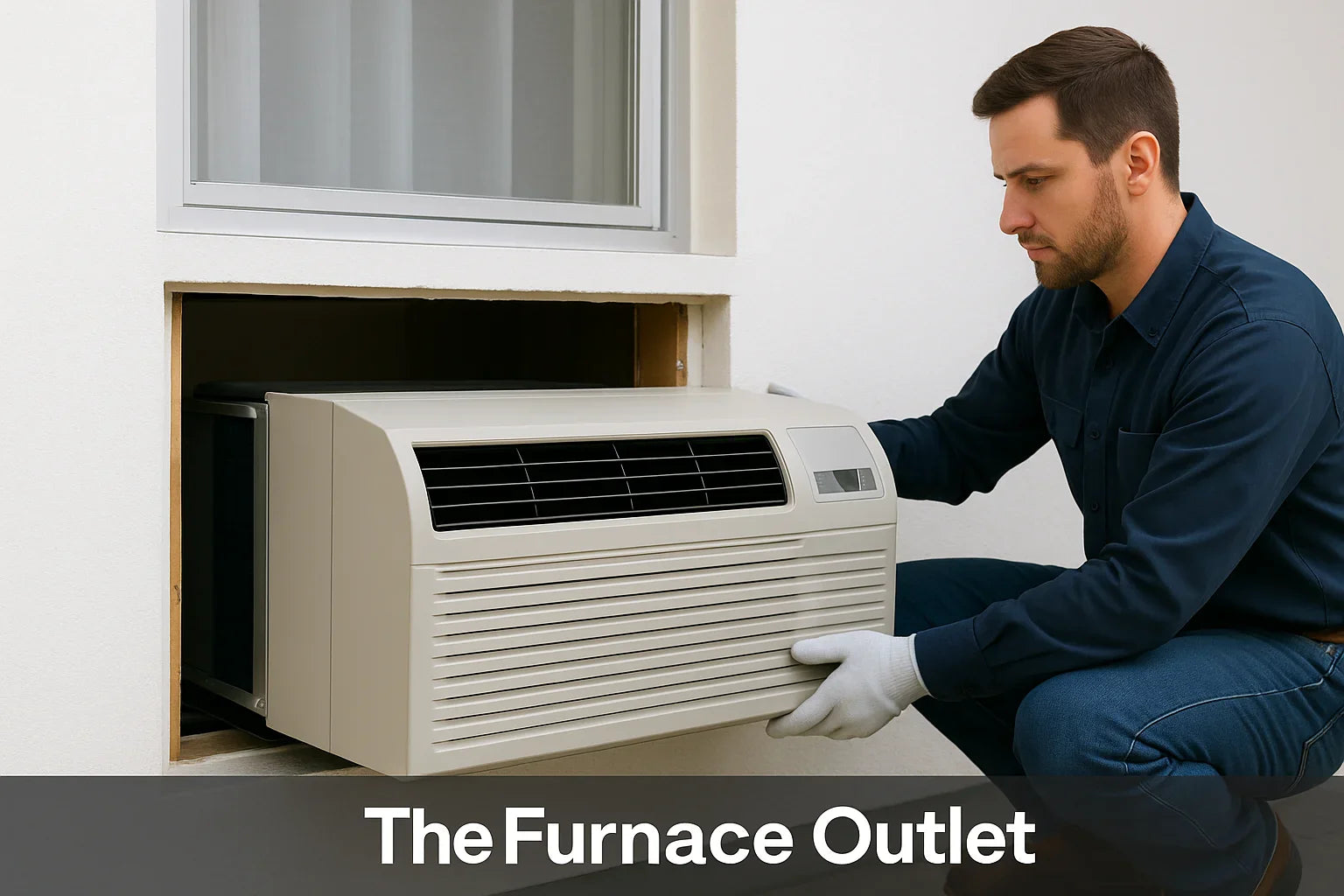

Multiple PTACs raise the stakes on safety. Use a licensed HVAC technician with EPA 608 certification for refrigerant handling and knowledge of the NEC (National Electrical Code) plus local building codes and permits. Stick to clearances between units so exhaust air from one doesn’t feed another. Maintain fire safety pathways and any required fire-blocking around wall sleeves. Where HOAs or municipal rules apply, pull permits before the first wall cut. Keep outdoor grilles clear of shrubs and trash; blocked grilles cause high head pressure and nuisance shutdowns. Inside, verify the wall sleeve is level side-to-side and pitched slightly outward for drainage. If you’re comparing alternatives for certain zones—like interior rooms without windows—look at VTAC units which solve special layout problems. When in doubt, snap photos and use our Design Center for layout feedback.
Electrical Planning: Circuits, Breakers, and Panel Capacity
Treat each PTAC as its own appliance with a dedicated 208/230V circuit (or as specified by the unit). Match the breaker (15A, 20A, or 30A) to the heater size and the nameplate. Use copper conductors, correct receptacle type, and proper grounding per the NEC. Before you install several units, have an electrician verify your main panel can handle the added load at peak use (think hottest summer afternoon with many rooms occupied). If the building is older, budget for panel upgrades or subpanels. Label every breaker so service techs can isolate a room quickly. Keep penetrations sealed around sleeves to stop moist air from entering the wall cavity and to meet fire-stopping requirements.
Need parts for a tidy finish? See line sets & accessories and HVAC accessories to complete the job the right way.
Smart Placement, Clearances & Drainage
Good airflow is half the battle. Follow these spacing tips for multi-unit walls:
-
Two units side-by-side: keep ≥ 12 inches between chassis.
-
Three or more in a row: ≥ 36 inches between neighboring units.
-
Keep intake/exhaust free of furniture, drapes, and headboards.
-
Mount the unit low on the wall (about 6–8 inches above the floor) for steady mixing.
-
Pitch the chassis ¼ inch toward the exterior for drainage and check the drain path.
Avoid direct sun or heat sources when you can; if not, boost the BTU size accordingly. Provide service access around each unit so filters and coils can be cleaned without moving beds or built-ins. For buildings where a through-the-wall option makes more sense in some rooms, compare through-the-wall units
Zone Controls & Energy Management (Simple Wins)
Give every room its own thermostat so guests or tenants set what feels right. Programmable or Wi-Fi thermostats let you create schedules, check temps remotely, and spot problem rooms. In busy seasons, use occupancy-based setbacks: when a room is vacant, raise the cooling setpoint a few degrees, then pre-cool just before check-in. Some PTACs support demand-based logic that gently ramps output to hold a steady temperature without short-cycling. If you’re weighing options across the property, read PTAC vs Mini-Split: Which Is Better for Your Needs? for when each approach makes sense. Finally, if you’re standardizing models, consider ENERGY STAR ratings and look for inverter or variable-speed tech where available; it reduces noise, keeps humidity in check, and cuts kWh use over time.
Maintenance & Performance Tracking for the Long Haul
A simple routine prevents most service calls:
-
Monthly: wash or replace filters; inspect exterior grilles; listen for new noises.
-
Seasonal: clean evaporator and condenser coils; clear drain lines/pans; check sleeve seals/caulk; test heat and cool modes.
-
Annually (pro visit): refrigerant check, electrical connections, sensor calibration, and overall diagnostics.
Keep a room log: model/serial, install date, last filter change, and any notes. When you manage many rooms, this log reveals patterns fast (e.g., one wing gets dusty faster). Track energy use at the panel or with smart plugs to spot a unit that’s working too hard. Regular filter care alone can improve efficiency by 10–25%.
For more how-tos and brand comparisons, see What Is a PTAC Unit?or browse the full PTAC collection.
FAQs: Your PTAC Multi-Unit Questions Answered
How many BTUs do I need per room?
Start with 20 BTU/sq ft at 8-ft ceilings; then adjust for sun (+10%), shade (-10%), ceiling height (+12.5% per extra foot), kitchens (+4,000 BTU), and extra people (+600 BTU each beyond two).
Can I put two PTACs close together?
Leave at least 12" between two units; use 36" when three or more share a wall so hot discharge air doesn’t feed a neighbor.
Do PTACs need dedicated circuits?
Yes. Use dedicated 208/230V circuits with the correct breaker size and proper grounding. Have an electrician confirm panel capacity before adding many units.
What’s the right mounting height?
Low on the wall, about 6–8" above the floor, with a ¼" outward pitch for drainage.
What’s the best alternative in tricky rooms?
Compare VTAC when you need hidden equipment or multi-zone control
