Mini Split Installation Guide: Drill Clean, Seal Tight, and Avoid Costly Mistakes

Key Takeaways

• Find studs/pipes first – Avoid damage

• Drill downward – Drain water

• Use the right bit/slow speed – Prevent cracks

• Sleeve & insulate – Protect lines

• Seal well – Block leaks and pests

Why Wall Penetration Matters in Mini‑Split Installs

A mini‑split’s efficiency depends on an airtight, well‑protected path through the wall. If the hole is off‑level or poorly sealed, water can drip indoors, cold air can seep out, and pests can crawl in. Worse, condensation may run back onto wiring and create a shock risk. Because ductless units push refrigerant and power through one small bundle, the penetration becomes the “lifeline” of the whole system. Even a ⅛‑inch gap can slash efficiency and hike electric bills. For context, studies show leaky ducts waste 20–30 % of energy; a bad wall seal can cause similar losses to a single zone.

For a clean finish and lasting protection, use a pre-insulated lineset kit with sleeve—built to resist heat, UV, and vibration.

Planning the Perfect Penetration Path

Before picking up a drill, map both sides of the wall. Use a stud finder to avoid joists, then switch to an electrical detector to spot hidden wires or plumbing. Mark the exit point outdoors with painter’s tape so the hole lands exactly where you expect. Aim for a spot 6–7 ft above the floor—high enough for good air throw but low enough for easy filter changes. Keep at least 6 in of clearance from the ceiling and 12 in from side walls so the indoor head can breathe.

Choosing the Right Height and Indoor Unit Position

Height affects comfort and efficiency. When mounted at approximately 6.5 ft, cool air naturally descends while warm air rises toward the coil, enhancing circulation. Keep the unit out of direct sunlight and at least 3 feet from heat-generating appliances. In bedrooms, avoid aiming airflow straight at the bed.

Keep lines safe and insulated use a complete pre‑charged MRCOOL line‑set made for 9K–18K DIY systems

Picking the Best Tools for the Job

Different walls need different bits. Wood framing calls for a 2.5–3 in bi‑metal hole saw, while brick or CMU block works best with a diamond‑tipped core bit. Use a variable‑speed drill on low RPM and start with a ¼‑in pilot hole. Reverse the bit briefly when drilling vinyl or fiber‑cement siding; this scores the surface and prevents chipping. Keep a spray bottle handy to cool masonry bits and reduce dust.

For a step‑by‑step overview, our mini‑split installation guide walks you through every phase.

Drilling Technique: Step‑by‑Step Safety

1. Put on safety glasses and a dust mask.

2. Drill the pilot hole straight through until daylight shows.

3. From outdoors, center the hole saw on the pilot mark.

4. Angle the drill 3–5° downward to allow gravity to assist with drainage.

5. Apply gentle pressure; let the bit do the work.

6. Vacuum debris immediately to keep the worksite tidy


Going slowly avoids cracking exterior finishes. For hard brick, pulse the trigger instead of holding full speed. If the wall is more than 8 in thick, drill halfway from each side to prevent blow‑out.

Protecting Lines With Sleeves and Insulation

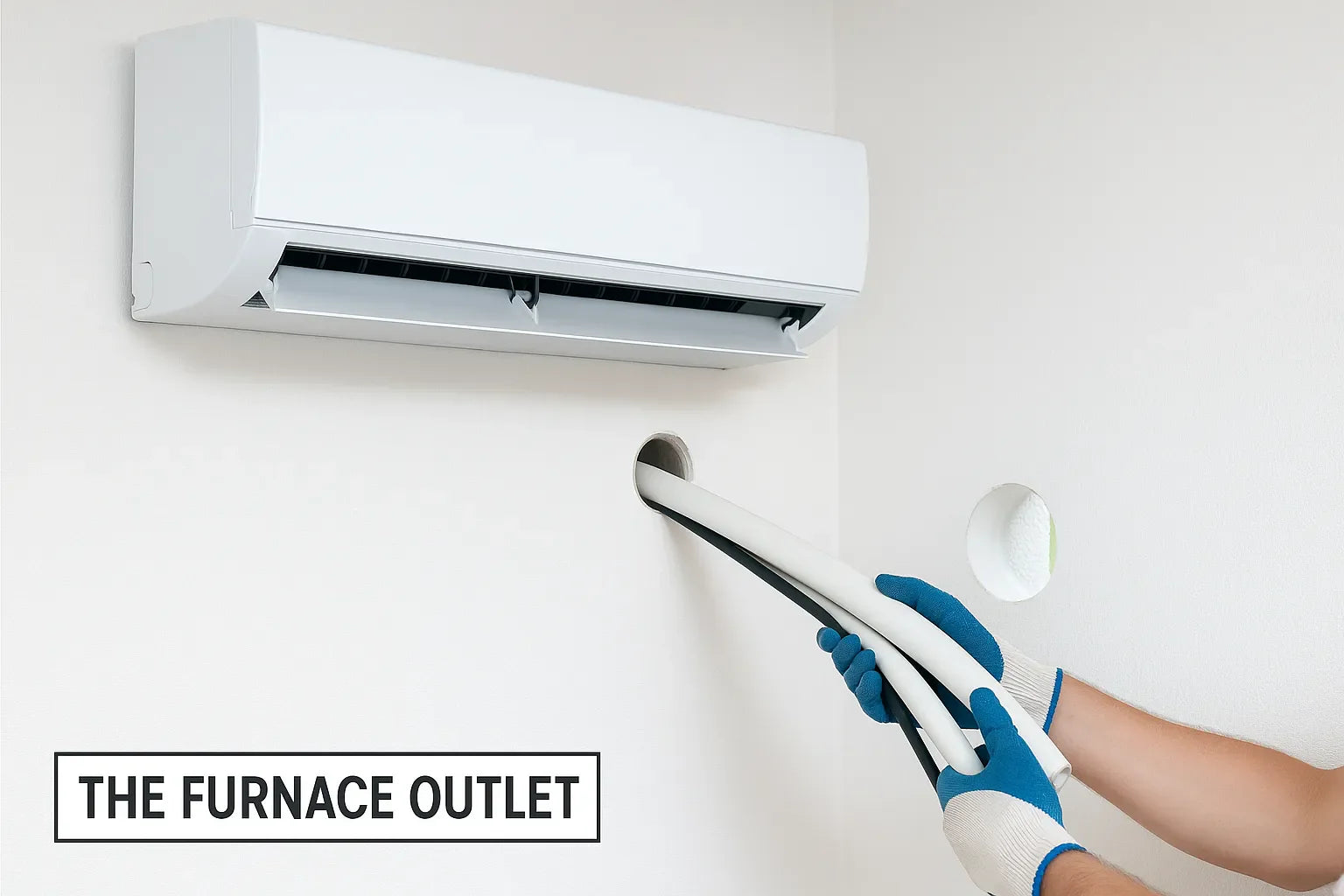

Slide a Schedule 40 PVC sleeve (½ – ¾ in longer than wall thickness) into the finished hole. The smooth interior shields the rubber refrigerant hoses from nails and sharp edges. After fishing the lineset through, wrap it with UV‑resistant insulation to stop heat gain and sweating. This step also lowers compressor workload, prolonging service life.

For oversized units topping 36 k BTU, see our roundup of the largest mini‑split options.

Sealing the Hole: Keeping Weather and Pests Out

Good sealing is two‑layered. First, inject low-expansion foam around the sleeve from the indoor side—fill only 40%, as the foam expands. After curing, trim flush and run a bead of exterior‑grade silicone around both sleeve ends. Silicone stays flexible in freezing temps and UV light, unlike latex caulk that can crack. A tight seal prevents humidity from entering wall cavities, where mold can form. Check the joint yearly and touch up any gaps; it’s a five‑minute chore that can save costly drywall repairs.

Installing a mid‑sized zone? Check this 4‑zone MRCOOL kit built for flexible placement and clean routing.

Avoiding the Top 6 Costly Mistakes

Many homeowners try to save time by rushing here, but quick shortcuts often result in callbacks. If you’re installing discounted or scratch-and-dent HVAC systems, check our prep list here before you begin.

When to Call a Pro for Complex Walls

Not every wall is simple drywall and studs. Brick veneer, stacked‑stone facades, or historical plaster demand special tools and anchors. Older homes may conceal knob-and-tube wiring or lead pipes that a basic detector overlooks. Local codes might also require permits and inspections. If you face triple‑wythe brick, 200‑amp electrical upgrades, or multi‑zone refrigerant routing, consider hiring a licensed HVAC technician.

Don’t overlook drainage. Add a proper drain line from their mini‑split accessory section to maintain downward flow and prevent indoor leaks.

Frequently Asked Questions

Q1. What size hole do I need for a mini‑split lineset?
Most manufacturers call for a 2.5–3-inch diameter hole, but always check your manual.

Q2. Does the hole really have to slope down?
Yes. Even a 2° slope lets condensate drain safely outdoors instead of dripping inside.

Q3. Can I drill through brick without a hammer drill?
Technically, yes, but a hammer drill with a diamond core bit speeds up the job and cuts cleaner edges.

Q4. What sealant works best?
UV‑rated exterior silicone lasts longer than acrylic caulk and stays flexible in temperature swings.

Q5. Do I need a permit to drill the hole?
 Some cities require a mechanical permit for any HVAC penetration. Check with your local building department before starting.
