🏠 Introduction: It’s About More Than Just Tank Size
When shopping for a water heater, most people think only about tank capacity—50, 60, or 75 gallons. But the truth is, the biggest challenge often isn’t the size of the tank itself, but whether it will fit properly into your utility space once installed.
Unlike smaller units, a 75-gallon power vent gas water heater requires special attention to:
-
Physical dimensions (height, diameter, and footprint).
-
Clearance requirements (space for safety, servicing, and airflow).
-
Venting and electrical needs (unique to power vent models).
-
Noise levels (because of the blower fan).
Tony, a father of three, learned this lesson when upgrading from his old 50-gallon atmospheric vent water heater. He assumed that if the new 75-gallon ProLine XE fit in the same corner of the basement, all would be fine. But between clearance rules, vent pipe routing, and blower noise, he had a few surprises to work through.
This guide will help you measure, plan, and prepare before installing a 75-gallon power vent water heater—so you can avoid Tony’s headaches and make sure your new investment is a perfect fit.

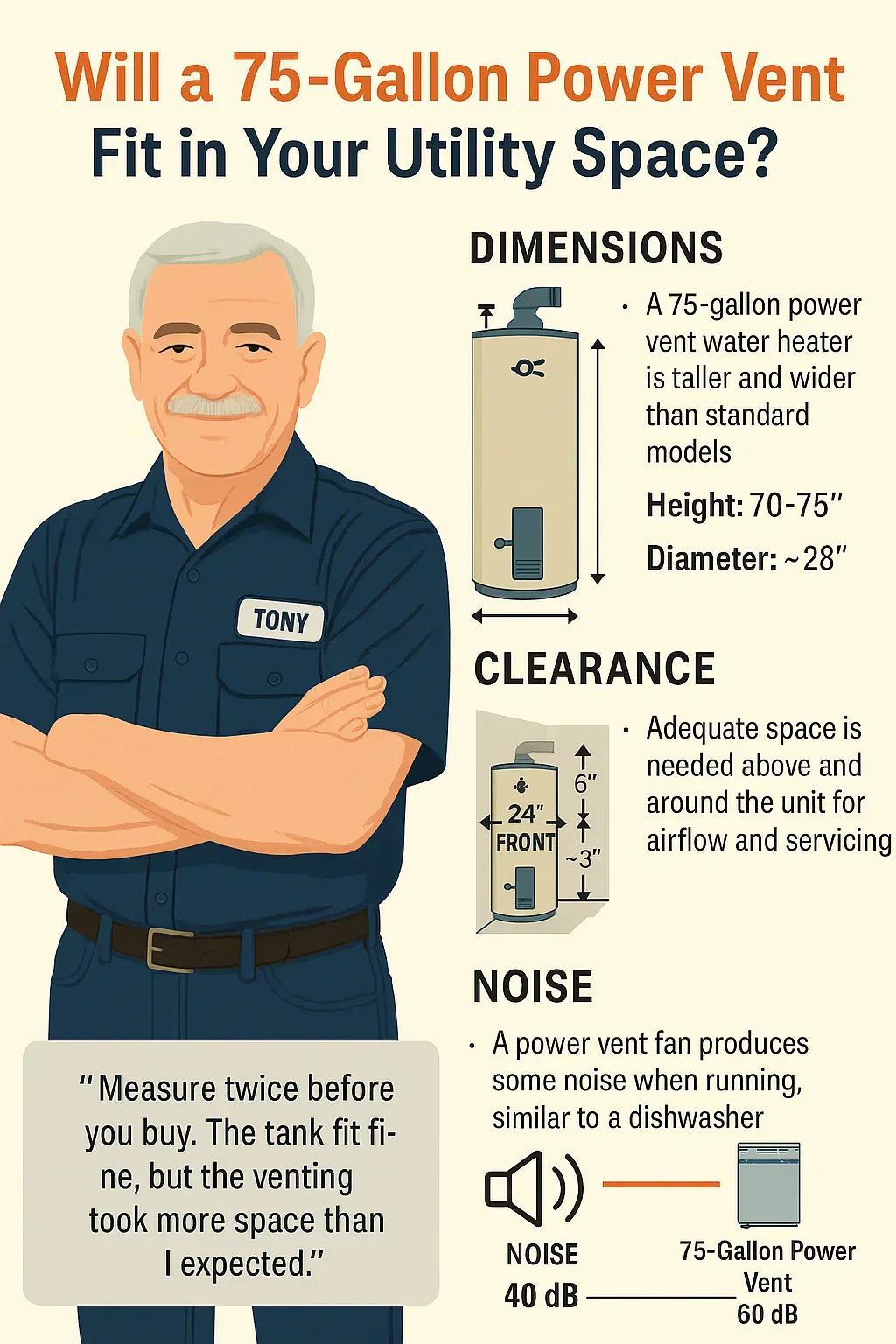

📏 Dimensions of a 75-Gallon Power Vent Water Heater
The first thing to check is the physical footprint of the unit.
Typical ProLine XE 75-Gallon Specs
-
Height: 70–75 inches (nearly 6 feet tall).
-
Diameter: 26–28 inches.
-
Weight (empty): ~250 pounds.
That’s significantly larger than a 50-gallon model (typically 60 inches tall, 22 inches wide).
👉 If you’re upgrading from a smaller tank, you’ll need more headroom and floor space.
📖 Reference: Home Depot – Water Heater Dimensions Guide
Tony’s Case
Tony’s old 50-gallon unit sat in a basement corner, tucked next to his furnace. The new ProLine XE’s extra height and width meant the installers had to slide the furnace over 6 inches to maintain code-required spacing.
“I thought the tank would just drop right in. Turns out, every inch matters when you’re working in a tight basement.”
🛑 Clearance Requirements
Beyond tank size, clearances matter for both safety and maintenance access.
Standard Clearance Rules (Typical for Power Vent Gas Heaters)
-
Front: 24 inches (for servicing burner, blower, and anode rod).
-
Sides: 2–3 inches (airflow and safety).
-
Rear: 0–2 inches (varies by manufacturer).
-
Top: 6–12 inches (venting connections).
If you ignore these, you may:
-
Void the warranty.
-
Fail inspection.
-
Prevent proper servicing (like replacing the anode rod).
📖 Reference: State Water Heaters – Installation Manuals
Tony’s Lesson
Tony had just 12 inches of space in front of his old tank. The installer explained that wasn’t enough for safe service access on the ProLine XE. They ended up rotating the tank slightly to provide the 24 inches required by code.
🌬 Venting Considerations for Power Vent Models
Unlike atmospheric vent models, which exhaust hot gases straight up a chimney, power vent water heaters use a blower fan to push exhaust through PVC piping.
What You’ll Need
-
PVC vent pipes (2–4 inches diameter).
-
An exterior wall or roof outlet.
-
120V outlet for the blower fan.
-
Slope of 1/4 inch per foot to ensure proper condensation drainage.
Advantages of Power Vent
-
Flexible installation (venting horizontally or vertically).
-
Can be placed in basements without chimneys.
Challenges
-
Long vent runs (over 30–40 feet) may require additional elbows, which affect performance.
-
You’ll need clearance along walls/ceilings for pipe routing.
📖 Reference: Energy.gov – Water Heating
Tony’s Challenge
Tony thought venting would be simple. But his basement required a 20-foot horizontal run across the ceiling before reaching an exterior wall. That meant more PVC piping than he budgeted for and a slight drop in vent fan efficiency.
“It wasn’t the tank size that surprised me—it was the vent pipe. I had to rearrange my whole basement ceiling plan just to fit it.”
🔊 Noise Levels: What to Expect from the Blower Fan
Power vent water heaters include a blower fan to push combustion gases outdoors. This adds noise, which surprises homeowners used to silent atmospheric models.
Typical Noise Levels
-
Comparable to a dishwasher hum (40–60 decibels).
-
Audible when standing in the same room.
-
Quieter than most furnaces.
Noise Solutions
-
Place unit in a basement or garage utility space.
-
Avoid placing near bedrooms or quiet living spaces.
-
Some models include noise-dampening designs.
📖 Reference: Consumer Reports – Water Heater Guide
Tony’s Experience
Tony’s ProLine XE is installed in the basement, so noise wasn’t an issue for his family. But he admits:
“If I had put it in a utility closet near the bedrooms, the fan might have been annoying at night.”
🧰 Utility Space Layout Tips
To ensure a smooth installation, consider more than just the footprint.
📝 Checklist Before Purchase
-
Measure floor space + ceiling height.
-
Add clearance requirements for servicing.
-
Ensure PVC vent run is feasible.
-
Confirm gas line sizing (3/4-inch supply recommended for 76,000 BTUs).
-
Provide a 120V outlet near the tank.
-
Plan access for maintenance (flushing, anode rod replacement).
📖 Reference: Bob Vila – Water Heater Installation Tips
📊 Pros & Cons of a 75-Gallon Power Vent in Tight Spaces
✅ Pros:
-
Flexible venting (horizontal or vertical).
-
High FHR (120+ gallons in first hour).
-
Great for large families.
❌ Cons:
-
Taller and wider than smaller tanks.
-
Clearance rules may force layout changes.
-
Blower fan noise in quiet spaces.
🏁 Conclusion: Will It Fit in Your Space?
A 75-gallon power vent gas water heater like the ProLine XE can transform household comfort—but only if it fits your home properly.
-
Dimensions: Expect ~70–75 inches tall and ~28 inches wide.
-
Clearance: At least 24 inches in front, 2–3 inches sides, 6–12 inches top.
-
Venting: Plan for PVC venting and electrical access.
-
Noise: Manageable if installed in the right location.
Tony’s advice?
“Measure twice before you buy. The tank fit fine, but the venting and clearance took more space than I ever expected.”
If you’re considering an upgrade, check your utility space dimensions, venting options, and electrical availability before choosing a 75-gallon power vent. A little planning now will save big headaches later.
