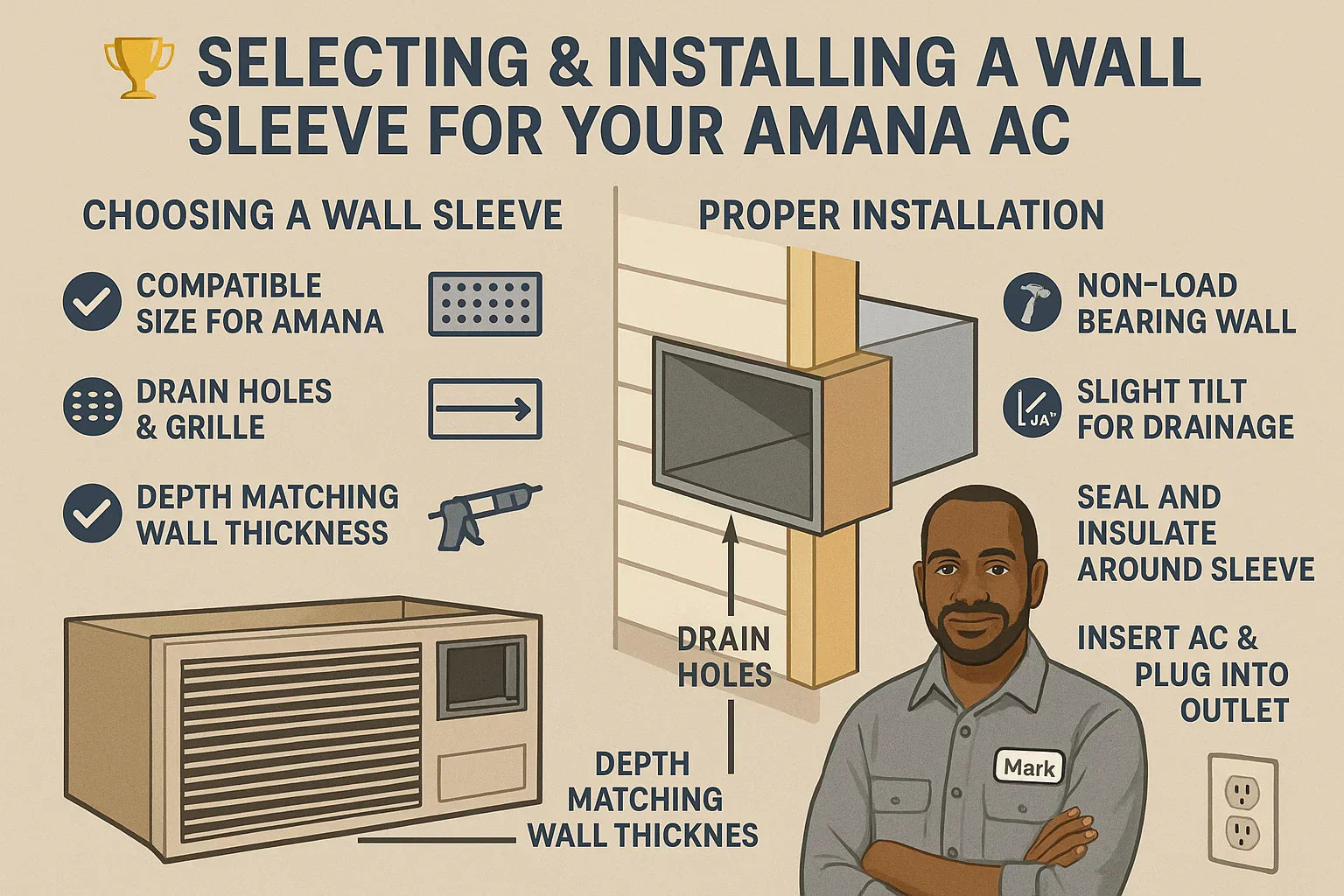

What’s the Best Wall Sleeve for Your Amana AC? Compatibility, Fit & Installation Tips

📦 Introduction: Why the Wall Sleeve Is More Important Than You Think

If you’re installing the Amana 9,200 BTU Through-the-Wall AC with Heat Pump, don’t overlook the unsung hero of your system: the wall sleeve. This seemingly simple metal box does a lot more than hold your unit in place.

For homeowners like Mark, choosing the right wall sleeve ensures:

• A secure installation

• Weather protection

• Energy efficiency

• Long-term durability

This guide will help you:

• Understand what a wall sleeve does

• Choose the right size and model

• Install it correctly

• Avoid the most common (and expensive) mistakes

---

🧱 1. What Is a Wall Sleeve (And Why You Need One)?

A wall sleeve is a metal or composite casing that gets permanently installed in your exterior wall. Your through-the-wall air conditioner or heat pump slides into this sleeve — not directly into the wall.

✅ What It Does:

• Supports the weight of the unit

• Protects against weather, pests, and condensation

• Reduces vibration and noise

• Improves efficiency by sealing gaps

• Simplifies replacement later (just slide out the old unit)

🔗 HVAC.com: What Is a Wall Sleeve?

---

📏 2. Sleeve Compatibility: What Fits the Amana 9,200 BTU Unit?

The Amana 9,200 BTU 230/208V unit is part of Amana’s through-the-wall line that requires a standardized wall sleeve designed for 24" wide units.

📐 Amana-Compatible Dimensions:

• Width: 25 ½" (fits into 26" sleeves)

• Height: 15 ¾"

• Depth: ~20 ½" (unit), sleeve should be 15–22"

✅ Recommended Wall Sleeve:

• Amana AVS24 or WS900E sleeve

  • Fits 26" wide openings

  • Compatible with most Amana models

  • Includes rear grille, mounting hardware, and weep holes

🔗 Amana Wall Sleeve Specifications PDF

---

🏆 3. Top Wall Sleeve Models Compared

💡 Tip:

Always confirm that the sleeve has rear drain holes, a sloped bottom, and compatible mounting tabs for your unit brand.

🔗 Friedrich Wall Sleeve Guide

---

🛠️ 4. Installation Tips for a Perfect Fit

Installing a wall sleeve is a critical step. Do it wrong, and you risk leaks, mold, or vibration issues.

🧰 Step-by-Step Overview

✅ 1. Frame the Wall Opening

• Use pressure-treated lumber

• Opening should be 26 ⅛” wide × 16 ⅜” high

• Leave at least 1/4" slope outward for drainage

✅ 2. Install the Sleeve

• Insert from inside or outside

• Use mounting brackets or flange

• Level side to side; tilt slightly downward to the rear

✅ 3. Seal & Insulate

• Use expanding foam between sleeve and wall framing

• Caulk exterior edges with weatherproof silicone

• Install rear grille (comes with most OEM sleeves)

✅ 4. Insert the Unit

• Slide unit into sleeve gently

• Plug into 230V dedicated outlet

• Use included trim kit to cover interior edges

🔗 Home Depot Wall Sleeve Installation Video

---

🚫 5. Common Wall Sleeve Mistakes (and How to Avoid Them)

❌ Mistake #1: Wrong Size Sleeve

• A sleeve too shallow won’t fully support the unit

• A sleeve too wide leaves air gaps = inefficiency + bugs

❌ Mistake #2: No Tilt for Drainage

• Always slant the sleeve slightly downward

• Prevents internal moisture buildup

❌ Mistake #3: No Sealant

• Gaps around the sleeve = air leaks, mold risk, energy waste

❌ Mistake #4: No Grille

• Leaves the back exposed to birds, squirrels, rain, leaves

🔗 AC Sleeve Sealing Guide

---

🧠 Mark’s Advice for First-Time Installers

“I see a lot of homeowners skip the sleeve or stuff their AC into a hole with spray foam. Don’t do it. The sleeve protects your wall, supports the weight, and makes your install last 10–15 years. It’s a small investment that makes a big difference.”

---

🛒 6. Where to Buy Compatible Sleeves

🛠️ Look for models that specify:

• 26" width

• Heat pump compatibility

• Weather seal and hardware included

---

✅ Final Checklist: Choosing & Installing the Right Sleeve

✅ Fits a 26" opening
✅ Amana-compatible (AVS24 preferred)
✅ Rear drain holes + tilt slope
✅ Comes with rear grille
✅ Weather-sealed and insulated
✅ Installed level side to side
✅ Installed before AC unit
✅ Mounted on non-load-bearing wall or properly framed

In the next topic we will know more about: How to Switch Between Heating and Cooling on Your Amana Wall Unit
