When you're installing a MRCOOL 27,000 BTU 2-Zone 5th Gen Mini Split System, one of the most important—but often overlooked—elements is your line set length. Whether you're routing through walls, around corners, or across floors, planning your line sets smartly can make or break the performance and ease of your DIY install.
This guide breaks it down for you—which lengths work, how to extend them, and how to route them like a pro.
🔄 What’s a Line Set and Why Does Length Matter?
A line set is the pair of copper tubes that carries refrigerant between your indoor air handler(s) and outdoor condenser. It must be:
-
Pre-charged with refrigerant in MRCOOL DIY systems
-
Air-tight to preserve efficiency
-
The correct length to prevent performance issues
📏 Too short? It won’t reach.
📏 Too long? You may face pressure drop or require couplers.

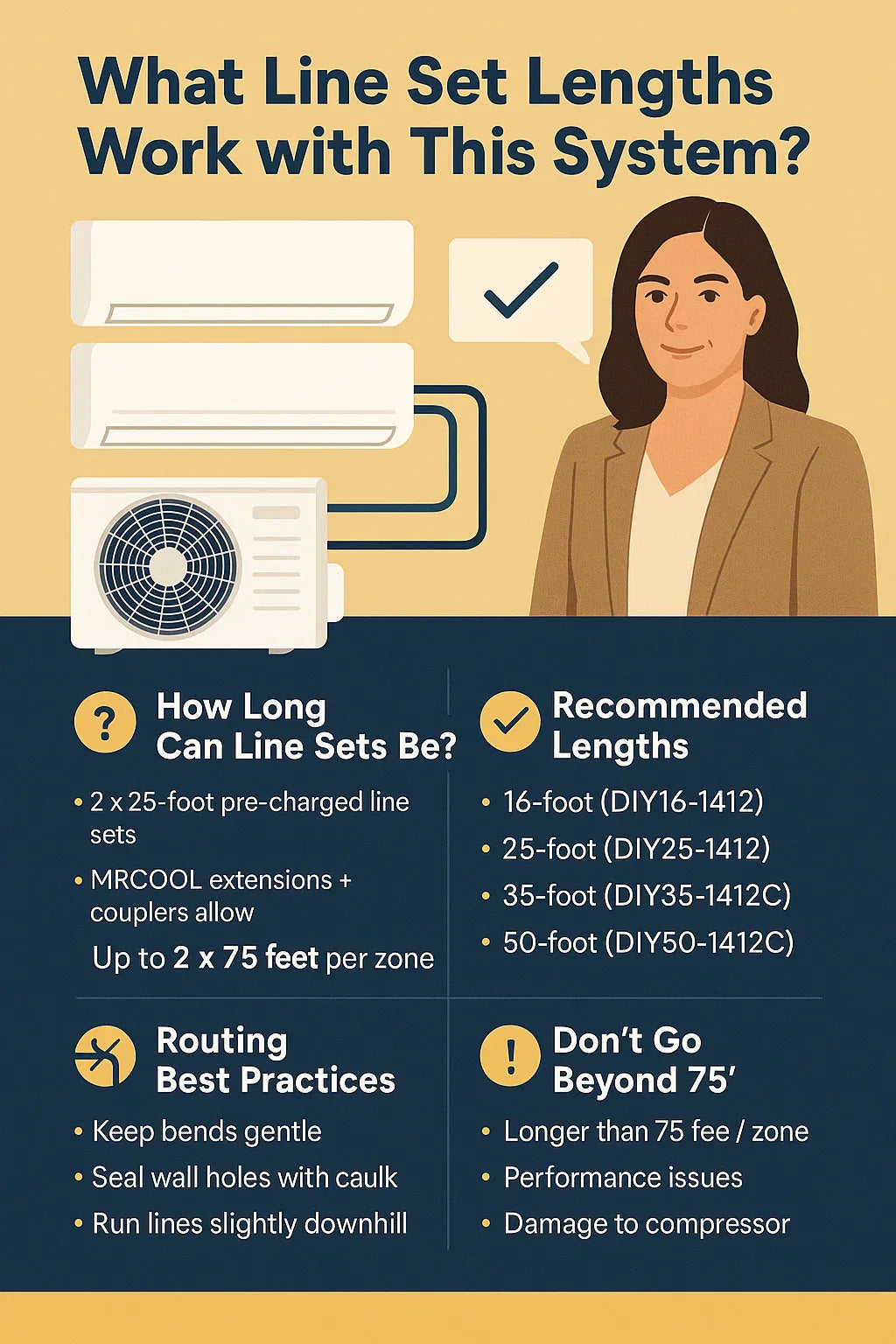

📦 Included Line Set Lengths with the 27k BTU 2-Zone System
The 5th Gen MRCOOL 27k Dual-Zone typically comes with:
-
Two 25-foot pre-charged line sets
-
2 wall sleeves & flare fittings
-
Pre-attached insulation & communication wires
This setup works well for basic back-to-back installations, but many homeowners need longer runs or special routing.
📏 Available MRCOOL Pre-Charged Line Set Lengths
| Model Number | Length | Tube Size | Compatible With |
|---|---|---|---|
| DIY16-1412 | 16 ft | 1/4 x 1/2 | All 9k & 12k |
| DIY25-1412 | 25 ft | 1/4 x 1/2 | All 9k & 12k |
| DIY35-1412C | 35 ft | 1/4 x 1/2 | All 9k & 12k |
| DIY50-1412C | 50 ft | 1/4 x 1/2 | All 9k & 12k |
| DIY25-3858 | 25 ft | 3/8 x 5/8 | 18k & 24k units |
All of these are pre-charged with R-410A and Quick Connect–ready, which means no vacuum pump or refrigerant tools needed.
🔧 How to Extend a Line Set with Couplers
MRCOOL allows you to extend line sets up to 75 feet per zone using a DIY coupler kit (sold separately).
🛠️ What You Need:
-
Pre-charged line set extension (16–50 ft)
-
DIY coupler kit (model-specific)
-
Pipe insulation tape and clamps
⚠️ Make sure you match the BTU rating and tube size (e.g., 1/4 x 1/2) for each zone. Don’t mismatch 12k with 18k line diameters.
🧭 Best Practices for Line Set Routing
✅ Do:
-
Keep bends gentle (no sharp 90° kinks)
-
Use line set cover kits for protection and aesthetics
-
Seal wall penetrations with foam or putty
-
Route with a slight downward slope to allow oil return
-
Avoid placing near high heat sources (furnaces, boilers, attic ducts)
❌ Don’t:
-
Stretch or twist the copper line
-
Force a pre-charged line into a tight bend
-
Exceed 75 ft total without MRCOOL verification
-
Use non-MRCOOL fittings or try to refill refrigerant yourself
🧊 What Happens If You Overshoot the Max Length?
-
Cooling capacity drops due to refrigerant pressure loss
-
Compressor strain may shorten system lifespan
-
Smart controller errors or improper zone balancing
Always plan the shortest and straightest run possible.
🏠 Sample Install Scenarios
Scenario A: Back-to-Back Install
-
Handlers and condenser on same wall
-
Use included 25 ft lines
-
Total setup time: 8–10 hours DIY
Scenario B: Upstairs Bedroom + Downstairs Living
-
Upstairs: 35 ft line set + coupler to 25 ft
-
Downstairs: 25 ft set
-
Use wall sleeve & cover kits for routing
-
Total refrigerant run: 60 ft (within limit)
Scenario C: Long Wraparound Garage
-
Need two 50 ft sets
-
Use DIY50-1412C + proper couplers
-
Drill through adjacent walls
-
May require a 230V disconnect box near garage
🧠 Pro Tips from Savvy
-
Buy 1 extra coupler—in case your route changes mid-project
-
Dry-fit line set paths before opening Quick Connects
-
Keep wall penetrations tidy with caulk and cover kits
-
Store unused line set coils inside line cover channels to avoid damage
🔗 Verified Resources for Planning
✅ Final Takeaway
The 5th Gen MRCOOL 27,000 BTU 2-Zone system gives you flexible line set options from 16 to 75 feet per zone using pre-charged extensions and couplers—no pro tools required.
Plan carefully, match your lengths properly, and you’ll save hours of headache and hundreds of dollars on installation. And if you hit a wall (literally or figuratively), help is just a coupler away.
In the next topic we will know more about: How Does the MRCOOL 27k 2-Zone Handle Extreme Weather?
