Upflow vs. Horizontal Installation: Which Layout Works for Your Home?

🏠 Introduction: Tony’s Furnace Layout Question

When I was shopping for the Goodman 80 AFUE, 60,000 BTU furnace, I noticed the spec sheet listed it as an “upflow/horizontal application” model. At first, that sounded like HVAC jargon—but it turned out to be one of the most important installation choices I had to make.

Furnace orientation doesn’t change the heating power (BTUs), but it does affect how the system fits into your home, how air moves through your ducts, and how easy it will be to service later.

In my Ohio basement, I went with upflow installation. But for homes with crawlspaces or attics, horizontal layout might be the smarter option.

Here’s everything I learned about the differences.

---

🔧 What Is an Upflow Installation?

An upflow furnace is exactly what it sounds like:

• It pulls in cool return air from the bottom of the unit.

• It pushes heated air upward into the supply ducts.

📍 Where It’s Used

• Basements (most common)

• Utility rooms with ductwork overhead

• Closets with vertical clearance

✅ Pros

• Simple and straightforward design

• Easier access for servicing and maintenance

• Works great for multi-level homes, since heat naturally rises

❌ Cons

• Requires more vertical clearance (at least 30–40 inches above the furnace for duct connections)

• Not practical in homes with crawlspaces or very low ceilings

👉 For my basement, this was the obvious choice. My ducts were already overhead, so upflow was the most efficient path.

---

🔄 What Is a Horizontal Installation?

In a horizontal furnace, the unit is rotated on its side so air moves left-to-right or right-to-left.

📍 Where It’s Used

• Attics (especially in the South and West)

• Crawlspaces

• Tight utility closets

✅ Pros

• Saves vertical space

• Perfect for areas with limited headroom

• Works well in single-story ranch-style homes with ducts running laterally

❌ Cons

• Can be trickier to service in tight spaces

• Must be carefully leveled for proper condensate drainage

• Airflow may be less ideal for multi-level homes compared to upflow

👉 If I lived in Texas with an attic install, horizontal would have been the way to go.

---

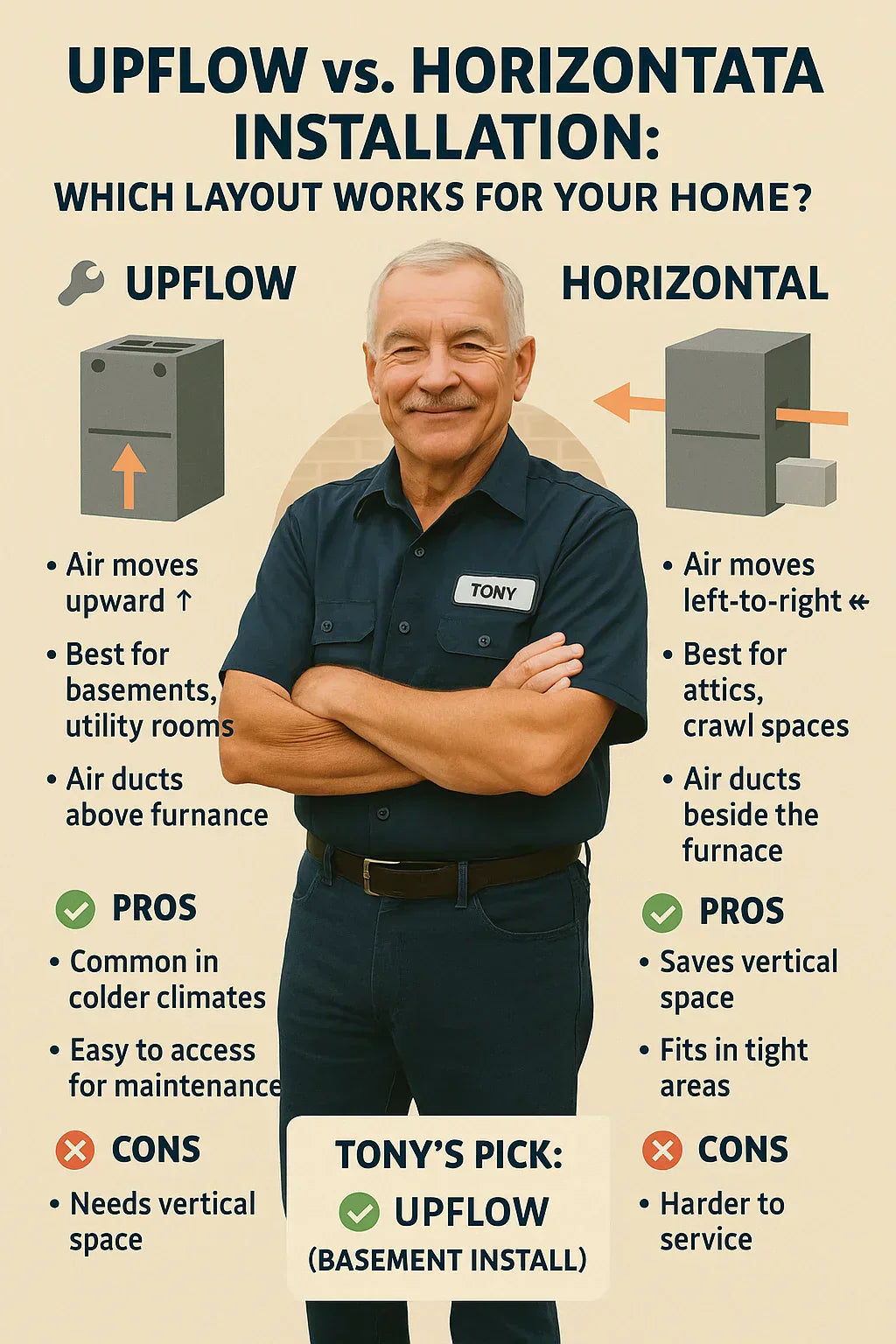

⚖️ Comparing Upflow vs. Horizontal Layouts

Here’s a side-by-side breakdown:

---

🌎 Climate and Home Design Factors

Your climate and home design play a huge role in furnace orientation.

🥶 Cold Climates (North, Midwest)

• Basements are common → Upflow works best

• Heat rises naturally through the home

• Ducts typically run overhead

☀️ Warm Climates (South, Southwest)

• Homes often have attics or slab foundations → Horizontal works best

• No basement space available

• Ducts run laterally through attic space

🏠 Split-Level or Custom Homes

• Sometimes, either orientation could work depending on ductwork

• Professional load and duct analysis is key

👉 My Ohio home (Zone 4, cold winters) with a basement? Upflow all day.

---

🛠️ Installation Considerations

When I was researching, I learned it’s not just about space—it’s also about installation practicality.

📐 Ductwork Location

• Overhead ducts: Go with upflow

• Side ducts: Go with horizontal

🧰 Access for Service

• Furnaces need regular maintenance (filter changes, blower servicing).

• If it’s stuffed in a crawlspace, horizontal installs can be tough for techs.

💧 Condensate Drainage

• Horizontal installations must be carefully leveled so condensation drains properly.

• Upflow systems drain more naturally by gravity.

🔊 Noise Levels

• Some homeowners report horizontal installs can be noisier if ducts aren’t insulated properly.

• Upflow tends to be quieter, especially in basements.

---

📊 Real-World Example: Tony’s Furnace

• Home: 1,800 sq. ft. split-level in Ohio

• Basement height: 7.5 ft with plenty of clearance

• Duct location: Overhead

• Orientation chosen: Upflow

Result:

• Warm air rises evenly through both levels

• Easy access for filter changes and annual service

• Quieter operation since the furnace is in the basement

👉 If my home had a crawlspace instead of a basement, I’d have chosen horizontal.

---

🏦 Cost Differences

You may be wondering: does orientation change the cost?

📉 Furnace Price

• The furnace itself (like my Goodman 80 AFUE, 60,000 BTU) is often the same model, built for multiple orientations.

📈 Installation Price

• Upflow install: $2,500–$4,000 (including labor, ducts if needed)

• Horizontal install: $3,000–$4,500 (can be higher if crawlspace access is tight)

(Source: HomeAdvisor)

👉 In my case, basement upflow install was straightforward, so labor costs were on the lower side.

---

🧾 Codes and Regulations

Some building codes dictate which orientation is allowed:

• California: Attics are common, so horizontal orientation is standard in new construction.

• Midwest/Northeast: Basements make upflow the default.

• Local Codes: Always check clearance requirements and service access rules (ICC Codes).

👉 For me in Ohio, either would have passed, but the ductwork design made the decision clear.

---

✅ Conclusion: Which Layout Works for Your Home?

Choosing between upflow and horizontal installation isn’t about which furnace is “better.” It’s about what works for your home layout, climate, and ductwork design.

• Go with Upflow if: You have a basement or tall utility space with ducts overhead.

• Go with Horizontal if: You’re working with an attic, crawlspace, or limited vertical clearance.

For me, Tony, upflow was the winner—simple, efficient, and future-proof for my Ohio home. But for plenty of folks in the South or with slab homes, horizontal is the perfect fit.

👉 My advice: always match the furnace orientation to your home’s ductwork, not the other way around.

---

In the next topic we will know more about: Goodman vs. Other Furnace Brands: Why Tony Chose Goodman
