Upflow vs. Horizontal Installation — Which Layout Works Best for You?

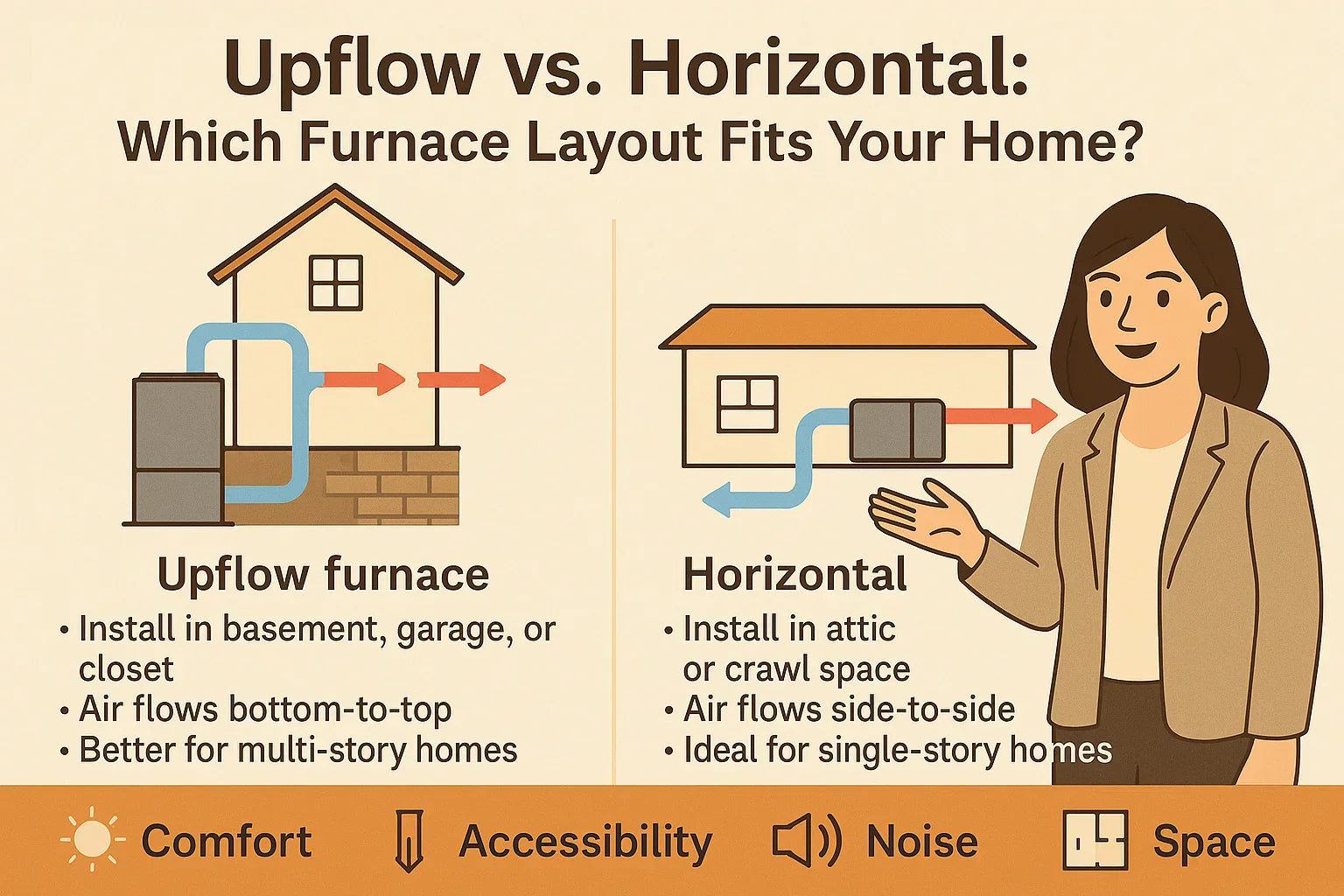

🧭 What “Upflow” and “Horizontal” Really Mean

If you’re upgrading your furnace, you’ve probably noticed terms like upflow and horizontal in product descriptions — but what do they actually mean?

In simple terms, these words describe how air moves through your furnace and which direction it exits into your home’s ductwork.

• Upflow: Air enters from the bottom and blows upward into ducts above the unit.

• Horizontal: Air moves side-to-side — entering on one side, exiting on the other.

Choosing between the two isn’t just about preference; it depends on your home’s layout, available space, and duct configuration.

The Goodman GR9T801205DN offers a huge advantage here: it’s a convertible furnace. That means it can be installed in either orientation — giving homeowners flexibility whether the unit goes in a basement, attic, or crawl space.

According to Energy.gov, installation orientation directly affects airflow efficiency, comfort balance, and long-term maintenance. Let’s look at how each configuration works — and which one fits your home best.

---

🏠 Understanding Upflow Installation

🔼 How It Works

In an upflow configuration, air is drawn into the bottom of the furnace, heated through the heat exchanger, and then blown upward through ducts that distribute warm air throughout your home.

This layout uses gravity and natural convection to help warm air rise through the home — making it a great choice for multi-story homes or houses with basements.

🧰 Where It Fits Best

• Basements: Ideal for homes with full or partial basements where ductwork runs overhead.

• Utility rooms or closets: Compact design works well for vertically stacked duct setups.

• Garages: Safe, accessible, and easy to service.

✅ Benefits of Upflow Systems

• Efficient heat distribution: Warm air naturally rises, reducing stratification and ensuring even heating.

• Easier maintenance: Filters and components are often front-accessible.

• Quieter operation: Basement installation means less sound transmission into living spaces.

• Longer lifespan: Upright installations allow for better drainage and less stress on components.

As the HVAC.com installation guide notes, upflow furnaces are the most common in homes with basements or multi-story layouts because they integrate seamlessly with existing vertical duct systems.

---

🧰 Understanding Horizontal Installation

➡️ How It Works

In a horizontal furnace, airflow travels sideways — entering one end, passing through the heat exchanger, and exiting the other side into lateral ductwork.

This design is ideal for spaces with low ceilings or where a vertical furnace simply wouldn’t fit.

🏡 Where It Fits Best

• Attics: Great for homes in the South or Southwest where heating demands are lighter and space is tight.

• Crawl spaces: Perfect for slab foundations with limited vertical clearance.

• Closets or utility areas: Ideal for horizontal ducts running under floors or through tight chases.

✅ Benefits of Horizontal Systems

• Space-saving: Compact, low-profile design fits in shallow or confined areas.

• Flexible airflow options: Can be configured left-to-right or right-to-left depending on duct layout.

• Easy retrofit: Simplifies replacement of older side-flow units without major duct changes.

• Versatile for mild climates: Works perfectly for homes where heating and cooling loads are balanced year-round.

The Energy Star Home Heating Guide notes that horizontal systems are particularly common in regions with mild winters — where attic and crawl space installs are more practical and cost-effective.

---

💨 Comparing Airflow Efficiency and Comfort

No matter which direction air travels, the goal is consistent, even heating. But airflow dynamics differ between upflow and horizontal systems.

The Goodman GR9T801205DN’s 9-speed ECM blower motor automatically adjusts airflow to maintain comfort in either setup. It senses duct pressure and fan speed needs in real time — ensuring consistent air delivery whether you install it vertically or horizontally.

That adaptability is one reason contractors love Goodman furnaces: they work with your home, not against it.

---

🔊 Noise, Space, and Accessibility Considerations

🔈 Noise Levels

Upflow installations often run quieter because they’re located below living spaces — in basements or mechanical rooms. The concrete and distance naturally muffle fan and combustion sounds.

Horizontal installations, especially in attics, may transmit some vibration through ceiling cavities, but Goodman combats this with insulated blower cabinets and vibration-dampening design.

🧭 Space Constraints

• Upflow: Requires vertical clearance but minimal horizontal space.

• Horizontal: Requires more side clearance but minimal height.

If you’re working with tight or unconventional spaces, your installer can evaluate whether your ducts can be adapted for the furnace orientation that makes the most sense.

🧰 Accessibility

Serviceability is key. In upflow systems, access panels and filters are usually at chest height, making maintenance simple. In horizontal systems, technicians may need to work in tighter spaces (like crawl spaces or attics), which can affect ease of service.

---

💰 Installation Cost and Difficulty

Upflow and horizontal systems are both efficient, but installation labor and duct modifications can differ slightly.

The Furnace Cost Guide estimates that total costs vary more with ductwork complexity than furnace price itself.

Goodman simplifies this with field-convertible venting, gas, and electrical connections, so installers can adapt the same model to different orientations without needing to order special parts or kits — saving both time and money.

---

⚙️ System Efficiency and Air Balance

In both upflow and horizontal setups, performance depends heavily on duct design and airflow balance.

Goodman’s two-stage gas valve and 9-speed ECM blower automatically regulate output for maximum comfort. In mild weather, the system operates at low fire — saving energy and keeping airflow gentle. In colder conditions, it ramps up to high fire for fast recovery.

That means regardless of direction, your furnace delivers the right amount of heat — without overworking or short cycling.

According to the ACEEE’s heating efficiency guide, systems that maintain longer, low-capacity heating cycles use less gas overall and produce more even temperatures — especially when paired with smart airflow control.

---

🧮 Choosing the Right Layout for Your Home

So, which one’s right for you? It depends on your home’s construction, available space, and lifestyle.

✅ Choose an Upflow Furnace if:

• You have a basement or garage where the furnace can stand upright.

• Your home has multiple stories that benefit from upward airflow.

• You prefer quiet operation and easier maintenance access.

• Your existing ducts are vertical or ceiling-mounted.

✅ Choose a Horizontal Furnace if:

• Your home is built on a slab (no basement).

• You have limited ceiling height or need attic installation.

• Your ducts run laterally through crawl spaces or attic trusses.

• You’re replacing an older side-flow unit.

A good HVAC installer will also evaluate:

• Static pressure and duct sizing.

• Condensate drainage routes.

• Accessibility for servicing.

If your home layout allows for either configuration, upflow tends to offer better long-term maintenance convenience — while horizontal setups shine in compact spaces where height is limited.

---

🌬️ Comfort and Air Distribution: What to Expect

🏡 Upflow Comfort Experience

Warm air naturally rises, so an upflow system pairs beautifully with homes that have upper levels or high ceilings. Air moves vertically, filling rooms evenly and maintaining stable temperatures on both floors.

🛋️ Horizontal Comfort Experience

Horizontal systems distribute air laterally — perfect for ranch-style or single-story homes. The key to even comfort here is shorter duct runs and properly sealed insulation, which prevent heat loss as air travels through attics or crawl spaces.

Goodman’s precision-engineered blower ensures consistent air pressure in both cases, while the two-stage heating cycle keeps indoor temperatures within a degree or two of the thermostat setting.

---

🔧 Maintenance Considerations

Keeping your furnace clean and maintained is the key to long-term efficiency — and the layout can affect how easy that is.

🧹 Upflow Furnace Maintenance

• Filters: Front or bottom access for quick swaps.

• Condensate drainage: Vertical design makes gravity drainage simple.

• Annual checks: Easy to inspect blower and heat exchanger from the front panel.

🧼 Horizontal Furnace Maintenance

• Filters: Usually accessed from the side panel — sometimes tricky in tight spaces.

• Drainage: Must be carefully routed to prevent standing water in horizontal setups.

• Service tip: Ensure clear access paths through crawl spaces or attics for seasonal tune-ups.

Goodman makes maintenance easier in both orientations by offering tool-free panel access and color-coded wiring diagrams. When combined with the brand’s 10-Year Parts Limited Warranty, it’s a system built for simplicity and longevity.

---

🌎 Energy and Environmental Impact

The installation layout doesn’t change your furnace’s AFUE rating, but it does affect how efficiently your home uses that energy.

Improper airflow or duct restrictions (more common in horizontal retrofits) can cause up to 20% energy loss, according to the DOE’s HVAC efficiency reports.

Goodman combats this with features like:

• Two-stage operation that minimizes fuel waste.

• High-efficiency heat exchangers that optimize combustion.

• Adaptive airflow technology that automatically adjusts to duct resistance.

And because the GR9T801205DN is designed for 80% AFUE, it’s ideal for homeowners in moderate climates who want energy-conscious comfort without the higher cost of a condensing furnace.

Proper installation — whether upflow or horizontal — ensures you get every bit of that efficiency.

---

💬 Real-World Example: Savvy’s Decision

Savvy and her family live in a two-story home in Tennessee with a small basement utility room. Initially, their contractor suggested a horizontal furnace for the crawl space, but after reviewing their duct layout, they switched to an upflow Goodman installation.

“The difference in airflow was immediate,” Savvy says. “The bedrooms upstairs used to be colder, but now the warmth rises naturally. And since the furnace is in our basement, we don’t hear it running at all.”

The installer also mentioned that future maintenance would be easier because everything — filters, panels, and blower access — was conveniently front-facing.

That’s the kind of insight that helps homeowners not just install a furnace, but choose the one that fits how they live.

---

📊 Summary: Which Layout Wins?

The right layout isn’t about “better” — it’s about what fits your home, your ducts, and your comfort expectations.

If you want the quietest, most accessible setup, upflow wins. If your home is on a slab or you’re dealing with tight spaces, horizontal is your hero.

And with Goodman’s convertible design, you can have both — without compromising comfort or efficiency.

---

🌟 Savvy’s Final Take

“Before, I thought a furnace was just a box that heated air. Now I know the layout affects everything — comfort, noise, even how easy it is to replace filters. Choosing the right installation type made our home feel warmer in every sense of the word.”

Whether your furnace sits tall in a basement or stretches sideways through your attic, the Goodman GR9T801205DN gives you the flexibility to heat smarter — adapting to your home’s design and your family’s comfort needs.

In the next topic we will know more about: Installation 101 — What to Expect When Setting Up a Two-Stage Gas Furnace
