Upflow vs. Horizontal Installation: Which Is Right for Jake’s Basement?

🏠 1. Why Furnace Orientation Matters

When most homeowners start researching furnaces, they focus on BTUs and efficiency ratings — but there’s another crucial decision that can affect everything from comfort to maintenance: installation orientation.

That’s right — the same furnace model can often be installed in more than one direction, and that choice determines how air flows through your home.

In simple terms, furnaces like the Goodman 92% AFUE 60,000 BTU Gas Furnace (Model GR9S920603BN) are flexible. They can be set up as either upflow or horizontal systems — making them adaptable to basements, crawlspaces, attics, or tight utility rooms.

In this guide, I’ll break down:

• What upflow and horizontal configurations mean

• Which setup is best for different home layouts

• How each affects performance, comfort, and cost

• And why the right orientation can make your Goodman system last longer and run more efficiently

Let’s start with the basics.

---

⚙️ 2. 🧩 What “Upflow” and “Horizontal” Really Mean

Furnace orientation describes how air moves through the unit and into your ductwork.

• Upflow → Air enters from the bottom of the furnace and exits from the top.

• Horizontal → Air enters from one side and exits from the other side.

These airflow paths are determined by the location of your home’s ductwork.

If your ducts are overhead (like in most basements), you’ll likely want an upflow setup.
If your ducts run sideways through a crawlspace or attic, you’ll want a horizontal setup.

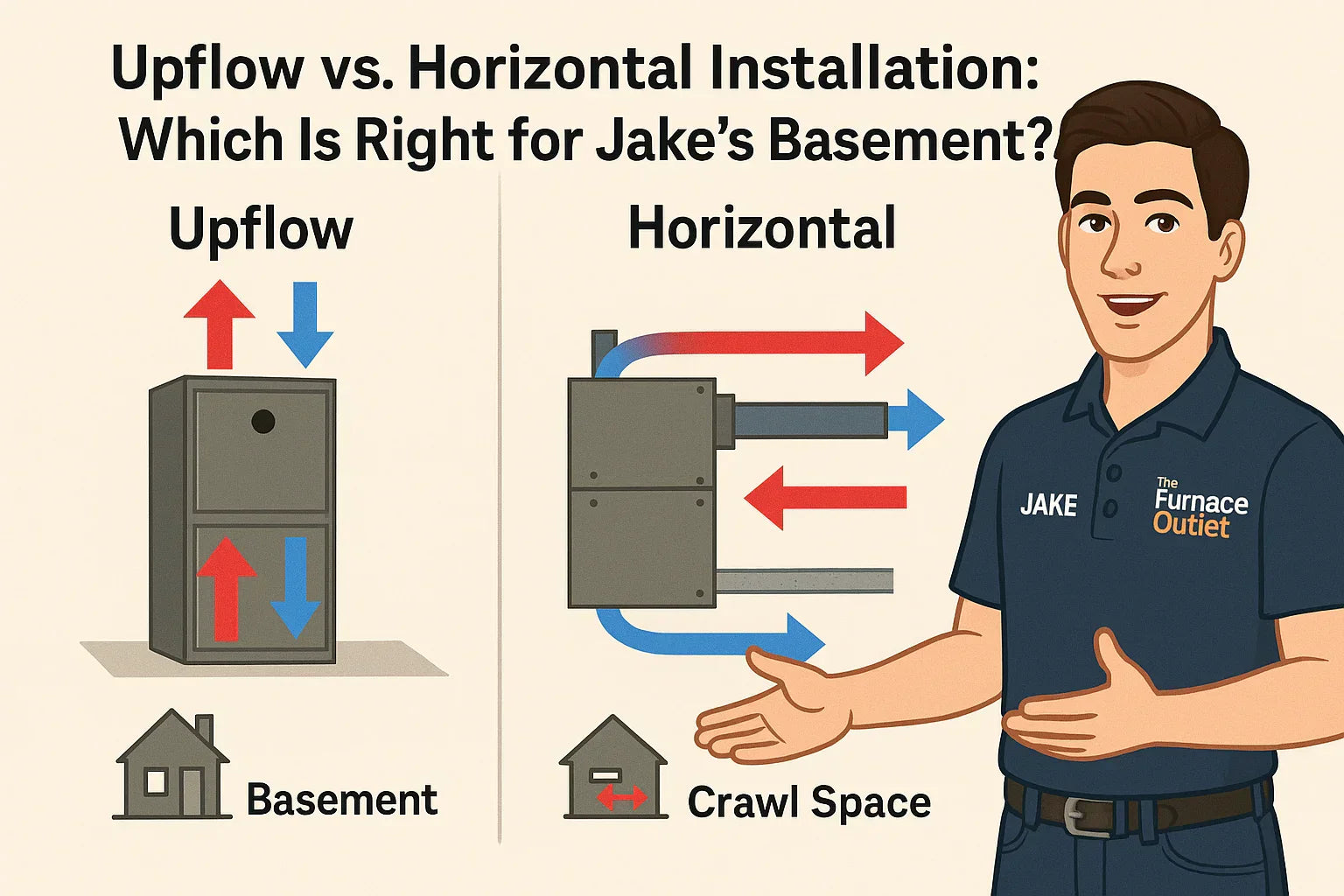

You can visualize them like this:

👉 Learn more about system layouts from Energy.gov — Central Heating Systems.

---

🧱 3. How Goodman Makes Both Options Possible

One of the standout features of Goodman’s GR9S920603BN furnace is its convertible cabinet design.

Unlike older models that locked you into one configuration, this Goodman can be field-converted between upflow and horizontal without major modifications.

🧰 Design Features That Enable This Flexibility

1. Reversible Blower Assembly – The 9-speed ECM blower can be rotated or repositioned for optimal airflow direction.

2. Dual Drain Ports – Allows proper condensate management whether mounted vertically or horizontally.

3. Multi-Position Flue Vent – PVC venting can be routed from the top or side depending on the orientation.

4. Compact Cabinet Width (17.5 inches) – Fits easily through doorways and into tight mechanical spaces.

That flexibility means one furnace model can serve different home layouts — a huge advantage for both contractors and homeowners.

👉 Check official configuration options in the Goodman Installation Manual.

---

🧭 4. When to Choose an Upflow Furnace

If you’re like me and your furnace sits in a basement, an upflow installation is usually the best option.

📍 Where It’s Used

• Homes with basements or crawlspaces that allow for vertical duct runs

• Utility closets with ceiling-mounted ducts

• Multi-level homes where ducts branch upward to different floors

✅ Advantages

1. Gravity-assisted condensate drainage — Moisture flows naturally to the drain line.

2. Simpler venting — Exhaust and intake pipes can exit through the wall or ceiling.

3. Even heat distribution — Ideal for homes with ducts running overhead.

4. Easier maintenance access — Filters and blower are accessible from the front.

💡 Why Jake Picked Upflow

“In my 1,400 sq ft home, the main ducts run overhead in the basement ceiling joists. An upflow furnace lets warm air rise naturally to the first floor, keeping every room evenly heated without stressing the blower.”

👉 For airflow basics, see HVAC.com — Furnace Airflow Direction Guide.

---

🏗️ 5. When to Choose a Horizontal Furnace

If your home doesn’t have a basement — or has limited vertical space — a horizontal furnace may be your best option.

📍 Where It’s Used

• Homes built on slab foundations (no basement)

• Crawlspaces and attics where ceiling height is tight

• Mobile or modular homes with lateral duct runs

✅ Advantages

1. Space-saving design — Fits in tight or low-clearance spaces.

2. Flexible mounting — Can be hung from ceiling joists or set on a platform.

3. Easier duct alignment for side-to-side airflow.

4. Good option for single-story homes with simple duct layouts.

However, horizontal furnaces require careful condensate management, since gravity isn’t helping. You’ll likely need a small pump or trap system..

---

🌬️ 6. Efficiency and Airflow: Is One Better Than the Other?

Here’s the good news: AFUE efficiency doesn’t change based on orientation.

A Goodman 92% AFUE furnace performs just as efficiently in horizontal mode as in upflow.
But airflow and comfort can vary slightly depending on your layout.

💨 Airflow Differences

• Upflow furnaces deliver warm air upward — ideal for even heating in multi-story homes.

• Horizontal furnaces push air sideways — excellent for single-level layouts or crawlspaces.

🔄 Static Pressure

Horizontal ducts sometimes increase airflow resistance (static pressure) if turns or long runs are involved. Your installer can compensate with proper duct sizing or adjusting blower speeds.

⚖️ Comfort Comparison

👉 See EnergyStar.gov — Furnace Efficiency Requirements for standards that apply to both orientations.

---

💧 7. Condensate and Venting Considerations

Because the GR9S920603BN is a condensing furnace, it produces water vapor as a byproduct of its high-efficiency operation.

For Upflow Installations

• Condensate flows downward naturally into a floor drain or sump.

• Use a simple PVC trap and drain line (typically ¾ inch).

• Exhaust vent can run vertically or horizontally depending on your wall exit point.

For Horizontal Installations

• Condensate must drain sideways — so the trap position is critical.

• Installers may use a condensate pump to move water to a nearby drain.

• Keep a ¼ inch slope per foot on all vent lines for proper drainage.

👉 Reference: Energy.gov — Condensing Furnaces Explained.

---

🧰 8. Jake’s Basement Example: Why Upflow Won Out

Let’s look at a real-world example.

Jake’s 1,400 sq ft home has:

• Full basement with exposed ductwork overhead

• Two floors above grade

• Furnace located near the water heater and main drain line

When upgrading from an older 80% AFUE unit, Jake considered both options but chose upflow because:

• His ducts already ran vertically into the main trunk line

• Condensate could flow directly into a nearby drain

• The blower cabinet was easier to access for maintenance

“In my setup, horizontal would have required cutting and re-routing the entire plenum. Upflow was plug-and-play — saving me hundreds in install labor.”

---

⚖️ 9. Installation Cost Breakdown

While both orientations use similar materials, labor costs can vary depending on accessibility.

Horizontal installs usually take slightly longer due to the extra condensate setup and limited work space.

👉 Check national averages at Fixr — Furnace Installation Costs.

---

🧹 10. Maintenance Access & Service Differences

Access is everything when it comes to long-term maintenance.

Upflow Furnaces

• Filter slides in and out from the front.

• Blower and electronics are reachable without moving the furnace.

• Condensate line is visible and easy to clear.

Horizontal Furnaces

• Often mounted in tight or elevated spaces.

• Access panels may face sideways — harder to service.

• Filters may require extra clearance or a custom rack.

Jake’s tip:

“If you’re choosing a horizontal setup, plan at least 24 inches of clearance on the access side. It’ll save your technician time (and you, service costs).”

---

🌡️ 11. Comfort and Heat Distribution

The way your furnace moves air determines how evenly your home heats up.

Upflow Comfort Benefits

• Warm air naturally rises — so an upflow furnace helps heat both the main and upper floors consistently.

• Great for homes with basements or multiple stories.

Horizontal Comfort Benefits

• Air moves laterally, covering single-level layouts efficiently.

• In ranch-style or open-concept homes, horizontal flow ensures uniform warmth across rooms.

If your system ever struggles to balance temperatures, consider upgrading your thermostat or adding zoning dampers — both work equally well for upflow and horizontal systems.

---

🧮 12. Efficiency in Real-World Use

While AFUE stays the same, real-world performance depends on duct design and installation quality.

A poorly balanced horizontal setup can lose up to 10% of airflow efficiency due to longer duct runs or bends.
Conversely, a well-installed upflow furnace in a basement can deliver nearly its full rated efficiency.

Jake’s rule of thumb:

“Spend an extra hour planning your duct connections — you’ll save hundreds every year in energy costs.”

---

⚙️ 13. Upflow vs. Horizontal: Pros and Cons Summary

---

🧠 14. Jake’s Pro Tips for Choosing the Right Setup

1. Follow Your Ductwork

   • If your main trunk runs overhead, go upflow.

   • If it runs sideways through a crawlspace, horizontal wins.

2. Check Ceiling Height

   • You’ll need about 6 ft 8 in clearance for upflow installs.

   • Horizontal units fit into 3 ft or less.

3. Plan for Condensate

   • Always ensure proper slope or pump access.

4. Think About Maintenance

   • Can you reach the filter without crawling?

5. Account for Future Upgrades

   • If you might finish your basement later, upflow is easier to relocate or conceal.

6. Don’t Forget Airflow Direction

   • Label ducts clearly during installation to avoid mistakes when connecting supply/return lines.

7. Ask Your Installer About Conversion

   • The Goodman GR9S920603BN allows field conversion — handy if you remodel down the line.

---

🧰 15. Installation Best Practices

Proper setup is as important as choosing the right configuration.

• Level the furnace — prevents vibration and ensures condensate drains correctly.

• Seal all duct joints with foil tape or mastic.

• Verify vent pipe slope (¼ inch per foot toward furnace).

• Check gas line sizing — undersized lines can cause ignition problems.

• Install a condensate safety switch if unit is in a finished space.

Jake’s note:

“A clean, level install isn’t just about looks — it directly impacts longevity. I’ve seen sloppy horizontal installs fail years earlier just because of improper drain slope.”

---

🧩 16. Common Mistakes to Avoid

1. Installing an upflow in a low basement — the blower door won’t open fully.

2. Ignoring duct transitions — mismatched openings reduce efficiency.

3. Skipping the secondary drain line — one clog can cause major water damage.

4. Poor vent pipe slope — leads to condensate pooling and rust.

5. Insufficient return air — causes high static pressure and short cycling.

These issues aren’t unique to Goodman systems, but any high-efficiency furnace can suffer from them if installed improperly.

---

📏 17. The Basement Factor: Why Orientation Affects Comfort

Basements are unique because they sit below grade — meaning air movement and moisture control matter.

An upflow furnace naturally helps warm cool basement floors and keeps the main floor comfortable.
In contrast, a horizontal furnace in a crawlspace focuses on living-area heating rather than basement comfort.

If you plan to finish your basement, an upflow model will integrate better with duct zoning later on.

---

🧮 18. Real-World Example: Cost & Efficiency Comparison

Let’s run a quick example based on average Midwest conditions.

Both deliver the same heating capacity, but the slightly higher airflow resistance in the horizontal system adds a small energy penalty over time.

That’s why choosing the right orientation upfront saves money long-term.

---

🧩 19. Long-Term Reliability and Service Life

Orientation also impacts how easy it is to keep the furnace running at peak performance.

• Upflow units often last longer because condensate drains cleanly and service access is better.

• Horizontal units can have more corrosion issues if condensate traps aren’t maintained.

Regardless of configuration, regular filter changes, annual tune-ups, and keeping the condensate line clear are what truly extend furnace life.

---

🧰 20. Jake’s Maintenance Routine

Here’s how I keep my 92% AFUE Goodman running like new:

Whether upflow or horizontal, consistent care keeps performance strong for decades.

---

🧭 21. Summary: Finding Your Perfect Fit

In short:

• If you have a basement or vertical ductwork, go upflow.

• If you have a crawlspace, attic, or side-duct layout, go horizontal.

Both offer outstanding performance — especially with Goodman’s durable 9-speed blower and lifetime heat exchanger warranty.

---

🧰 Final Word from Jake

“In the end, choosing between upflow and horizontal isn’t about which is better — it’s about which is better for your space.

My basement setup made upflow the obvious winner, but for plenty of homeowners with slab foundations or tight crawlspaces, horizontal is the smarter, cleaner install.

Either way, Goodman’s flexible GR9S920603BN design means you’re not locked into one choice — and that’s the kind of peace of mind I like when recommending a system to my customers.”
