When most homeowners think about buying a furnace, they focus on BTUs, AFUE efficiency ratings, and price tags. But there’s another factor that can make or break your installation: the furnace’s orientation.
Should you choose an upflow furnace or a horizontal furnace?
The answer depends on your home’s layout, ductwork design, and available utility space. In this guide, I (Tony) will break it down in plain English, sharing what I learned while upgrading to a Goodman 96% AFUE two-stage, variable-speed furnace.
🔥 Why Furnace Orientation Matters
A furnace’s orientation refers to how air moves through it relative to the furnace’s position. This matters because:
-
Airflow must match your ductwork direction.
-
Wrong fit = extra duct modifications = higher installation costs.
-
Poor orientation can lead to airflow problems, uneven heating, and efficiency losses.
👉 According to Energy.gov, proper installation is as important as furnace efficiency itself. Even a 96% AFUE furnace can perform like an 80% system if installed incorrectly.
⬆️ What Is an Upflow Furnace?
An upflow furnace is designed to pull cool air in from the bottom, heat it, and blow warm air upward into ducts above.
🏠 Common Locations
-
Basements (most common).
-
Closets or utility rooms with overhead ductwork.
✅ Pros of Upflow Furnaces
-
Strong vertical airflow → perfect for pushing warm air through multi-story homes.
-
Easier to install in northern homes with basements.
-
Better maintenance access (easier to change filters, service blower).
-
Often last longer since they’re in conditioned spaces (not exposed to attic heat/cold).
❌ Cons of Upflow Furnaces
-
Requires floor space below duct system.
-
Not suitable for crawl spaces or tight attics.
👉 Example: In my Ohio home (with a basement), an upflow furnace made perfect sense. The ductwork was overhead, and the basement utility room had space.
↔️ What Is a Horizontal Furnace?
A horizontal furnace is placed on its side. Air enters one side, passes through the heat exchanger, and exits out the other side.
🏠 Common Locations
-
Attics in slab-on-grade homes (no basement).
-
Crawl spaces under the house.
-
Tight utility closets where vertical space is limited.
✅ Pros of Horizontal Furnaces
-
Fits tight or shallow spaces where upflow won’t work.
-
Flexible duct connections: left-to-right or right-to-left airflow.
-
Easier retrofit for homes without basements.
❌ Cons of Horizontal Furnaces
-
More difficult to service in cramped attics or crawl spaces.
-
Efficiency may drop if condensate drainage isn’t properly managed.
-
Attics expose the furnace to extreme temperatures, stressing components.
👉 My brother in Texas (slab home, no basement) had no choice—he needed a horizontal furnace in his attic.

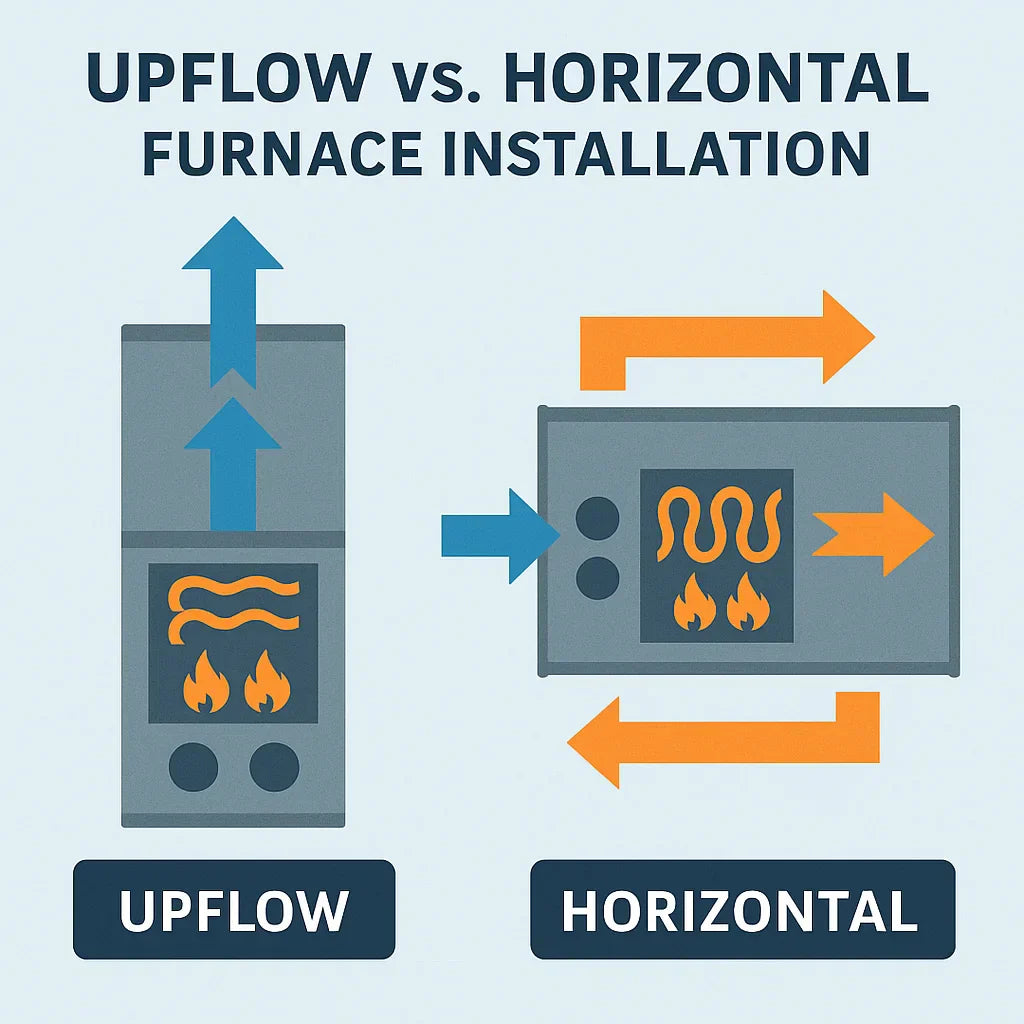

📊 Upflow vs. Horizontal Furnace: Quick Comparison
| Feature | Upflow Furnace ⬆️ | Horizontal Furnace ↔️ |
|---|---|---|
| Airflow Direction | Bottom to top | Side to side |
| Best For | Basements, closets, utility rooms | Attics, crawl spaces, tight closets |
| Space Needs | Vertical clearance | Horizontal clearance |
| Service Access | Easier | Sometimes difficult |
| Ductwork Match | Ducts above furnace | Ducts running parallel to furnace |
| Longevity | Often longer (indoors) | Shorter if in attic/crawl space |
🏠 Which One Fits Your Utility Space?
Let’s break this down by home type and location.
📍 Basement Homes (North & Midwest)
-
Upflow furnace is the best choice.
-
Ductwork usually runs overhead.
-
Easier to service since basements provide space.
📍 Slab Homes (South & West)
-
No basement = furnace goes in attic or crawl space.
-
Horizontal furnaces are more practical.
📍 Small Utility Closets
-
Space limitations often require a horizontal configuration.
📍 Manufactured & Mobile Homes
-
Typically use horizontal, low-profile furnaces designed for compact utility spaces.
🛠️ Installation & Ductwork Considerations
1. Duct Layout
-
Upflow = ducts above furnace.
-
Horizontal = ducts parallel with furnace.
2. Space Requirements
-
Upflow needs tall clearance.
-
Horizontal needs side clearance.
3. Service Access
-
Always leave room for:
-
Filter changes.
-
Blower access.
-
Heat exchanger inspection.
-
4. Condensate Drainage
-
Horizontal furnaces (especially high-efficiency) need proper drain slopes or pumps.
👉 According to ASHRAE, improper condensate drainage can reduce furnace efficiency and shorten equipment life.
💡 Goodman’s Flexible Design Advantage
One reason I like Goodman’s 96% AFUE 60,000 BTU two-stage furnace is versatility.
-
Designed for upflow or horizontal applications.
-
Compact 17.5-inch cabinet → fits tight closets, basements, or crawl spaces.
-
Variable-speed blower maintains strong airflow in any orientation.
👉 Whether you need an upflow in a basement or a horizontal unit in an attic, Goodman makes it easy without needing a different furnace model.
💵 Cost Comparison: Upflow vs. Horizontal Install
Furnace cost depends not only on equipment but also installation complexity.
| Factor | Upflow Install | Horizontal Install |
|---|---|---|
| Average Cost | $2,500–$4,500 | $3,000–$5,000 |
| Ductwork Mods | Lower (ducts usually overhead) | Higher if ducts need rerouting |
| Condensate Drain | Standard | May need pump in attic |
| Service Access | Easier (basement or closet) | Harder (crawl space/attic) |
👉 According to HomeAdvisor, furnace installation typically ranges $3,000–$7,000 depending on labor and ductwork needs.
🏡 Tony’s Experience: Upflow vs. Horizontal in the Real World
-
My house (Ohio): Basement with overhead ducts → chose upflow.
-
My brother’s house (Texas): No basement, slab foundation → needed horizontal attic install.
Both of us used Goodman’s 96 AFUE furnace, just oriented differently.
The result? Both homes got reliable heat, but installation details made all the difference.
🚩 Mistakes to Avoid
-
Choosing the wrong orientation for your ductwork.
-
Ignoring service access—your furnace needs space for maintenance.
-
Skipping condensate drainage planning in horizontal attics.
-
Oversizing the furnace—orientation doesn’t fix poor sizing. (Always do a Manual J calculation.)
✅ Key Takeaways
-
Upflow furnaces are best for basements and multi-story homes.
-
Horizontal furnaces are best for attics, crawl spaces, and tight closets.
-
Always consider ductwork, clearance, and service access.
-
Goodman’s dual-orientation furnaces make installation more flexible and cost-effective.
👉 Bottom line: The right orientation = smoother install, lower costs, and better comfort.
