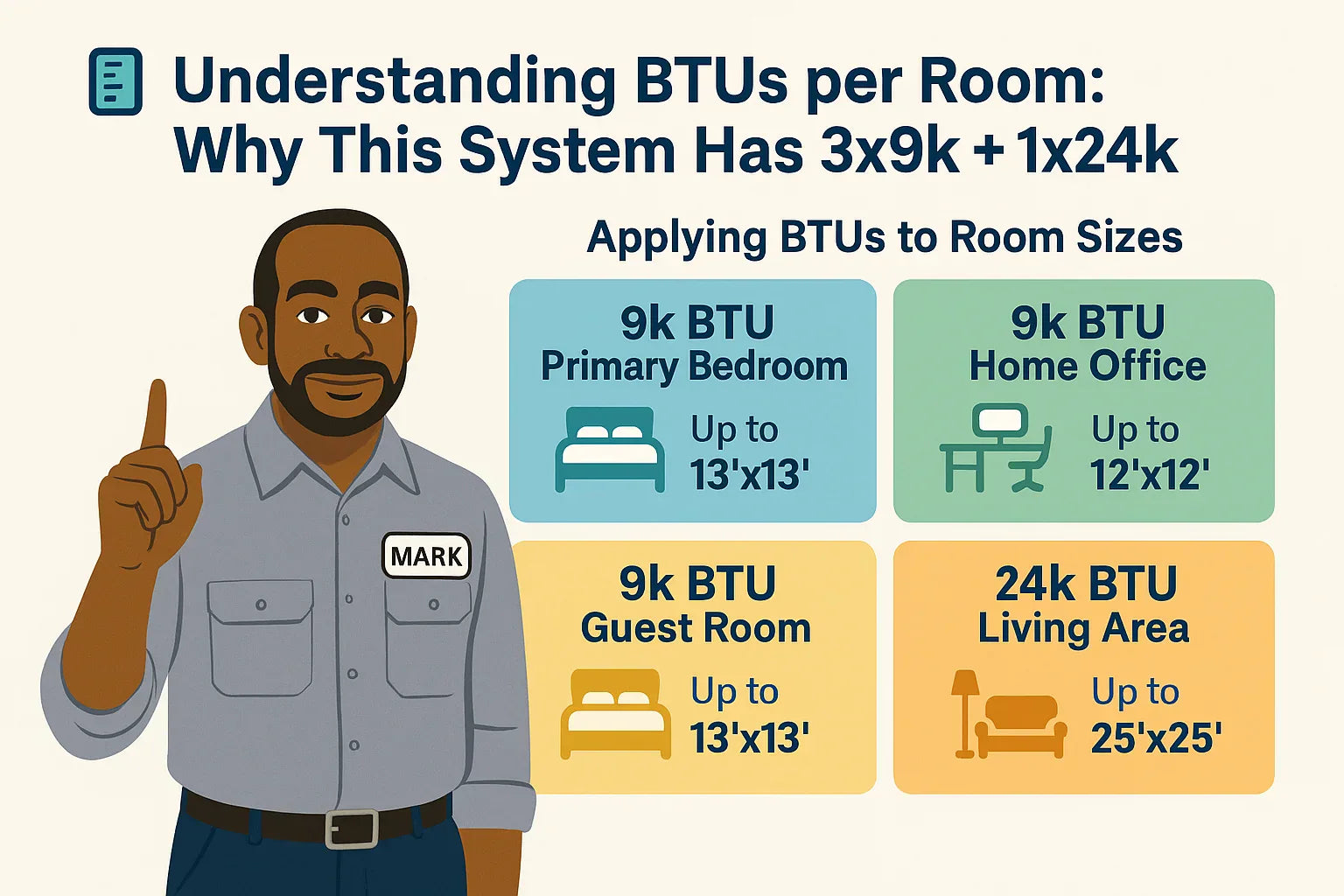

Understanding BTUs per Room: Why This System Has 3x9k + 1x24k

🧠 Why the Right BTU Match Matters

If you're installing a multi-zone system like the MRCOOL DIY 5th Gen 48k BTU 4-Zone (9k+9k+9k+24k), understanding why each zone has its assigned BTU capacity is critical.

Choosing the wrong BTU for a room — even with a system as advanced as MRCOOL — can lead to:

• Hot or cold spots

• Wasted energy

• Short cycling or compressor strain

• Reduced system lifespan

This guide breaks down what 9k and 24k BTUs are designed to cool (or heat), how to match them to room size, and how Mark made sure each zone in his home hit the comfort sweet spot.

---

❄️ What Is a BTU?

BTU stands for British Thermal Unit — the amount of energy needed to raise the temperature of one pound of water by one degree Fahrenheit. In HVAC terms, it measures cooling or heating capacity per hour.

• 1 ton of cooling = 12,000 BTUs/hr

• So, MRCOOL's 48,000 BTU system = 4 tons of capacity

Each zone gets a share of that power:

• 9,000 BTUs x 3 (for smaller rooms)

• 24,000 BTUs x 1 (for large, open area)

---

📐 General BTU Room Sizing Guidelines

According to the U.S. Department of Energy, here's how room size matches BTU capacity under normal insulation and ceiling height (~8 ft):

⚠️ Note: Other factors affect sizing — sun exposure, insulation, ceiling height, and heat-producing appliances.

---

🛏️ Why 9,000 BTUs for Bedrooms and Small Rooms?

The 9k BTU head is the perfect match for:

• Bedrooms (10x12 to 14x14)

• Home offices

• Finished basements

• Guest rooms

• Nurseries

✅ Room Example: Mark’s Guest Bedroom

• Size: 12' x 13' = 156 sq. ft.

• Insulated walls and ceiling

• East-facing window with blackout curtains

BTU need: ~7,000–8,000 → MRCOOL 9k is ideal, with room for sun exposure or a ceiling fan.

🔧 Why Not Use a 12k Head?

• Would overcool the room too quickly

• Cause short cycling, where the unit turns on/off too frequently

• Create humidity imbalance

That’s why MRCOOL intentionally designs systems like the 48k model to include multiple 9k heads — not to save money, but to optimize performance per room type.

---

🖥️ Using a 9k BTU Head in a Home Office

Many people, like Mark, use one zone for a home office. Computers, printers, lighting, and extended occupancy raise heat levels.

A 9k BTU head works great for:

• Office size: 10x10 to 12x14

• Electronics: 200–300W average load

• Occupancy: 1–2 people

🧮 Want to get precise? Use the ENERGY STAR Room AC Sizing Tool

---

🛋️ Why 24,000 BTUs for the Main Living Space?

Now let’s look at the big zone — the living room or open concept space.

Typical Features:

• 700–1,200 sq. ft.

• Vaulted or 9+ ft ceilings

• Connected kitchen or dining area

• High occupancy

• Multiple windows, often facing south or west

In Mark’s home:

• Open living/dining/kitchen = 26’ x 34’ = 884 sq. ft.

• Ceiling = 10 feet

• West-facing windows = afternoon heat gain

Adjusted load calculation:
Base: 884 sq. ft. x 25 BTUs/sq. ft. = 22,100

• Ceiling height, sun, appliances: ~24,000–25,000 BTUs

📎 Source: HVAC Load Calculation Best Practices – ACCA Manual J

---

⚖️ What Happens If You Oversize or Undersize?

🔻 Undersizing (e.g. using a 9k in a large room):

• Inadequate cooling or heating

• Overworked compressor

• Poor humidity control

• System may never shut off

🔺 Oversizing (e.g. using a 24k in a small bedroom):

• Short cycles frequently

• Spikes humidity

• Uncomfortable temp swings

• Increases wear on parts

---

🧊 How MRCOOL’s Inverter Tech Helps Balance BTUs

The variable-speed inverter compressor in MRCOOL’s 5th Gen models allows it to scale output based on demand.

What this means:

• Even if your 24k zone only needs 18k BTUs right now, it will throttle down

• Helps reduce power draw and prevent short cycling

• Makes minor oversizing safer — but only if within 10–15%

So yes, inverter systems are more forgiving — but proper BTU sizing is still your best strategy.

---

🏠 Common Layouts That Fit the 3x9k + 1x24k Setup

---

🧮 Advanced Sizing: Manual J & CFM Per Room

If you want ultra-accurate sizing, consider a full Manual J calculation, which accounts for:

• Geographic location

• Insulation levels

• Window area and direction

• Occupant load

• Internal heat sources

Or use this shortcut:

CFM Rule of Thumb:

• 1 CFM (Cubic Foot per Minute) = 400 BTUs

• A 9k head delivers ~225 CFM

• A 24k head delivers ~600 CFM

So if your room requires more than 250 CFM air delivery, a 9k may be insufficient.

📗 Read more on airflow math at HVAC School’s CFM Guide

---

🧰 Mark’s Final Tips for Room-by-Room BTU Sizing

✅ Bedroom? Stick with 9k BTU unless it's larger than 14x14 or south-facing
✅ Office? 9k is perfect for 1–2 person setups
✅ Open Concept Living Room? 24k is ideal up to ~1,000 sq. ft.
❌ Avoid oversizing just to “be safe” — it reduces efficiency
❌ Don’t split one large space across two heads unless airflow is isolated

---

📌 Final Thoughts: Why the 3x9k + 1x24k Combo Works

MRCOOL didn't randomly choose this 4-zone layout — they designed it around real-world home sizes and typical zone demand. With three 9k heads for individualized spaces and one 24k head for shared areas, it's:

• Efficient

• Flexible

• DIY-friendly

• Smartly balanced

For Mark, it was the just-right solution for a 2,000 sq. ft. single-level home — and it can be for yours too, if the sizing lines up.

In the next topic we will read more about: Can the MRCOOL 48k 4-Zone System Handle Cold Winters and Hot Summers?
