Troubleshooting Guide: What to Do If Your PTAC Isn’t Heating or Coolin

0 comments

👋 Introduction: Mike’s PTAC Problem

Mike had finally gotten used to the year-round comfort of his Amana 12,000 BTU PTAC with heat pump and 5kW electric backup. But one summer afternoon, he noticed the air wasn’t as cool as it should be. Another winter, his backup heater didn’t seem to kick on.

👉 Instead of panicking, Mike followed a step-by-step troubleshooting checklist.

This guide outlines his process—covering the most common PTAC problems, what you can fix yourself, and when it’s time to call in a pro.

🧼 Step 1: Check the Basics

Before diving into complicated repairs, Mike always starts simple.

✅ Quick Checks:

Power Supply: Is the PTAC plugged into the 208/230V outlet?
Breaker Panel: Has the breaker tripped? Reset if safe.
Thermostat Settings: Make sure it’s set to cool or heat mode, not fan only.
Temperature Setting: Ensure the thermostat is set lower (for cooling) or higher (for heating) than the current room temp.

👉 Mike’s Lesson: “Nine times out of ten, the problem is something obvious. Don’t overthink it.”

📎 Reference: Energy Star – Common AC Problems

🧩 Step 2: Airflow & Filter Issues

Clogged or dirty filters are the #1 cause of poor PTAC performance.

🔎 Signs of Airflow Problems:

Weak airflow from vents.
Unit runs constantly but doesn’t heat/cool well.
Higher-than-normal energy bills.

✅ Fixes:

Remove the front grille.
Slide out filters.
Wash with warm water or vacuum dust.
Let dry completely before reinstalling.

👉 Mike’s Tip: “I once went three months without cleaning filters—big mistake. The unit worked twice as hard, and my bills spiked.”

📎 Reference: Energy.gov – Maintaining Your Air Conditioner

🌀 Step 3: Coil & Condenser Problems

PTACs have two critical coils:

Indoor evaporator coil (absorbs heat).
Outdoor condenser coil (releases heat).

❄️ Cooling Mode Issues:

Frozen evaporator coil → ice buildup from low airflow or dirty filters.
Dirty condenser fins → reduced heat release outdoors.

✅ Fixes:

Turn unit off and let frozen coils thaw.
Clean condenser fins with a soft brush or coil cleaner.
Straighten bent fins with a fin comb.

👉 Mike’s Tip: “Frozen coils look scary, but usually it’s just a dirty filter causing it.”

📎 Reference: ASHRAE – HVAC Coil Maintenance

💧 Step 4: Drainage Issues

PTACs remove humidity, producing water (condensate) that should drain outdoors. If that system clogs, it can cause leaks or performance issues.

🔎 Signs of Drain Problems:

Water pooling near the PTAC.
Musty smell indoors.
Reduced airflow.

✅ Fixes:

Remove drain pan and wipe clean.
Use a vinegar-water solution to clear algae buildup.
Check for proper slope in the wall sleeve (slight tilt outward).

👉 Mike’s Tip: “I ignored the drain once and ended up with wet carpet. Now I check it every summer.”

📎 Reference: Energy Star – Cooling System Tips

🔥 Step 5: Heating-Specific Issues

In winter, PTACs use both a heat pump and an electric resistance backup heater.

🔎 Common Heating Problems:

Heat pump runs but blows cool air → outside temp too low.
- Solution: wait for backup heater to engage.
Backup heater doesn’t engage → possible electrical issue.
- Solution: check breaker, call pro if needed.
Unit runs but room stays cold → filters dirty, or airflow blocked.

👉 Mike’s Tip: “Don’t expect the heat pump to do it all in January. The electric backup is there for a reason.”

📎 Reference: Energy.gov – Heat Pump Systems

❄️ Step 6: Cooling-Specific Issues

When summer hits, weak or warm airflow can be frustrating.

🔎 Common Cooling Problems:

Blowing warm air → thermostat mis-set or refrigerant issue.
Unit cycles on/off constantly → oversized or airflow restriction.
Noisy operation → loose parts, clogged filters, or fan issues.

✅ Fixes:

Verify thermostat settings.
Clean filters and coils.
If refrigerant is suspected (low charge, hissing, icy lines), call a pro—never DIY refrigerant.

📎 Reference: EPA – Refrigerant Handling Rules

🔌 Step 7: Electrical Problems

Electrical faults are less common but more serious.

🔎 Warning Signs:

Unit won’t power on.
Breaker trips repeatedly.
Burning smell or sparking.

✅ Action Steps:

Immediately unplug unit if safe.
Reset breaker once.
If issue repeats, call a licensed electrician.

👉 Mike’s Rule: “If it smells like burning, shut it off right away.”

📎 Reference: NFPA – Electrical Safety Code

🚨 When to Call a Pro

Some PTAC issues go beyond DIY fixes.

Call a Technician If:

Refrigerant leak suspected.
Compressor failure (unit hums but doesn’t cool/heat).
Persistent strange odors (mold, burning, chemical).
Grinding or rattling noises that don’t stop.

👉 Mike’s Advice: “If I can’t fix it in 30 minutes with cleaning or resets, I call in a pro.”

📎 Reference: PTAC Repair Costs

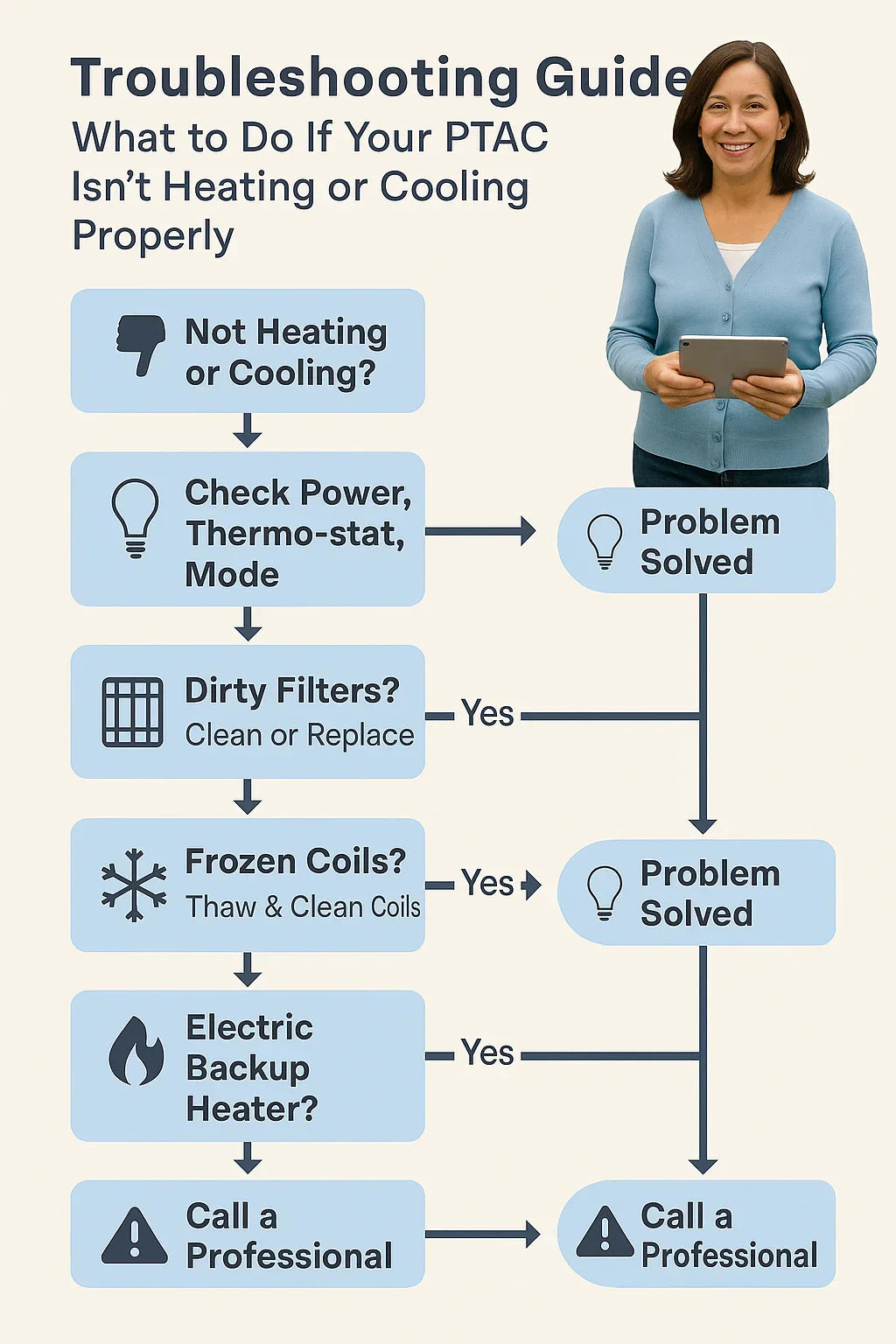

✅ Mike’s Troubleshooting Flowchart

No heating/cooling?
- Check power, breaker, thermostat.
Weak airflow?
- Clean/replace filters.
Unit leaks water?
- Check drain pan & slope.
Blowing wrong temperature?
- Clean coils, test backup heater.
Still not working?
- Call professional.

💵 How Troubleshooting Saves Mike Money

By running through this checklist, Mike avoids unnecessary service calls.

Cleaning filters = 15% lower energy bills.
Coil cleaning prevents $200–$400 repairs.
Catching drainage issues early avoids $300+ water damage.
Troubleshooting basics saves Mike $100+ per service call.

📎 Reference: Energy.gov – AC Maintenance Savings

👨 Mike’s Final Takeaway

“Most PTAC issues come down to airflow or filters. I can fix those in 15 minutes. But if it smells weird, makes strange noises, or trips the breaker—I leave it to the pros.”

👉 Following this simple troubleshooting guide keeps your PTAC running smoothly and prevents panic when it doesn’t heat or cool properly.
