The Amana 9,300 BTU Through-the-Wall Air Conditioner with Electric Heat is built for reliability, but like any HVAC system, it can run into performance hiccups. Maybe it’s not cooling on the hottest summer day, or the heat doesn’t kick in when you need it most.
The good news? Most problems are minor and fixable at home with simple checks. In this guide, I’ll walk you (in true Savvy style) through:
-
Common problems (weak cooling, no heat, leaks, strange noises)
-
DIY fixes you can safely do yourself
-
Red flags that mean it’s time to call in a pro
By the end, you’ll know exactly what to check, what to fix, and when to hand things over to a technician.
❄️ Problem 1: Weak or No Cooling
Symptoms
-
Air feels weak or not cold enough
-
Room never reaches set temperature
-
Ice buildup on coils
Possible Causes
-
Dirty/clogged air filter
-
Blocked airflow (curtains, furniture)
-
Dirty evaporator or condenser coils
-
Wrong mode or thermostat setting
-
Refrigerant leak (pro-level issue)
DIY Fixes
-
Check filter → Pull it out, wash it with warm soapy water, and let it dry.
-
Inspect airflow → Make sure nothing blocks the vents inside or outside.
-
Clean coils → Vacuum gently or use a no-rinse coil cleaner.
-
Check thermostat → Make sure the unit is set to “Cool” with a reasonable temperature.
When to Call a Pro
-
Cooling still weak after filter/coil cleaning
-
Ice on the coils → likely refrigerant problem
-
Electrical buzzing or compressor issues
👉 According to the U.S. Department of Energy, dirty filters and coils are responsible for most AC performance issues
🔥 Problem 2: Heating Not Working
Symptoms
-
No warm air in Heat mode
-
Unit blows room-temperature air
-
Breaker trips when switching to heat
Possible Causes
-
Wrong mode on remote
-
Tripped breaker
-
Faulty heating element
-
Voltage mismatch (unit requires 230/208V)
DIY Fixes
-
Check settings → Ensure it’s in “Heat” mode (not Fan).
-
Reset breaker → If tripped, reset and try again.
-
Inspect power → Verify outlet delivers 230V power (may need electrician).
When to Call a Pro
-
Heating element needs replacement
-
Electrical issues beyond a simple reset
-
Burning smells when heating is on
👉 Many through-the-wall units use electric resistance heating, which is less efficient than heat pumps. If your room never warms up properly, it may be a capacity or wiring issue, not the AC itself.
💧 Problem 3: Water Leaks or Moisture
Symptoms
-
Water pooling inside the room
-
Dripping from front grille
-
Musty smell
Possible Causes
-
Improper tilt (unit should slope slightly outward)
-
Clogged drain holes
-
Excessive humidity (unit runs constantly)
DIY Fixes
-
Check tilt → Adjust so the rear is lower than the front by ~¼ inch.
-
Clear drain holes → Use a pipe cleaner or thin brush to remove debris.
-
Control humidity → Run at lower fan speeds to dehumidify better.
When to Call a Pro
-
Persistent leaks even after cleaning drains
-
Signs of wall/water damage behind the unit
👉 Total Home Supply reports that improper installation tilt is one of the leading causes of wall-unit water leaks
🔇 Problem 4: Strange Noises or Vibrations
Symptoms
-
Rattling or clanking
-
Buzzing or humming
-
Grinding sound
Possible Causes
-
Loose screws or trim
-
Unit vibrating against wall sleeve
-
Debris inside fan or blower
-
Electrical buzzing from motor
DIY Fixes
-
Tighten screws → Check grille, trim, and wall sleeve fasteners.
-
Foam strips → Place between unit and sleeve for vibration dampening.
-
Clean fan blades → Remove dust/debris carefully.
When to Call a Pro
-
Loud grinding (fan motor issue)
-
Persistent buzzing despite cleaning/tightening
👉 Consumer Reports notes that unusual AC noises often indicate loose hardware, which is usually DIY-fixable
⚡ Problem 5: Unit Won’t Turn On
Symptoms
-
Dead display or no fan movement
-
Remote unresponsive
-
No power at all
Possible Causes
-
Outlet issue
-
Tripped breaker or blown fuse
-
Dead remote batteries
-
Faulty power cord
DIY Fixes
-
Test outlet → Plug in another device.
-
Reset breaker → Flip it off and on again.
-
Replace batteries → Simple but often overlooked.
-
Inspect cord → Replace if cracked or damaged.
When to Call a Pro
-
Outlet and breaker work, but unit still dead
-
Internal wiring issue suspected
👉 Home Depot’s troubleshooting guide lists outlet and breaker checks as the first step for any AC not powering up
🌡️ Problem 6: Temperature Doesn’t Match Setting
Symptoms
-
Set to 72°F but feels warmer/colder
-
Unit cycles on/off frequently
-
Uneven comfort in room
Possible Causes
-
Thermostat sensor obstructed (sunlight, lamps, drafts)
-
Dirty filter restricting airflow
-
Incorrect mode (Fan instead of Cool/Heat)
DIY Fixes
-
Relocate heat sources (lamps, electronics) away from unit.
-
Block sunlight shining directly on thermostat sensor.
-
Clean filter → Improves accuracy of cooling/heating cycles.
-
Double-check settings (Cool/Heat vs. Fan).
When to Call a Pro
-
If cycles are very short (possible electrical or refrigerant issue).

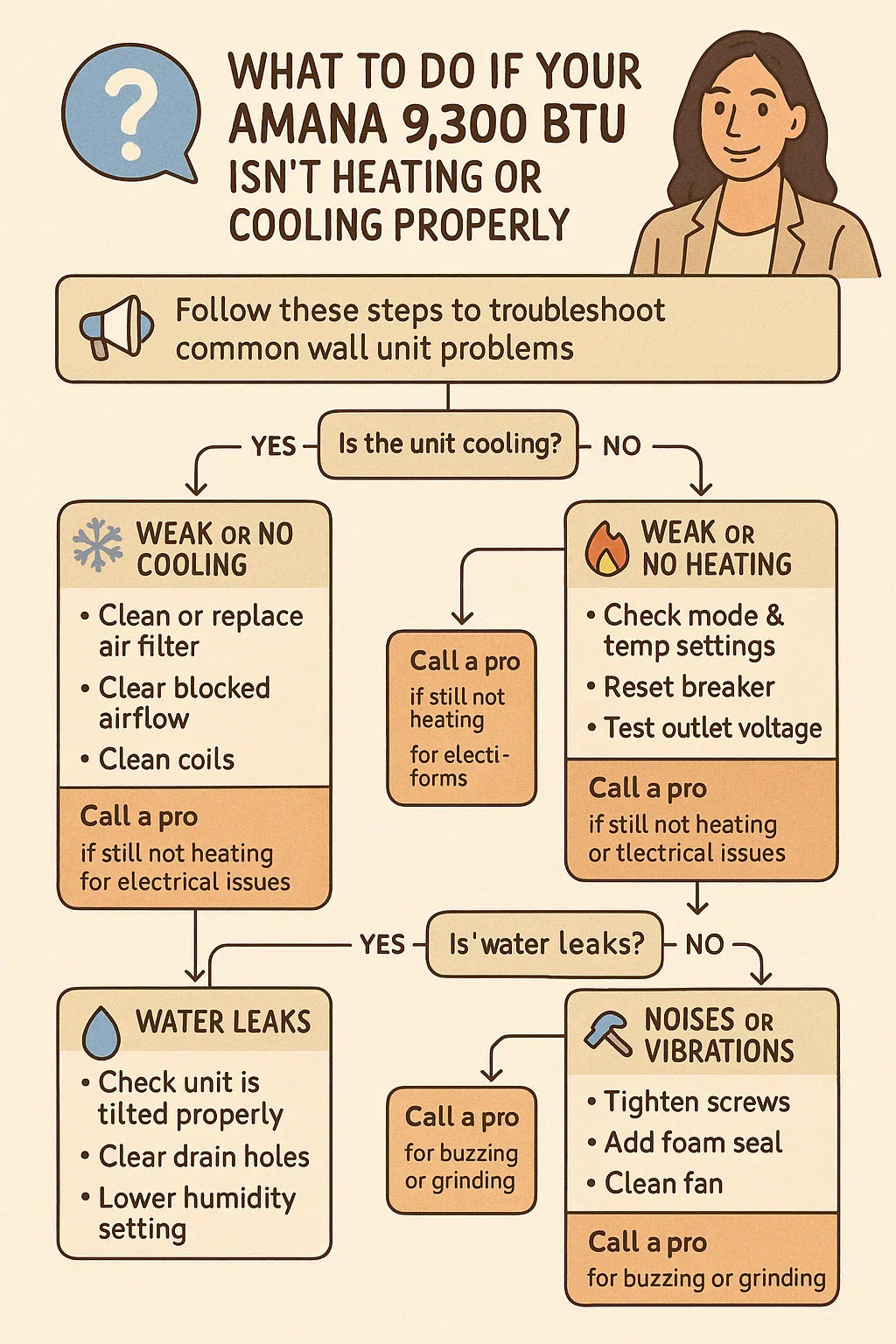

🧰 Savvy’s Step-by-Step Troubleshooting Checklist
Here’s how I walk through issues before calling for service:
-
Filter clean?
-
Coils clear?
-
Drain holes open?
-
Unit tilted outward?
-
Correct mode selected?
-
Breaker and outlet working?
-
Airflow clear (no curtains/furniture)?
If all seven check out and it’s still not working → time to call a pro.
⚠️ When to Call a Professional Immediately
-
Refrigerant issues → requires EPA-certified technician
-
Electrical burning smell → shut off immediately
-
Persistent water leaks → may mean sleeve or wall damage
-
Heating element failure → replacement parts and wiring needed
👉 The Air Conditioning Contractors of America (ACCA) advises annual professional inspections for units like this
✅ Conclusion: Savvy’s Take
Most Amana 9,300 BTU issues boil down to dirty filters, coils, or drainage problems — things you can fix in minutes. Heating failures often point to electrical elements or wiring.
Here’s my golden rule:
-
If it’s airflow, water, or settings → DIY.
-
If it’s wiring, refrigerant, or smells → Call a pro.
With this guide, you’ll know how to restore comfort quickly, or at least know when it’s worth scheduling a service call.
In the next topic we will know more about: Do Wall Units Like the Amana 9,300 BTU Work in Winter? Heating Performance Explained
