This is one of the most frustrating HVAC calls out there:
“The thermostat says it’s calling for heat… but the furnace does absolutely nothing.”
No noise. No blower. No flame. Just silence.
Here’s the truth:
When a thermostat shows a heat call but nothing happens, the problem is almost never random. It’s either power, communication, configuration, or safety logic stopping the furnace from responding.
80,000 BTU 80% AFUE Upflow/Horizontal Single Stage Goodman Gas Furnace - GR9S800803BN
In this guide, I’ll walk you through exactly how a tech diagnoses this, step by step—starting at the wall and working all the way to the furnace.
No guessing. No unnecessary parts.
🧠 What “Heat Call” Actually Means (And What It Doesn’t)
When a thermostat displays “Heating” or “Heat On,” it’s only doing one thing:
👉 Closing a low-voltage circuit (R → W) and asking the furnace for heat.
That’s it.
It does not mean:
-
The furnace received the signal
-
The furnace agreed to run
-
The furnace is safe to operate
The furnace still has the final say.
🔋 Step 1: Check the Obvious Power Problems First
Before touching wiring or settings, confirm the system actually has power.
Quick Power Checklist
-
Furnace service switch ON (looks like a light switch nearby)
-
Furnace breaker ON (not half-tripped)
-
Furnace door panel fully seated (many units won’t run if it’s loose)
If the control board has no LED lights, you don’t have furnace power—no thermostat fix will matter yet.
📎 Furnace basics:
👉 https://www.energy.gov/energysaver/furnaces-and-boilers
🔄 Step 2: The Proper Thermostat Reboot (Not Just Batteries)
Most people “reset” thermostats incorrectly.
Correct Reboot Sequence (Tech Method)
-
Set thermostat to OFF
-
Remove thermostat face or batteries
-
Turn furnace breaker OFF
-
Wait 2 full minutes
-
Restore furnace power
-
Reinstall thermostat / batteries
-
Set thermostat to HEAT
-
Raise temp 5°F above room temp
This clears:
-
Software glitches
-
Communication sync errors
-
Stuck relays
📎 Thermostat fundamentals:
👉 https://www.energy.gov/energysaver/programmable-thermostats
🔋 Step 3: Battery & Voltage Issues (Even “Smart” Thermostats)
Low voltage causes strange behavior—screens work, but signals fail.
Common Battery Problems
-
Batteries test “okay” but drop under load
-
Corroded battery terminals
-
Rechargeable batteries (don’t use them)
Pro Tip
Always install fresh alkaline batteries, even if the display looks fine.
If your thermostat is hardwired, low furnace transformer voltage can cause the same symptoms.
🧩 Step 4: Thermostat Compatibility & Configuration Errors
This one catches DIY installs constantly.
Common Setup Mistakes
-
Thermostat programmed for heat pump instead of gas furnace
-
Wrong system type (1-stage vs 2-stage)
-
Fan control set incorrectly
-
Incorrect cycle rate or anticipator settings
If the thermostat doesn’t know what it’s controlling, it won’t send the right signal.
📎 Manufacturer learning center:
👉 https://www.goodmanmfg.com/resources/hvac-learning-center
🔌 Step 5: Wiring Check (Low-Voltage, High Impact)
You don’t need to be an electrician—but you do need to be careful.
What to Look For
-
Loose R or W wires
-
Broken conductors behind thermostat
-
Incorrect terminal placement
-
Splices pulled loose at furnace control board
Jake’s Rule
If the thermostat lights up but the furnace never responds, suspect R–W communication failure.
🧪 Step 6: The R-to-W Jump Test (Only If You’re Comfortable)
This is the technician’s confirmation test.
What It Does
By jumping R to W at the furnace, you bypass the thermostat entirely.
-
Furnace starts → thermostat or wiring is the problem
-
Furnace still silent → furnace safety or control issue
⚠️ If you’re not confident, skip this step and call a pro.
⚠️ Step 7: Furnace Safety Lockouts Blocking the Call
Even with a perfect thermostat signal, the furnace can refuse to run.
Common Lockout Causes
-
Tripped high-limit switch
-
Pressure switch not closing
-
Ignition failure
-
Flame sensor fault
-
Previous failed start attempts
When this happens, the thermostat can call all day—the furnace won’t answer.
💡 Step 8: Read the Furnace Control Board LEDs
Modern furnaces tell you what’s wrong—if you look.
What to Do
-
Remove lower access panel
-
Observe LED flash pattern
-
Match flashes to diagnostic chart
This reveals:
-
Why the furnace won’t respond
-
Whether the issue is ignition, airflow, or safety related
🌬️ Step 9: Airflow Problems That Stop Heat Calls
Restricted airflow can block heat even before ignition.
Check For
-
Extremely dirty air filter
-
Closed supply vents
-
Blocked return vents
-
Collapsed ductwork
Overheating protection can prevent the furnace from responding at all.
https://www.energy.gov/energysaver/air-conditioner-maintenance
🛑 When to Stop DIY and Call a Pro
Call a licensed HVAC technician if:
-
Furnace has power but never responds
-
You see repeated lockout codes
-
Jump test fails
-
You smell gas
-
CO detector alarms
📎 CO safety reference:
https://www.cdc.gov/carbon-monoxide/about/index.html

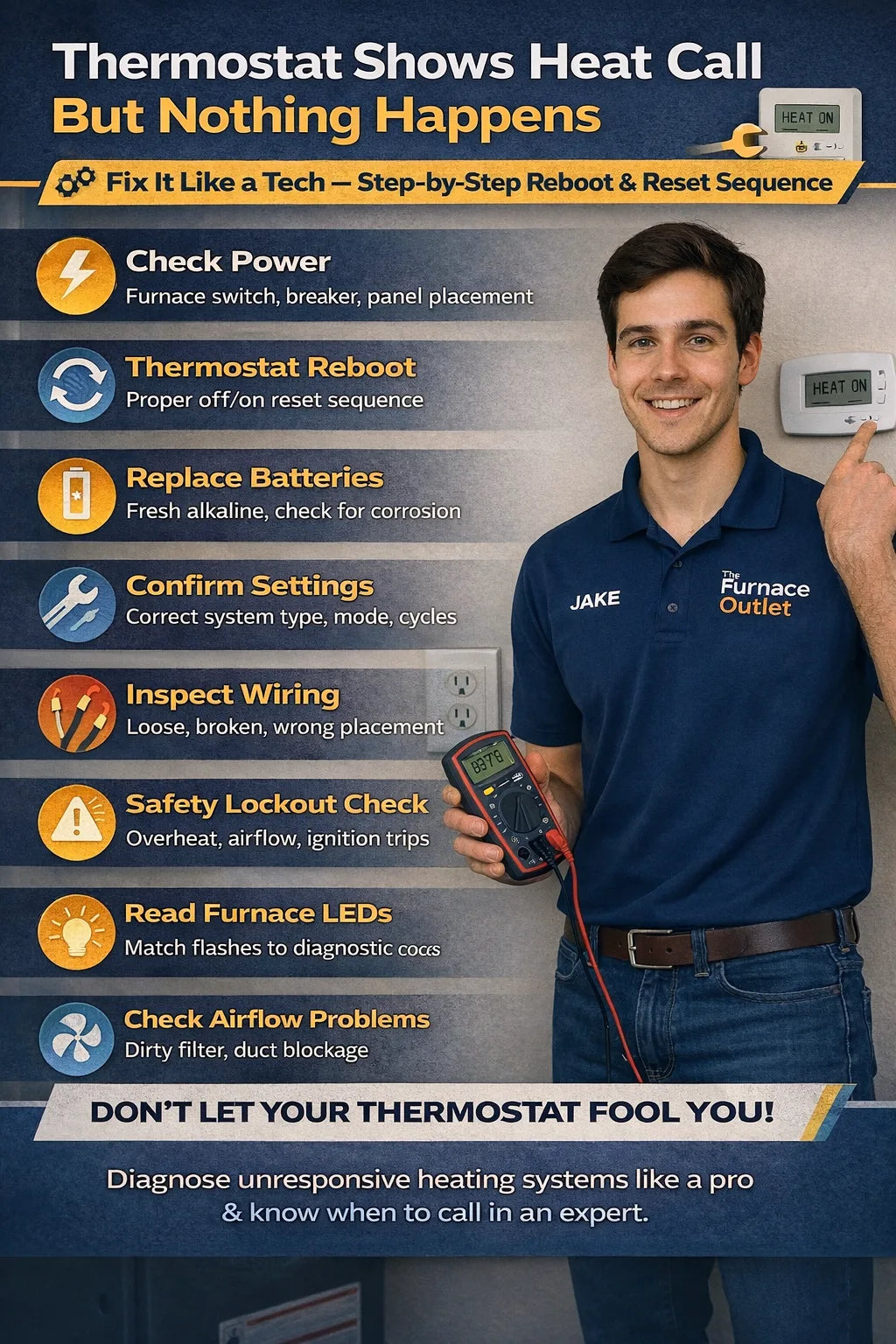

🧠 Jake’s Full Diagnostic Flow (In Order)
-
Confirm furnace power
-
Proper thermostat reboot
-
Replace batteries
-
Verify thermostat configuration
-
Inspect wiring
-
Check furnace safety status
-
Read control board codes
Follow this order, and you’ll never chase your tail.
✅ Jake’s Final Take
When a thermostat calls for heat and nothing happens, the thermostat is rarely lying—but it’s also not in charge.
This problem is about:
-
Communication
-
Configuration
-
Safety logic
-
Power integrity
Fix it like a tech—step by step—and you’ll either restore heat or know exactly why you’re calling for service.
