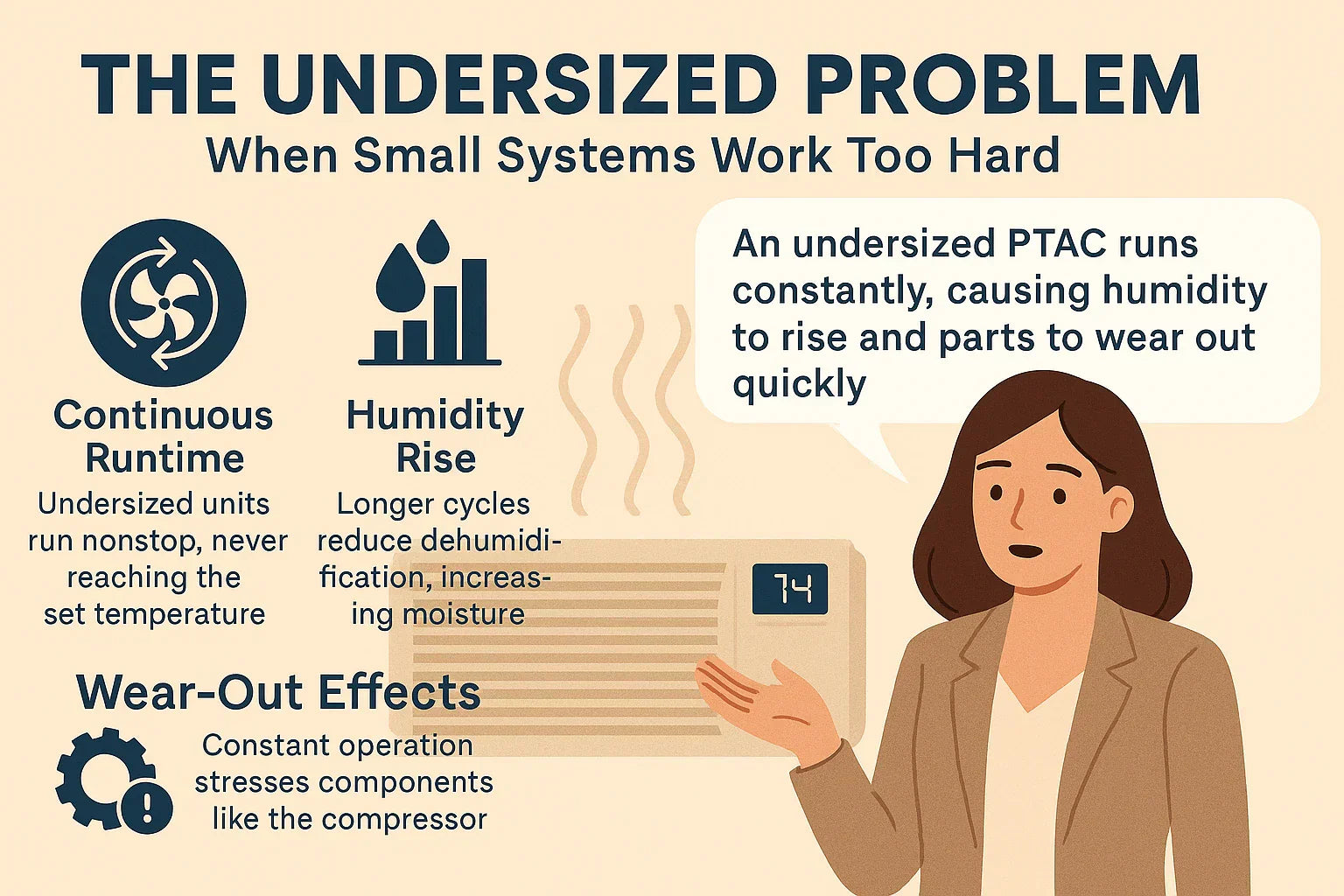

The Undersized Problem — What Happens When You Push a PTAC Too Hard

🧭 Introduction: When “Small and Efficient” Turns Into “Tired and Overworked”

If the Oversized Trap is about too much power, the Undersized Problem is about asking too much from too little.

Many homeowners — and even hotel managers — think a smaller PTAC unit will save energy and money. After all, why not buy a smaller one if it “gets the job done,” right?

But here’s the truth: an undersized system never truly gets the job done.

When a PTAC doesn’t have enough BTUs for the space it’s cooling or heating, it compensates by working overtime — constantly running, burning electricity, and wearing out components prematurely.

The result? Higher energy costs, uneven comfort, and a system that feels like it’s always struggling to catch up.

Let’s break down what happens when your PTAC is just too small for the room it’s trying to condition — and why the Amana J-Series 15,000 BTU PTAC represents the “just-right” solution that avoids both extremes.

---

🔥 Section 1: What Undersizing Really Means

Undersizing happens when your air conditioning or PTAC unit’s cooling capacity (in BTUs) doesn’t match the actual thermal load of your space.

In simple terms:

The room produces more heat than your system can remove.

A 10,000 BTU unit may look powerful on paper, but if you put it in a 500 sq. ft. apartment with direct sunlight, multiple occupants, and cooking appliances, it’s going to be overwhelmed.

📉 Why it’s a problem:

• The thermostat never reaches your set temperature.

• The system runs constantly without cycling off.

• Humidity control plummets, leaving the air sticky and heavy.

• Components experience continuous thermal stress.

Instead of steady, efficient operation, your PTAC ends up sprinting a marathon it can’t finish.

The U.S. Department of Energy’s Sizing Guide explicitly warns:

“A smaller unit running continuously will use more energy than a properly sized system operating in cycles.”

That’s because constant runtime eliminates efficiency breaks — the compressor, fan, and controls never get to rest.

---

💨 Section 2: The Constant-Run Effect — When Cooling Becomes a Marathon

An undersized PTAC doesn’t cycle off; it just keeps running and running, chasing a target temperature it can never quite hit.

🕒 Real-world example:

• Room size: 450 sq. ft.

• PTAC capacity: 9,000 BTU

• Outdoor temperature: 90°F

A correctly sized 12,000 BTU unit might run in 20–25-minute intervals, maintaining a comfortable 74°F.

But the 9,000 BTU system runs for 60+ minutes straight, maybe hitting 76°F at best — and still leaving humidity behind.

⚙️ Why this matters:

Every minute of runtime generates heat within the compressor. Without periodic rest, oil viscosity decreases, metal expands, and wear compounds over time. Bearings, valves, and capacitors all degrade faster under continuous strain.

In HVAC terms, undersizing accelerates mechanical fatigue — a slow death caused by never giving your system a break.

---

🧊 Section 3: Why “It’s Running All the Time” Isn’t a Good Thing

Some homeowners think constant operation means the system is “efficient” because it’s avoiding frequent startups.

That logic might apply to oversized units that short-cycle — but not here.

Here’s why:

An undersized PTAC reaches its capacity ceiling within minutes. Its compressor and fan are already maxed out. Running continuously doesn’t improve performance; it just prolongs strain.

The system eventually reaches a “comfort stall”:

• The air coming out of the vent is cooler than the room — but not by much.

• The thermostat never clicks off.

• You start noticing warm corners and rising humidity.

When this happens, the PTAC isn’t cooling anymore — it’s simply holding the line against rising heat load. That constant battle eats into your electric bill and your unit’s lifespan.

---

💧 Section 4: The Humidity Spiral — A Sticky Situation

Temperature is only half the comfort equation. The other half is humidity control — and undersized units fail here first.

🧬 Why it happens:

To remove moisture from the air, the PTAC’s evaporator coil must stay cold enough for water vapor to condense.
But when your system runs flat-out, the coil’s temperature fluctuates upward over time.
Warm coils = less condensation = higher humidity.

You might still see 72°F on the thermostat, but your relative humidity can spike to 65–70%. That’s when rooms start feeling:

• Muggy

• Sticky

• Slightly “wet” even though they’re cool

The ASHRAE Comfort Standard 55 notes that even at 75°F, humidity above 60% can make spaces feel 4–6 degrees warmer than they actually are.

That means your undersized PTAC isn’t saving energy — it’s tricking your senses into discomfort.

---

⚙️ Section 5: The Energy Bill Irony — Smaller Unit, Bigger Costs

It seems logical: smaller unit = less power draw = lower bill. But in practice, undersizing is one of the fastest ways to waste energy.

Why:

• The compressor never rests.

• Fans run continuously.

• Efficiency ratings (EER) assume cycling, not endless operation.

So even though your PTAC’s label says “9.5 EER,” it performs more like 7.0 EER when it’s running 24/7 under full load.

Example:

According to the ENERGY STAR AC Guide, a properly sized unit can save up to 30% in energy — not because it’s smaller, but because it runs smarter.

When you undersize, your “small” unit ends up working harder and costing more.

---

🧠 Section 6: The Stress Factor — When Components Wear Out Early

An undersized PTAC is like a treadmill runner at top speed with no water break. Eventually, it overheats.

Common stress symptoms:

• Fan bearing failure: friction from non-stop rotation.

• Compressor burnout: winding insulation degrades under constant high temperature.

• Capacitor fatigue: electric surges from prolonged motor engagement.

Every part inside that chassis has a rated duty cycle — and undersizing doubles or triples it. That’s why undersized systems often need repairs within 2–3 years instead of 7–10.

The Amana J-Series PTAC, however, uses high-durability compressors and reinforced fan motors designed for continuous-duty performance. It can handle extended operation safely — but ideally, it shouldn’t have to.

Even Amana’s engineering excellence can’t change physics: the best system still needs the right load to thrive.

---

🧩 Section 7: When Undersizing Happens — and How to Spot It Early

Undersizing often happens unintentionally — usually during replacement or budget decisions.

Common causes:

1. “The old one was smaller, and it worked fine.”
   → Except your insulation, layout, or climate may have changed.

2. Choosing by price tag instead of capacity.
   → A smaller model may look cheaper up front, but the energy cost cancels the savings.

3. Copy-paste sizing.
   → Using hotel-grade PTAC sizing (often 250–300 sq. ft.) in larger apartments.

Early warning signs:

✅ Your PTAC never turns off.
✅ Room feels cool near the vent but warm elsewhere.
✅ Airflow weakens during long operation.
✅ Relative humidity rises through the day.
✅ Electric bills seem higher than expected.

If three or more of these apply, your system is probably undersized for the space.

---

🌡️ Section 8: Savvy’s Test — The PTAC That Tried Too Hard

When Savvy first installed a 9,000 BTU PTAC in her 400 sq. ft. guest room, she assumed she’d be saving power. But within days, she noticed signs of strain.

Test conditions:

• Room: 400 sq. ft., west-facing, moderate insulation

• Outdoor temp: 88°F

• Target: 72°F

Results:

By the end of the week, the smaller unit was loud, hot to the touch, and consuming 20% more power.

“It was like watching a marathon runner sprint all day,” Savvy said. “When I upgraded, the bigger unit didn’t feel stronger — it just felt relaxed.”

That’s the essence of proper sizing: effort that feels effortless.

---

🌬️ Section 9: The Amana J-Series Advantage — Built for Balance

The Amana J-Series 15,000 BTU PTAC Unit is engineered to avoid both extremes — not too weak, not too strong.

⚙️ Technical balance features:

• 15,000 BTU cooling power for 400–500 sq. ft. spaces.

• 3.5 kW electric heat (~12,000 BTUs) for balanced winter performance.

• Variable-speed fan motor that adjusts airflow instead of forcing constant max output.

• Soft-start compressor reduces strain and start-up noise.

• Humidity control algorithms that extend runtime slightly when moisture rises.

This balance means your system operates in its efficiency sweet spot — cycling comfortably without overexertion.

Even during high-load periods (like peak afternoon sun or high humidity), the J-Series maintains steady performance without stress. It’s built to coast, not struggle.

---

🔧 Section 10: Right-Sizing to Avoid the Undersized Trap

✅ The Formula:

BTUs = Room Size × 20

Then fine-tune with real-world factors:

• +10–15% for sunny, west-facing exposure

• +15% for kitchen or high-activity rooms

• −10% for shaded, well-insulated rooms

The Amana J-Series 15,000 BTU PTAC fits neatly into these scenarios — a strong performer that handles load peaks without breaking a sweat.

---

🏁 Conclusion: The Cost of Working Too Hard

Undersizing is one of the quietest killers in HVAC. It doesn’t break your system overnight — it just wears it down one long runtime at a time.

A smaller PTAC might seem thrifty, but when it runs nonstop, fights humidity, and strains to keep up, you end up paying the price in comfort, cost, and lifespan.

That’s why Amana’s J-Series 15,000 BTU PTAC Unit with 3.5 kW Electric Heat is engineered for balance — not brute force.

It’s powerful enough to handle real-world demands, yet efficient enough to rest when the job’s done.

Because the goal isn’t to make your PTAC work harder — it’s to make your space feel better.
