Sizing Smarter for Multi-Room Setups — Can One Wall Unit Do It All?

0 comments

🌬️ When One AC Meets Two Rooms

When I first installed my new wall unit — the Amana 11,900 BTU Through-the-Wall Air Conditioner with Electric Heat — I was confident it could handle my entire open-concept living area.

My living room flowed into a small office nook through a wide archway. The combined space totaled about 470 square feet. “Perfect,” I thought. “If it can cool one big room, it can cool both.”

But two weeks in, I noticed something strange: while my sofa area was crisp and comfortable, my office corner always felt warmer, like the air just… stopped halfway there.

That’s when I learned the truth that every homeowner eventually discovers:

“It’s not just about BTUs. It’s about airflow.”

And that realization turned me into a bit of an airflow detective.

📏 Understanding Why BTUs Alone Don’t Tell the Full Story

Most people (myself included, once upon a time) assume that if your AC has enough BTUs, it can handle multiple rooms.

But cooling power doesn’t automatically translate into air circulation. According to the U.S. Department of Energy, BTUs measure heat removal capacity — not distribution.

In other words, you can have the perfect-sized system for total square footage, but if walls, furniture, or doorways interrupt airflow, some spaces will stay warm while others overcool.

Here’s how I visualized it: imagine your cool air like water flowing through connected containers. The water fills the first container (your main room) easily, but if the opening to the next one is narrow or angled, that second “container” never gets full.

That’s exactly what happens when you expect one wall unit to handle a multi-room setup without planning airflow.

🌡️ Airflow 101 — Why Pathways Matter More Than Power

Air doesn’t magically drift from one room to another — it needs a clear, low-resistance path.

Cool air is heavier than warm air, so it tends to stay low and move slowly across floors. If you have a door frame or corner between rooms, that cool air will hit resistance.

Meanwhile, the warmer air in the adjoining space rises and lingers above, creating a “temperature wall.”

That’s why my living room cooled beautifully while my small office — just 15 feet away — lagged behind by 3–4°F.

The EPA’s guide on improving indoor air quality confirms this: continuous air movement helps distribute temperature and humidity evenly throughout connected zones.

So yes, your wall unit can cool multiple rooms — if you help it move the air.

💨 The “One and Done” Myth — When It Works, and When It Doesn’t

After a month of experimenting, I developed a rule of thumb: a single wall AC can comfortably handle two connected rooms if your total space is under 450–500 sq. ft. and airflow is open.

Here’s what I learned through testing and data logging:

✅ It works beautifully when:

The layout is open, with large doorways or arches.
Total square footage is below 500 sq. ft.
Ceiling height is standard (8–9 ft).
You use fans or vents to circulate air.

❌ It struggles when:

Doors are closed between zones.
One room gets direct sunlight and the other doesn’t.
Furniture or walls block airflow.
The total combined area exceeds 550 sq. ft.

The Amana 11,900 BTU unit handled my living + office setup perfectly once I opened the connecting archway and added airflow assistance.

But when I tried cooling a distant bedroom down the hall? No luck. Air simply doesn’t turn corners well.

The takeaway: one wall unit can cool multiple connected zones, not separate rooms.

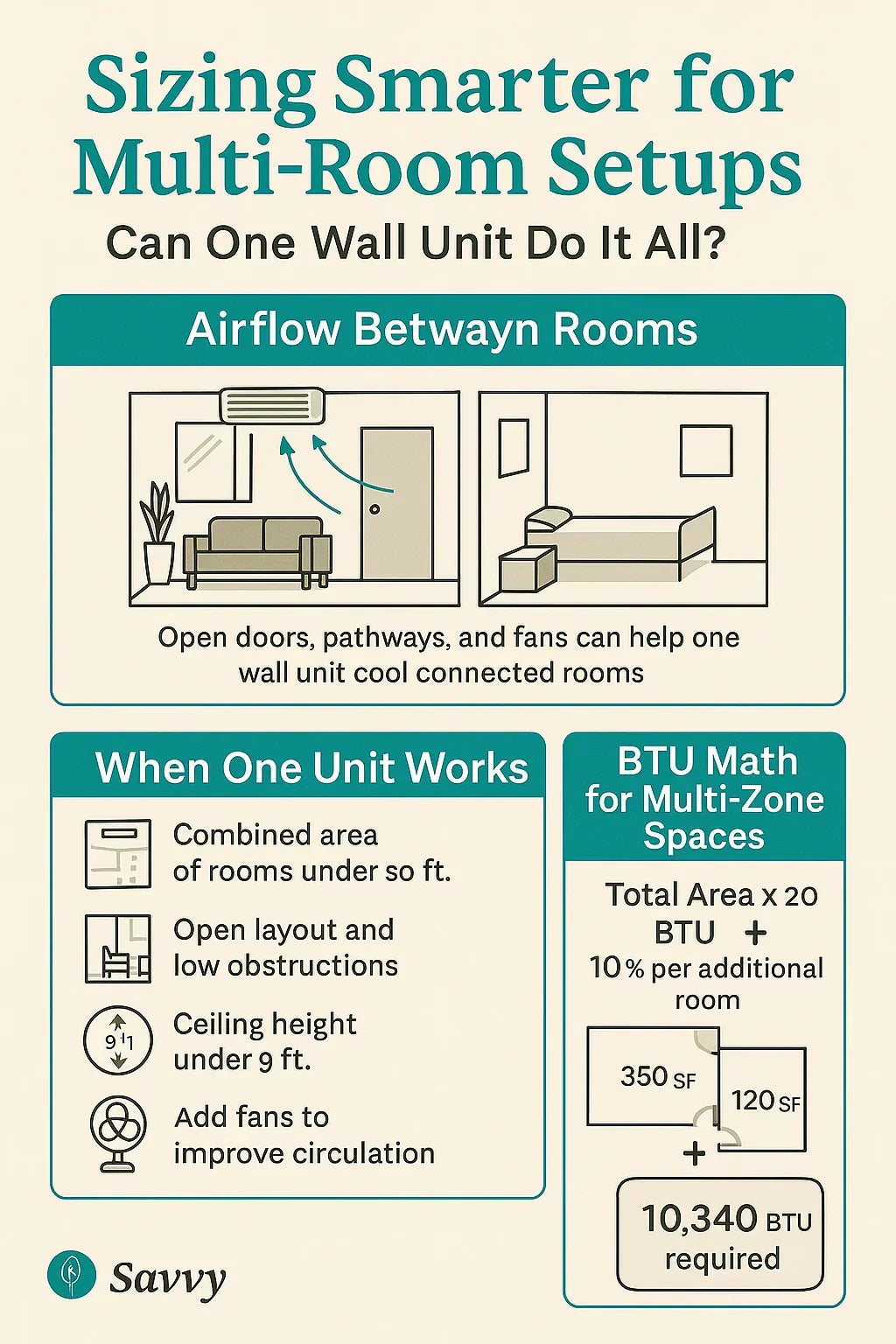

📊 Sizing Math — The Multi-Room Adjustment Formula

If you’re wondering how to size your AC for a space that isn’t one simple rectangle, here’s my go-to DIY method:

(Total Area × 20 BTU) + 10% per additional room = Ideal Cooling Capacity

Let’s use my space as an example:

Living room: 350 sq. ft.
Office nook: 120 sq. ft.
→ Combined: 470 sq. ft.
470 × 20 = 9,400 BTUs
+10% (extra zone) = 10,340 BTUs minimum

That puts me right in the sweet spot for the Amana 11,900 BTU unit. It had just enough headroom to cool efficiently without cycling too fast.

This method is simple, but surprisingly accurate. It accounts for the extra energy required to push conditioned air across adjoining areas.

⚙️ Smart Airflow Hacks That Actually Work

After some trial and error (and a few sweaty afternoons), here’s what made the biggest difference for my setup:

1. 🔄 Cross-Ventilation Is Your Best Friend

Keep doors between connected rooms open. This allows cool air to move out and warm air to return naturally, maintaining balance.

2. 🌪️ Use a Fan as an Air Bridge

A small oscillating fan placed in the doorway helps move cool air into the next room. Set it to a low, continuous speed — no need for turbo mode.

3. 🪟 Mind the Windows

If one of your rooms gets more direct sunlight, install blackout curtains or reflective film. Uneven heat gain can make your AC work twice as hard.

4. 🧱 Seal the Boundaries

Close off unused hallways or doorways during cooling hours. This keeps your system focused where you need it most.

5. 🌡️ Track the Data

I used a digital thermometer and hygrometer to monitor both zones. Once humidity dropped below 50% and the temperature evened out, I knew my airflow was dialed in.

Even the Energy Star installation guide notes that proper unit placement and airflow control can improve efficiency by up to 20%.

🧊 The Science of Multi-Zone Comfort

Multi-room cooling isn’t just about air — it’s about how your unit handles load balance.

When one room absorbs more heat (from sun or electronics), your AC naturally prioritizes that load. The airflow distribution shifts, cooling the hotter room more aggressively.

The result? Uneven comfort unless you manage it.

With my Amana, I noticed it ran longer on sunny days to balance both spaces — but still used less power than expected.

That’s where the CEER (Combined Energy Efficiency Ratio) comes in. The Amana’s 10.5 CEER rating means it delivers 10.5 BTUs of cooling per watt-hour, including standby losses.

According to the U.S. Energy Information Administration, higher CEER-rated systems can save homeowners up to $50–100 per season depending on climate.

Efficiency pays — especially when your AC covers extra ground.

💧 Managing Humidity Across Rooms

What surprised me most wasn’t temperature, but moisture.

In single-room setups, dehumidification happens naturally as air cycles continuously. But when air spreads across multiple zones, humidity equalization takes longer.

I used a hygrometer to test both rooms over a week:

Zone	Before Airflow Fix	After Fan Assist
Living Room	49%	47%
Office Nook	58%	48%

The improvement was instant.

The Amana’s steady cooling cycles (no short bursts) kept moisture levels balanced and the air crisp — no stickiness, no musty feel.

🧠 When It’s Time to Upgrade or Add a Second Unit

Even with perfect airflow tricks, there’s a limit.

If your total cooling area exceeds 550 sq. ft., or you’re dealing with multiple enclosed rooms, it’s time to think zoned.

You’ve got two options:

Add a second through-the-wall AC (like another Amana in a back bedroom).
Switch to a multi-zone mini split for seamless room-by-room control.

Zoned systems prevent the overwork and short cycling that happen when one unit is stretched too thin.

The U.S. Energy Information Administration reports that zone cooling can reduce energy use by up to 30% compared to single oversized systems.

⚡ Power Draw and Efficiency — The Real Numbers

Here’s what my actual energy use looked like before and after optimizing airflow:

Setup	Area Covered	Runtime	Power Use	Bill Impact
Single Room (350 sq. ft.)	6 hrs/day	550 kWh/month	$58
Multi-Room (470 sq. ft.)	6.5 hrs/day	610 kWh/month	$63

For an extra 120 square feet, my Amana only drew about 10% more power — a small price for full comfort coverage.

That’s because efficient units like this maintain steady operation instead of cycling on and off repeatedly (which wastes energy).

🔧 Maintenance Tips for Multi-Room Systems

When you’re cooling multiple zones, maintenance becomes even more important.

Savvy’s routine checklist:

Clean filters every two weeks. Airflow resistance compounds when stretching coverage.
Vacuum coils once a month. Keeps efficiency high and humidity control steady.
Inspect wall seals annually. Air leaks can drastically reduce performance.

The EPA’s Indoor Air Quality guide emphasizes that clean systems perform better and maintain airflow stability longer — crucial for multi-room use.

🧰 Savvy’s Multi-Room Comfort Toolkit

Here’s what I now keep on hand to manage my space efficiently year-round:

🧮 Laser measuring tool – to calculate cubic footage and zone area.
🌡️ Digital hygrometer/thermometer – to track temperature balance.
🌪️ Oscillating fan – my MVP for airflow bridging.
⚡ Smart plug power monitor – measures energy draw and runtime.
🧴 Weatherstripping & foam seal kit – keeps conditioned air in place.

It’s amazing how a few small accessories can transform one wall AC into a whole-home comfort solution.

🏡 The Savvy Takeaway — Think Like Air

After a full summer of testing, tracking, and tinkering, here’s what I’ve learned:

One well-placed wall unit can absolutely handle more than one room — if your layout allows it.
BTUs tell you power; airflow tells you reach.
Fans and smart ventilation are the secret ingredients.
Open concepts benefit most from single-unit efficiency.
And most importantly, measure everything. Comfort is a science you can see, feel, and calculate.
