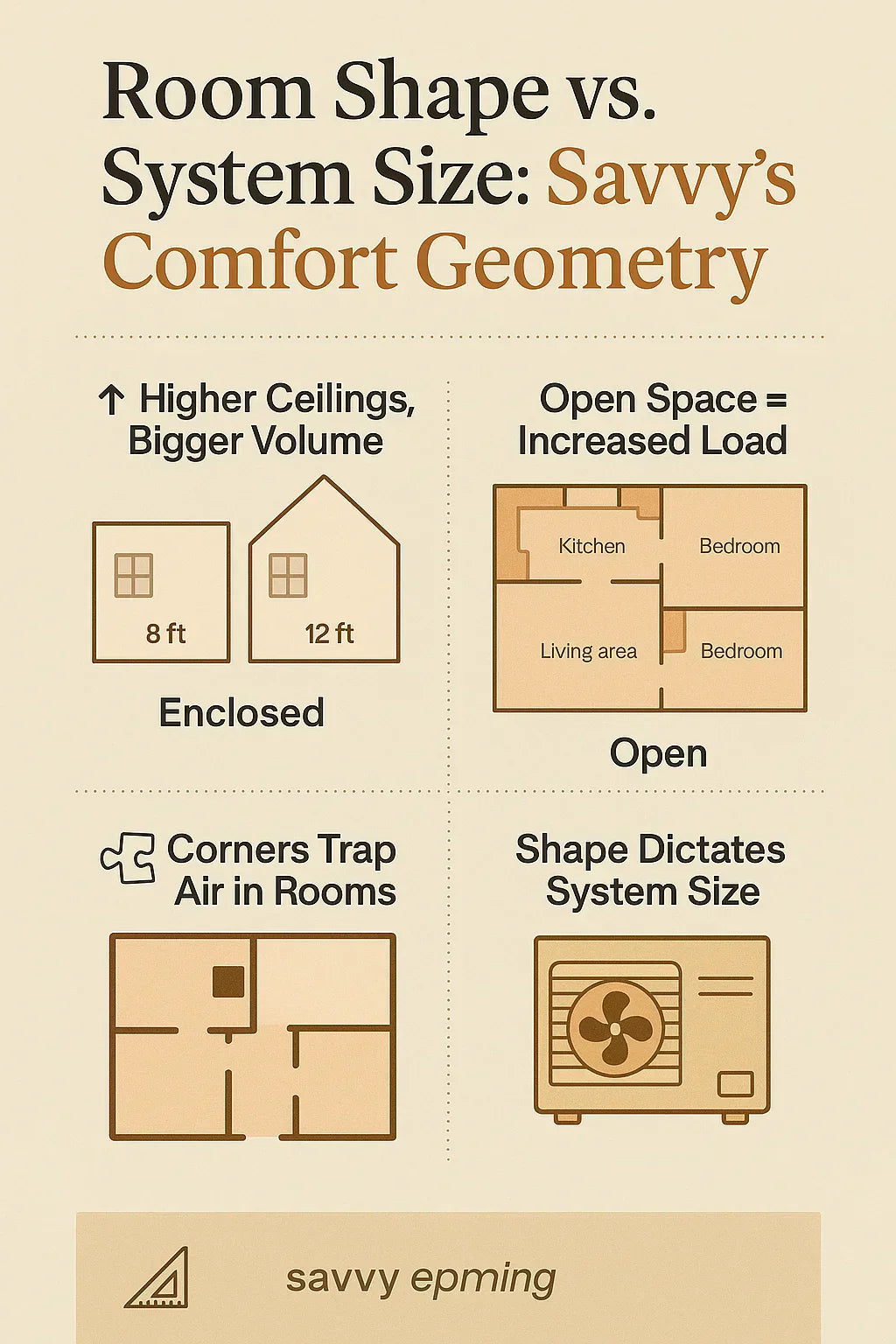

Room Shape Matters — How Ceilings, Corners, and Open Layouts Change Your System Size

🌡️ When Square Footage Lies: Why Shape Changes Everything

You’ve probably heard it a hundred times: “Just multiply your home’s square footage by 20 to get your cooling BTUs.”

That formula works for cookie-cutter homes—but modern layouts, vaulted ceilings, and open concepts have rewritten the HVAC rulebook.

Why? Because your home’s shape dictates airflow, and airflow dictates how efficiently your system conditions every cubic inch of air.

A compact 1,500-square-foot ranch might stay perfectly cozy with a 2.5-ton system, but a 1,500-square-foot loft with 12-foot ceilings could need an entire ton more cooling power.

Let’s break down the geometry of comfort—and why room shape is just as important as size when you’re choosing your next HVAC system.

Grab your BTU Calculator Tool—we’ll use it throughout this guide to help you visualize how small architectural changes reshape your system requirements.

---

🧱 1. Ceiling Height: The Hidden Volume Multiplier

When you walk into a room with high ceilings, you can feel the difference—there’s more open air, more echo, and often, more heat.

That’s because HVAC systems don’t cool square feet—they cool cubic feet.

📐 Why Volume Matters

If your living room has a 12-foot ceiling instead of the standard 8-foot, that’s 50% more air to heat or cool.

• 8 ft ceiling: 1,000 sq ft × 8 = 8,000 cubic ft

• 12 ft ceiling: 1,000 sq ft × 12 = 12,000 cubic ft

That’s an extra 4,000 cubic feet your system must condition.

Now imagine this volume across your entire first floor—it’s like asking a 3-ton system to do the job of a 4-ton without upgrading its capacity.

🔧 The Rule of Thumb

Add 10% extra BTUs per foot of ceiling height above 8 feet.

Example:
If your BTU requirement was 36,000 (3 tons) for an 8-ft home, and you have 10-ft ceilings, you’ll need roughly 39,600 BTUs (3.3 tons) of cooling.

That’s why open great rooms and vaulted ceilings are comfort black holes without careful sizing or zoning.

---

🌬️ 2. The Stack Effect: Why Heat Rises (and Cold Air Gets Lost)

The stack effect is HVAC’s arch-nemesis in tall spaces. Warm air naturally rises and collects near your ceiling, leaving cooler air below.

In a home with a 10–12 ft ceiling, this creates two distinct thermal zones:

• Upper air = 5–10°F warmer

• Lower air = comfortable but inconsistent

When your thermostat is placed mid-level, it senses warmth and keeps running your system—wasting energy to cool air you’ll never feel.

🧭 Savvy Tip: Circulate Intelligently

Ceiling fans and variable-speed blowers can help redistribute trapped air. The Energy.gov guide on ceiling fans recommends switching fan direction seasonally—counterclockwise for summer, clockwise for winter—to move heat evenly.

---

🧊 3. Corners & Compartments: The Airflow Traps You Don’t See

Corners are comfort killers.

Every bend or narrow hallway interrupts airflow, creating stagnant zones where conditioned air never fully circulates. That’s why small bedrooms off large living rooms often feel hotter or colder than the rest of the house.

🌀 The Physics of Corners

Air velocity drops sharply when it hits a solid surface. If your vent blows directly toward a wall or furniture, the air rebounds and swirls—never making it into the room evenly.

This effect compounds in multi-corner spaces or homes with irregular layouts.

🔍 Savvy Fixes:

• Use deflector grilles or vent diverters to redirect airflow.

• Keep 3–4 feet clear around supply vents.

• Add return air ducts in closed-off rooms to equalize pressure.

According to ENERGY STAR’s air distribution guidelines, balancing airflow can improve comfort by up to 20% without upgrading your equipment.

---

🏡 4. Open Concepts: Big Rooms, Bigger Loads

Open-concept designs are stunning—but they break traditional HVAC zoning rules.

One thermostat can’t control multiple thermal zones effectively. While your kitchen warms from cooking, your living area might cool off rapidly under ceiling fans or direct airflow.

💡 Why It Matters:

An open kitchen-living space can add up to 300–500 square feet of shared air volume to your load calculations. That means your 2.5-ton system might need to bump up closer to 3 tons to handle both zones simultaneously.

🔧 Savvy Solutions:

1. Add Zoning Dampers: These motorized vents allow your system to adjust airflow to specific areas.

2. Smart Thermostats: Models like the Google Nest Learning Thermostat can detect uneven heating/cooling and self-adjust.

3. Dual-Stage Systems: The Goodman 15.2 SEER2 can ramp up or down depending on demand—ideal for open layouts that fluctuate throughout the day.

---

🌞 5. Sunlight, Skylights, and South-Facing Surfaces

Every ray of sunlight that enters your home becomes heat your air conditioner must remove.

South- and west-facing rooms are notorious for spiking cooling demand, especially with large windows or skylights.

☀️ Real-World Impact:

A study by the Lawrence Berkeley National Laboratory found that untreated windows can increase indoor load by 15–25% in sunny climates.

Even reflective low-E glass or window films can reduce that gain by up to 30%, saving both energy and system strain.

Savvy Advice:

• Add 10% BTU capacity for heavily sunlit or skylight-heavy rooms.

• Subtract 10% for shaded or north-facing homes.

• Use light-colored blinds or shades to cut solar load during the hottest hours.

---

🪟 6. Walls, Nooks & Angles: How Architecture Warps Airflow

Ever noticed how one corner of your living room stays colder? Or how the upstairs hallway feels warmer no matter what you set the thermostat to?

That’s architectural airflow at work.

Irregular wall angles, partial partitions, and staircases alter how air mixes in your home. These features may seem small, but they can throw off your system’s static pressure balance—the equilibrium your ducts rely on to distribute air evenly.

🧠 Quick Insight:

Each 90° bend in ductwork or each added corner increases friction loss, lowering your effective airflow. If your home’s design forces multiple turns or narrow vents, you’ll need a system capable of maintaining higher static pressure—like Goodman’s variable-speed blower design.

---

🔍 7. The Math: When Volume Outweighs Square Feet

Let’s visualize how dramatically layout changes system load.

Notice how square footage stays constant, but layout alone changes load by up to 7,000 BTUs—enough to shift your system size category.

This is why relying solely on square footage almost always leads to oversizing or undersizing.

---

🧮 8. How to Recalculate with the BTU Calculator Tool

Pull up the BTU Calculator Tool. Instead of just inputting square footage, explore its “Advanced Settings.”

You’ll find sliders for:

• Ceiling height

• Sunlight exposure

• Room shape

• Window count

Try entering a 1,500 sq ft room with 10-ft ceilings and open layout—it’ll automatically bump your BTUs by 15–20%.

That’s exactly the kind of real-world precision you need to prevent comfort gaps.

---

🧰 9. The Ductwork Connection: Matching Shape to Flow

Even if your system is perfectly sized, ductwork can bottleneck performance if it doesn’t match your home’s shape.

In an open floor plan, longer runs and higher airflow demands require larger duct diameters. Conversely, boxed rooms may need smaller ducts to balance velocity.

According to Energy.gov’s duct design guidelines, properly sized ducts can improve HVAC efficiency by 20% or more.

Savvy Tip: If your system “roars” in one room and whispers in another, you don’t have a system problem—you have a duct design problem.

---

🧩 10. Real-Life Example: The Loft vs. The Ranch

Scenario A: 1,600 sq. ft. ranch home, 8-ft ceilings

• Closed rooms, moderate sunlight

• 36,000 BTUs (3 tons)

Scenario B: 1,600 sq. ft. loft, 12-ft ceilings, skylights

• Open floor plan, high sun exposure

• 43,200 BTUs (3.5–4 tons)

Same footprint. Same insulation. Different shape.

Homeowners in Scenario B often find that their system struggles—not because it’s weak, but because it wasn’t sized for the extra air volume.

A variable-speed Goodman system helps adapt to this challenge, modulating between 70% and 100% capacity automatically.

---

🧠 11. Savvy’s Mythbusters: “One Thermostat Fits All”

Think of temperature like sound—it bounces, travels, and dissipates differently depending on the room’s shape.

A single thermostat in a large, L-shaped or vaulted space only reads part of your comfort story.

✅ Smart Fixes:

• Install remote temperature sensors (like the Nest Room Sensor).

• Add a second thermostat for multistory homes.

• Balance with return vents high and low on walls to stabilize pressure.

This simple adjustment often feels like a system upgrade—without replacing a single piece of equipment.

---

🧭 12. Design Smarter: Matching Systems to Modern Architecture

Today’s homes are more complex:

• Open living/kitchen/dining combos

• Loft-style upstairs bedrooms

• Home offices with high heat load from electronics

To stay efficient, your HVAC system needs flexibility.

---

🧾 13. Savvy’s Final Checklist: Shape-Savvy System Sizing

✅ Measure ceiling height in every major zone
✅ Add 10% BTU per foot above 8 ft
✅ Subtract 10% for excellent insulation
✅ Account for south-facing glass or skylights
✅ Check duct layout for long or angled runs
✅ Use zoning or variable-speed systems for open layouts

These six steps can mean the difference between “almost comfortable” and “perfect all year long.”

---

🏁 Conclusion: Comfort Isn’t Flat — It’s 3D

Your home isn’t a blueprint—it’s a 3D space full of variables.
Every ceiling, corner, and open area changes how air behaves.

When you size your system to your home’s shape, you:

• Eliminate temperature swings

• Reduce runtime

• Extend equipment life

• Cut utility bills

So before you sign off on your next HVAC installation, take one last look upward—and around.

That vaulted ceiling or open kitchen might just change the equation.

For the perfect balance of efficiency and power, explore the Goodman 3 Ton 15.2 SEER2 Air Conditioner + 80,000 BTU Gas Furnace System—a system built for homes that think vertically, not just squarely.
