Key Takeaways
-
PTACs are self-contained units that fit through exterior walls.
-
Each room gets its own control, saving energy.
-
Offers cooling plus electric, heat-pump, or hot-water heating.
-
No ducts—just a wall sleeve, power, and caulk.
-
Clean filter and coils regularly for best performance.
Why PTAC Units Matter in Everyday Comfort
Imagine a hotel where every guest wants a different temperature. A central air system would struggle, but a PTAC lets each room pick its own setting. That same idea helps apartment renters, student dorms, and senior-living residents feel “just right” without heating the whole building. In U.S. buildings with lots of small, separate spaces, PTAC units save energy and shrink installation budgets because one compact box does the job of both a furnace and an air conditioner.
In this guide you’ll see how PTACs work, why they’re popular, and what to know before buying or maintaining one. Everything is written in plain language, with pro-level tips sprinkled in so you get answers you can trust. By the end, PTAC units explained won’t be a mystery—it will be a practical option you can compare with any other HVAC choice.
Explore hotel-grade PTAC systems built for guest comfort.

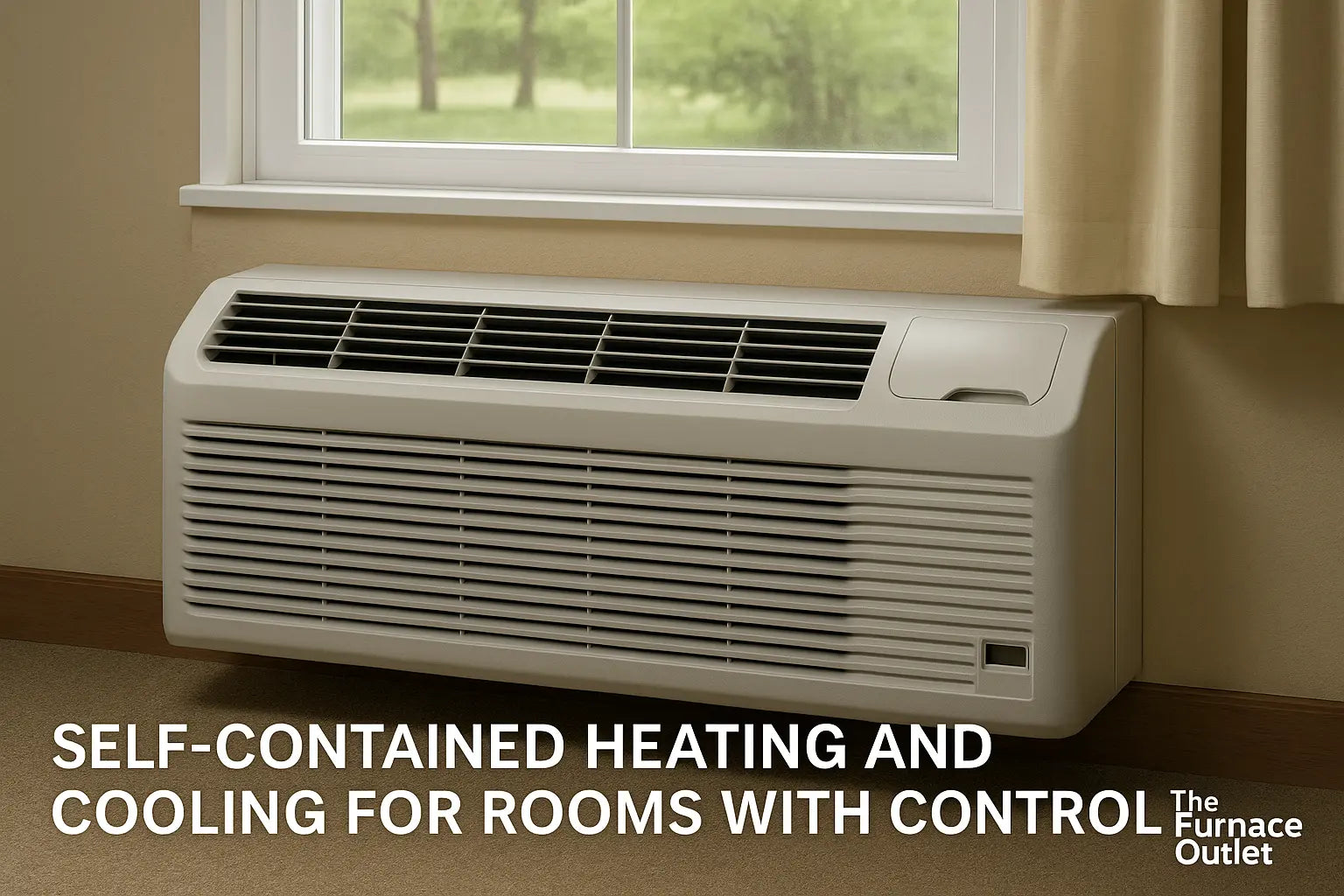

PTAC Basics: What “Packaged Terminal Air Conditioner” Really Means
“Packaged” tells you all the parts—compressor, fans, coils, controls—live in one metal cabinet. “Terminal” means the unit sits at the edge of the room, right in an exterior wall slot, so it can grab outdoor air for heat rejection or fresh-air intake. Because the box is sealed, there are no long duct runs to lose heat in winter or pick up humidity in summer. That tight footprint is why builders slip PTAC sleeves under windows: it keeps the façade tidy while freeing up floor space indoors. Unlike window A/Cs, a PTAC is semi-permanent; it screws into a wall sleeve and plugs into a dedicated 208–230 V receptacle, meeting U.S. electrical codes for safety. For more background, check “PTAC 101: What Is a PTAC Unit and Who Needs One?”.
Inside the Box: Key Components and How They Work Together
At the heart of every PTAC is the refrigeration loop. A compressor pumps refrigerant through the system: first to the indoor evaporator coil, where it absorbs heat from room air, then to the outdoor condenser coil, where that heat is released outside. Two separate fans move air on each side; baffles keep the airstreams from mixing. A reversing valve (in heat-pump models) flips the loop for heating season. PTACs also pack electric resistance heaters or optional hydronic coils for buildings with central boilers.
A microcontroller ties everything together, reading the thermostat, cycling the compressor, and modulating fan speed to hit the setpoint within 1 °F. Because all parts are factory-matched, technicians rarely need to adjust refrigerant charge in the field—one reason PTACs maintain consistent performance over years with minimal tune-ups.
Cooling Mode Explained: From Hot Room Air to Cool Relaxation
When a PTAC switches to cooling, its indoor fan pulls warm, humid air across the evaporator coil. The refrigerant inside is colder than the room’s dew point, so moisture condenses and drains away—this dries the air and makes 75 °F feel comfortable even at high outdoor humidity. Meanwhile, the compressor pushes hot, high-pressure refrigerant to the condenser coil exposed to outside air. A second fan ejects that heat outdoors, completing the cycle. Many modern PTACs now use R-32 refrigerant, which has about one-third the global warming impact of older R-410A while still delivering strong cooling capacity. For real-world numbers, The Furnace Outlet’s R-32 hotel case study logged a 22 % kWh drop after swapping out legacy PTACs.
Heating Options: Electric, Heat Pump, or Hydronic—Which Fits Your Room?
Most PTAC models give you three heating choices. Electric resistance coils are simplest: wires heat up when current passes through. They work anywhere but draw more power in cold climates. Heat-pump PTACs flip the refrigeration loop, scavenging warmth from outdoor air even when it’s 35 °F outside. They use about one-third the electricity of resistance heat at those temps. Finally, hydronic coils tap a building’s hot-water or steam network; the PTAC’s fan blows room air over the coil, much like a tiny radiator with a blower. Hotels in northern states often pair heat-pump PTACs with a resistance backup for sub-freezing nights. Choosing the right type depends on your local utility rates, boiler availability, and winter design temperature.
Browse PTAC heat pumps for reliable cold-weather performance.
Top Benefits for Hotels and Guest Suites
Hotel owners love PTACs for one big reason: independent room billing. When a guest checks out, housekeeping can turn the unit off and stop conditioning an empty room. Occupancy sensors built into many models do this automatically. Modern units also ship with quiet, variable-speed indoor fans that keep night-time noise under 45 dB-A—important for good reviews.
If you manage hospitality properties, see “Hotel Room Air Conditioners: Tony’s No-Nonsense Guide to Keeping Guests Cool and Comfortable” for sizing tables and SEER2 comparisons. Guests feel in control, while owners trim energy costs and avoid ductwork maintenance.
PTAC Advantages for Apartments, Condos, and Senior Living
Renters want simple thermostats and fast service calls. PTACs deliver both: if a unit fails, the landlord can swap it out in under an hour because each room’s system is isolated. There’s no need to cut drywall or recharge refrigerant lines elsewhere in the building. Seniors appreciate the large, intuitive controls and the ability to run mild fan-only mode for fresh air without changing the temperature. Buildings with variable occupancy—think college dorms over summer break—benefit too; you can idle unused rooms and slash utility bills without touching occupied spaces. Community managers often highlight PTAC efficiency upgrades in lease listings, leveraging lower bills as a selling point.
Check out through-the-wall heat pumps for simple, efficient comfort.
Installation and Placement: Simple Steps for a Trouble-Free Fit
A PTAC sleeve must sit square and level in the wall, with outside louvers at least 6 inches above grade to keep snow, mulch, or leaves from blocking airflow. On the inside, leave two inches clear on all sides so air can reach the intake grille. Electric models need a dedicated 20- or 30-amp circuit depending on their nameplate amps—check the National Electrical Code tables. Weather-seal around the chassis to stop drafts; a bead of high-quality exterior silicone lasts 20 years. For a detailed walk-through, bookmark “PTAC Installation 101: What to Expect and How to Prepare”. Following those basics ensures you hit manufacturer efficiency ratings and avoid call-backs.
Easy Maintenance and Energy-Saving Tips
A clogged filter can add 10 % to your electric bill and make the compressor run hot. Slide the mesh out every month, wash it with mild soap, and let it dry before reinserting. Twice a year, vacuum the evaporator and condenser fins using a soft brush to avoid bending them. Check the condensate drain pan for algae; a teaspoon of bleach in summer keeps slime away. Set the thermostat’s “energy-saver” mode so the fan cycles off with the compressor—this alone can save 15 % in a mild climate. The Furnace Outlet’s PTAC maintenance guide breaks down a five-minute checklist you can post for housekeeping staff.
Need help choosing the right PTAC system for your space?
Get a fast HVAC quote by photo or talk to an expert now.
Frequently Asked Questions
Q1. How big a PTAC do I need for a 350 sq ft room?
A 9,000 BTU model is usually enough, but always confirm with a load-calc chart that considers insulation and window size.
Q2. Are PTACs noisy?
Modern units average 40–50 dB-A on low fan—about the sound of a quiet library.
Q3. Can I install a PTAC myself?
Handy homeowners can, but you must follow local electrical codes and secure a permit where required.
Q4. Do PTACs bring in fresh air?
Many have a vent lever that mixes a small amount of outside air; check the spec sheet to see the CFM rating.
Q5. What’s the life span of a PTAC?
With yearly coil cleaning and monthly filter washes, expect 10–15 years before major parts wear out.
Q6. Can one PTAC heat in sub-zero weather?
Heat-pump models lose capacity below about 20 °F. In very cold regions, choose a unit with electric backup heat or pair it with baseboard heaters.
