Maintenance Tips to Keep Your Daikin 20 Ton System Running Smooth

0 comments

When I installed my Daikin 20 Ton 14.2 IEER2 rooftop unit, I thought the hard part was over after the crane set it on the curb. But here’s the truth: a system that big only performs well if you stay on top of maintenance. I’ve seen too many business owners ignore upkeep, only to face sky-high utility bills or a shutdown in the middle of summer.

This guide shares everything I’ve learned about keeping my Daikin system running like new. Whether you’re managing a retail space, a small warehouse, or an office building, these maintenance practices will extend equipment life, cut costs, and avoid headaches.

🧽 Filter Changes: The First Line of Defense

The air filters in a 20-ton system are like lungs for the building. When they clog, everything else suffers.

Frequency: I replace mine monthly during cooling season and every quarter in mild months.
Filter Types: Standard pleated filters work, but for dusty environments I recommend MERV 8–11 rated filters.
Consequences of neglect: Clogged filters lead to airflow restrictions, higher static pressure, and compressor strain — all of which kill efficiency.

📎 ASHRAE Filter Guidelines

👉 My advice: Always keep a box of replacement filters onsite. You don’t want to delay just because your supplier is out of stock.

🌀 Coil Cleaning: Protecting Efficiency

Your coils are where the magic happens. Dirty coils = wasted energy.

Outdoor Condenser Coil

When: I clean it every spring and fall.
How: Use a soft brush and a coil-safe cleaner. Rinse gently — high-pressure washers bend fins.
Why: Dirt and pollen reduce heat transfer, forcing the compressor to work harder.

Indoor Evaporator Coil

When: Once a year, usually before cooling season.
Check for: Mold growth, biofilm, and clogged fins.
Tools: Fin comb, foaming cleaner, and sometimes a wet/dry vac.

📎 Energy.gov – AC Maintenance Basics

👉 After cleaning my coils last spring, I noticed a 10% drop in energy consumption the very next month.

🛠️ Belt & Motor Inspections

The blower motor and belts are the heartbeat of your unit.

Belts

Check tension: Belts should deflect about ½ inch under moderate pressure.
Replace if cracked or glazed.
Keep spares onsite. When mine snapped once, it took down cooling for the entire building.

Motors & Bearings

Lubricate bearings every 3–6 months.
Listen for noise: A humming or grinding motor usually means worn bearings.
Check amps: Compare motor draw to nameplate rating. Over-amping = trouble.

📎 HVAC School – Belt & Pulley Maintenance

🌬️ Economizer & Damper Maintenance

My Daikin unit came with an economizer. It saves money by pulling in outside air when conditions are right. But here’s the kicker: economizers fail often if you don’t maintain them.

Inspect sensors: Outdoor air sensors drift out of calibration over time.
Check actuators: Dampers should move freely without sticking.
Lubricate moving parts.
Test operation: Make sure the unit switches to economizer mode when outdoor temps are favorable.

📎 ASHRAE 62.1 Ventilation Standards

👉 In my building, a stuck damper once caused humidity issues inside. Now I test it every spring.

🔌 Electrical & Control System Checks

A rooftop unit pulls 460V, 3-phase power. Even a loose wire can cause major problems.

Tighten connections: Vibrations loosen lugs and contacts over time.
Inspect disconnect switch: Ensure it’s free of corrosion.
Test capacitors & contactors.
Check thermostat calibration: A misreading stat can cost you thousands in wasted energy.
Integration with BAS: If you have a building automation system, test that communication is solid.

📎 National Electrical Code (NEC)

👉 Lesson learned: Always power down with proper lockout/tagout. I once saw an untrained tech skip it — nearly ended in disaster.

💧 Drain Lines & Pan Cleaning

Condensate management is an easy-to-forget but critical part of maintenance.

Check for clogs: Algae buildup is common in summer.
Use pan tablets: These help keep slime from forming.
Inspect for leaks: Water damage inside the building is costly.

👉 I had one instance where a clogged drain pan caused water to drip through a ceiling tile — not a good look in front of tenants.

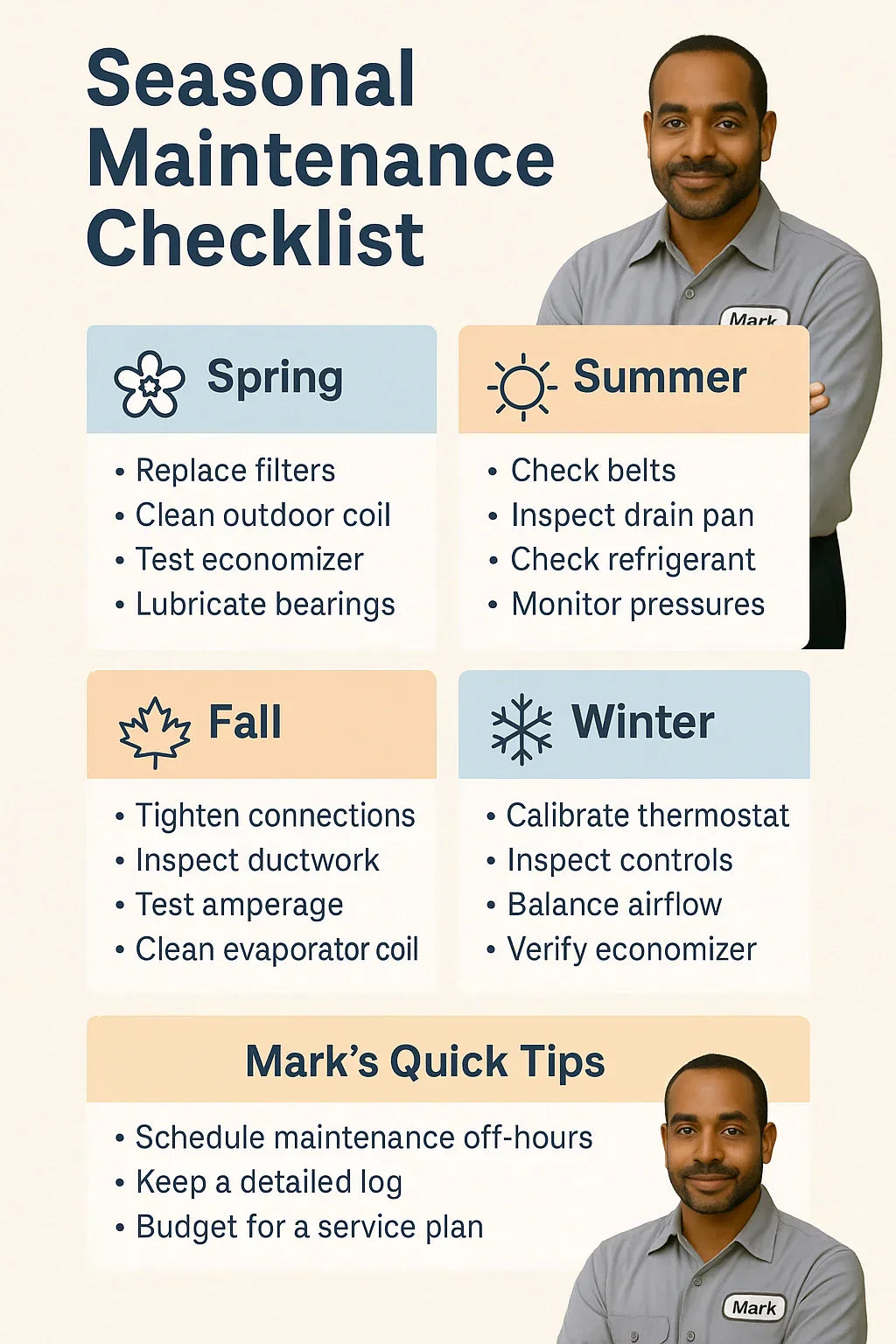

🧾 Seasonal Maintenance Checklist

Here’s the checklist I use for my Daikin 20 Ton system:

🌸 Spring

Replace filters
Clean outdoor coils
Test economizer dampers
Lubricate blower bearings

☀️ Summer

Monthly filter check
Inspect belts & pulleys
Check drain pans for clogs
Monitor refrigerant pressures

🍂 Fall

Tighten electrical connections
Inspect duct insulation
Test motor amperage
Clean indoor evaporator coil

❄️ Winter

Calibrate thermostats
Inspect heat control sequences (if unit has heat kit)
Balance airflow
Verify economizer shut-off

📎 Daikin Comfort Maintenance Recommendations

💡 Mark’s Pro Tips for Smooth Operation

From my own experience, here’s what makes the biggest difference:

Schedule off-hours maintenance. Keeps tenants and staff happy.
Track everything. I log filter changes, coil cleanings, and service visits. Helps with warranty claims.
Budget annually. A quarterly service plan cost me ~$2,500, but prevented a $7,000 emergency repair.
Train your staff. Even basic checks (like noticing a noisy belt) save you downtime.
