🌟 Introduction
Buying a PTAC (Packaged Terminal Air Conditioner) like the Amana Distinctions 9,200 BTU with 5 kW electric heat is only half the journey. The real test of value comes in how well you maintain it.
Just like your car needs oil changes, your PTAC needs regular attention—filters cleaned, coils checked, drainage cleared, and seasonal check-ups performed. Neglecting these basics leads to:
-
Higher energy bills (dirty filters can raise costs by 15% or more)
-
Shorter lifespan (a PTAC that should last 10–12 years may fail in 5–6)
-
Poor indoor air quality (dust, mold, and allergens build up)
-
Unexpected breakdowns during hot summers or cold winters
The good news? Most PTAC maintenance is DIY-friendly. In this guide, I’ll show you step by step how to care for your Amana PTAC—filters, coils, drains, and seasonal prep—so you can keep it running like new.
🧼 Section 1: Why PTAC Maintenance Matters
PTAC units are designed for heavy use—they’re the workhorses of hotels, apartments, and offices. But even the best Amana unit can’t stay efficient if it’s clogged with dust or operating under strain.
💡 Benefits of Routine Maintenance
-
Efficiency Boost – Clean filters and coils ensure the unit cools and heats using less energy. According to the EPA, a clogged filter can reduce efficiency by 5–15%.
-
Lower Utility Bills – A well-maintained PTAC uses less electricity, saving $10–$30 per month depending on usage.
-
Longer Lifespan – Proper care helps Amana PTACs reach their 10–12 year expected service life (EnergyStar.gov).
-
Healthier Air – Filters capture dust, pollen, and dander. Dirty filters = dirty air.
-
Fewer Repairs – Preventing dirt buildup reduces compressor strain, avoiding costly service calls.
👉 Bottom line: A 15-minute filter rinse can save you hundreds of dollars annually.
🌀 Section 2: Filter Care
Filters are the first line of defense in your PTAC. They protect the coils and keep indoor air fresh.
🔍 Where to Find the Filter
-
On Amana PTACs, filters slide out from the front panel—usually behind a grille.
-
Easy to access, no tools required.
🧽 How to Clean the Filter
-
Turn off and unplug the unit.
-
Open the front panel and gently slide out the filter.
-
Vacuum off loose dust with a brush attachment.
-
Rinse with lukewarm water.
-
Shake off excess water and let dry completely.
-
Reinsert filter and close panel.
⚠️ Avoid using soap or harsh chemicals—plain water is best.
⏰ How Often to Clean
-
Monthly during peak seasons (summer cooling, winter heating).
-
Every 2–3 months during lighter use.
🔄 When to Replace
-
If the filter shows holes, tears, or won’t clean up after rinsing.
-
Replacement filters are inexpensive (~$10–$20).
👉 Savvy Tip: Keep a spare filter on hand. Rotate monthly so one is always clean and dry.
❄️ Section 3: Coil Cleaning
PTACs have two main coils:
-
Evaporator coil (inside, cools air)
-
Condenser coil (outside, expels heat)
Dirty coils restrict airflow, causing:
-
Reduced cooling capacity
-
Ice buildup on coils
-
Higher energy consumption
🧽 How to Clean Coils
-
Turn off power and unplug the PTAC.
-
Remove the front panel to access the evaporator coil.
-
Vacuum gently with a soft brush attachment.
-
Spray coil cleaner (available at hardware stores). Let sit, then rinse lightly.
-
For the condenser coil (back of the unit), brush off debris like leaves or dirt.
-
Reassemble and test the unit.
⚠️ Never use high-pressure water—it can bend the delicate coil fins.
⏰ Cleaning Frequency
-
Twice per year: once in spring before cooling season, once in fall before heating season.
-
More often if your space is dusty or near trees/pollen sources.
👉 Savvy Tip: Use a fin comb (cheap tool) to straighten bent coil fins and restore airflow.
💧 Section 4: Drainage & Condensate Care
PTACs naturally produce condensation during cooling. If the drain line or pan clogs:
-
Water may leak indoors.
-
Mold or mildew may grow.
-
Unit efficiency drops.
🧽 Drain Maintenance Steps
-
Remove the PTAC chassis from its wall sleeve.
-
Locate the condensate pan at the bottom.
-
Clean with mild soap and water.
-
Check for blockages in the drain line.
-
Use a wet/dry vacuum or pipe cleaner to clear obstructions.
⏰ How Often
-
Check drainage every spring and summer.
-
Inspect after heavy storms to ensure no backflow issues.
👉 Savvy Tip: If you notice a musty smell, it’s usually a clogged drain pan or mold growth. Clean ASAP.
🍂 Section 5: Seasonal Maintenance Checklist
🌸 Spring
-
Deep clean filters & coils.
-
Inspect wall sleeve and exterior grille.
-
Test cooling mode.
☀️ Summer
-
Monthly filter checks.
-
Monitor condensation drainage.
-
Keep outdoor grille clear of plants and debris.
🍁 Fall
-
Clean or replace filters.
-
Inspect heating element (5 kW kit).
-
Test heating mode.
❄️ Winter
-
Deep clean filters and coils.
-
If unused, cover the exterior grille to reduce drafts.
-
Run occasional test cycles to keep system lubricated.
👉 Savvy Tip: Print this checklist and tape it near your PTAC for quick reminders.
👩🔧 Section 6: DIY vs. Professional Servicing
✅ DIY Tasks
-
Filter cleaning
-
Basic coil vacuuming
-
Drain pan inspection
🔧 Pro-Recommended Tasks
-
Annual deep coil cleaning
-
Electrical inspections (especially with 5 kW heater)
-
Refrigerant checks
Typical pro servicing costs $100–$200 annually—worth it for peace of mind.
👉 Savvy Tip: Schedule pro service in spring, before the busy cooling season.
💡 Section 7: Savvy’s Quick Maintenance Tips
-
Don’t block vents – Keep furniture/drapes away from airflow.
-
Steady thermostat settings – Avoid drastic swings for efficiency.
-
Use surge protection – PTACs are sensitive to power surges.
-
Seal the wall sleeve – Prevents drafts, pests, and wasted energy
-
Register your unit – Amana offers warranty protection if registered properly.

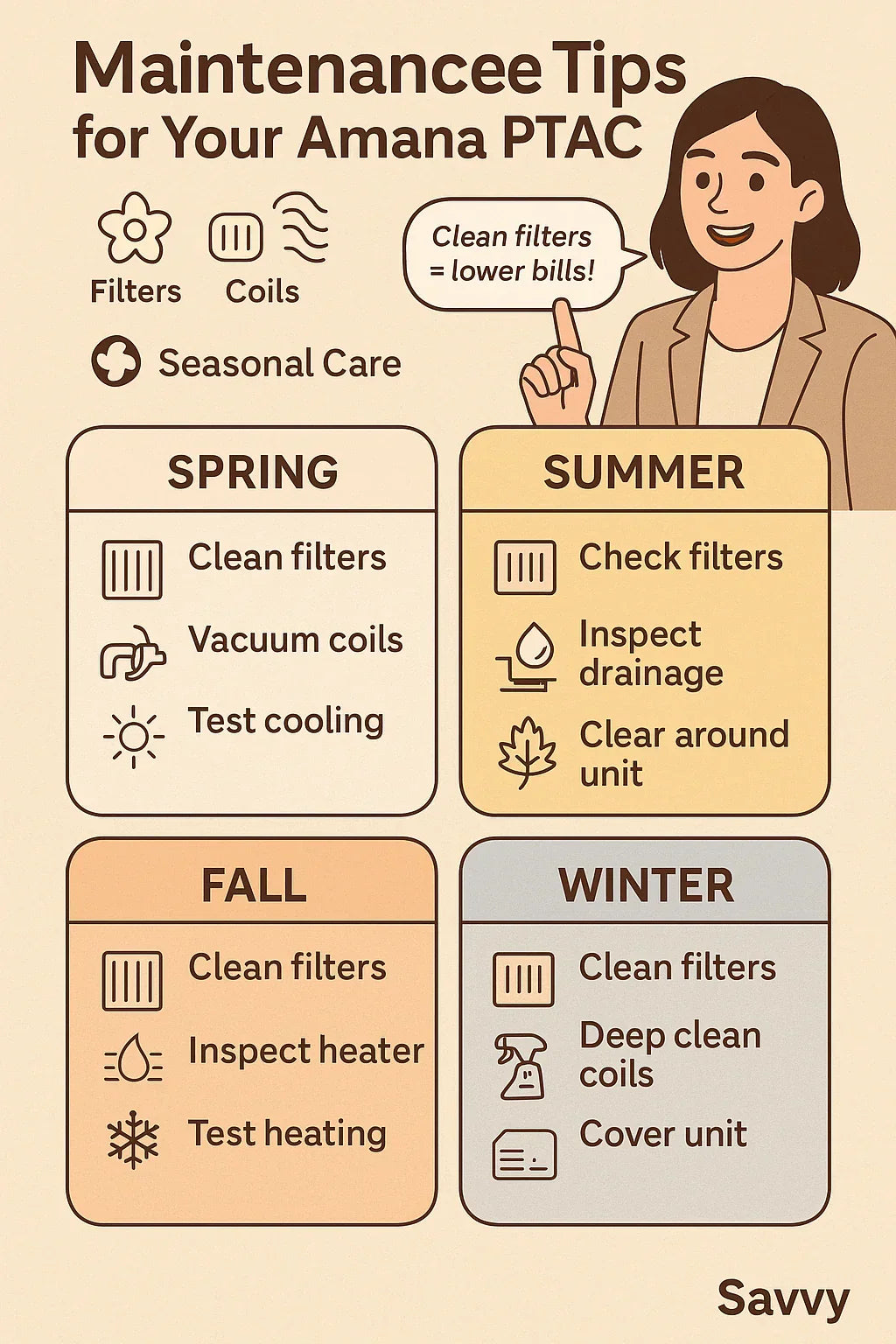

🎨 Infographic Concept
Seasonal Maintenance Checklist
-
4 panels: Spring, Summer, Fall, Winter
-
Each panel with icons (filter, coil, drainage, heater test).
-
Savvy character with a reminder: “Clean filters = lower bills!”
🌟 Conclusion
Maintaining your Amana PTAC isn’t complicated—it’s about consistency.
-
Filters: Clean monthly in peak season.
-
Coils: Clean twice a year.
-
Drainage: Check seasonally.
-
Professional tune-up: Once a year.
With these simple steps, you’ll enjoy:
-
Lower energy bills
-
Healthier indoor air
-
Longer equipment life
Savvy’s advice: Don’t wait until your PTAC fails in July or January. Treat maintenance as part of your routine—like paying the electric bill—and your Amana will reward you with years of reliable comfort.
In the next topic we will know more about: Troubleshooting Guide: What to Do If Your PTAC Isn’t Heating or Cooling Properly
